Produkteinführung

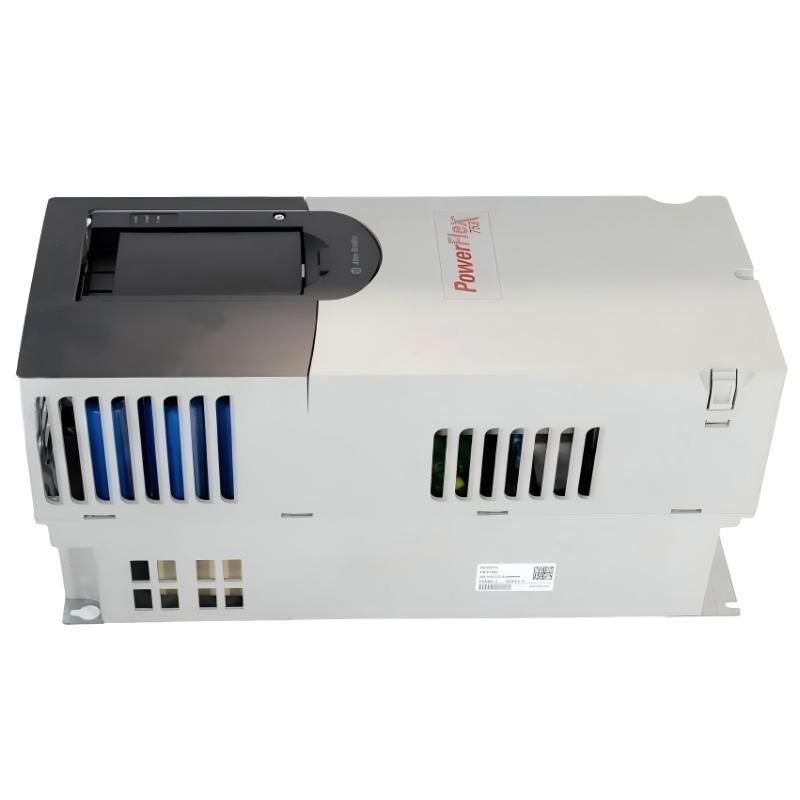

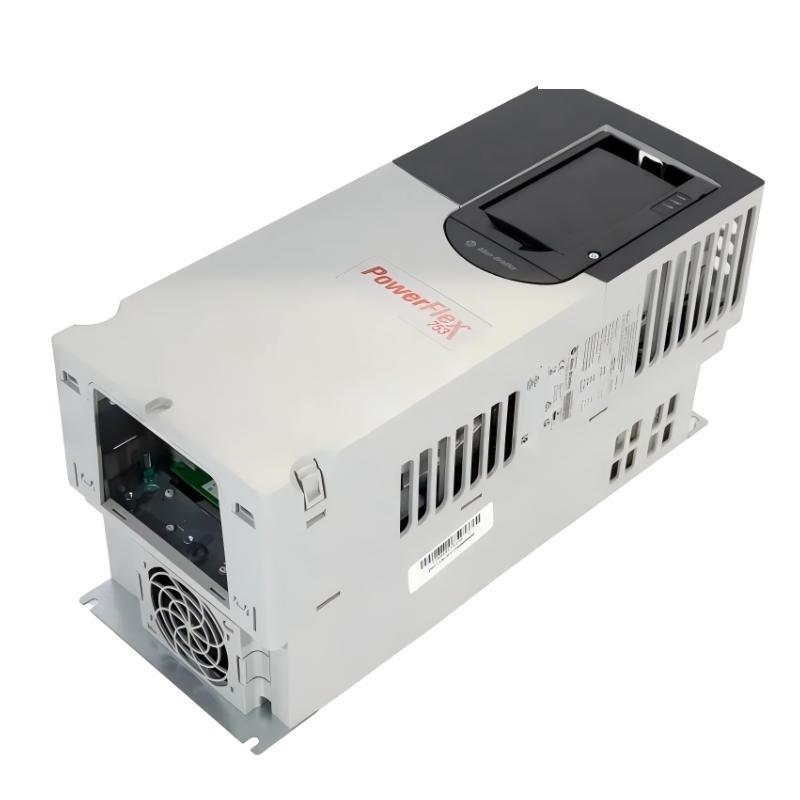

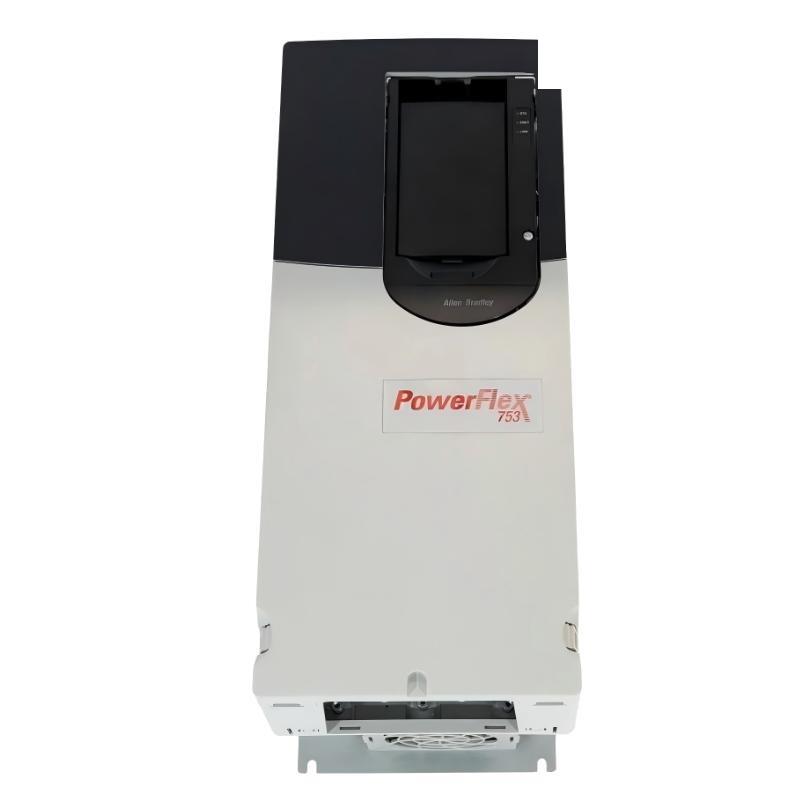

The Allen-Bradley 20F11NC037JA0NNNNN PowerFlex 753 AC Drive is a high-performance AC drive engineered for demanding industrial motor control applications. As part von the advanced PowerFlex 753 platform from Rockwell Automation, this model vonfers a balance von power, flexibility, and scalability.
Designed for 400 VAC input systems, the drive supports both AC and DC bus operation (540 VDC), making it adaptable to various industrial configurations. With a rated output von 18.5 kW (25 HP) and 37 A, it is well-suited for medium to heavy-duty applications requiring consistent torque and reliable speed control.
The Stück features an air-cooled, open-type design with integrated filtering and precharge functionality, ensuring safe startup and reduced electrical stress. Although it does not include a HIM (Human Interface Module), it can be easily configured via external interfaces or network communication modules.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | 20F11NC037JA0NNNNN |
| Series | PowerFlex 753 |
| Cooling Method | Air Cooled |
| Input Type | AC Input with Precharge |
| Input Voltage | 400 VAC / 540 VDC |
| Power Rating | 18.5 kW / 25 HP |
| Output Current | 37 A |
| Enclosure Type | Open Type |
| Protection Level | IP20 / IP00 |
| Filtering | Integrated Filtering |
| Internal Components | Internal Transistor |
| Jumper | Installed |
| Operator Interface | No HIM |
| Control Capability | Advanced Motor Control |
| Mounting Type | Panel Mount |
| Dimensions | 454 × 190 × 212 mm |
| Gewicht | 11.8 kg |
Applications
• Conveyor and Material Handling Systems – Provides stable speed control and smooth load handling in automated logistics systems.
• Pumps and Compressors – Ensures energy-efficient operation by adjusting motor speed according to demand.
• Industrial Fans and Blowers – Delivers reliable airflow control with optimized energy usage.
• Mixers and Processing Equipment – Maintains consistent torque output for uniform processing results.
• General Manufacturing Equipment – Suitable for a wide range von machinery requiring robust and flexible motor control.
Advantages
• High Power Capability – Supports 18.5 kW output, making it suitable for medium-duty industrial applications.
• Flexible Power Input Design – Operates with both AC input and DC bus (540 VDC), increasing system adaptability.
• Integrated Precharge Function – Reduces inrush current and protects internal components during startup.
• Efficient Cooling System – Air-cooled design ensures reliable thermal management in continuous operation.
• Built-in Filtering – Improves electromagnetic compatibility and reduces external interference.
• Modular Configuration – Absence von HIM allows customized interface selection based on system requirements.
• Reliable Industrial Performance – Designed for long-term operation with consistent output and minimal downtime.
