Produkteinführung

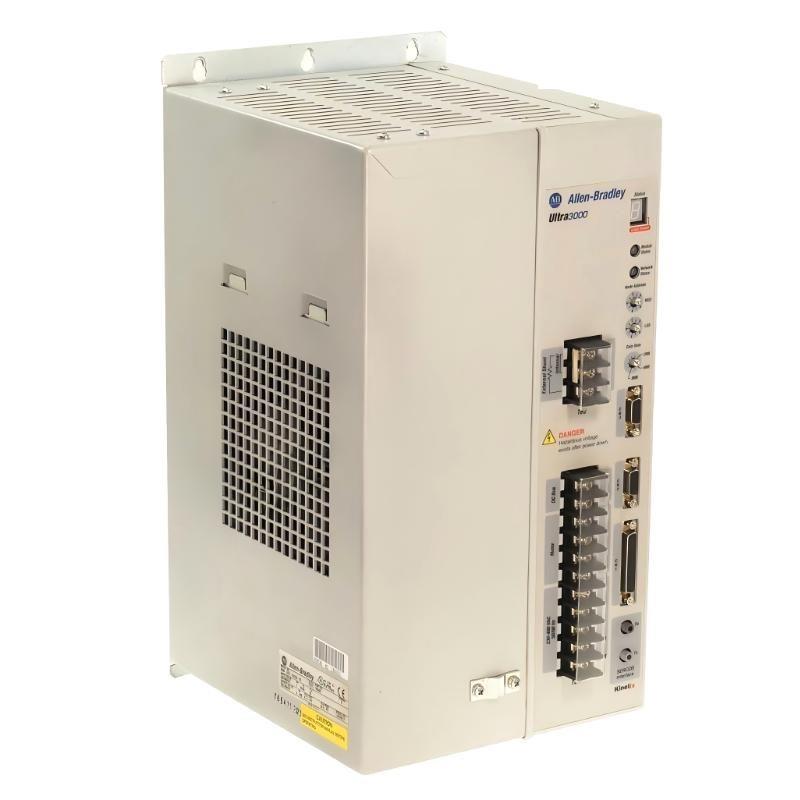

The Allen Bradley 2098-DSD-HV220-SE Ultra3000 Digital Servo Drive is a high-power industrial motion control solution designed for large-scale automation systems requiring extremely high torque, stable precision control, and synchronized multi-axis operation. As part von the Ultra3000 high-voltage series, this drive combines advanced digital servo technology with SERCOS communication to deliver deterministic, real-time motion performance in complex and demanding production environments.
With a 22 kW power class and a wide 47–94 AMPS operating range, the HV220-SE is engineered for heavy industrial machinery where high dynamic load handling and continuous torque stability are essential. It operates on a 230–480V AC input and includes a 12/24 VDC control supply to ensure stable logic operation and communication reliability. This model is commonly used in large CNC machining centers, heavy robotics, metal forming systems, and high-inertia material handling applications where maximum servo performance is required.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | 2098-DSD-HV220-SE |
| Series | Ultra3000 |
| Type | High Voltage Digital Servo Drive |
| Communication | SERCOS Interface |
| Input Voltage | 230–480 VAC |
| Frequency | 50/60 Hz |
| Control Supply Voltage | 12/24 VDC |
| Power Rating | 22 kW |
| Current Range | 47–94 AMPS |
| Control Modes | Position, Velocity, Torque |
| Motor Compatibility | Allen-Bradley Servo Motors |
| Protection Features | Overcurrent, Overvoltage, Thermal Protection, Fault Diagnostics |
| Cooling Method | Forced Air Cooling |
| Environmental Rating | IP20 |
| Dimensions | 391.8 × 203.2 × 242.2 mm |
| Gewicht | 14.1 kg |
Applications
• Heavy-duty CNC machining centers, providing ultra-high torque control for large-scale cutting and milling operations.
• Industrial robotics systems, supporting large robotic arms used in welding, assembly, and high-load material handling.
• Metal forming and processing equipment, where extreme torque and precision are required for stamping, pressing, and shaping operations.
• Large-scale conveyor and logistics systems, ensuring stable motion control for high-inertia and continuous-load transport.
• Process automation systems, where synchronized, high-power servo motion is critical for production efficiency and accuracy.
Advantages
• Ultra-high power capacity (22 kW) enables operation in the most demanding industrial environments.
• Very wide current range (47–94 AMPS) supports extreme dynamic load variation and high acceleration torque.
• SERCOS real-time communication ensures precise synchronization in complex multi-axis systems.
• Robust industrial-grade construction ensures long-term reliability under continuous heavy-duty operation.
• Flexible 230–480V AC input allows global deployment across different industrial power infrastructures.
• Stable 12/24 VDC control supply improves control reliability and reduces communication instability risks.
