Produkteinführung

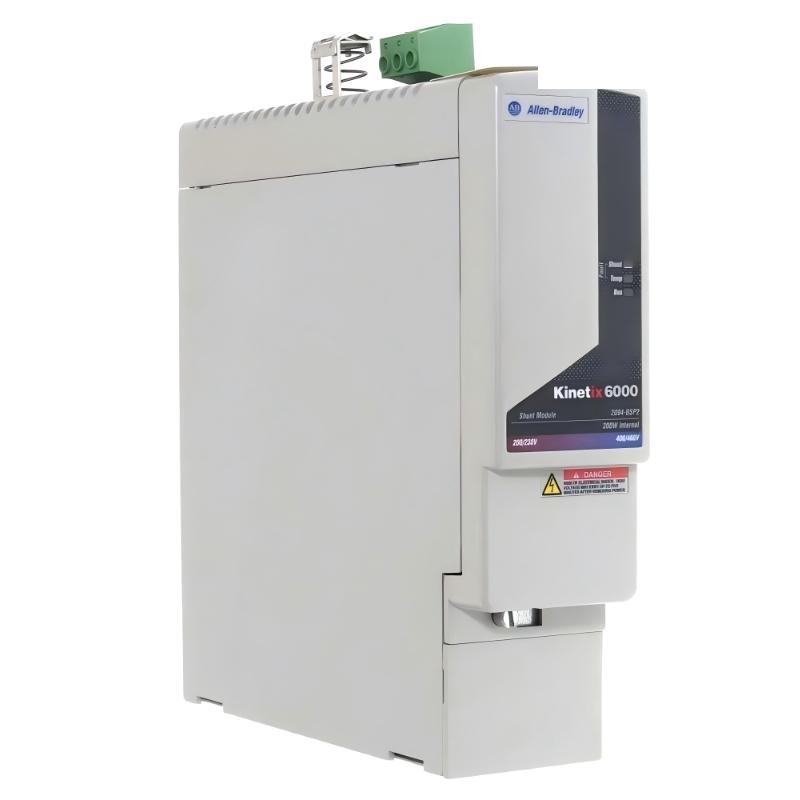

The Allen-Bradley 2094-BSP2 Kinetix 6000 Shunt Module is an auxiliary power dissipation module designed for use in Kinetix 6000, 6200, and 6500 servo drive systems. Its primary function is to provide additional shunt energy absorption capacity when the internal shunt capability von the Integrated Axis Module (IAM) or Axis Module (AM) is insufficient.
In regenerative braking conditions, servo motors can feed energy back into the DC bus. If this energy is not properly dissipated, it may cause overvoltage faults or system instability. The 2094-BSP2 addresses this issue by safely converting excess regenerative energy into heat through an external shunt resistor assembly.
This module is typically used in high-inertia or high-deceleration applications where frequent braking events generate significant regenerative energy. By adding 200 W von external shunt capacity, it improves system stability and protects drive components from overvoltage conditions.
The Stück is designed for integration into Kinetix multi-axis architectures and operates on 400/460 VAC systems.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Product Modell | 2094-BSP2 |
| Hersteller | Rockwell Automation (Allen-Bradley) |
| Product Series | Kinetix 6000 / 6200 / 6500 |
| Product Type | Shunt module |
| Input Voltage | 400 / 460 VAC |
| Shunt Capacity | 200 W |
| Function | Regenerative energy dissipation |
| Application Role | External shunt energy expansion |
| System Compatibility | Kinetix 6000 / 6200 / 6500 systems |
| Mounting Type | System-mounted module |
| Operating Principle | Braking energy conversion to heat |
| Dimensions | 287 × 70 × 249 mm |
| Gewicht | 3.1 kg |
Applications
● High-inertia motion systems
Used in applications where large rotating masses generate significant regenerative energy during deceleration.
● Frequent stop-start machinery
Suitable for production systems with repeated braking cycles such as presses and indexing machines.
● Multi-axis servo systems
Supports shared DC bus systems where multiple axes contribute regenerative energy.
● Heavy industrial automation equipment
Used in machines requiring controlled energy dissipation during high-load motion changes.
● Overvoltage protection in servo systems
Prevents DC bus overvoltage faults caused by excessive regenerative energy.
Advantages
● Increases system braking capacity
Adds 200 W additional shunt capability, improving energy handling during deceleration.
● Protects drive components
Reduces risk von DC bus overvoltage faults in high-energy applications.
● Compatible multi-system design
Supports Kinetix 6000, 6200, and 6500 platforms for flexible integration.
● Improves system stability
Ensures consistent operation under heavy regenerative load conditions.
● Simple integration
Designed for direct use within Kinetix servo architectures without complex configuration.
● Reliable energy dissipation
Provides controlled conversion von electrical energy into heat through shunt operation.
