Produkteinführung

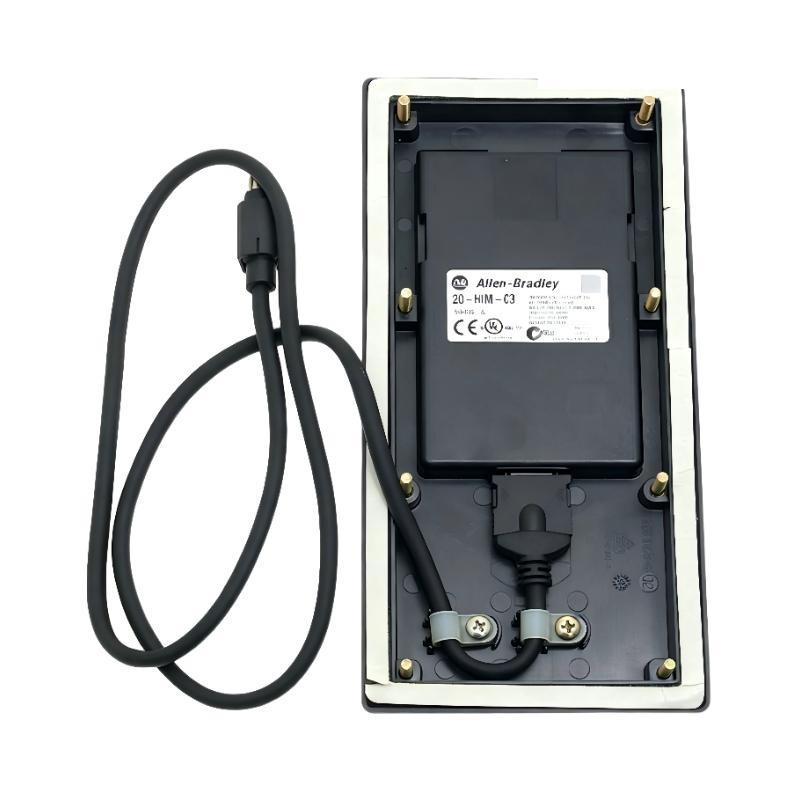

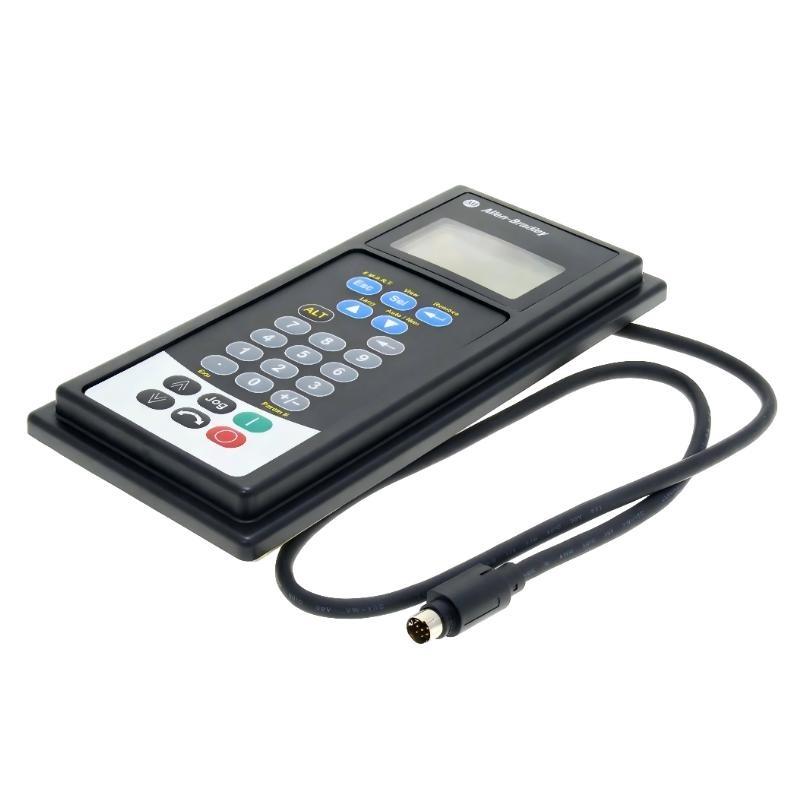

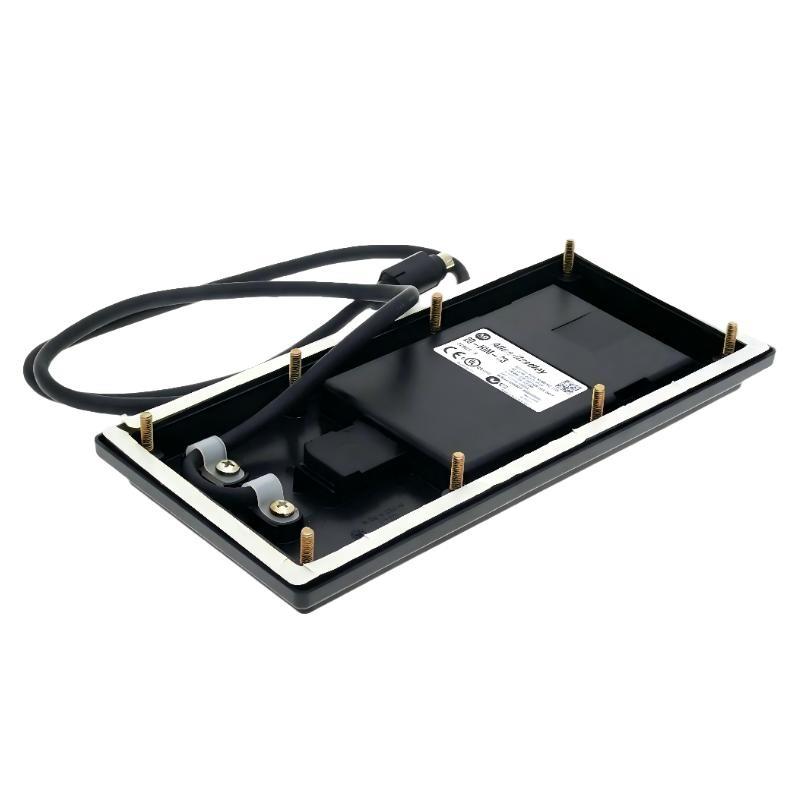

The Allen-Bradley 20-HIM-C3 PowerFlex Human Interface Module is a remote-mounted operator interface designed for PowerFlex drive systems. It provides a full-featured LCD display combined with a numeric keypad, enabling users to configure, monitor, and control drive operations directly from a control panel or cabinet door.
This module is specifically designed for remote installation, allowing operators to interact with the drive without direct access to the drive hardware. It enhances operational convenience and safety by placing the interface at an accessible location on the machine or enclosure.
With a robust enclosure rated at NEMA 4X/12 and IP66, the 20-HIM-C3 is suitable for harsh industrial environments, including areas exposed to dust, moisture, and washdown conditions. Its durable design and intuitive interface make it a reliable solution for both commissioning and ongoing system operation.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Product Modell | 20-HIM-C3 |
| Hersteller | Rockwell Automation (Allen-Bradley) |
| Product Type | Human Interface Module (HIM) |
| Display Type | LCD display |
| Keypad Type | Full numeric keypad |
| Mounting Type | Panel / door-mounted |
| Protection Rating | IP66 |
| Enclosure Type | NEMA 4X / 12 |
| Function | Drive configuration, monitoring, control |
| Application Role | Remote operator interface |
| Compatibility | PowerFlex drive systems |
| Dimensions | 180 × 25 × 93 mm |
| Gewicht | 0.173 kg |
Applications
● Industrial drive control panels
Provides a remote operator interface for PowerFlex drives mounted inside cabinets.
● Harsh environment installations
Suitable for environments requiring IP66 and NEMA 4X/12 protection, including dust and moisture exposure.
● Machine operation and monitoring
Allows operators to view parameters and adjust settings during machine operation.
● System commissioning and diagnostics
Used during setup and troubleshooting for quick access to drive parameters and status.
● Remote drive access applications
Enables interaction with drives located in restricted or enclosed areas.
Advantages
● Full-featured operator interface
Includes a clear LCD display and full numeric keypad for easy parameter entry and monitoring.
● Remote mounting capability
Allows installation on cabinet doors, improving accessibility and operator safety.
● High environmental protection
Rated IP66 and NEMA 4X/12, suitable for harsh industrial conditions.
● Improved operational efficiency
Enables quick access to drive data and settings without opening the enclosure.
● Robust industrial design
Built to withstand demanding environments including dust, moisture, and vibration.
● Easy integration with PowerFlex drives
Designed specifically for seamless compatibility with PowerFlex systems.
