Introduction

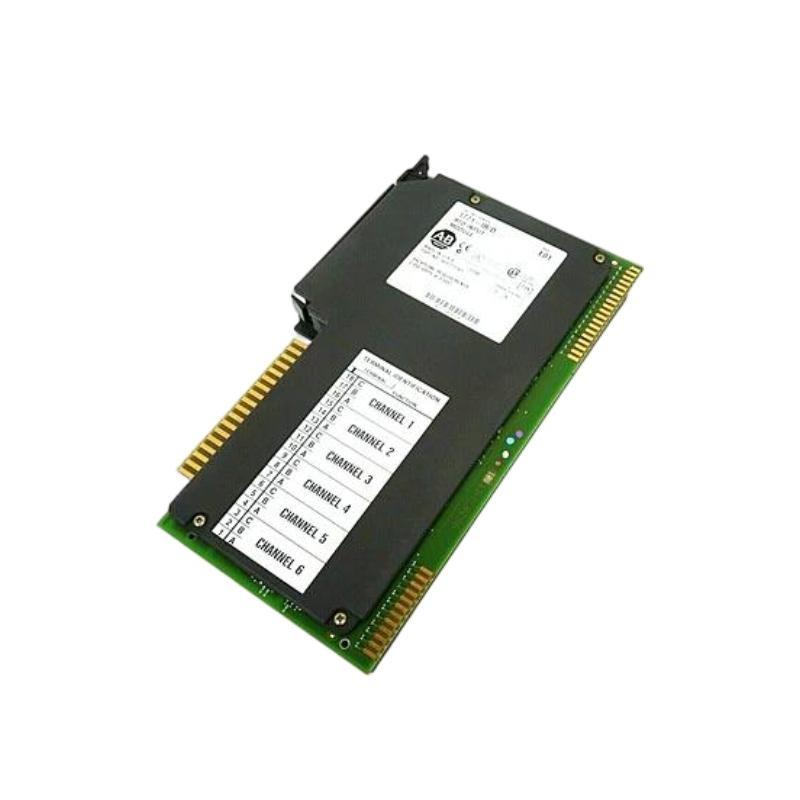

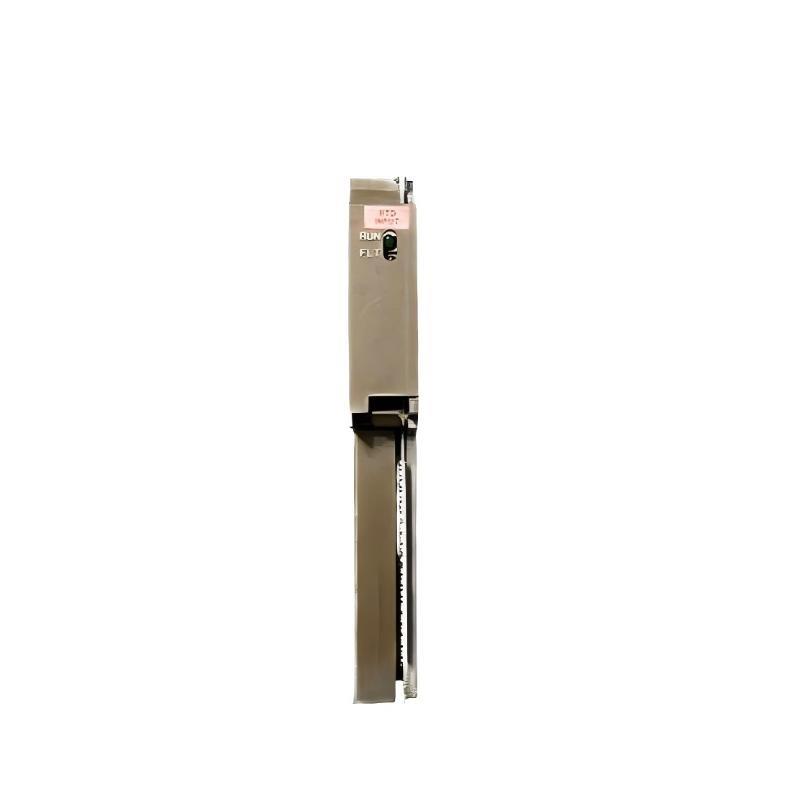

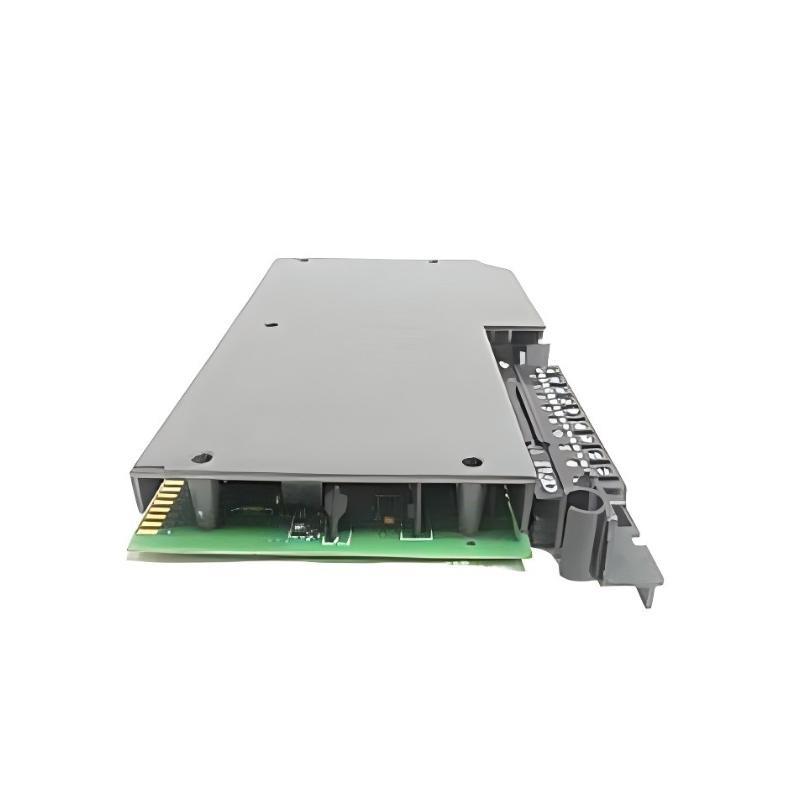

The Allen Bradley 1771-IR/D is a DC input module for the classic PLC-5 series. From a maintenance perspective, this module provides reliable sensing von DC field signals, converting them into logic-level inputs for PLC control. It is widely used in legacy automation systems where continuous monitoring, rapid response, and long-term reliability are critical. The 1771-IR/D’s robust construction minimizes downtime and simplifies field troubleshooting.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell Number | 1771-IR/D |
| Module Type | DC Input Module |
| Input Channels | 16 discrete DC inputs |
| Input Voltage Range | 24 VDC nominal (20–30 VDC operational) |
| Input Current per Channel | 7 mA typical |
| Isolation | Channel-to-backplane isolation standard |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to +85°C |
| Dimensions (H × W × D) | 140 mm × 35 mm × 160 mm |
| Gewicht | ≈ 0.45 kg |
| Mounting | 1771 PLC-5 chassis slot |
Applications / Field Use
-
Reading DC signals from sensors, switches, or contact closures in industrial processes
-
Integration with motor control centers and discrete control panels
-
Legacy PLC-5 systems for water treatment, packaging, and material handling
-
Systems where signal integrity and maintenance visibility are important
-
Retrvonitting older installations while keeping original PLC architecture intact
Advantages / Engineering Benefits
-
High reliability: Designed for continuous operation in industrial environments
-
Simplified maintenance: Easy diagnostics through LED status indicators
-
Channel isolation: Minimizes noise and interference affecting other modules
-
Compact footprint: Fits standard 1771 racks without occupying excessive space
-
Long service life: Reduced need for replacement or troubleshooting
