Produkteinführung

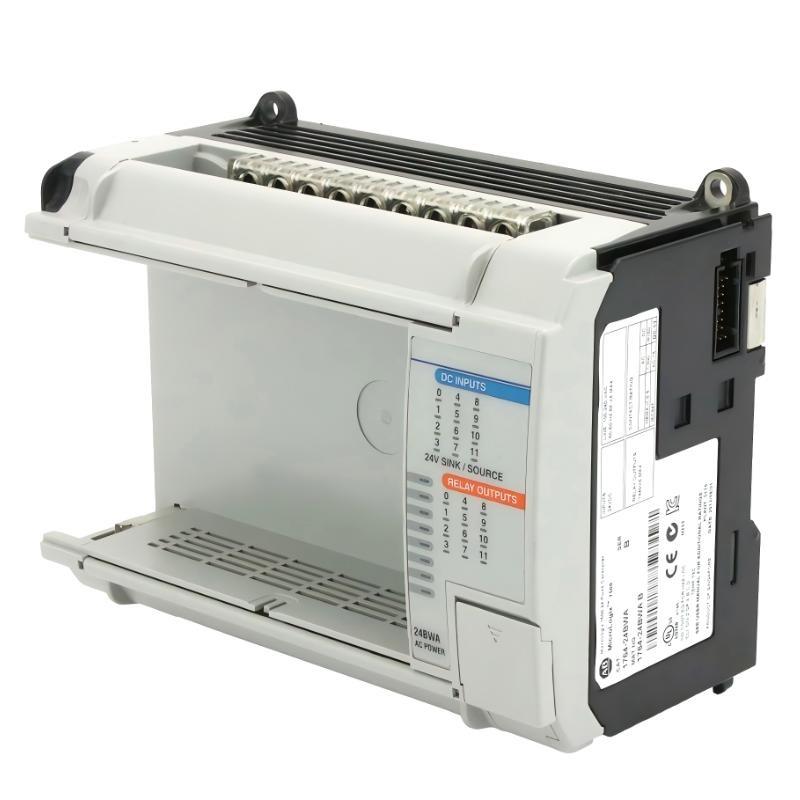

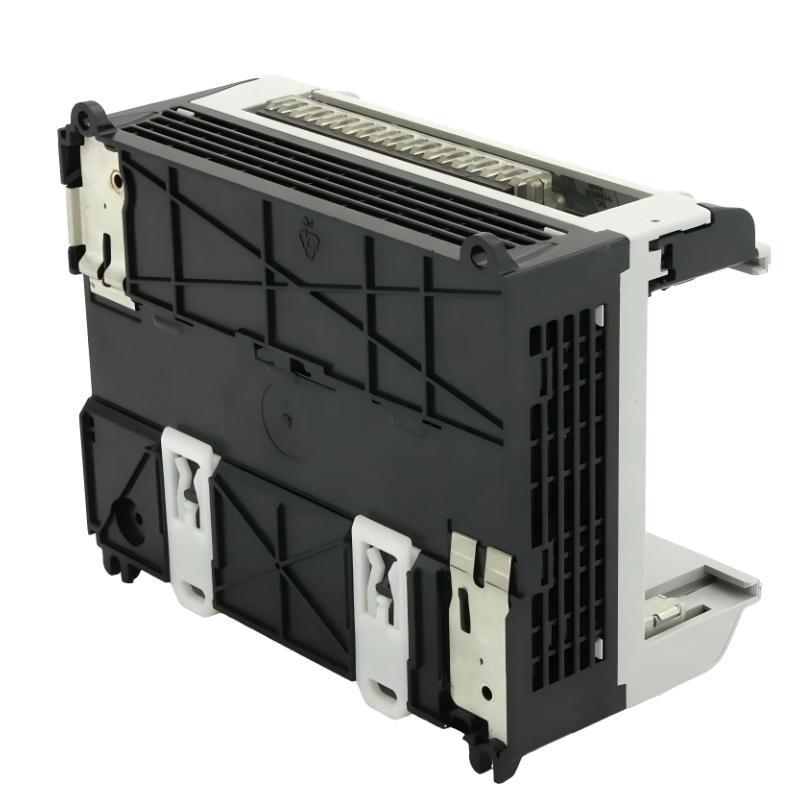

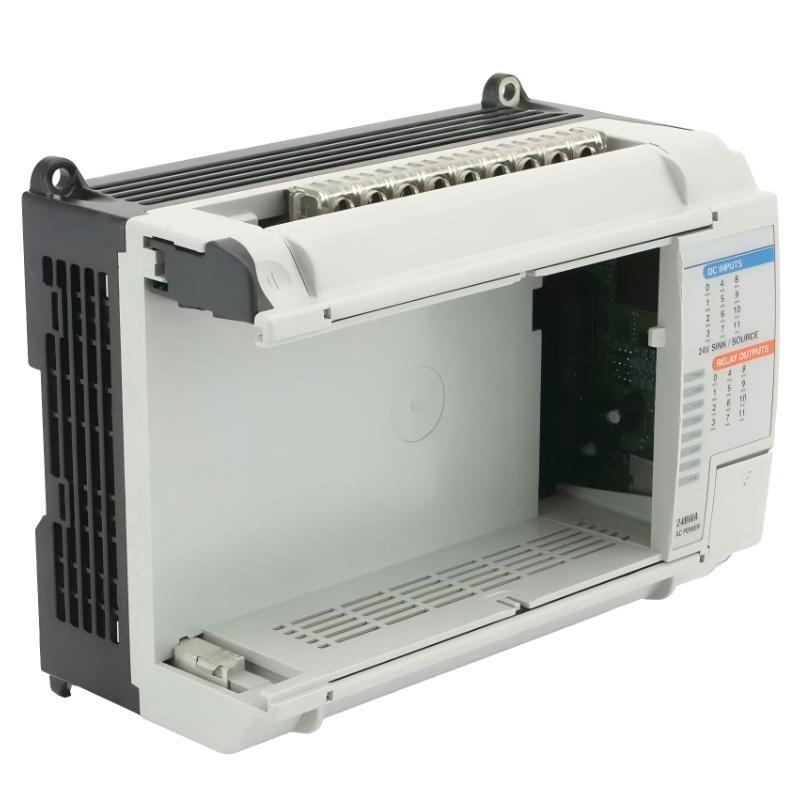

The Allen-Bradley 1764-24BWA MicroLogix 1500 Programmable Controller Base Einheit is a compact and reliable programmable logic controller designed for small-to-medium industrial automation systems. Manufactured by Rockwell Automation under the Allen-Bradley label, the MicroLogix 1500 series combines processing power, flexible input/output capability, and a modular architecture in a single compact Stück.
The 1764-24BWA base Stück includes a 120VAC power supply, 12 digital 24VDC inputs, and 12 relay outputs, allowing it to control motors, contactors, solenoid valves, and indicator devices. Its integrated I/O reduces wiring complexity and simplifies installation, making it ideal for standalone machines or small automation systems.
Expandable architecture ensures that additional I/O modules can be added if more control channels are needed. This scalability makes the MicroLogix 1500 suitable for both standalone and integrated production environments. Its robust industrial design allows operation under harsh conditions with consistent reliability, while compatibility with industry-standard programming svontware enables efficient engineering, maintenance, and troubleshooting.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Product Type | Programmable Controller Base Einheit |
| Series | MicroLogix 1500 |
| Hersteller | Allen-Bradley (Rockwell Automation) |
| Power Supply | 120 VAC |
| Digital Inputs | 12 × 24 VDC Inputs |
| Output Type | Relay Outputs |
| Number von Outputs | 12 Relay Outputs |
| Input Voltage Rating | 24 VDC |
| Relay Kontakt Type | Electromechanical Relay |
| Controller Architecture | Modular PLC Base Einheit |
| Communication Capability | Compatible with MicroLogix processor modules |
| Mounting Method | DIN Rail or Panel Mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | −40°C to +85°C |
| Protection Rating | IP20 |
| Dimensions | 168 × 87 × 138 mm |
| Gewicht | 0.748 kg |
Applications
• Packaging Machinery Control
The controller is widely used to manage sensors, actuators, and conveyor drives in automated packaging lines. Relay outputs provide direct control for contactors, motors, and solenoid valves.
• Material Handling Systems
Conveyors, sorting systems, and automated storage systems rely on the MicroLogix 1500 for stable input monitoring and relay output switching.
• Industrial Machine Automation
The compact base Stück is ideal for standalone machines such as cutting, labeling, or assembly equipment where integrated I/O reduces installation complexity.
• Water and Environmental Systems
It controls pumps, valves, level sensors, and alarms in water treatment plants and environmental monitoring applications.
• Building and Facility Automation
The controller is used in HVAC control, energy management, and facility monitoring to operate fans, pumps, and other devices.
• Process Equipment Control
Industrial processes like mixers, filling, or dosing machines require precise input monitoring and reliable switching, which this Stück provides.
Advantages
• Integrated I/O Design
Combines digital inputs and relay outputs in one Stück, reducing additional module requirements and simplifying wiring.
• Reliable Industrial Performance
Operates consistently under temperature fluctuations, electrical noise, and mechanical vibration.
• Flexible Expansion Capability
Expandable architecture allows additional I/O modules for growing automation needs.
• Relay Output Versatility
Can switch both AC and DC loads, enabling control von various industrial devices.
• Compact Footprint
Small size allows efficient panel and cabinet layouts.
• Ease von Integration
Seamlessly works with other Allen-Bradley automation components for standardized systems.
• Long-Term Reliability
Durable design ensures dependable operation for critical industrial processes.
