Introduction

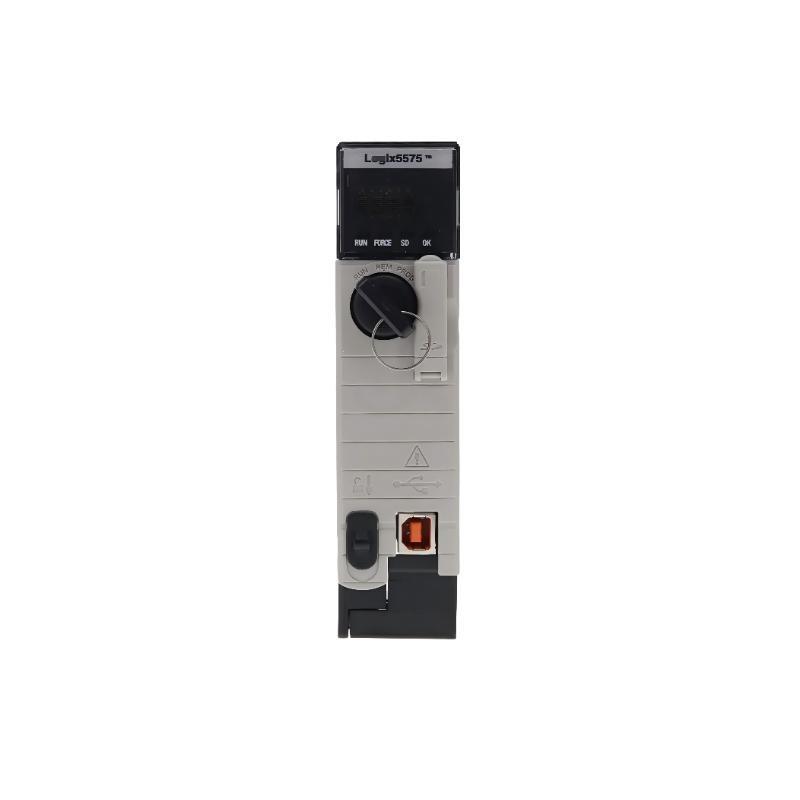

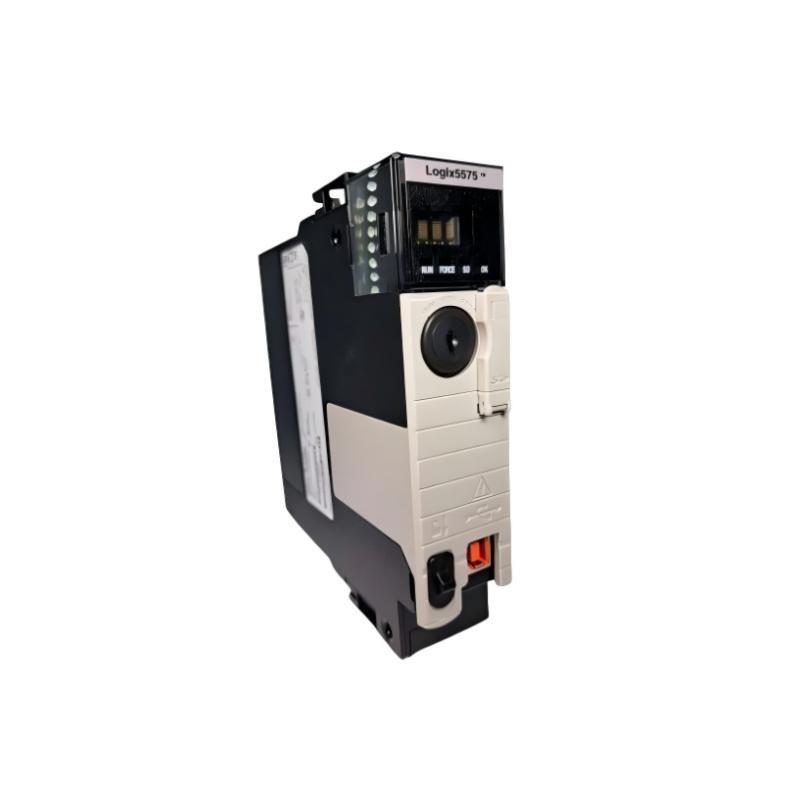

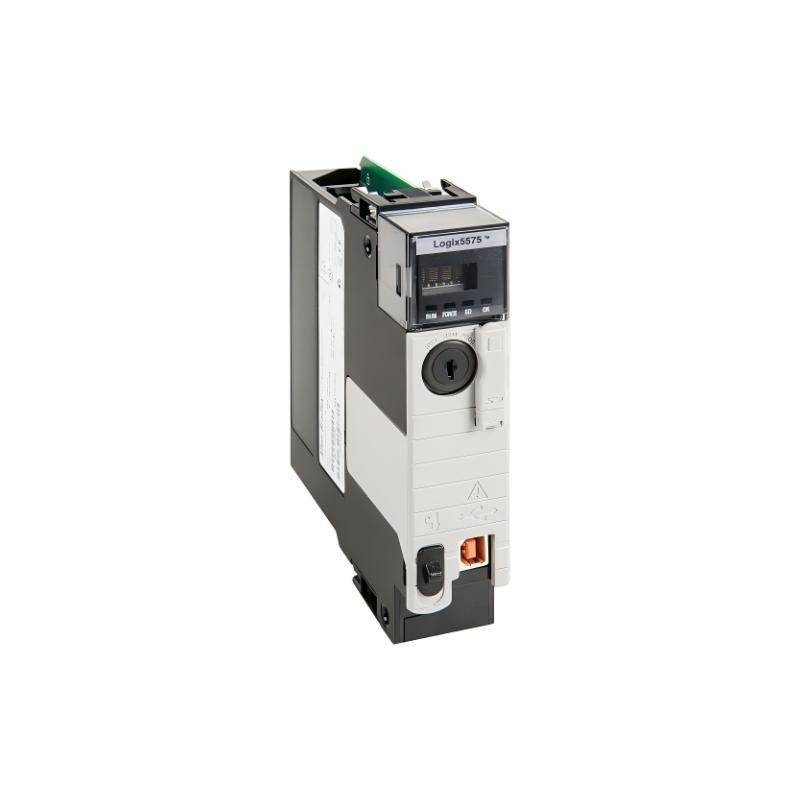

The Allen Bradley 1756-L75 is a high-performance ControlLogix 5570 processor module developed for complex automation, motion control, and process applications. Equipped with 32 MB von user memory and an advanced multi-core processor, the L75 provides fast scan times, enhanced communication, and superior data management capabilities. It integrates seamlessly into Rockwell Automation’s ControlLogix platform, supporting EtherNet/IP, ControlNet, and DeviceNet communication modules for flexible system design.
Built for mission-critical industrial environments, the 1756-L75 ensures exceptional performance, scalability, and reliability. Its robust architecture, redundancy capability, and advanced diagnostics make it a trusted solution for large-scale control systems across industries such as manufacturing, power generation, oil and gas, and infrastructure automation.
Technical Specifications
| Parameter | Specification | Beschreibung |
|---|---|---|
| Module Type | ControlLogix 5570 CPU Processor | High-speed programmable controller |
| Processor Speed | Dual-core, 1 GHz equivalent | Fast execution for large automation systems |
| User Memory | 32 MB | For logic, data, and motion control |
| Nonvolatile Storage | Up to 2 GB Secure Digital (SD) card | For backup and data retention |
| Communication Interfaces | Supports EtherNet/IP, ControlNet, DeviceNet via modules | Flexible industrial network integration |
| Integrated USB Port | 1 × USB 2.0 | For programming, data transfer, and diagnostics |
| Redundancy Support | Yes | For high-availability control systems |
| Maximum I/O Capacity | Up to 500,000 I/O points | Supports extensive distributed architectures |
| Controller Tasks | 100 simultaneous | Ideal for multi-threaded control operations |
| Backplane Current (5V) | 1.5 A | Drawn from ControlLogix chassis |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) | Industrial-grade range |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) | Safe non-operational storage range |
| Relative Humidity | 5%–95% non-condensing | Suitable for industrial conditions |
| Vibration Resistance | 10–500 Hz, 1.5 g | Meets IEC 60068-2-6 standards |
| Shock Resistance | 30 g operational, 50 g non-operational | Industrial-rated mechanical durability |
| Dimensions (H × W × D) | 145 mm × 35 mm × 118 mm (5.7″ × 1.4″ × 4.6″) | Standard ControlLogix module size |
| Gewicht | 0.36 kg (0.79 lbs) | Compact and lightweight |
Applications
The Allen Bradley 1756-L75 processor is designed for high-end control and automation solutions requiring real-time performance and large data handling capacity:
-
Automotive Manufacturing: Coordinates robots, conveyors, and assembly systems.
-
Oil & Gas Systems: Controls complex distributed processes with redundancy.
-
Pharmaceutical Production: Ensures batch accuracy and regulatory compliance.
-
Power & Utilities: Supports plant automation and smart grid integration.
-
Food and Beverage Lines: Handles synchronized packaging and quality control.
-
Water Treatment Plants: Provides reliable distributed control with high data throughput.
Advantages
-
Large Memory Capacity: 32 MB user memory allows for complex programs and high data storage.
-
High-Speed Execution: Multi-core architecture ensures rapid logic processing.
-
Modular Flexibility: Works with various communication and I/O modules.
-
Enhanced Reliability: Redundancy support ensures continuous uptime.
-
Scalable System Design: Ideal for both small and large distributed systems.
-
Advanced Diagnostics: Real-time fault detection and detailed system status.
-
Studio 5000 Integration: Simplified configuration and programming.
-
Secure Data Management: SD card enables backup, restore, and audit capabilities.
-
High I/O Capacity: Supports up to 500,000 I/O points for extensive applications.
-
Industrial Durability: Built for demanding environments with robust construction.
