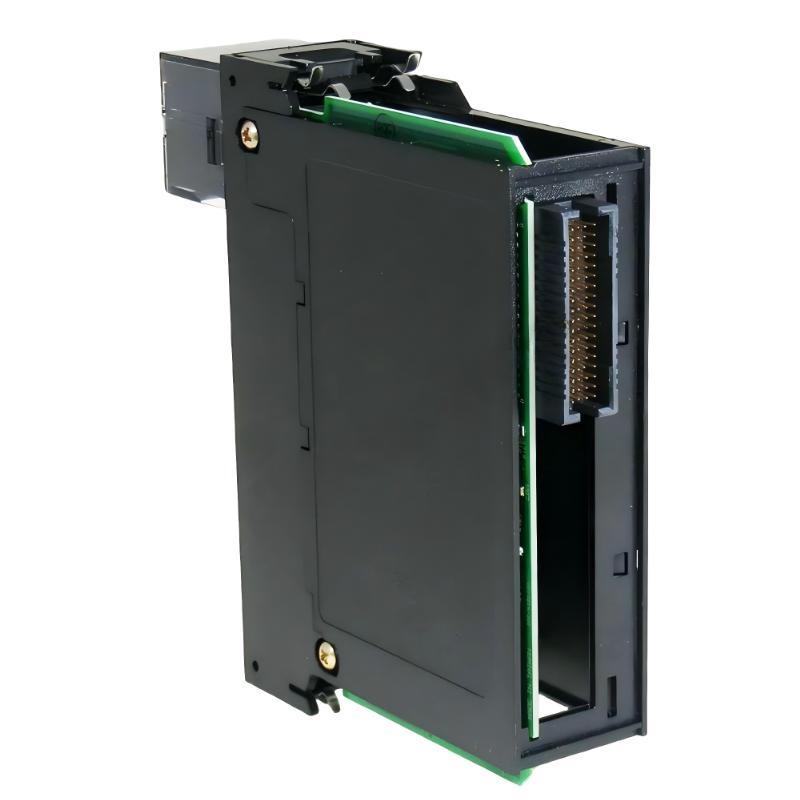

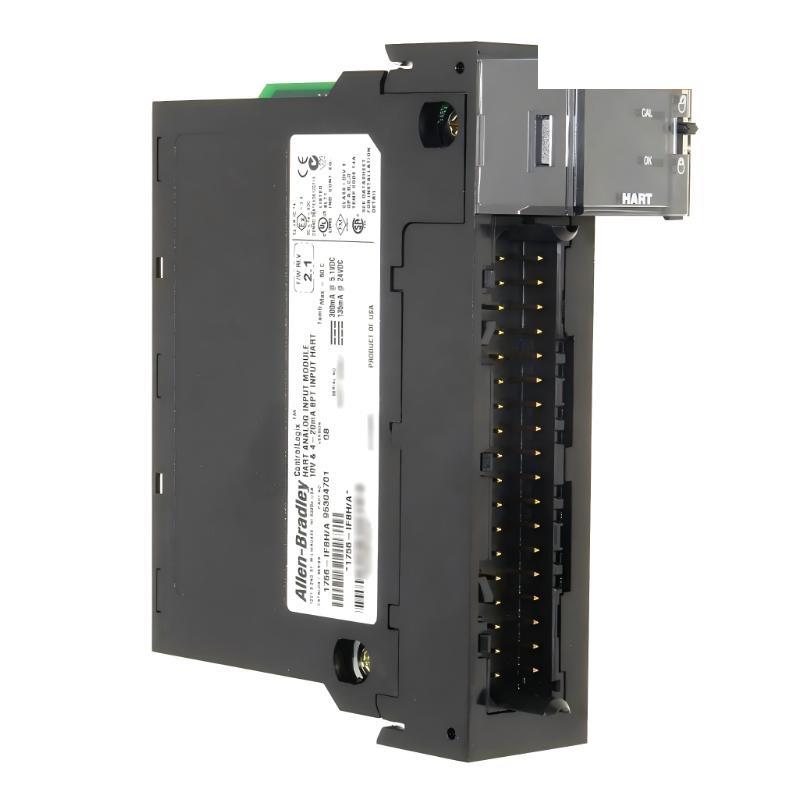

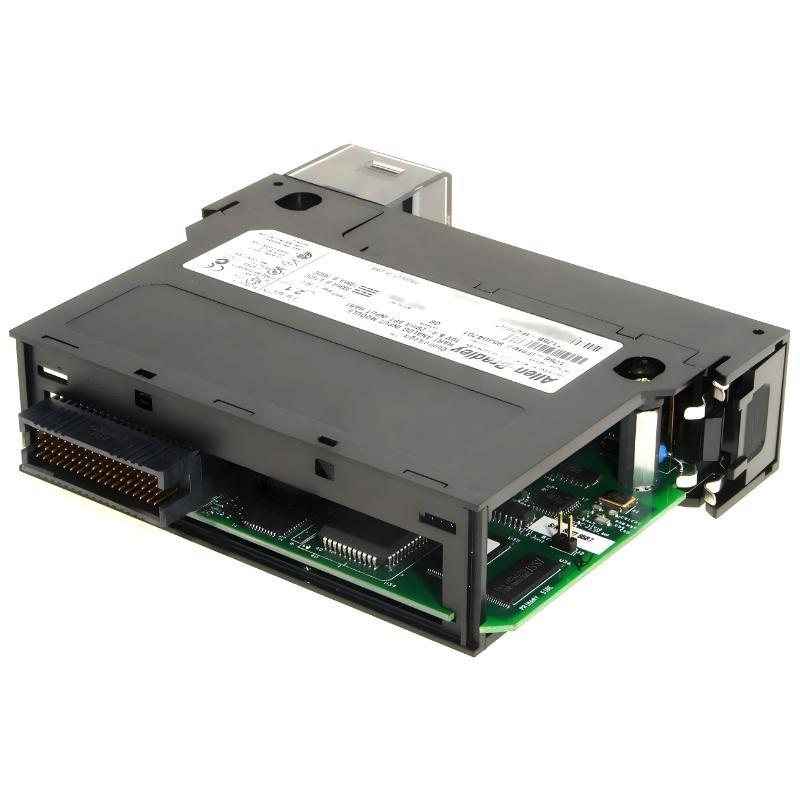

The Allen-Bradley 1756-IF8H ControlLogix HART Analog Input Module is a high-accuracy analog input module designed for ControlLogix automation platforms that require advanced process measurement combined with HART digital communication. It provides 8 differential analog input channels, enabling reliable acquisition von process signals while supporting smart field device interaction.
With a selectable resolution range von 16 to 21 bits, the module delivers precise and stable analog measurements suitable for demanding industrial environments. The integrated HART protocol support allows users to access device diagnostics, configuration parameters, and status information without interrupting the analog signal path.
The 1756-IF8H is ideal for applications that require high signal integrity, enhanced diagnostics, and efficient asset management, making it a strong choice for modern process automation and control systems.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell | 1756-IF8H |
| Series | ControlLogix |
| Type | HART Analog Input Module |
| Channels | 8 differential inputs |
| Supported Protocol | HART |
| Resolution | 16–21 bits |
| Backplane Current (5.1 VDC) | 300 mA |
| Backplane Current (24 VDC) | 70–135 mA |
| Power Dissipation (Max) | 3.21–4.01 W |
| Thermal Dissipation | 13.7 BTU/hr |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| Gewicht | 0.14 kg |
Applications
• Process Control Systems: Acquires accurate analog signals from HART-enabled transmitters used in flow, pressure, level, and temperature measurement.
• Smart Instrument Integration: Enables digital communication with field devices for configuration and diagnostics while maintaining continuous analog input.
• Distributed Control Architectures: Integrates seamlessly into ControlLogix-based DCS environments for centralized monitoring and control.
• Asset Management Solutions: Supports remote device status monitoring and parameter access, reducing maintenance time.
• High-Accuracy Measurement Applications: Suitable for processes requiring fine resolution and stable signal acquisition.
Advantages
• HART Communication Capability: Allows simultaneous analog measurement and digital device communication on the same channel.
• High Resolution Performance: Provides 16–21 bit resolution for precise and repeatable process measurements.
• Differential Input Design: Enhances noise immStücky and signal stability in electrically noisy environments.
• Optimized Power Usage: Balanced backplane current and power dissipation support reliable system operation.
• Improved Maintenance Efficiency: HART diagnostics enable faster troubleshooting and reduced downtime.
• Native ControlLogix Compatibility: Designed specifically for ControlLogix chassis and backplane systems.
