Produkteinführung

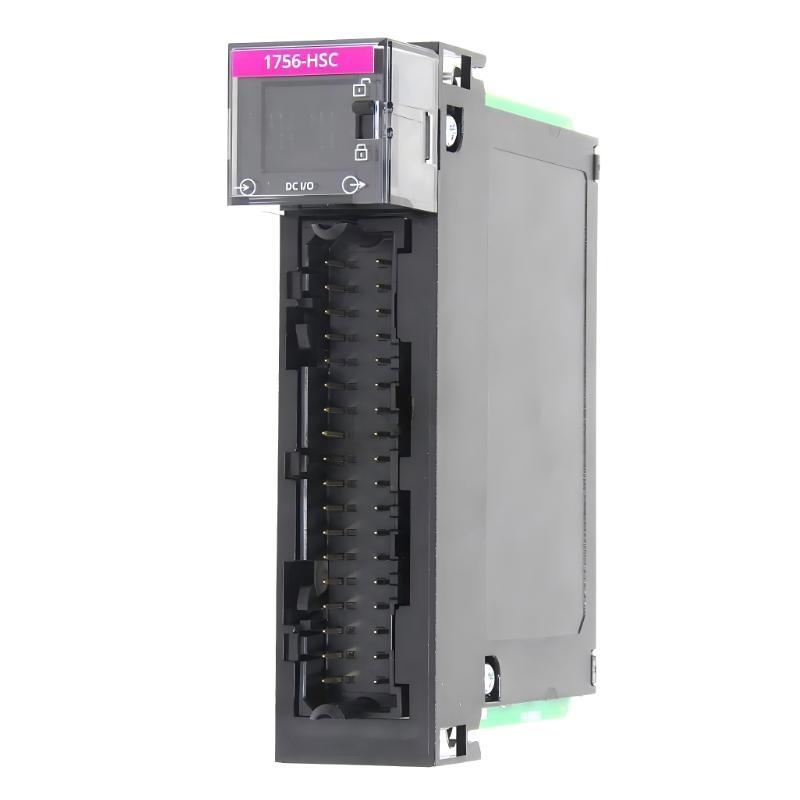

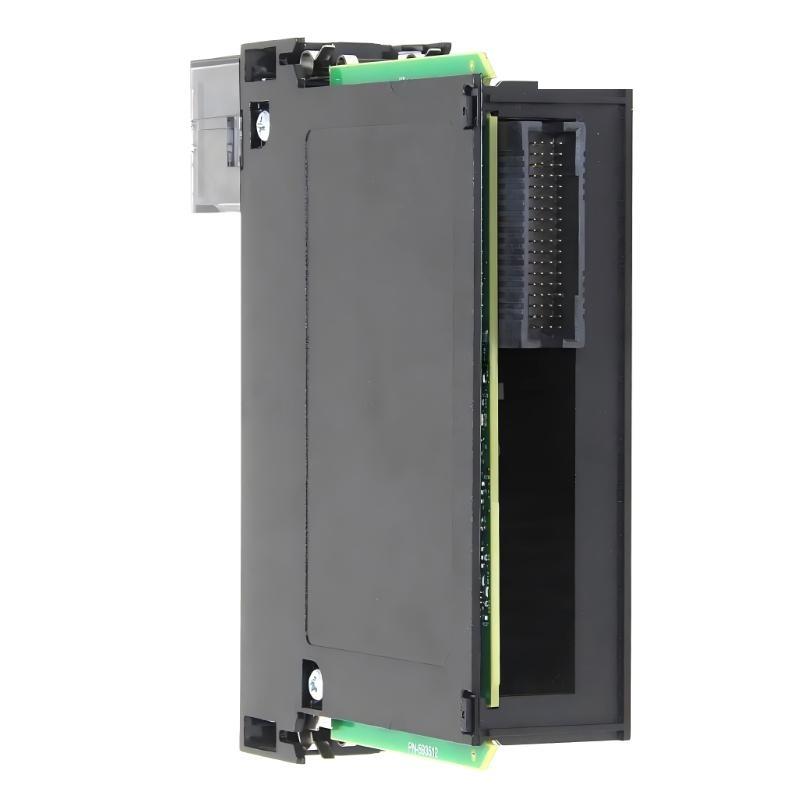

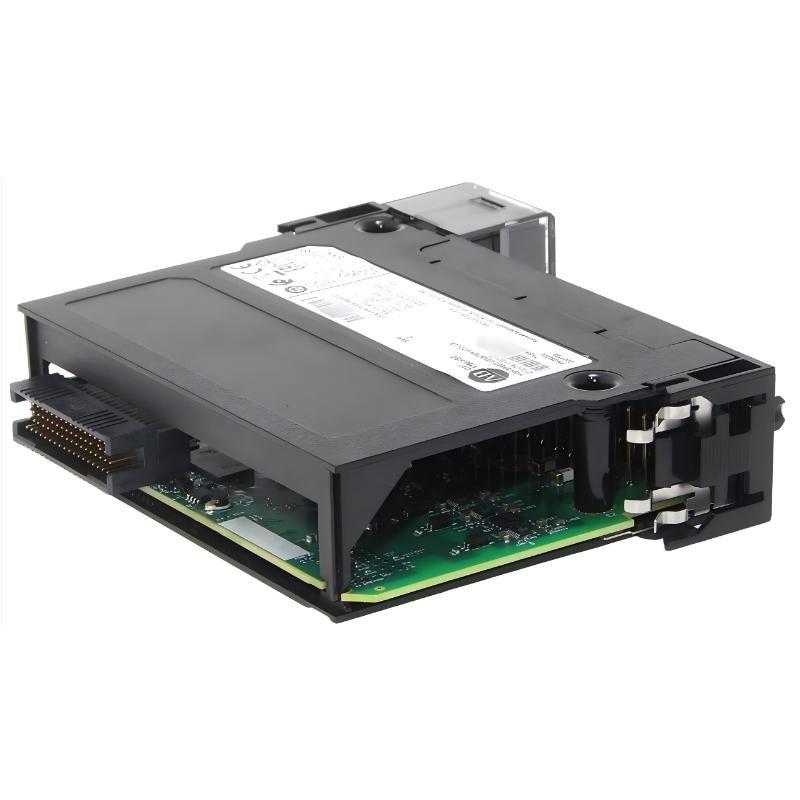

The Allen Bradley 1756-HSC ControlLogix High Speed Counter Module is a dedicated motion and event-counting solution designed for applications requiring fast, deterministic signal processing. With a rapid response capability von 0.05 ms, the module is optimized for high-speed counting, position tracking, and pulse-based measurement tasks within ControlLogix automation systems.
Supporting two independent counter channels and equipped with a 36-pin interface, the 1756-HSC enables reliable acquisition von high-frequency input signals while providing digital output control for external devices. Its chassis-mounted design allows seamless integration into ControlLogix platforms, making it suitable for demanding industrial environments where timing accuracy and signal integrity are critical.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Product Type | High Speed Counter Module |
| Hersteller | Allen Bradley |
| Series | ControlLogix |
| Modell / Artikelnummer | 1756-HSC |
| Number von Channels | 2 |
| Response Time | 0.05 ms |
| Input Type | 24 VDC digital input |
| Digital Outputs | 4 outputs |
| Connector Type | 36-pin |
| Mounting Method | Chassis mount |
| Signal Processing | High-speed pulse counting |
| Control Platform | ControlLogix |
| Operating Temperature Range | 0 to 60 °C |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| Gewicht | 0.2 kg |
Applications
• High-Speed Pulse Counting
Designed for accurate counting von encoder pulses and fast digital signals.
• Motion and Position Feedback Systems
Used in applications requiring precise tracking von rotational or linear movement.
• Packaging and Labeling Machines
Ensures reliable detection von high-speed events and synchronization with machine cycles.
• Material Handling Equipment
Supports conveyor systems, sorters, and automated handling lines.
• Discrete Manufacturing Automation
Improves accuracy in production lines with rapid mechanical operations.
• Test and Measurement Systems
Provides fast response and precise signal capture for industrial testing.
Advantages
• Ultra-Fast Response Capability
0.05 ms response time ensures accurate processing von high-frequency signals.
• Dual Independent Channels
Allows simultaneous counting or monitoring von multiple signal sources.
• Integrated Digital Outputs
Supports direct control von external devices without additional modules.
• Robust ControlLogix Integration
Installs directly into the ControlLogix chassis for reliable system operation.
• Industrial-Grade Reliability
Designed to operate continuously in demanding automation environments.
• Flexible Signal Handling
Supports a wide range von pulse-based industrial sensors and devices.
