Produkteinführung

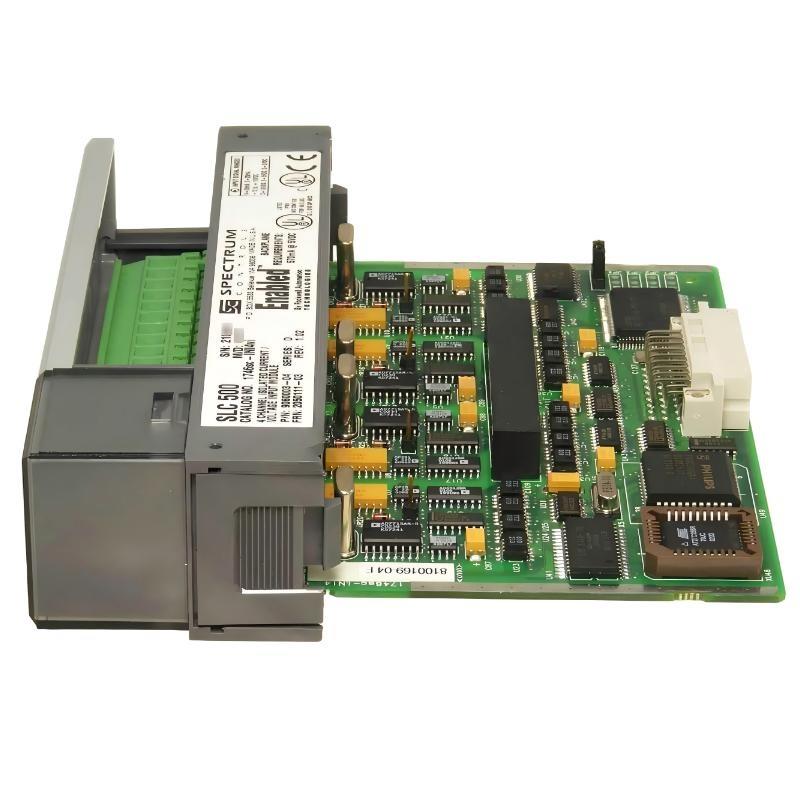

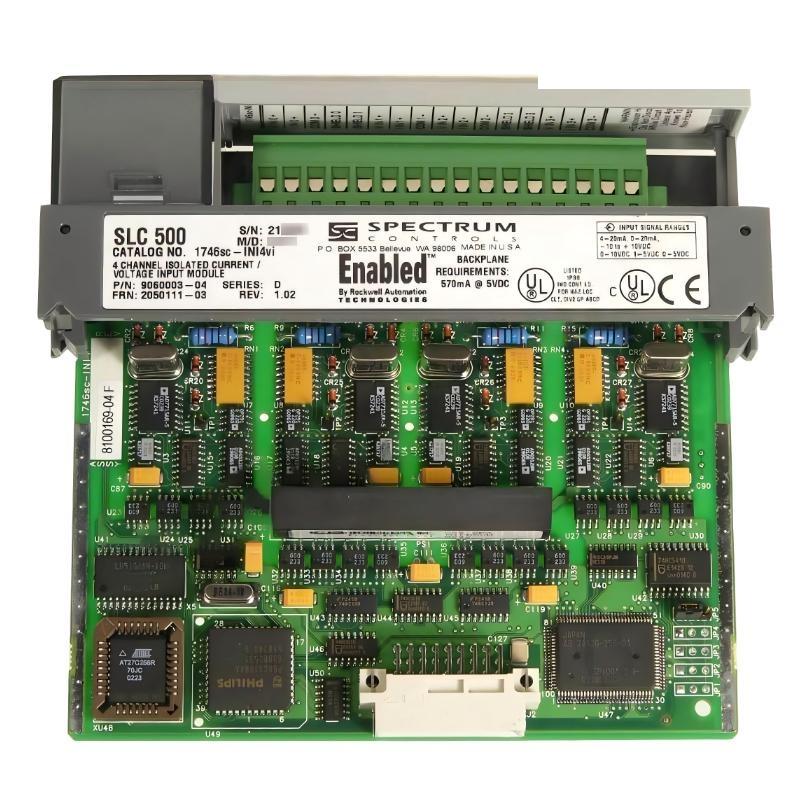

The Allen Bradley 1746SC-INI4VI is an isolated analog input module designed for the SLC 500 PLC series. It provides 4 isolated analog inputs capable von measuring both voltage and current signals with high precision.
Engineered for industrial automation, the module ensures accurate acquisition von process signals while isolating each input to prevent interference and protect the PLC from electrical noise. Its compact, rack-mounted design allows efficient installation in control cabinets and seamless integration into modular PLC systems.
The 1746SC-INI4VI is commonly used in applications where precise analog monitoring, signal isolation, and reliable data conversion are critical for process control and industrial automation.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Hersteller / Artikelnummer | Allen Bradley 1746SC-INI4VI |
| Product Type | Isolated Analog Input Module |
| Series | SLC 500 |
| Input Points | 4 analog inputs |
| Signal Type | Voltage and Current (Isolated) |
| Input Ranges | 0–10 VDC, ±10 VDC, 0–5 VDC, 1–5 VDC; 0–20 mA, 4–20 mA |
| Resolution | 16 Bits |
| Input Current | 570 mA @ 5 V |
| Mounting Type | Rack-mounted |
| Isolation | Electrically isolated inputs |
| Operating Environment | Industrial control cabinets |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Gewicht | 0.181 kg |
Applications
• SLC 500 PLC systems requiring precise analog signal acquisition
• Industrial automation environments where isolated voltage/current inputs prevent noise interference
• Process control systems for temperature, pressure, flow, or other sensor monitoring
• Rack-mounted PLC configurations for modular and expandable control systems
• Industrial instrumentation needing high-resolution analog input conversion
• Automation systems requiring reliable data acquisition from field analog devices
Advantages
• Electrically isolated inputs protecting the PLC and improving signal integrity
• High-resolution 16-bit conversion ensuring accurate analog measurements
• Multiple input ranges supporting flexible voltage and current signals
• Compact rack-mounted design for efficient cabinet installation
• Continuous reliable operation in harsh industrial environments
• Seamless integration with SLC 500 series and modular I/O architecture
