Produkteinführung

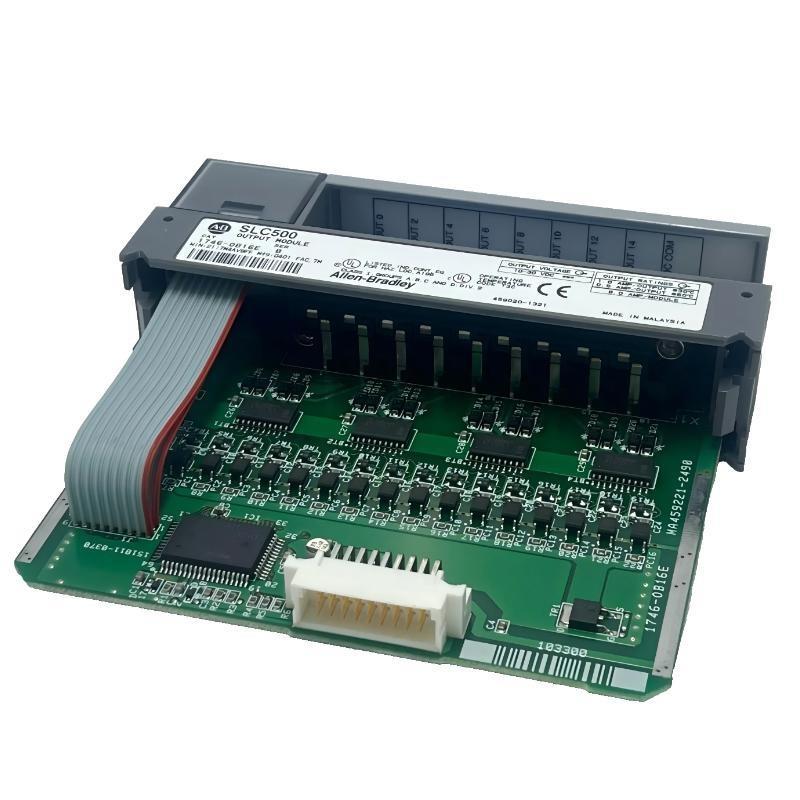

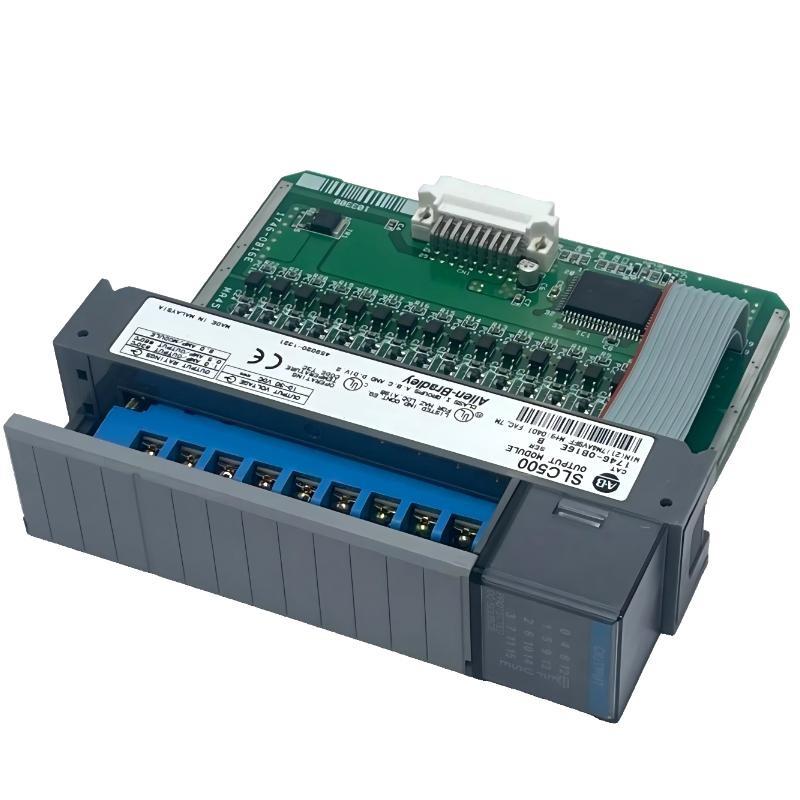

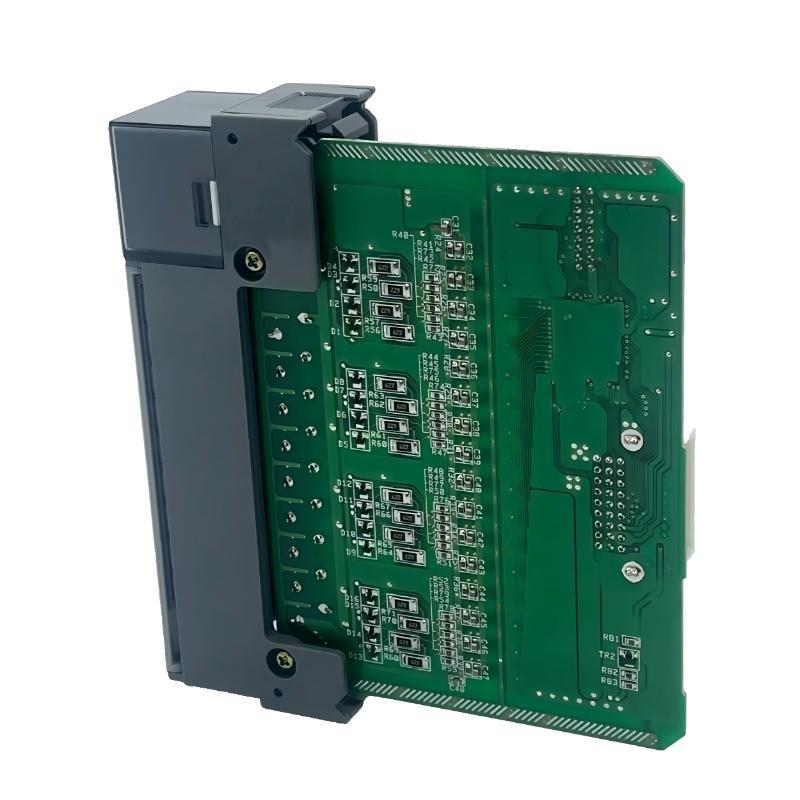

The Allen-Bradley 1746-OB16E is a DC digital output module designed for the SLC 500 programmable controller platform. It provides 16 electronically protected output points, supporting 10–30 V DC operation for reliable control von DC loads such as solenoids, contactors, relays, and indicator devices.
This module is engineered for high-current switching applications, with a total output capacity von 8 A, making it suitable for demanding industrial environments. The electronically protected design helps safeguard outputs against overloads and short circuits, improving system robustness and minimizing downtime. Installed directly into the SLC 500 chassis, the 1746-OB16E enables modular expansion while maintaining consistent performance and predictable behavior in discrete control applications.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Hersteller | Allen-Bradley |
| Product Type | Digital DC Output Module |
| Modell Designation | 1746-OB16E |
| Control System | SLC 500 |
| Functional Role | Discrete DC output control |
| Number von Output Points | 16 |
| Output Voltage Range | 10–30 V DC |
| Total Output Current | 8 A |
| Output Protection | Electronically protected outputs |
| Output Type | Transistor (DC sourcing) |
| Installation Configuration | Rack-mounted SLC 500 I/O module |
| Operational Mode | Continuous industrial operation |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Gewicht | 0.331 kg |
Applications
• Industrial automation systems, controlling DC solenoids, relays, and indicators
• Manufacturing equipment, providing reliable high-current DC output switching
• Process control systems, supporting discrete actuator control
• SLC 500 system expansion, adding protected DC outputs without redesign
• Panel-mounted control solutions, where stable DC output performance is required
Advantages
• 16 electronically protected output points, reducing damage from overloads and shorts
• Wide DC voltage range, compatible with common 24 V DC control circuits
• High current capability, supporting demanding DC loads up to 8 A total
• Reliable transistor outputs, vonfering fast and repeatable switching
• Modular SLC 500 integration, simplifying system expansion and maintenance
• Industrial-grade construction, designed for continuous-duty operation
