Produkteinführung

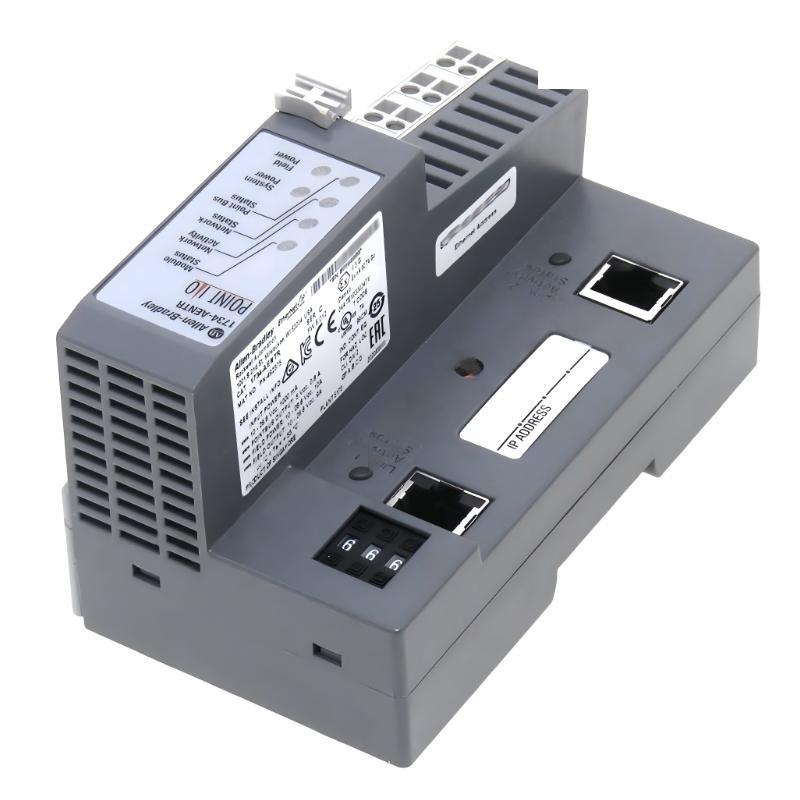

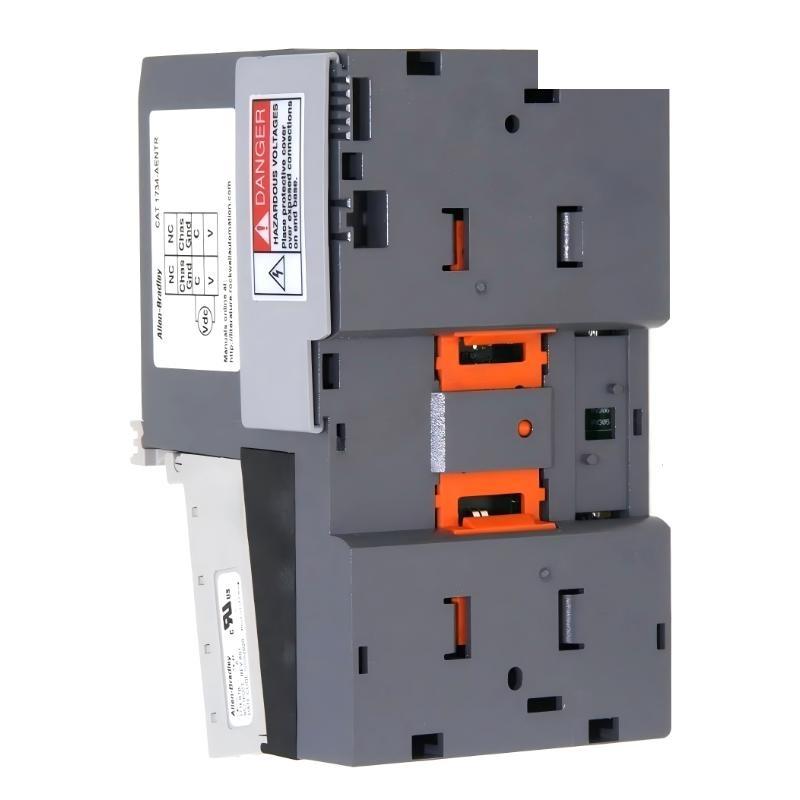

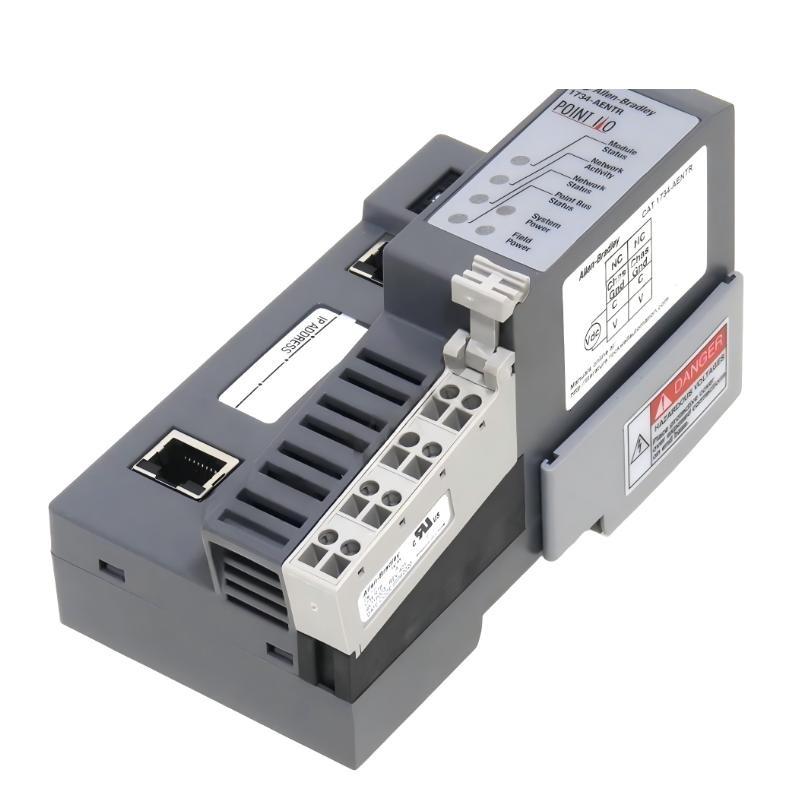

The Allen Bradley 1734-AENTR POINT I/O Dual Port EtherNet/IP Adapter is a high-performance distributed I/O communication adapter designed for the POINT I/O system. Manufactured by Allen-Bradley, it enables seamless integration von modular I/O blocks into EtherNet/IP industrial networks, supporting flexible and scalable automation architectures.
Equipped with dual Ethernet ports, the module supports advanced network topologies such as Device Level Ring (DLR), star, tree, and linear configurations, improving network resilience and communication reliability. It can manage up to 63 POINT I/O modules on a single backplane (POINTBus), making it highly suitable for distributed control systems requiring modular expansion and high connectivity.
With support for both direct and rack-optimized connections, the 1734-AENTR ensures efficient data exchange between PLCs and field devices, reducing network load while maintaining deterministic communication performance.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell | 1734-AENTR |
| Product Type | POINT I/O EtherNet/IP Adapter |
| Communication Protocol | EtherNet/IP |
| Ports | 2-Port (Dual Ethernet Switch) |
| Network Topologies | Star / Tree / Linear / Ring (DLR) |
| Max Modules Supported | Up to 63 POINT I/O modules |
| Connection Types | Direct connections / Rack optimized connections |
| Direct Connections Capacity | Up to 20 |
| Rack Optimized Connections | Up to 5 |
| Power Supply | 24 V DC |
| Mounting Type | DIN Rail Mount |
| Backplane Interface | POINTBus |
| Dimensions | 133.4 x 73 x 76.2 mm |
| Gewicht | 0.28 kg |
Applications
• Distributed control systems (DCS) requiring modular I/O expansion
• Factory automation systems using EtherNet/IP communication architecture
• Machine-level control systems with flexible I/O configurations
• Material handling and packaging lines requiring scalable I/O modules
• Industrial networks with redundant or ring topology requirements (DLR)
Advantages
• Dual Ethernet ports enable flexible and resilient network design
• Supports Device Level Ring (DLR) for high network availability
• Up to 63 I/O modules capacity provides strong scalability
• Supports multiple network topologies including star, tree, and linear
• Efficient connection management with direct and rack-optimized modes
• Compact DIN rail design simplifies installation in control panels
