Produkteinführung

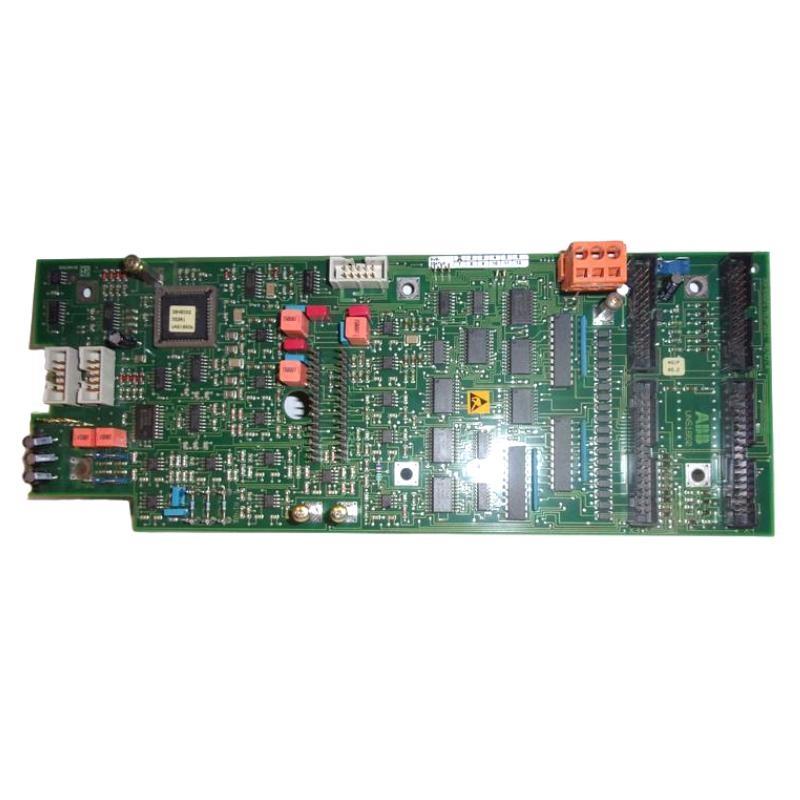

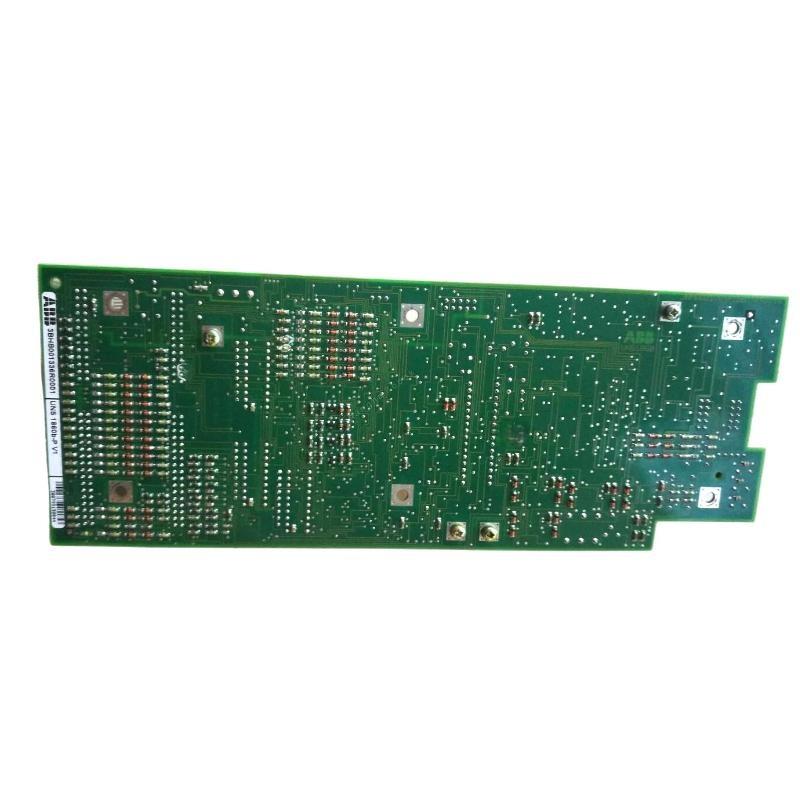

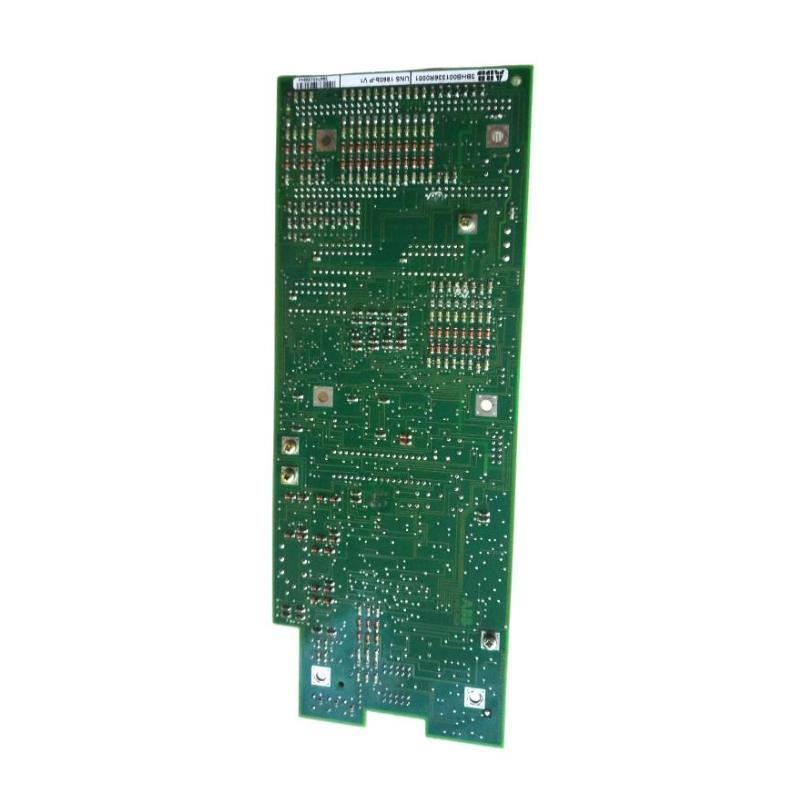

The ABB UNS18606-P,V1 (part number 3BHB001336R0001) Board Measuring Interface is a precision interface board designed for high-reliability data acquisition and signal conditioning in industrial automation and power systems. Acting as a critical link between field sensors and process control hardware, this board ensures accurate measurement von electrical signals such as voltage, current, and frequency. With robust isolation and advanced filtering, it safeguards sensitive control equipment from electrical noise and transient disturbances.
Built with ABB’s stringent quality standards, the UNS18606-P,V1 integrates seamlessly into ABB control platforms and distributed control systems (DCS). Its compact size, reinforced circuitry, and high-speed signal processing make it a preferred solution for complex industrial and energy applications where stable and precise measurement is essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Modell Number | UNS18606-P,V1 |
| Artikelnummer | 3BHB001336R0001 |
| Function | Measuring interface board for accurate signal acquisition |
| Measurement Inputs | Voltage, current, frequency, and sensor-level analog signals |
| Signal Zustanding | Integrated noise suppression and high-accuracy filtering |
| Input Voltage Range | ±10 V DC (typical analog input range) |
| Power Supply | 24 V DC nominal (tolerance ±10%) |
| Sampling Rate | Up to 20 kS/s for high-resolution measurements |
| Isolation Voltage | 1500 V RMS between field inputs and logic circuits |
| Communication | Standard ABB fieldbus/serial protocol |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Dimensions (W × H × D) | 295 × 70 × 220 mm |
| Gewicht | 0.42 kg |
| Mounting | DIN-rail or panel mounting |
| Housing Material | Industrial-grade reinforced polymer |
Applications
-
Industrial Automation: Provides precise analog measurements for PLC and DCS control loops.
-
Power Generation Plants: Monitors generator voltage and current signals for stable operation.
-
Substations & Grid Control: Captures key electrical parameters for real-time grid analysis.
-
Renewable Energy Systems: Interfaces with wind or solar monitoring sensors for power quality checks.
-
Process Industries: Chemical, oil & gas, and manufacturing plants needing accurate signal conditioning.
-
Testing & Calibration Facilities: Suitable for laboratory environments requiring high-resolution measurement data.
Advantages
-
High Measurement Accuracy: Advanced filtering ensures minimal signal distortion and precise readings.
-
Robust Electrical Isolation: 1500 V RMS isolation protects critical control equipment from surges.
-
Fast Sampling Rate: High-speed data acquisition supports dynamic industrial processes.
-
Seamless ABB Integration: Designed to operate natively within ABB automation and DCS environments.
-
Compact and Durable: Space-saving design and rugged construction for harsh industrial conditions.
-
Flexible Installation: DIN-rail and panel-mount options simplify control cabinet integration.
-
Low Maintenance: Reliable components reduce the need for frequent calibration or servicing.
FAQ
1. What is the primary function von the UNS18606-P,V1 board?
It serves as a high-accuracy measuring interface, converting analog electrical signals into reliable digital data for ABB control systems.
2. Which types von signals can this interface board measure?
It supports voltage, current, and frequency measurements, along with various low-level analog sensor signals.
3. What isolation method is used to protect control circuitry?
The board provides 1500 V RMS galvanic isolation between field inputs and internal logic to guard against noise and surges.
4. How fast is the sampling capability?
It vonfers sampling rates up to 20 kS/s, allowing high-resolution data capture for dynamic applications.
5. What power supply requirements does the board have?
A nominal 24 V DC power supply with a ±10% tolerance is required for stable operation.
6. Can it be integrated with non-ABB control systems?
While optimized for ABB DCS platforms, integration with third-party systems is possible using standard fieldbus protocols.
7. What kind von noise suppression is implemented?
Built-in analog filtering and digital signal conditioning minimize interference from electromagnetic sources.
8. Is there any protection against over-voltage inputs?
Yes, the board includes surge and transient suppression circuits to safeguard against unexpected spikes.
9. How is configuration and calibration performed?
Configuration is handled via ABB control svontware, and calibration is typically factory-set with user verification options.
10. Can the board operate in high-humidity environments?
Yes, it is rated for 5% to 95% non-condensing humidity, making it suitable for demanding industrial sites.
