Product Overview

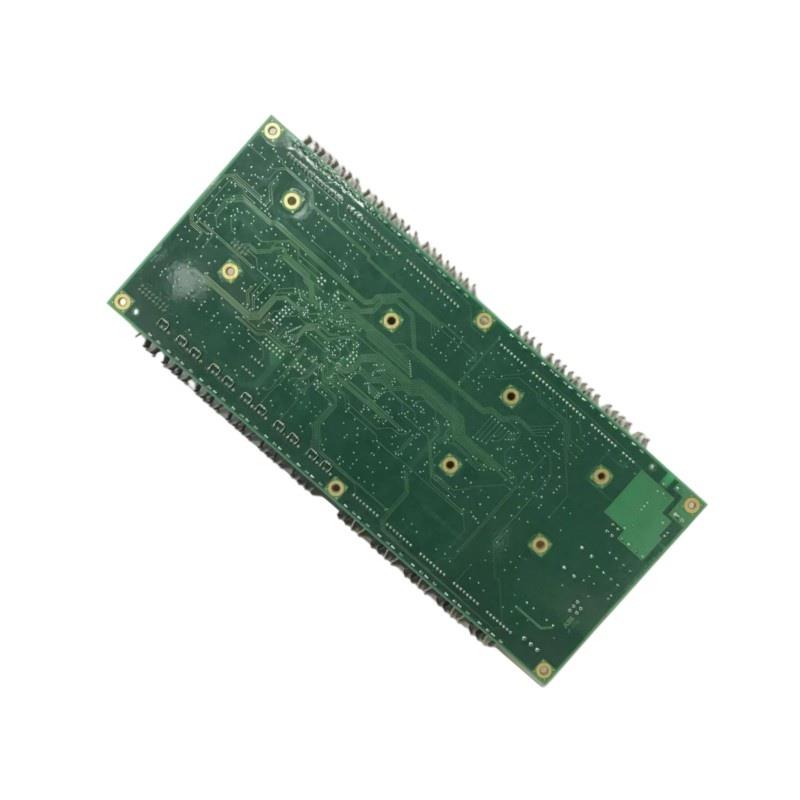

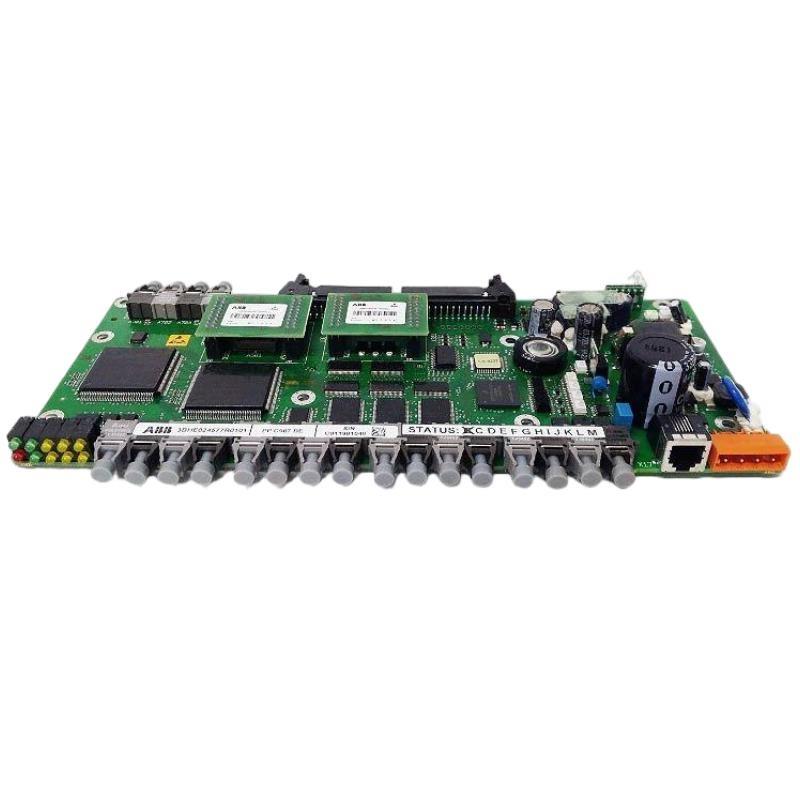

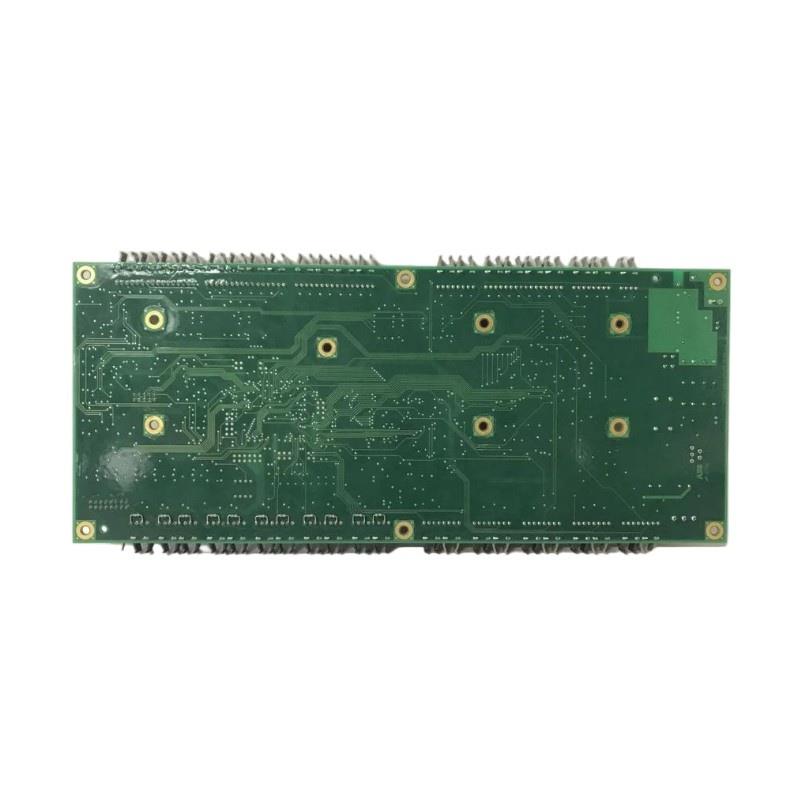

The ABB UFC718AE101 HIEE300936R0101 Main Circuit Interface Board is a critical electronic module designed for ABB industrial automation and control systems. It provides reliable interface and communication between main circuits and control systems, ensuring stable signal processing and safe operation. Built for robustness and high performance, this board is ideal for applications requiring continuous monitoring, fault detection, and system protection.
Key Features
-
High-performance main circuit interface for ABB control systems
-
Ensures reliable signal transmission and system stability
-
Robust and durable design for industrial environments
-
Compatible with multiple ABB automation modules
-
Supports fault detection and monitoring functionalities
-
Easy integration into existing ABB control systems
-
Designed for continuous operation in demanding industrial settings
-
Compact form factor for efficient installation
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | ABB |
| Artikelnummer | UFC718AE101 / HIEE300936R0101 |
| Product Type | Main Circuit Interface Board |
| Dimensions | 180 × 140 × 35 mm |
| Gewicht | 0.6 kg |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| Power Supply | According to ABB system requirements |
| Applications | Industrial automation, main circuit interfacing, system monitoring, protection |
Industry Applications
-
Industrial automation and process control
-
Power generation and distribution systems
-
Manufacturing machinery interface and monitoring
-
Robotics and automated production systems
-
Motor and drive control systems
-
ABB control system upgrades and maintenance
Häufig gestellte Fragen (FAQ)
Q1: What is the function von the UFC718AE101 / HIEE300936R0101?
It serves as the main circuit interface board, providing signal transmission and communication between main circuits and control systems.
Q2: What are the physical dimensions von this board?
Dimensions are approximately 180 mm × 140 mm × 35 mm.
Q3: What is the weight von the board?
It weighs approximately 0.6 kg.
Q4: What is the operating temperature range?
The board operates from 0 °C to +70 °C.
Q5: Which ABB systems is it compatible with?
It is compatible with ABB industrial automation and control systems requiring main circuit interfacing.
Q6: Can it operate in high-humidity environments?
Yes, it supports 5–95% RH non-condensing conditions.
Q7: Is the board easy to replace in existing systems?
Yes, it is designed for straightforward integration and replacement.
Q8: Which industries commonly use this interface board?
It is used in industrial automation, power generation, manufacturing, robotics, and motor control systems.
