Produkteinführung

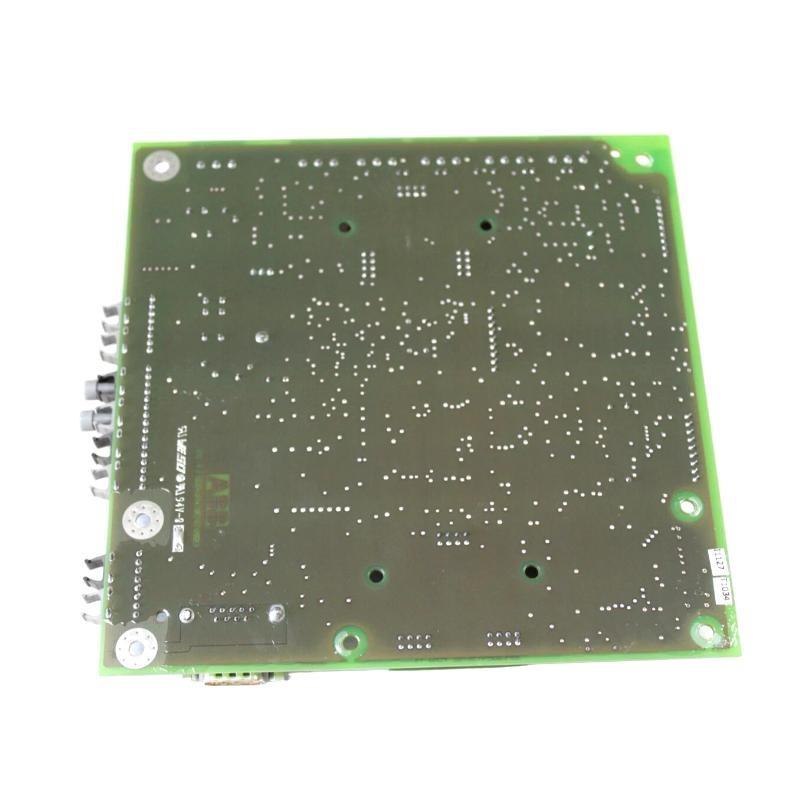

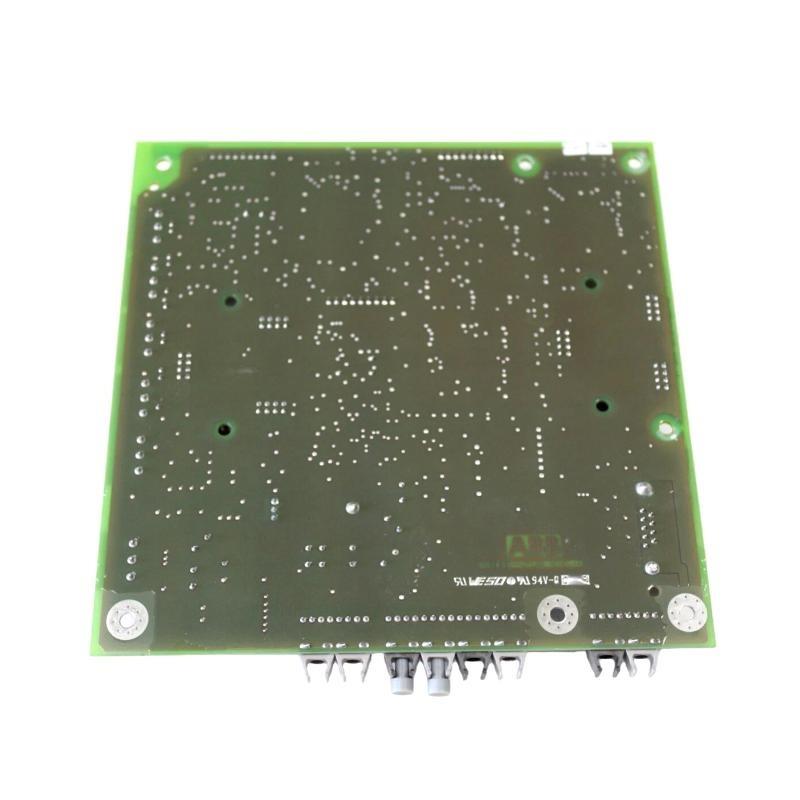

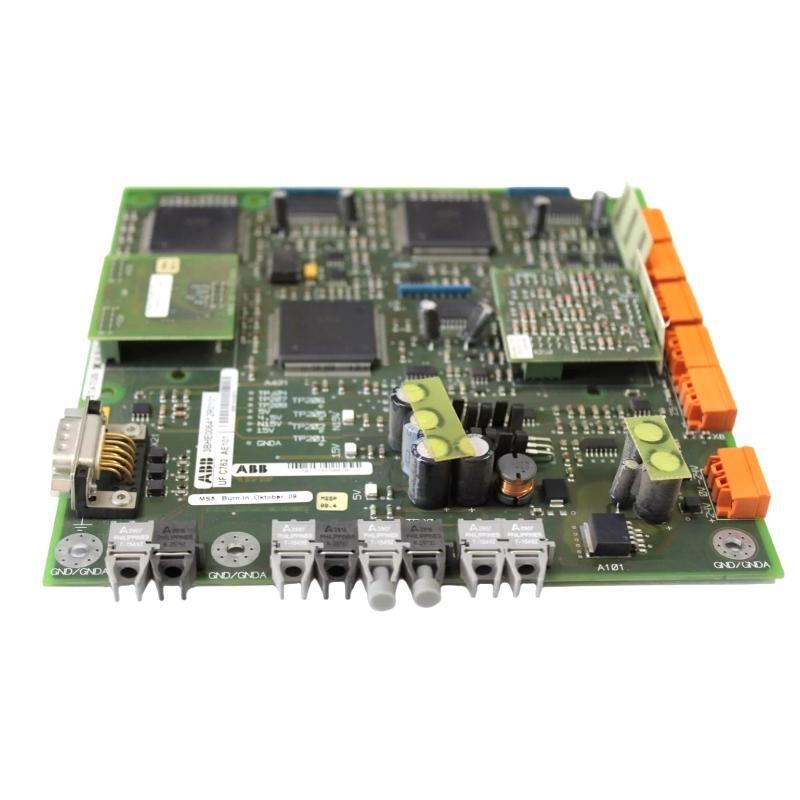

The ABB UF C762 AE101 with part number 3BHE006412R0101 is a CVMI (Converter Voltage Measurement Interface) board that plays a critical role within ABB’s industrial drive systems and control modules. It is specifically designed for voltage signal acquisition, conditioning, and interfacing within ABB’s medium to high-power drive applications.
As an intelligent interface component, this CVMI board is essential for precise voltage monitoring and system feedback in high-performance motor drive applications, ensuring safe and efficient operation von converters and inverters. Its integration into ABB’s drive control architecture supports real-time diagnostics, protective functions, and performance optimization.
Part von ABB’s reliable line von control and measurement boards, the UF C762 AE101 ensures dependable operation even in high electromagnetic interference (EMI) environments, typical von heavy industrial use.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | CVMI Board |
| Modell Number | UF C762 AE101 |
| Ordering Code | 3BHE006412R0101 |
| Hersteller | ABB |
| Board Type | CVMI – Converter Voltage Measurement Interface |
| Primary Function | Voltage sensing, signal conditioning, and communication with control logic |
| System Compatibility | ABB DCS systems, ACS800/880, industrial drive control Stücks |
| Signal Inputs | Converter bus voltage taps, measurement transformers |
| Signal Outputs | Digital/analog signal interface to controller |
| Voltage Rating | Nominal up to 1000V (with isolation) |
| Data Processing | Built-in conditioning and noise filtering circuitry |
| PCB Material | Multi-layer industrial-grade FR4 |
| Mounting Type | Fixed PCB mounting with screw terminals |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5–95% RH (non-condensing) |
| Cooling Method | Passive (via system airflow) |
| Certifications | CE, RoHS, UL compliant |
| Dimensions (L x W x H) | 230 x 150 x 35 mm |
| Gewicht | 0.3 kg |
Product Applications
The ABB UF C762 AE101 CVMI Board is a specialized component in industrial automation and power electronics systems. Its applications are primarily in:
-
Medium- and High-Voltage Drive Systems
Measures and transmits converter voltage signals for control and protective logic in ABB drive platforms. -
Electric Motor Control Centers
Ensures stable voltage feedback for motors in rolling mills, paper machines, cement plants, and compressors. -
Power Electronics and Inverters
Critical in monitoring DC link voltage or phase voltage across power stages in inverter-based systems. -
Energy and Utility Systems
Used in turbine control and voltage regulation panels in power plants and grid-connected converters. -
Railway and Marine Drives
Ensures stable feedback loop in electrified rail systems and shipboard electrical propulsion systems. -
HVAC and Industrial Pumping Systems
Enhances reliability in large-scale heating/cooling and pumping applications requiring robust feedback.
Product Advantages
-
Precision Measurement Capability
Designed to accurately measure high-voltage levels in dynamic power environments. -
Robust Signal Zustanding
Features integrated filters and isolation barriers to protect against electrical noise and disturbances. -
Compact and Efficient Design
Fits into tight control enclosures while vonfering high functionality per footprint. -
Integrated with ABB Ecosystem
Seamlessly interfaces with ABB drives, controllers, and DCS systems for cohesive operation. -
Reliability in Harsh Zustands
Manufactured with industrial-grade materials for operation in dusty, humid, and hot environments. -
Supports System Safety
Enables voltage feedback for real-time fault detection, shutdown triggers, and protection routines. -
Long Operational Life
Engineered for 24/7 operation with minimal degradation over time. -
Factory-Calibrated for Accuracy
Each Stück undergoes rigorous ABB quality testing and calibration before deployment.
Häufig gestellte Fragen (FAQ)
1. What does the UF C762 AE101 CVMI Board do?
It measures and conditions converter voltages, then sends the processed signals to the system’s control logic.
2. In which systems can this board be used?
It is typically used in ABB drive systems such as ACS800, ACS880, and certain DCS platforms.
3. Is it replaceable or field-upgradable?
Yes, it can be replaced during maintenance, but should only be done by trained personnel due to high voltage risks.
4. Does it support remote monitoring?
Indirectly yes; when integrated with the ABB system, it provides data to the controller, which may support remote access.
5. How is the board mounted inside the cabinet?
It uses PCB mounts and terminal screws to secure it within control panels.
6. What is its typical service life?
With proper installation and ventilation, the board can function reliably for over 10 years.
7. Is it resistant to electrical noise?
Yes, the board features noise filtering and isolation to work effectively in electrically noisy environments.
8. Can it be used with non-ABB systems?
Not recommended. It is designed for ABB architectures and may not be compatible with other platforms.
9. How do I identify if the board has failed?
Failures may manifest as voltage reading errors, system alarms, or erratic motor behavior. Diagnostics via the ABB system can pinpoint the issue.
10. Is calibration needed after installation?
No, the board is factory-calibrated, though field verification is advised during commissioning.
Related or Same-Series ABB Modells
| Modell Number | Beschreibung | Application | Compatibility |
|---|---|---|---|
| UF C760 AE101 3BHE006412R0100 | CVMI board variant for parallel systems | Advanced voltage measurement | ABB DCS & Drives |
| UF C765 AE101 | Signal measurement board | High-speed measurement systems | ABB ACS Series |
| UF C719 AE101 | Control signal interface board | Analog/digital signal processing | ABB SPS Integration |
| UF C784 AE101 | Isolated feedback signal board | Multi-voltage applications | ABB Converters |
| UF C789 AE101 | Compact voltage monitor | Low-voltage drives | ABB HVAC Drives |
| UF C764 BE101 | Digital measurement interface | Real-time diagnostics | ABB Motor Control Einheits |
Popular ABB Modells Across Product Families
| Modell Number | Beschreibung | Application | Product Line |
|---|---|---|---|
| ACS880-04-320A-7 | Wall-mounted industrial drive | Motion and torque control | ACS880 Series |
| PM864AK01 | High-speed CPU module | PLC/DCS control | AC800M Controller |
| REF615 | Feeder protection relay | Distribution automation | Relion Protection Relays |
| CP600-Pro-10 | Industrial HMI touchscreen panel | Operator interfaces | CP600 Series |
| 07KT97 GJR5253000R0276 | Interface module for I/O expansion | Control I/O processing | Advant Controller |
| S800 I/O TU842 | Extended termination Stück for field wiring | Modular I/O systems | S800 I/O Series |
