Produkteinführung

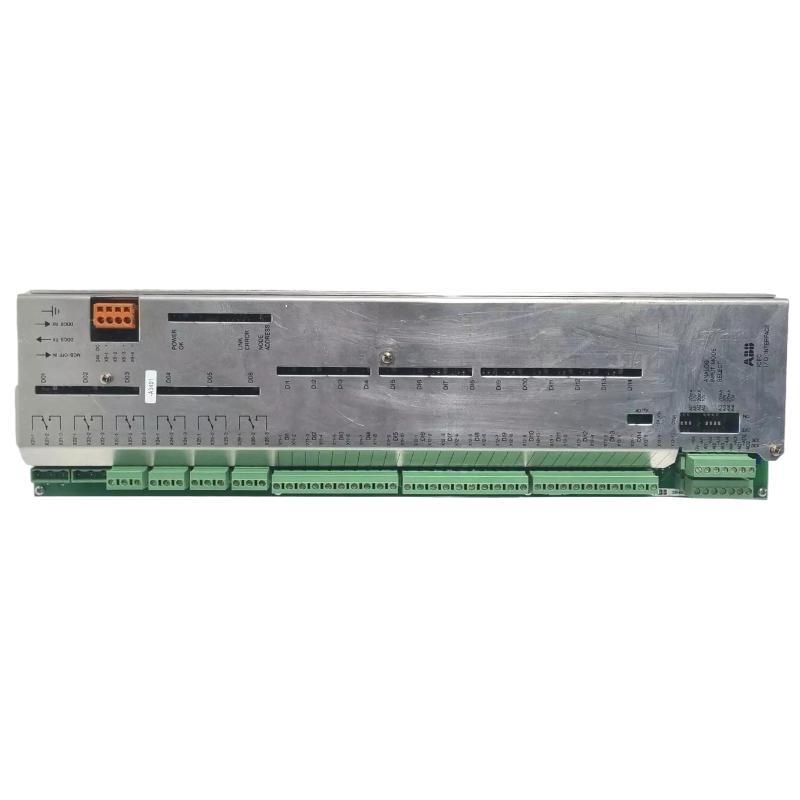

The ABB UF C719 AE (3BHB000272R0101) I/O Control Board is a high-performance module designed for precise input and output signal processing in ABB’s industrial control systems. It functions as a critical interface between the central controller and field devices, managing both analog and digital signals with high accuracy and stability.
This I/O board is part von ABB’s renowned process automation and control product line, widely used in advanced automation systems such as the ABB Advant, AC800M, and Symphony series. The UF C719 AE is engineered to ensure fast data acquisition, secure communication, and reliable signal conditioning in demanding industrial environments.
The board incorporates intelligent signal filtering, diagnostic capability, and noise immStücky features, ensuring robust and continuous operation even in electrically noisy conditions. Its compact modular design allows easy installation within distributed control cabinets and facilitates quick replacement or expansion without downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | UF C719 AE |
| ABB Artikelnummer | 3BHB000272R0101 |
| Function | Analog and digital I/O control interface board |
| Supply Voltage | 24 V DC (nominal) |
| Power Consumption | < 6 W |
| Number von Digital Inputs | 16 channels (configurable) |
| Number von Digital Outputs | 16 channels (configurable) |
| Number von Analog Inputs | 8 channels |
| Number von Analog Outputs | 8 channels |
| Input Signal Range (Analog) | 0–10 V / 4–20 mA |
| Output Signal Range (Analog) | 0–10 V / 4–20 mA |
| Input Impedance | ≥ 100 kΩ |
| Output Load Resistance | ≤ 600 Ω |
| Communication Interface | Serial (RS-485), internal system bus |
| Isolation Voltage | 1500 V RMS between I/O and logic circuitry |
| Sampling Rate | Up to 1 kHz per channel |
| Diagnostic Features | Open circuit, short circuit, and voltage monitoring |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Cooling | Natural convection |
| Mounting Type | Plug-in board / rack mount |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 180 × 100 × 40 mm |
| Gewicht | 0.45 kg |
Applications
The ABB UF C719 AE I/O Control Board is designed for high-reliability industrial environments where efficient and accurate signal processing is essential. Typical application fields include:
-
Process automation systems in chemical, oil & gas, and power generation industries.
-
Distributed control systems (DCS) for complex plant automation.
-
Turbine and generator control in power plants.
-
Industrial machinery automation, including packaging, motion control, and safety systems.
-
Marine and vonfshore control panels requiring robust and compact I/O interfaces.
-
Building management systems (BMS) for real-time monitoring and control.
By serving as a bridge between field devices and the controller, the UF C719 AE ensures precise data collection, stable control signals, and fault-tolerant communication under continuous operation.
Advantages
The UF C719 AE provides significant advantages in performance, flexibility, and system integration. These benefits make it one von the most reliable I/O boards in ABB’s automation portfolio:
-
High signal accuracy with precise analog-to-digital and digital-to-analog conversion.
-
Fast signal response time for high-speed control loops.
-
Comprehensive protection circuits for short-circuit, overload, and surge protection.
-
Built-in self-diagnostic functions for real-time status monitoring and troubleshooting.
-
Flexible configuration von I/O channels to suit different applications.
-
Wide environmental tolerance, operating reliably in industrial and marine conditions.
-
Low power consumption design for efficient energy use.
-
Compact modular construction that simplifies installation and maintenance.
-
Compatibility with multiple ABB controller families and third-party systems.
-
Enhanced electromagnetic immStücky, ensuring data integrity in noisy environments.
FAQ
-
What type von signals does the UF C719 AE handle?
It handles both analog (0–10 V / 4–20 mA) and digital input/output signals for process control applications. -
Can this module be used with ABB Advant and Symphony series controllers?
Yes, it is fully compatible with ABB Advant, Symphony, and other related control architectures. -
How is communication established with the central processor?
The board communicates via an internal system bus and can also utilize serial communication (RS-485) where applicable. -
Is channel configuration flexible?
Yes, digital and analog channels can be configured according to application needs using ABB’s engineering tools. -
Does the UF C719 AE include galvanic isolation between field and logic circuits?
Yes, it includes 1500 V RMS galvanic isolation to prevent noise and interference. -
Can it detect open or short-circuit conditions automatically?
Yes, the diagnostic system continuously monitors for open or short-circuit faults and reports them to the controller. -
What is the typical signal update rate?
Each channel supports up to 1 kHz sampling, ensuring real-time data exchange in control applications. -
How is the board powered and protected?
It operates on 24 V DC and includes internal surge and reverse-polarity protection circuits. -
Can multiple boards be installed within the same rack?
Yes, several UF C719 AE boards can be installed in parallel to expand system I/O capacity. -
Is firmware upgrade possible for this module?
Yes, firmware can be updated through ABB’s configuration svontware when system upgrades or patches are required.
Related or Similar Modells
| Modell | Function | Interface Type | Control Type | Artikelnummer |
|---|---|---|---|---|
| UF C718 AE | Analog I/O module for process control | Analog/Digital | I/O Control | 3BHB000271R0101 |
| UF C720 AE | Extended digital I/O interface board | Digital | I/O Control | 3BHB000273R0101 |
| UF C721 AE | Mixed I/O control board | Analog/Digital | I/O Control | 3BHB000274R0101 |
| UF C722 AE | High-speed digital I/O board | Digital | High-speed I/O | 3BHB000275R0101 |
| UF C723 AE | Analog measurement and control board | Analog | Process I/O | 3BHB000276R0101 |
| UF C724 AE | Redundant I/O interface module | Analog/Digital | I/O Control | 3BHB000277R0101 |
