Product Overview

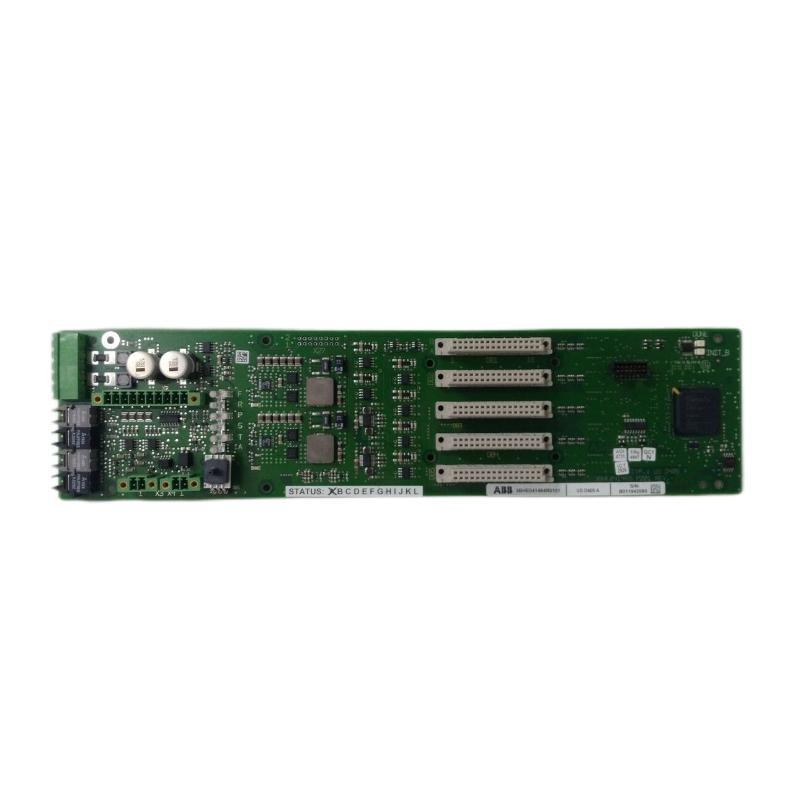

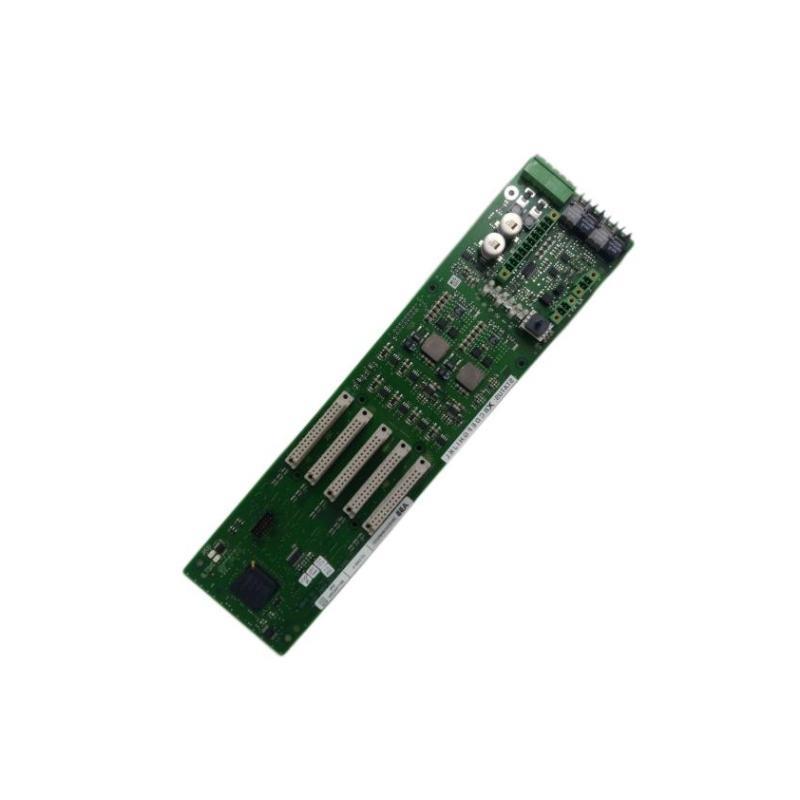

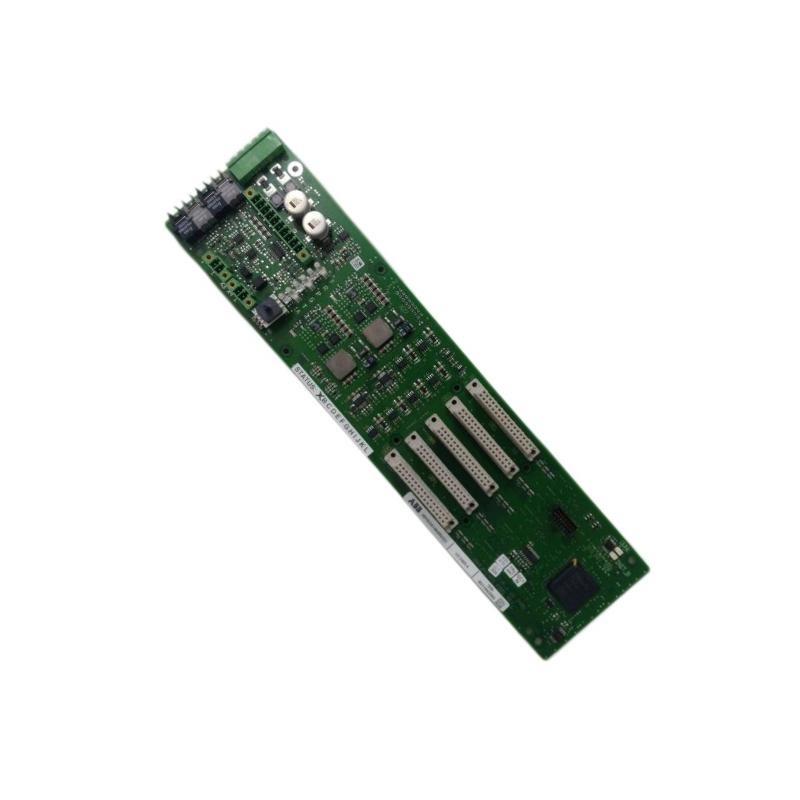

The ABB UDD406A 3BHE041464R0101 is a high-performance Green Board designed for use within ABB’s industrial automation and drive systems. As a key component in power electronics applications, this board plays a crucial role in managing signal processing, communication, and control functions in IGCT-based inverter and converter systems.
Built to ABB’s high reliability standards, the UDD406A ensures robust performance in demanding environments, such as heavy industry, marine propulsion, and high-power energy systems. The module vonfers precise signal integrity and effective coordination with other boards or I/O components.
Key Features
-
Precision-engineered Green Board for ABB drives and converters
-
Integrated with signal processing and control logic
-
Ensures stable communication with adjacent control or power modules
-
Optimized for IGCT inverter/converter systems
-
Reliable operation in harsh industrial environments
-
Manufactured with high-quality ABB PCB standards
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Green Board (Control/Signal Processing) |
| Modell Number | UDD406A |
| Ordering Code | 3BHE041464R0101 |
| Board Type | Printed Circuit Board (PCB) for control/communication |
| System Compatibility | ABB IGCT drives, inverters, power converters |
| Application Area | Signal interfacing, drive control systems |
| Mounting Type | PCB slot/rack mount (in applicable ABB modules) |
| Operating Voltage | Typically 24 VDC (system dependent) |
| Communication Support | Internal communication bus integration |
| PCB Type | Multi-layer industrial-grade PCB |
| Operating Temperature | –10°C to +55°C |
| Storage Temperature | –40°C to +70°C |
| Dimensions | 120 x 80 x 40mm |
| Gewicht | 0.5 kg |
| Certifications | RoHS, CE, UL (component-level compliance) |
Note: Exact electrical specifications depend on host system integration.
Industry Applications
-
Power Electronics – IGCT-based inverters, rectifiers, and converters
-
Metals and Mining – Motor drives in mills and rolling lines
-
Marine – Propulsion drive and energy management systems
-
Renewable Energy – High-voltage power conversion systems
-
Heavy Industry – High-reliability control in demanding environments
-
Utilities – HVDC transmission and FACTS installations
Advantages
-
System Compatibility: Designed for seamless operation within ABB IGCT systems
-
High Signal Integrity: Reduces electrical noise and improves accuracy
-
Proven Reliability: Trusted in ABB’s long-term power electronics platforms
-
Efficient Design: Compact and well-structured for high-density installations
-
Durability: Industrial-grade build to withstand vibration, temperature, and electrical stress
-
Flexible Application: Suitable for drive control, signal relay, and system interfacing
Häufig gestellte Fragen (FAQ)
-
What is the UDD406A Green Board used for?
It functions as a signal processing and communication interface within ABB drive or power systems. -
Which ABB systems is it compatible with?
Primarily IGCT-based inverter/converter modules and ABB high-power drive Stücks. -
Does it provide communication with other modules?
Yes, it enables communication across internal ABB control bus systems. -
What form factor does the board use?
It is a rack-mounted PCB integrated into ABB converter hardware. -
What is the power requirement?
Typically 24 VDC, but this may vary by system configuration. -
Is it field-replaceable?
Yes, in most ABB systems with modular construction. -
What is the typical operating temperature?
Between –10°C and +55°C, suitable for industrial control panels. -
Does it require special handling?
Yes, as an ESD-sensitive component, it must be handled in a static-safe environment. -
Is the UDD406A RoHS compliant?
Yes, it meets RoHS and CE standards. -
Can this be used as a spare part?
Yes, it is commonly stocked as a spare part for ABB power systems.
