Product Overview

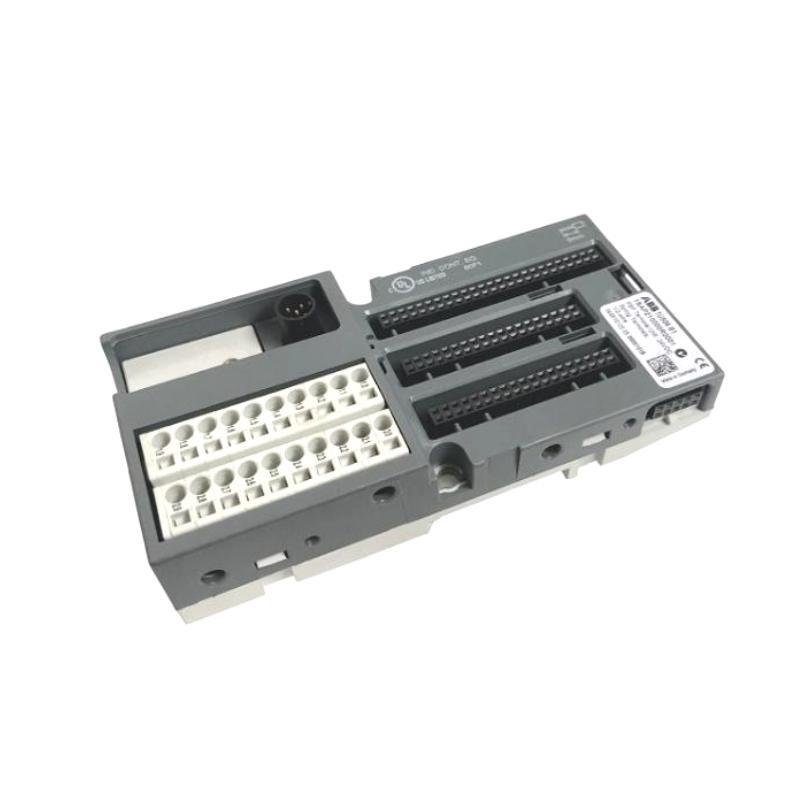

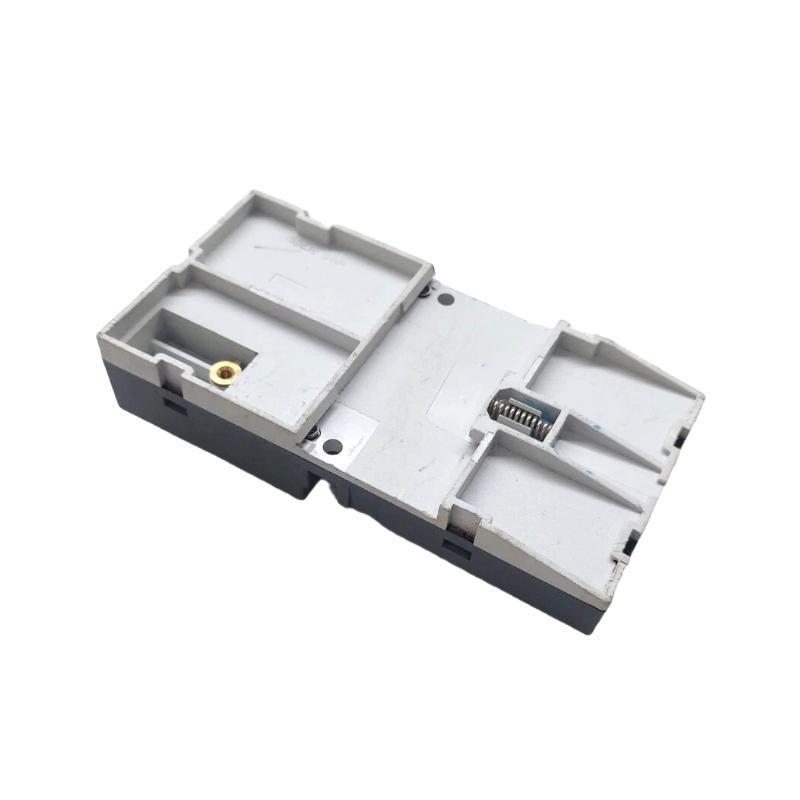

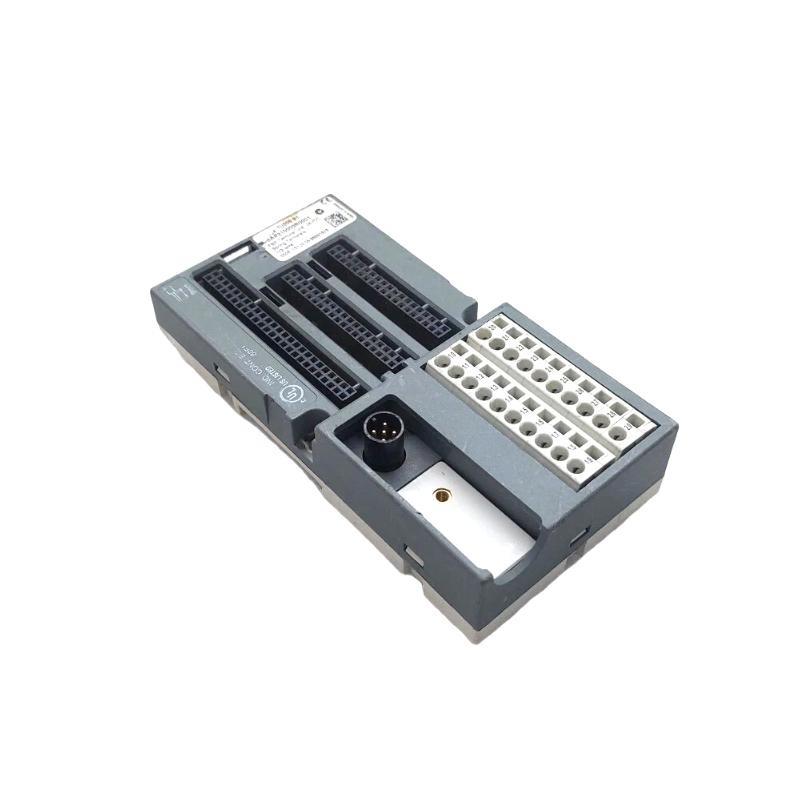

The ABB TU506 FBP Terminal Einheit (Artikelnummer. 1SAP210000R0001) is a fieldbus plug (FBP) terminal Stück used primarily with ABB’s decentralized I/O and automation systems. It acts as an interface between intelligent field devices and ABB’s AC500 or S500 I/O systems, supporting modular and flexible system architectures.
This terminal Stück is designed to integrate with ABB’s FBP communication protocol, facilitating plug-and-play installation with distributed control modules via PROFIBUS, DeviceNet, and AS-Interface. It plays a vital role in simplifying wiring, reducing engineering time, and enabling fast commissioning in industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | TU506 |
| Artikelnummer | 1SAP210000R0001 |
| Hersteller | ABB |
| Product Type | Fieldbus Plug (FBP) Terminal Einheit |
| System Compatibility | ABB AC500 / S500 I/O / Fieldbus Interface Modules |
| Fieldbus Support | PROFIBUS, DeviceNet, AS-Interface (with respective FBP modules) |
| Power Supply | Supplied through I/O module or dedicated FBP module |
| Communication Interface | 9-pin D-sub or FBP header (model dependent) |
| LED Indicators | Status, Power, Fieldbus activity (dependent on FBP type) |
| Operating Voltage | 24V DC typical |
| Mounting Type | DIN rail mount |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH non-condensing |
| Protection Class | IP20 |
| Material | Flame-retardant industrial plastic housing |
| Dimensions (L×W×H) | 28 x 135 x 67.5 mm |
| Gewicht | 0.16 kg |
| Standards Compliance | CE, RoHS, UL-certified |
Product Applications
The ABB TU506 Terminal Einheit is widely adopted in industrial control scenarios that require distributed architecture and fast bus communication:
-
Manufacturing Automation
Interfaces with decentralized I/O stations to simplify field wiring and bus integration. -
Material Handling Systems
Enables remote I/O communication for conveyor belts, sorters, and automated palletizers. -
Packaging Machinery
Connects modular control Stücks with central controllers through PROFIBUS or DeviceNet. -
Water and Wastewater Control
Used in distributed pump and valve stations connected via fieldbus to the central PLC. -
Process Control Systems
Ensures clean bus termination and modular expansion in distributed instrumentation setups. -
Robotics and Assembly Lines
Allows integration von robot controllers and actuators with fieldbus-enabled PLCs.
Product Advantages
-
Modular and Scalable
Designed to work with ABB’s plug-and-play architecture, allowing fast system expansion. -
Supports Multiple Protocols
Compatible with major fieldbus standards through interchangeable FBP modules. -
Efficient Wiring Design
Reduces complex cabling by acting as a standardized field-level interface. -
Tool-Free Installation
Easy DIN rail mounting and snap-on connection minimize setup time. -
LED Diagnostics
Built-in LED indicators help identify connection and communication issues instantly. -
Robust and Compact
Compact IP20-rated enclosure fits in crowded panels and harsh industrial environments.
Häufig gestellte Fragen (FAQ)
-
What does the ABB TU506 terminal Stück do?
It serves as an interface between a fieldbus plug (FBP) and ABB distributed I/O modules. -
Is it compatible with all ABB SPSs?
It is primarily designed for AC500 and S500 I/O systems, but can integrate with any FBP-compatible system. -
Can TU506 be used with different fieldbus types?
Yes, it supports various protocols like PROFIBUS, DeviceNet, and AS-Interface via swappable FBP modules. -
Does the TU506 require external power?
No external power is required—power is drawn from the I/O system or FBP communication plug. -
Is it DIN-rail mountable?
Yes, it features DIN rail clips for quick and secure mounting. -
Does this Stück support diagnostic LEDs?
Yes, most FBP modules connected to TU506 provide LED indicators for communication status and power. -
Is this module suitable for outdoor use?
Not directly. It requires protection in a control cabinet or IP-rated enclosure for outdoor applications. -
Can it be used in safety-critical applications?
While TU506 itself isn’t a safety module, it can be used in systems with safety-rated FBP modules and I/O. -
What’s the difference between TU506 and TU515?
TU506 is for FBP fieldbus use, whereas TU515 typically connects directly to CPU base Stücks without FBP. -
How long is the typical installation time?
Under standard conditions, installation takes less than 5 minutes with no special tools needed.
Related or Similar Modells (Same Series / Function)
| Modell Number | Beschreibung | Key Features |
|---|---|---|
| TU507 | Terminal Einheit with Enhanced Grounding | Enhanced shield and grounding layout |
| TU509 | Compact Terminal Einheit for Small I/O | Ideal for limited-space enclosures |
| TU515 | Terminal Einheit for AC500 Base Modules | Direct CPU Stück connection |
| TU530 | Terminal Einheit for Remote I/O Racks | Extended cabling capability |
| TU531 | Terminal with Integrated Fuse Protection | Field fuse integration |
| TU532 | Redundant Terminal Interface | For dual I/O channels in critical systems |
Popular ABB Modells
| Modell Number | Product Type | Application Field |
|---|---|---|
| AC500 PM573-ETH | PLC CPU Module with Ethernet | General-purpose automation control |
| CP-E 24/2.5 | DIN-Rail Power Supply | 24V DC regulated power for control systems |
| CI541 | Communication Module – PROFIBUS | Fieldbus communication interface |
| 1SVR550884R8100 | ABB CM-MSS Motor Monitoring Relay | Motor protection and diagnostics |
| CM-PVS.21 | Phase Monitoring Relay | Voltage, phase loss, and imbalance detection |
| SM123 | Digital Input Module | Compact modular I/O expansion |
