Produkteinführung

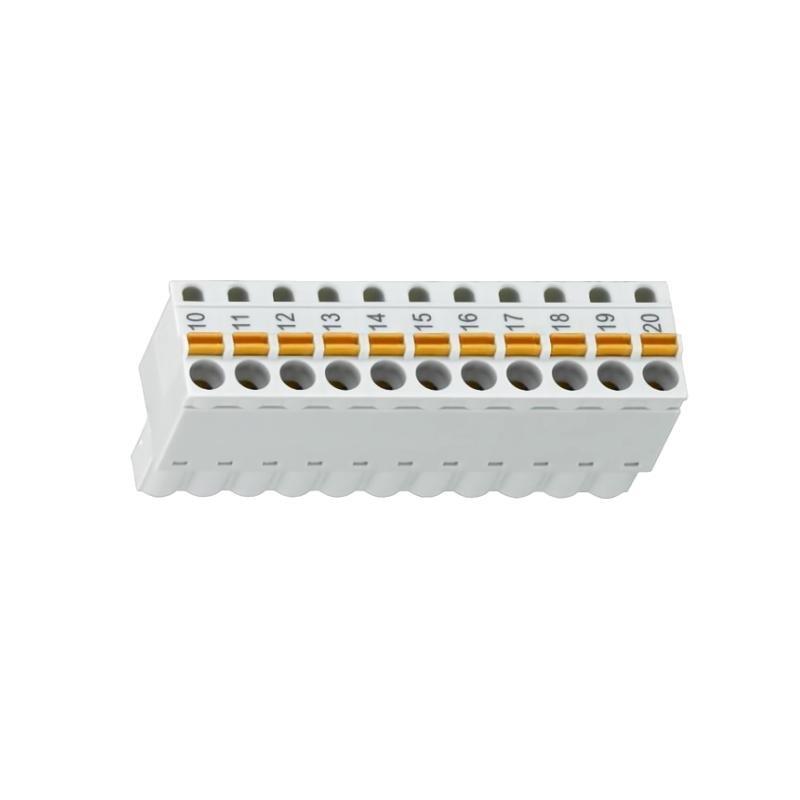

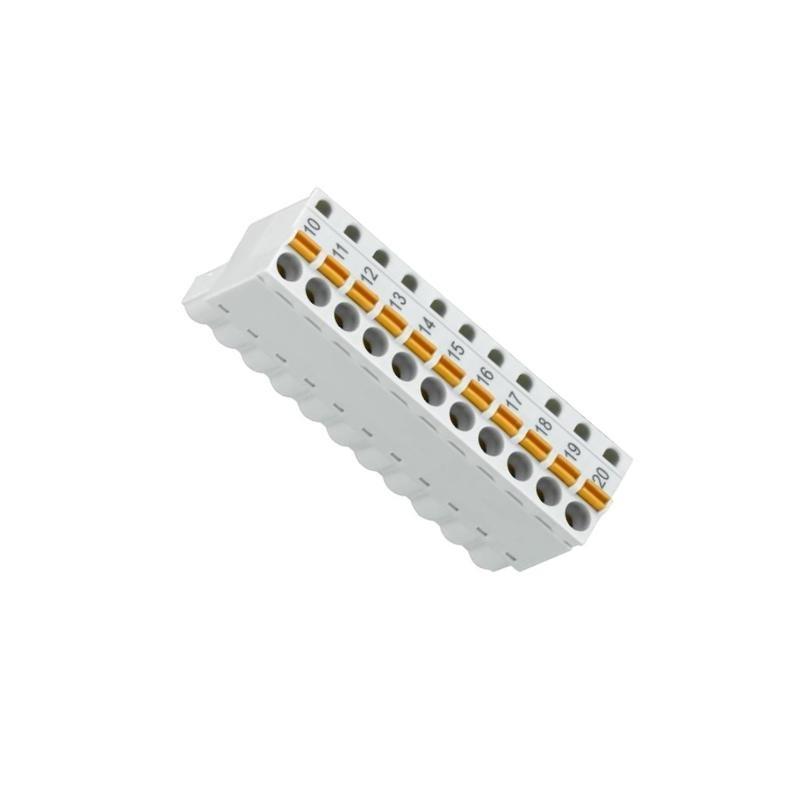

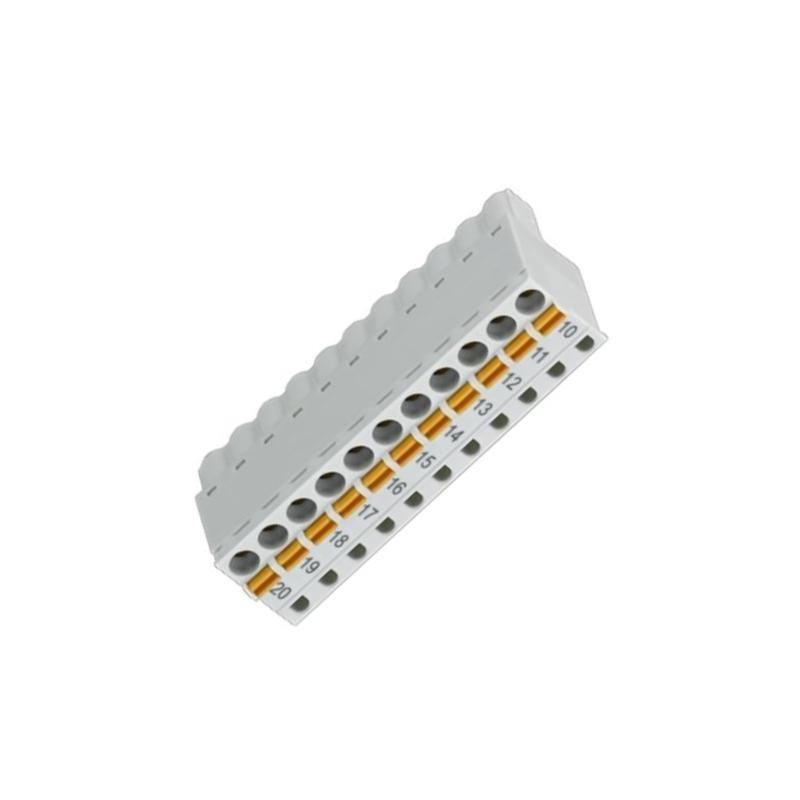

The ABB TA565-11 Terminal Block (Artikelnummer: 1TNE968901R3106) is a robust and reliable electrical connector designed for industrial automation, control panels, and power distribution systems. It serves as a secure interface for wiring connections, ensuring stable electrical contact and streamlined wiring management.
This terminal block is engineered to meet rigorous industry standards and withstand harsh environments, making it a trusted component in ABB’s range von electrical connection devices. Its modular design and ease von installation help reduce wiring errors and improve system maintainability.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | TA565-11 |
| Artikelnummer | 1TNE968901R3106 |
| Type | Terminal Block |
| Material | High-grade insulating plastic; copper alloy contacts |
| Rated Voltage | Up to 600 V AC/DC |
| Rated Current | Up to 41 A |
| Number von Poles | 11 poles |
| Mounting Type | DIN rail mounting |
| Connection Type | Screw clamp |
| Wire Size Range | 0.5 mm² to 6 mm² (AWG 20 to 10) |
| Operating Temperature | -40°C to +105°C |
| Dimensions (L×W×H) | 40 x 250 x 150 mm |
| Gewicht | 0.021 kg |
| Certifications | IEC 60947-7-1, UL, CSA, RoHS |
Product Applications
The TA565-11 terminal block is commonly used across a wide range von industrial and commercial electrical systems, including:
-
Electrical Control Panels – For wiring and organizing complex control circuits.
-
Industrial Automation – Connecting sensors, relays, actuators, and controllers in manufacturing systems.
-
Power Distribution Systems – Provides safe and organized connection points for low- and medium-voltage circuits.
-
Renewable Energy Systems – Used in solar, wind, and other renewable installations for secure wiring.
-
Transportation – Suitable for signal and power wiring in rail, marine, and automotive applications.
-
Building Automation – Wiring for HVAC, lighting, and safety control systems.
Product Advantages
-
High Current Capacity
Rated for up to 41 A, suitable for demanding industrial loads. -
Wide Wire Compatibility
Accepts a broad range von wire sizes from 0.5 mm² to 6 mm², accommodating various wiring requirements. -
Durable Construction
Combines high-quality insulating materials and corrosion-resistant copper contacts to ensure long-term reliability. -
Easy Installation
Screw clamp connection and DIN rail mounting simplify wiring and replacement. -
Compact Design
Slim prvonile enables high-density mounting, optimizing panel space. -
Safety and Compliance
Meets international standards including IEC 60947-7-1, UL, and RoHS.
Häufig gestellte Fragen (FAQ)
-
What is the maximum current rating for the TA565-11 terminal block?
It is rated for up to 41 Amperes per pole. -
What range von wire sizes does this block support?
The terminal block supports wire sizes from 0.5 mm² to 6 mm² (AWG 20 to 10). -
How is the block mounted?
It is mounted on a standard 35 mm DIN rail for secure installation. -
What type von connection does it use?
It features a screw clamp connection for reliable and firm wire fastening. -
Can this block be used in both AC and DC circuits?
Yes, it is rated for voltages up to 600 V for both AC and DC applications. -
What is the operating temperature range?
It operates safely between -40°C and +105°C. -
Is it suitable for outdoor use?
It should be installed within an appropriate enclosure if used outdoors to protect it from environmental factors. -
How many poles does the TA565-11 have?
It comes with 11 poles, allowing multiple connections in one Stück. -
Are there accessories available for this terminal block?
Yes, ABB vonfers accessories such as jumpers, end covers, and marking tags compatible with this series. -
What certifications does this terminal block hold?
It complies with IEC 60947-7-1, UL, CSA, and RoHS standards, ensuring safety and environmental compliance.
