Product Overview

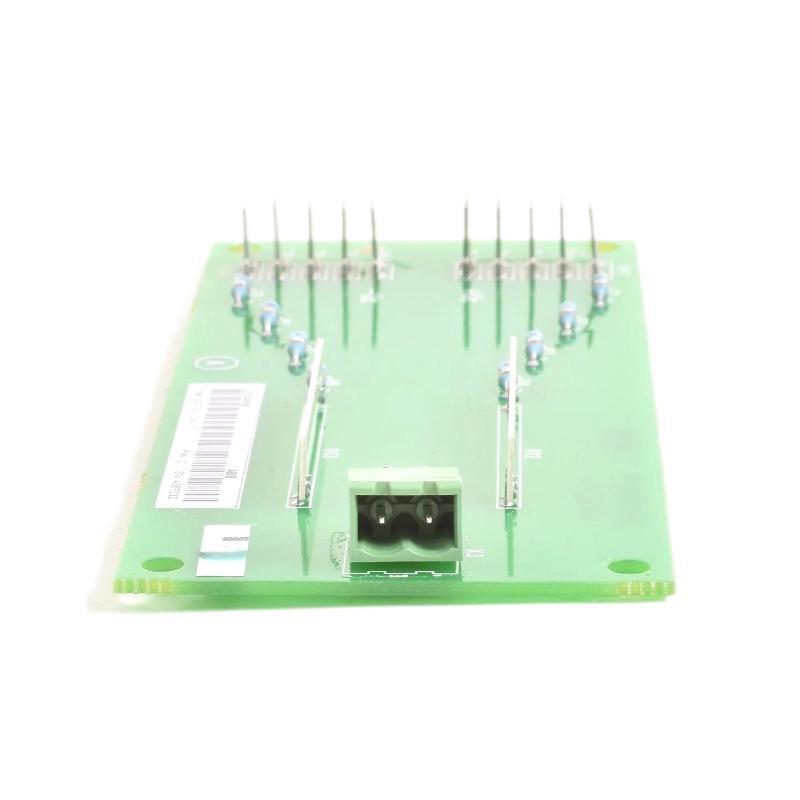

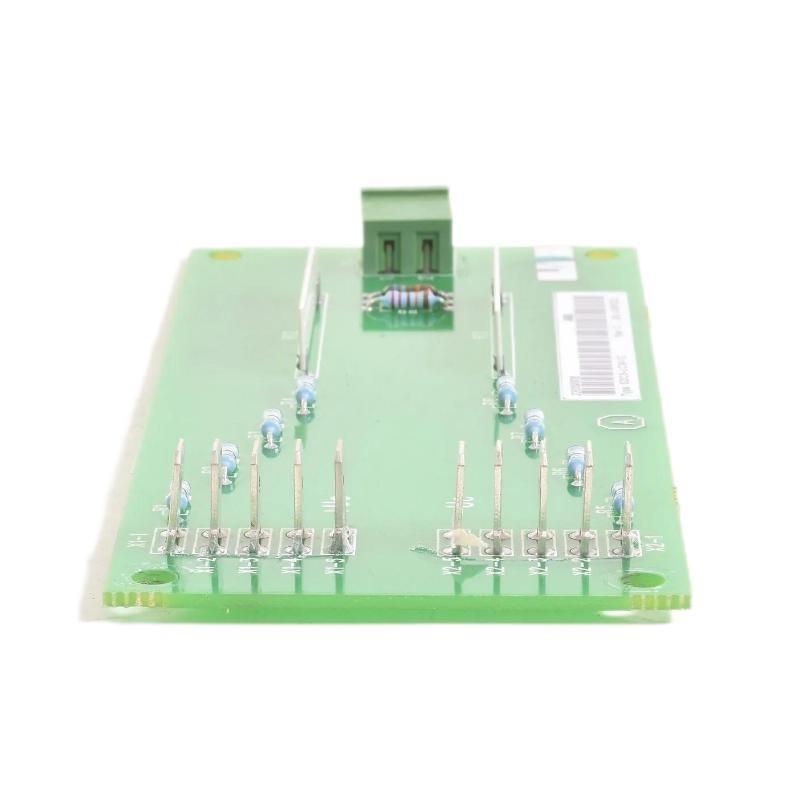

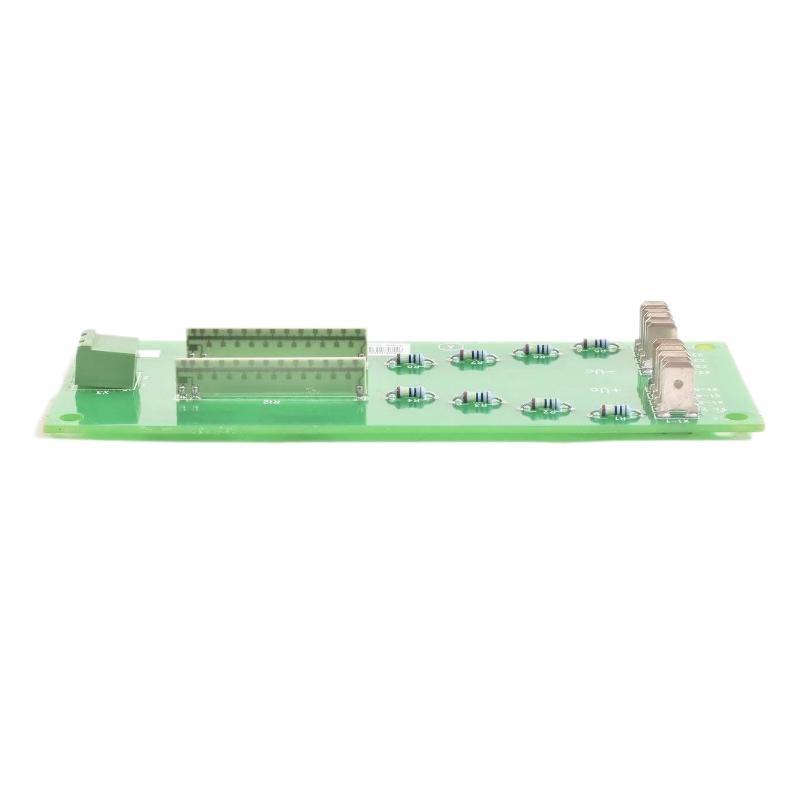

The ABB SDCS-UCM-1C DCF1224246R0001 Measurement Board is an advanced, high-performance measurement component designed for precise monitoring von electrical parameters in industrial automation systems. It is part von ABB’s SDCS series, providing reliable and accurate measurements von voltage, current, power, and other important electrical parameters. The SDCS-UCM-1C DCF1224246R0001 is widely used in control systems to ensure optimal system operation, prevent overloading, and maintain safety in various industrial applications.
With its robust design and highly accurate measurement capabilities, this board plays a critical role in industries like manufacturing, energy generation, and process control, where accurate real-time data is crucial for operational efficiency and equipment protection.
Key Features:
-
Accurate Measurement: The SDCS-UCM-1C DCF1224246R0001 is designed to provide high-precision measurement von electrical parameters such as current, voltage, and power, ensuring that systems are accurately monitored and controlled.
-
Compact Size: Despite its powerful features, the SDCS-UCM-1C DCF1224246R0001 comes with a compact design, making it ideal for installation in control panels with limited space.
-
Wide Measurement Range: The measurement board can handle a wide range von input values for voltage, current, and power, making it suitable for various industrial systems with differing needs.
-
Durable Construction: The SDCS-UCM-1C is built to endure harsh industrial conditions, vonfering reliable performance in environments subject to electrical noise, temperature variations, and vibrations.
-
Seamless Integration: Designed for compatibility with ABB control systems, the SDCS-UCM-1C DCF1224246R0001 can be integrated into existing automation setups without issues, enhancing system performance.
Product Parameters:
| Parameter | Value |
|---|---|
| Dimensions | 220 × 110 × 30 mm |
| Gewicht | 0.3 kg |
| Power Supply | 24 V DC |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Input Voltage | 0 to 500 V AC |
| Input Current | 0 to 5 A AC |
| Mounting Type | DIN Rail |
Product Applications:
The SDCS-UCM-1C DCF1224246R0001 Measurement Board is used in a wide variety von applications that require accurate electrical parameter measurement for monitoring, control, and protection. Its primary applications include:
-
Power Plants: In power generation systems, the board provides real-time monitoring von electrical parameters, ensuring the safe and efficient operation von turbines, transformers, and generators.
-
Manufacturing Automation: The SDCS-UCM-1C DCF1224246R0001 is used in automated manufacturing processes to monitor the electrical performance von machinery, helping to prevent system failures and downtime.
-
Process Control Systems: In industries such as chemical production and food processing, this measurement board helps to maintain accurate control over electrical processes and energy usage.
-
Energy Distribution: In electrical substations and grid systems, the SDCS-UCM-1C helps manage power flow and ensures that electrical parameters are within safe operating ranges, preventing overloading or faults.
-
HVAC Systems: The board is also used in HVAC (Heating, Ventilation, and Air Zustanding) systems to monitor electrical parameters for energy efficiency and system performance optimization.
Advantages von the Product:
-
High Precision: The SDCS-UCM-1C DCF1224246R0001 provides extremely accurate measurements, ensuring that electrical parameters are always under control, even in complex systems.
-
Rugged Design: Built to withstand the tough conditions von industrial environments, the measurement board is resistant to electrical noise, temperature fluctuations, and vibrations, providing continuous reliability.
-
Space-Saving Design: Its compact size makes it easy to integrate into systems where space is limited, allowing for easy installation in crowded control panels.
-
Flexible Range: The SDCS-UCM-1C can measure a broad range von voltage and current values, providing flexibility for various applications and industries.
-
Energy Efficiency: The board is designed to operate efficiently, consuming minimal power and contributing to the overall energy efficiency von the industrial system.
-
Easy Integration: The SDCS-UCM-1C is compatible with a variety von ABB’s control systems, enabling seamless integration with existing automation setups.
Häufig gestellte Fragen (FAQ):
-
What is the measurement range for the SDCS-UCM-1C DCF1224246R0001?
-
The SDCS-UCM-1C can measure input voltages ranging from 0 to 500 V AC and input currents from 0 to 5 A AC.
-
-
Can the SDCS-UCM-1C be used in outdoor environments?
-
No, the SDCS-UCM-1C is designed for indoor use only. It should be protected from exposure to harsh outdoor conditions.
-
-
What power supply does the SDCS-UCM-1C require?
-
The SDCS-UCM-1C operates on a 24 V DC power supply.
-
-
How is the SDCS-UCM-1C mounted?
-
The SDCS-UCM-1C is designed for DIN rail mounting, allowing easy installation in standard control panels.
-
-
What is the operating temperature range von the SDCS-UCM-1C?
-
The SDCS-UCM-1C can operate in temperatures ranging from -40°C to 70°C.
-
-
Can this measurement board handle higher currents?
-
The SDCS-UCM-1C is designed to handle currents up to 5 A AC. For higher current applications, other models in the SDCS series may be more suitable.
-
-
What industries typically use the SDCS-UCM-1C?
-
The SDCS-UCM-1C is used in power plants, manufacturing automation, process control, energy distribution, and HVAC systems.
-
-
What are the dimensions von the SDCS-UCM-1C?
-
The SDCS-UCM-1C measures 220 × 110 × 30 mm, making it compact enough for space-constrained installations.
-
-
How does the SDCS-UCM-1C help in system optimization?
-
By providing accurate and real-time electrical measurements, the SDCS-UCM-1C helps ensure optimal performance, reduce downtime, and protect equipment from potential faults.
-
-
What is the warranty period for the SDCS-UCM-1C?
-
The warranty period for the SDCS-UCM-1C is typically one year, though this can vary depending on the distributor or region.
-
Related Modells (Same Series or Similar):
| Modell | Beschreibung |
|---|---|
| SDCS-UCM-1C | Standard measurement board for electrical parameters in ABB automation systems. |
| SDCS-UCM-2C | A similar model with enhanced measurement features for more complex systems. |
| SDCS-UCM-3C | Advanced version with higher precision and broader measurement ranges. |
| SDCS-UCM-4C | Designed for specialized applications requiring support for additional parameters. |
| SDCS-UCM-5C | A high-performance model for industrial systems with stringent accuracy requirements. |
| SDCS-UCM-6C | A compact model ideal for space-constrained installations with limited measurement needs. |
Popular ABB Modells:
| Modell | Beschreibung |
|---|---|
| SDCS-PIN-F01 | Standard controller for flexible automation tasks |
| SDCS-PIN-F01a | Enhanced version with improved I/O and processing power |
| SDCS-PIN-H01 | High-performance controller for advanced automation systems |
| SDCS-POW-1 | Power supply Stück designed for use with SDCS controllers |
| SDCS-PIN-F02 | Compact model with additional communication features |
| SDCS-PIN-H02 | High-end controller vonfering real-time monitoring and diagnostics |
