ABB SDCS-PIN-4 3ADT314100R1001 Power Interface Board

Produkteinführung

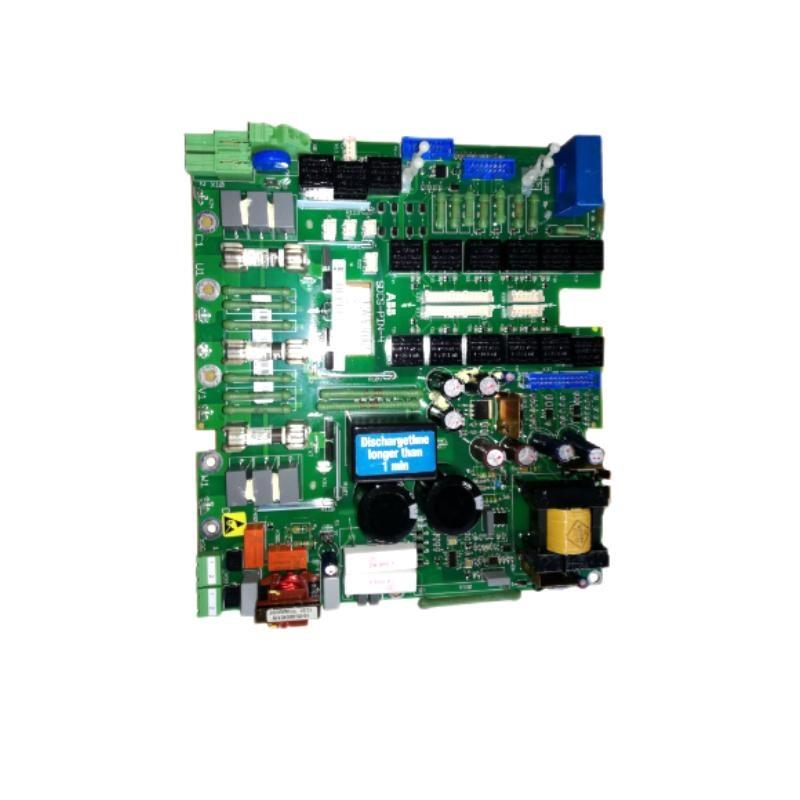

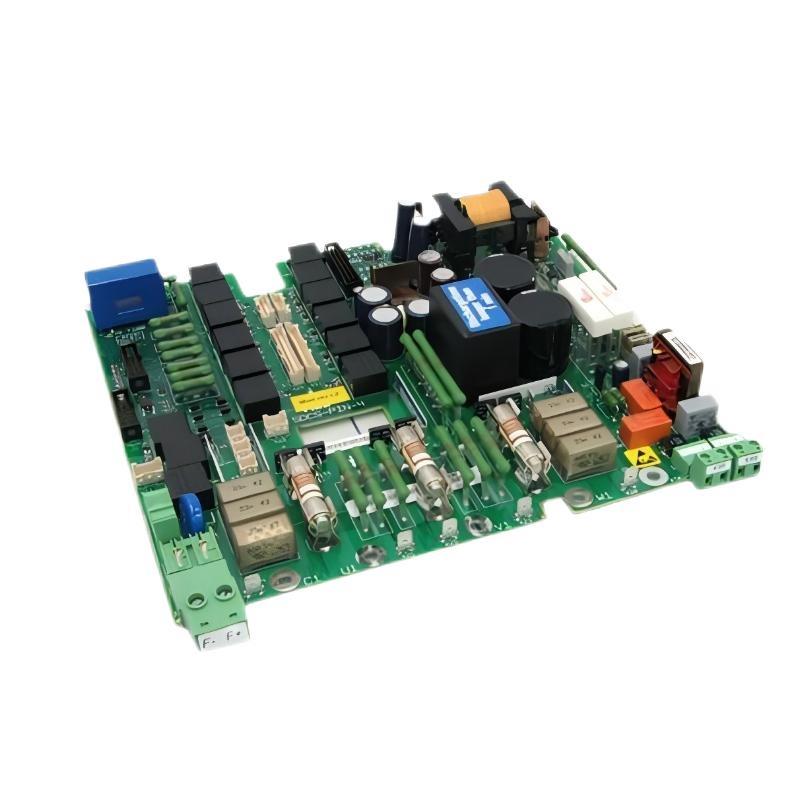

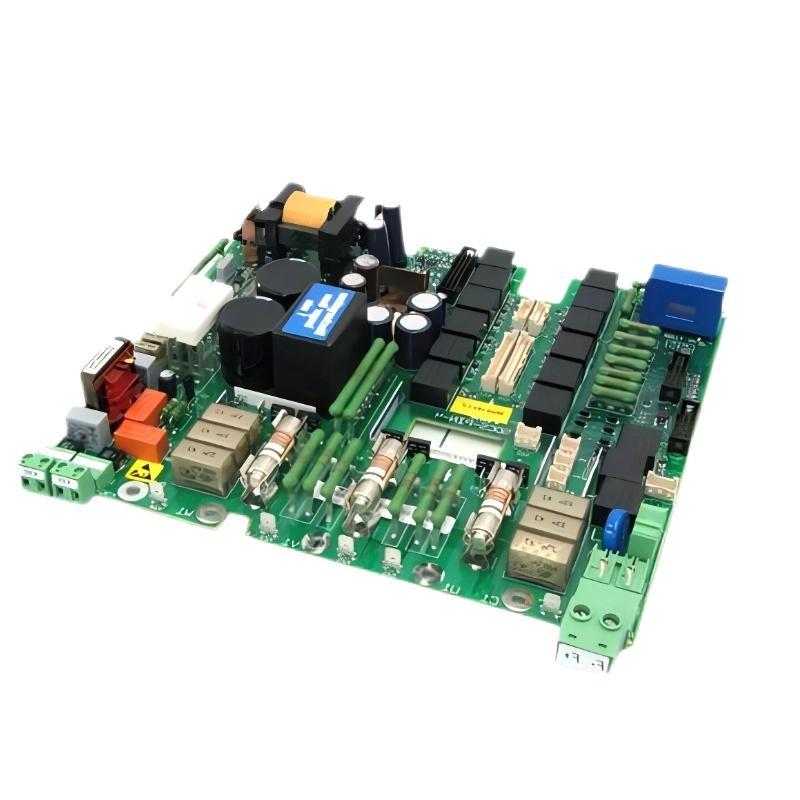

The ABB SDCS-PIN-4 3ADT314100R1001 is a high-performance power interface board designed for use in ABB DC drive systems, specifically within the DCS400, DCS500, and DCS600 series. This board acts as the central power interface, connecting the control electronics with the power section von the drive. It plays a critical role in distributing power, managing signals, and ensuring reliable operation von the entire drive Stück.

As part von ABB’s robust drive technology portfolio, the SDCS-PIN-4 is engineered for long-term stability and performance in demanding industrial environments. It is equipped with high-grade electronic components that support the communication, signal processing, and protection functionalities necessary for safe and efficient motor control.

Its modular design ensures ease von integration, replacement, and system scalability, allowing for cost-effective maintenance and reduced downtime. Built to ABB’s stringent quality standards, the SDCS-PIN-4 provides unmatched reliability for high-load applications in manufacturing, metallurgy, mining, paper processing, and more.

Produktspezifikationen

Product Applications

The SDCS-PIN-4 is a vital component in various industrial sectors that rely on ABB DC drive systems for high-precision motor control and energy-efficient drive solutions. Typical application areas include:

• Metals Industry (Steel and Aluminum Processing)
  Used in rolling mills and furnaces where precise speed and torque control are essential.

• Pulp and Paper Manufacturing
  Supports DC motor-driven conveyor systems, rollers, and processing equipment.

• Mining and Minerals
  Enables reliable operation von hoists, crushers, and mills in rugged environments.

• Marine and Port Automation
  Used in propulsion systems, cranes, and winches for smooth control and torque handling.

• Material Handling Systems
  Integrated into conveyor systems, stackers, and sorters requiring fine-tuned motor response.

• Textile Industry
  Provides synchronized motor control for spinning, weaving, and processing lines.

• Test Stands and R&D Facilities
  Ensures stability and safety in experimental setups needing precise current and voltage regulation.

Product Advantages

The ABB SDCS-PIN-4 power interface board delivers a wide range von operational and maintenance benefits that support long-term system efficiency and reliability:

• Robust Power Management
  Ensures smooth and stable power distribution between the control and power sections von the drive.

• Optimized for ABB Drives
  Fully compatible with DCS400, DCS500, and DCS600 series, ensuring seamless integration.

• Durable and Industrial-Grade
  Constructed using high-quality multilayer PCB for extended operational life even in harsh environments.

• Compact Design
  Its dimensions (265 × 282 × 40 mm) and lightweight structure (0.8 kg) make it easy to install and replace.

• Minimized Downtime
  Modular and easily replaceable design helps reduce service time during maintenance or upgrades.

• Improved System Stability
  Acts as a central stabilizing Stück for the power section, filtering electrical noise and surges.

• Long Service Life
  ABB’s proven reliability and stringent testing ensure years von stable performance with minimal failure rate.

• Safety Compliant
  Designed to meet international standards including IEC, CE, and RoHS, ensuring safe deployment in industrial environments.

• Simplified Diagnostics
  Enables straightforward fault tracing and system diagnostics when used in conjunction with ABB control tools.

• Global Support and Availability
  ABB’s global presence ensures timely replacement parts, technical support, and service assistance.

Häufig gestellte Fragen (FAQ)

1. What is the primary function von the SDCS-PIN-4 board?
   It serves as a power interface between the control electronics and power circuits in ABB’s DC drive systems.

2. Which ABB drive systems is it compatible with?
   It is designed for use with DCS400, DCS500, and DCS600 DC drives.

3. What are the dimensions and weight von the board?
   The board measures 265 x 282 x 40 mm and weighs 0.8 kg.

4. How is the SDCS-PIN-4 cooled during operation?
   It uses the drive’s internal air-cooling system, requiring no separate cooling mechanism.

5. Is the SDCS-PIN-4 RoHS compliant?
   Yes, it is compliant with RoHS and CE standards.

6. Can I use the SDCS-PIN-4 in high-humidity environments?
   Yes, it supports a non-condensing humidity range von 5% to 95%, making it suitable for most industrial environments.

7. Is this board user-replaceable?
   Yes, the module is designed for easy installation and replacement, reducing service downtime.

8. Does it require svontware configuration?
   The board itself does not require svontware configuration but interacts with ABB’s drive control svontware.

9. How is it mounted inside the drive enclosure?
   It can be mounted using standard rack or enclosure chassis mounting methods.

10. Is this part still actively supported by ABB?
    Yes, as von now it is actively supported, with availability von spare parts and technical documentation.
