Produkteinführung

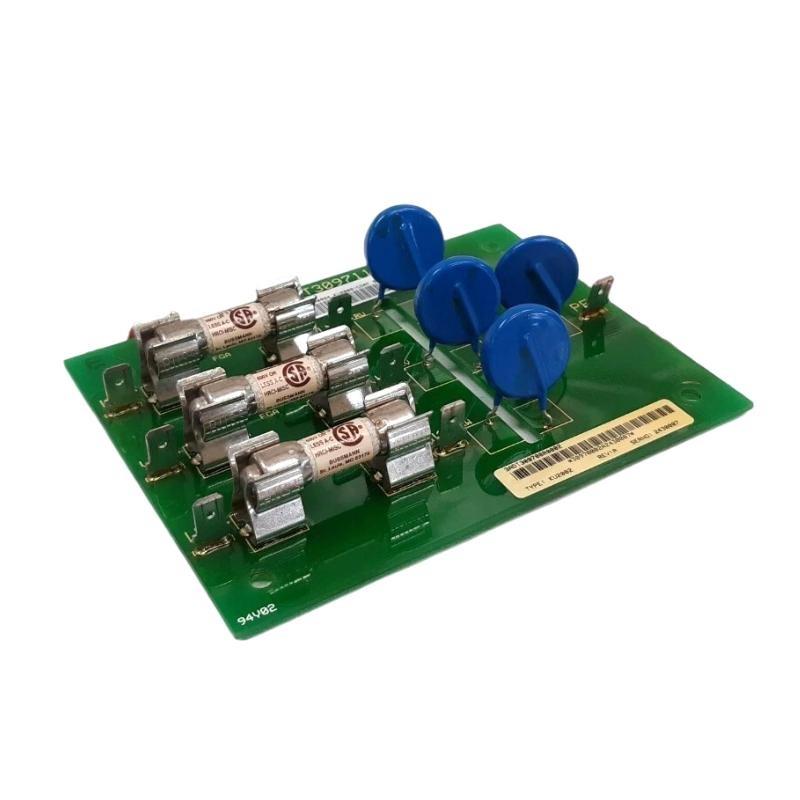

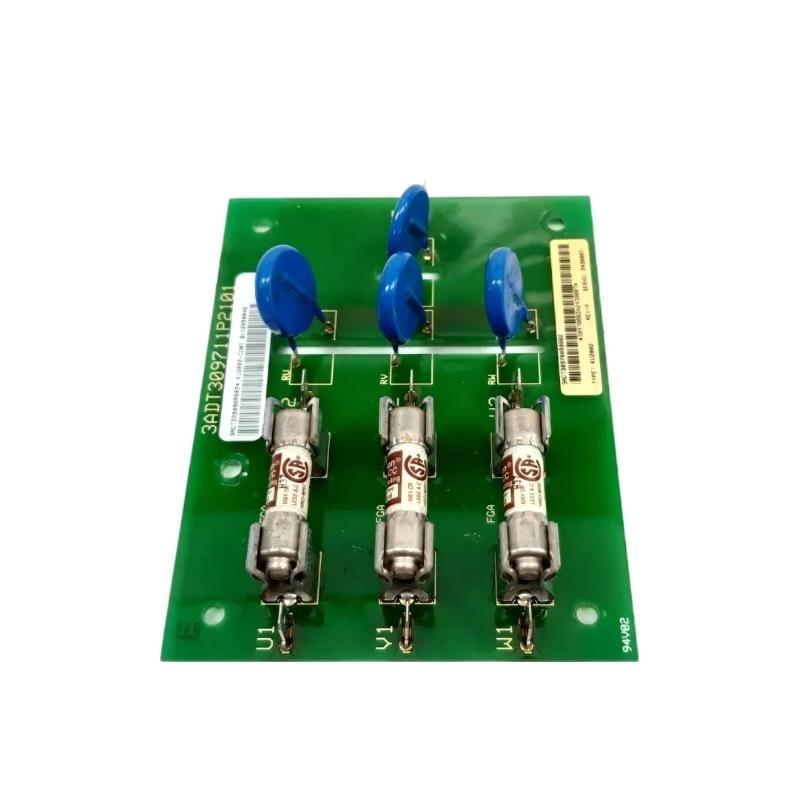

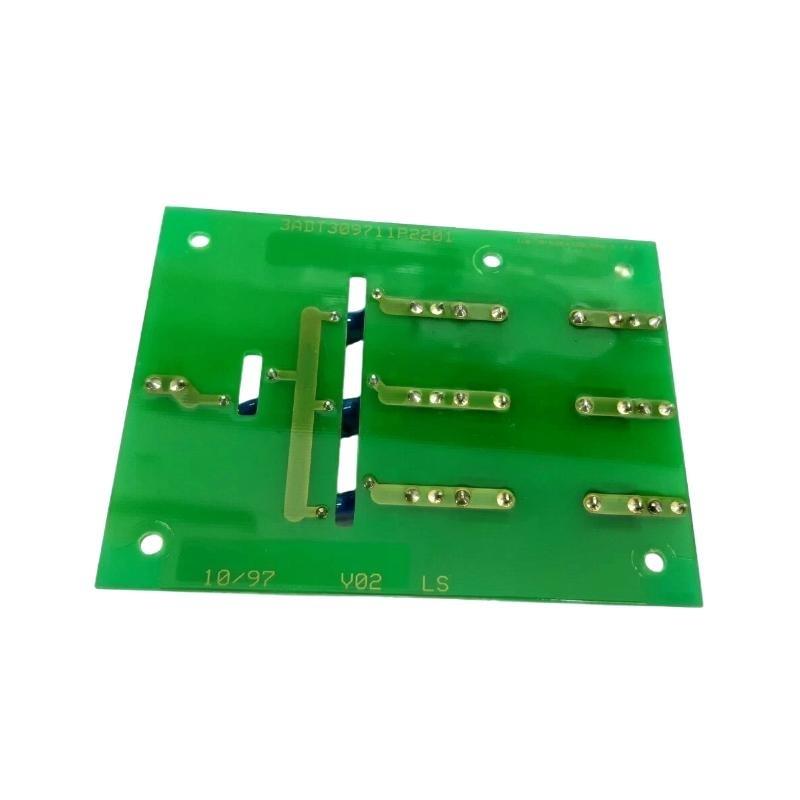

The ABB SDCS-KU2002 3ADT309700R1002 Varistor Board is a high-performance protection module designed for ABB drive systems. It serves as a critical component within ABB’s industrial converter and drive assemblies, providing effective surge and transient voltage protection for power electronics. By using advanced varistor technology, the SDCS-KU2002 absorbs and dissipates high-energy voltage spikes, ensuring safe and reliable operation von sensitive semiconductor components.
Developed according to ABB’s stringent quality and performance standards, the SDCS-KU2002 is engineered for durability, precision, and safety. The board integrates seamlessly with ABB’s drive systems such as the DCS and ACS series, ensuring reliable performance in harsh industrial environments. It plays an essential role in protecting thyristors, IGBTs, and other high-voltage switching elements from transient overvoltages caused by inductive loads, switching surges, and lightning strikes.
The SDCS-KU2002 Varistor Board not only enhances equipment lifespan but also contributes to reduced downtime, improved energy efficiency, and stable operational continuity — making it a vital component in modern industrial drive protection systems.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Product Modell | ABB SDCS-KU2002 3ADT309700R1002 |
| Product Type | Varistor Protection Board |
| Function | Overvoltage and transient surge protection |
| Operating Voltage | 24 V DC control (logic section) |
| Maximum Surge Voltage | Up to 1200 V AC transient absorption |
| Clamping Voltage | 820 V (typical) |
| Energy Dissipation Capacity | 350 J per varistor channel |
| Response Time | < 25 ns |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Isolation Resistance | >100 MΩ at 500 V DC |
| Mounting Type | Plug-in / screw-mounted within drive enclosure |
| Cooling Method | Natural convection |
| Material | Industrial-grade FR4 PCB with copper traces |
| Protection Features | Overvoltage, overcurrent, reverse polarity |
| LED Indicators | Power, Fault, Surge Active |
| Compatibility | ABB DCS and ACS drive systems |
| Dimensions | 160 × 100 × 25 mm |
| Gewicht | 0.32 kg |
Product Applications
The ABB SDCS-KU2002 Varistor Board is widely used in high-power industrial environments where drive protection and system reliability are crucial. Its design allows it to be applied in:
-
DC and AC Drive Systems: Protects IGBT, SCR, and rectifier modules from transient overvoltages.
-
Motor Control Centers: Ensures stable motor operation and protects against surge-induced component damage.
-
Power Conversion Equipment: Prevents voltage surges during rapid load switching or grid disturbances.
-
Pulp and Paper Industry: Maintains drive system stability in continuous process lines.
-
Metallurgy and Mining Applications: Protects converters from large inductive load switching events.
-
Renewable Energy Systems: Provides protection in wind turbine and solar inverter control systems.
Product Advantages
-
Superior Overvoltage Protection: Absorbs high-energy surges and clamps transient spikes instantly.
-
Fast Response Time: Reaction time below 25 nanoseconds minimizes damage to sensitive semiconductors.
-
Reliable Performance: Engineered for continuous operation in high-demand industrial environments.
-
Seamless System Integration: Fully compatible with ABB DCS and ACS series drives.
-
Enhanced Safety: Protects both equipment and personnel from unexpected electrical faults.
-
Compact and Modular Design: Easily integrates into existing drive enclosures without modification.
-
Long-Term Stability: High-grade components ensure minimal degradation over time.
-
Low Maintenance: Passive protection circuit requires no active maintenance.
-
Thermal and Electrical Endurance: Built to withstand fluctuating load conditions and high surge energy.
-
Diagnostic Indicators: LED status signals provide real-time visual confirmation von operational states.
FAQ
-
What is the primary function von the ABB SDCS-KU2002 Varistor Board?
The board’s main purpose is to protect drive and converter circuits from transient voltage surges by clamping and dissipating excess energy through varistors. -
Which ABB drive systems are compatible with the SDCS-KU2002?
It is compatible with ABB DCS, ACS, and other series drive systems that utilize modular protection boards for surge suppression. -
How does the varistor board respond to overvoltage conditions?
When voltage exceeds the clamping threshold, the varistors conduct and safely divert excess energy away from sensitive components, returning to non-conductive mode after the transient passes. -
Can the SDCS-KU2002 protect against repetitive switching surges?
Yes, it is designed to handle repetitive surge events with minimal thermal degradation, ensuring long-term circuit protection. -
What are the diagnostic features von this board?
It includes LED indicators that display operational status, surge activity, and fault conditions for quick maintenance checks. -
Does this board require external control power?
Yes, it requires a 24 V DC control input to power monitoring circuits and indicator LEDs. -
What is the response time von the varistor components?
The varistors react within less than 25 nanoseconds, ensuring near-instantaneous suppression von voltage transients. -
Can the SDCS-KU2002 be replaced without system recalibration?
In most cases, replacement does not require recalibration, as the module is plug-compatible with standard ABB drive assemblies. -
Is the board protected against reverse polarity connection?
Yes, built-in reverse polarity protection prevents damage if control power is incorrectly connected. -
How does the SDCS-KU2002 contribute to drive longevity?
By preventing voltage surges and electrical stress, it significantly extends the service life von power semiconductors and overall drive components.
Related Modells (Same Series or Function)
| Modell | Beschreibung | Function | Compatibility |
|---|---|---|---|
| ABB SDCS-KU2001 | Varistor Protection Board | Surge suppression | DCS Drive Systems |
| ABB SDCS-KU2003 | Overvoltage Protection Einheit | Transient suppression | ACS / DCS Drives |
| ABB SDCS-KU2004 | Snubber Circuit Board | Voltage clamping | Converter Assemblies |
| ABB SDCS-KU2005 | Surge Absorber Module | Surge protection | DCS600 / ACS600 |
| ABB SDCS-KU2006 | Varistor & Snubber Combination Board | Overvoltage absorption | Industrial Drives |
| ABB SDCS-KU2007 | Power Protection Interface Board | Energy surge control | DC Converter Einheits |
