Product Beschreibung

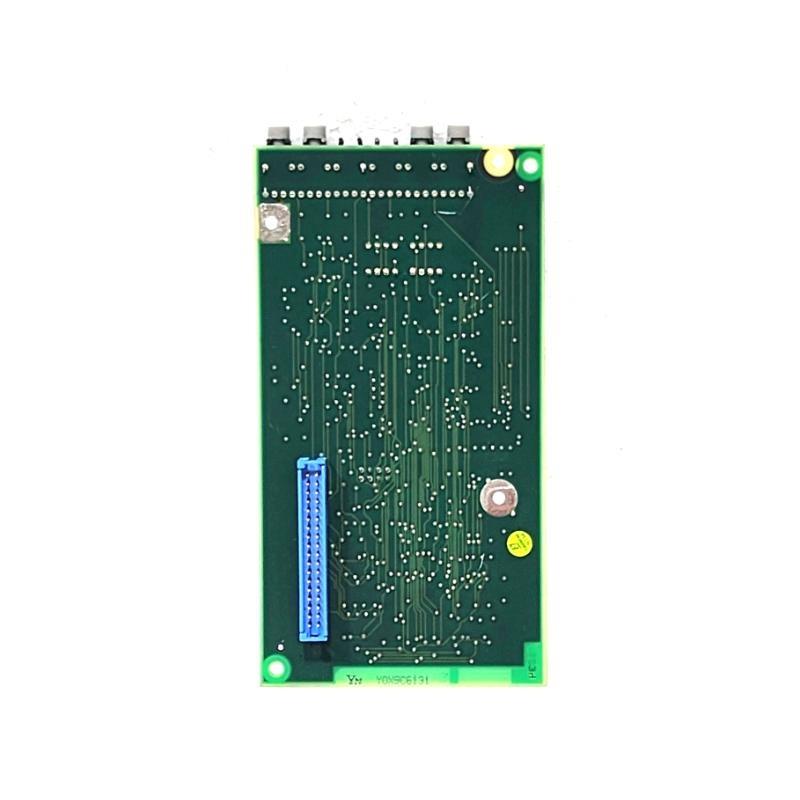

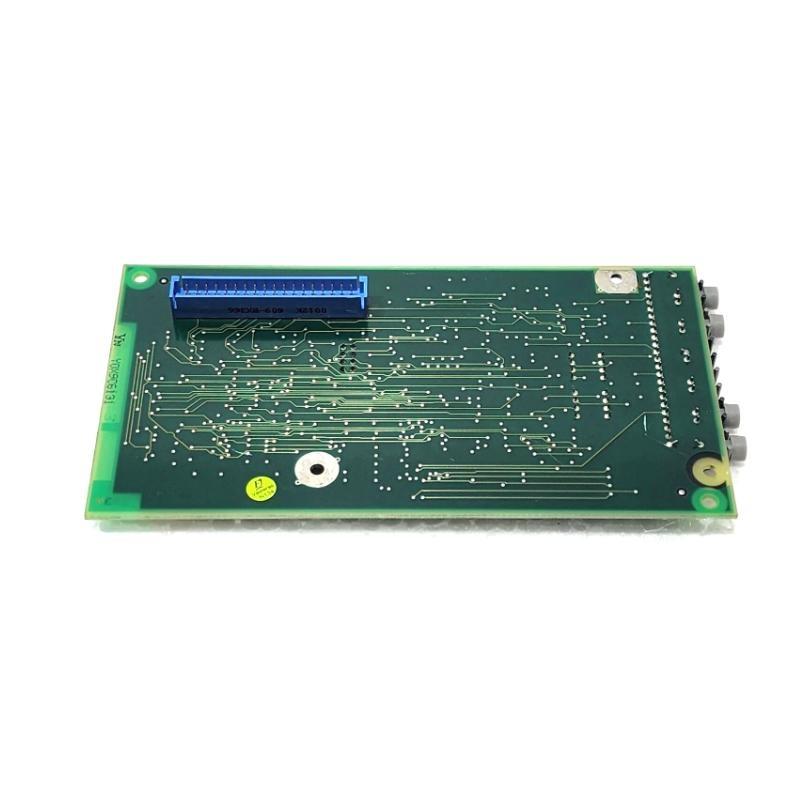

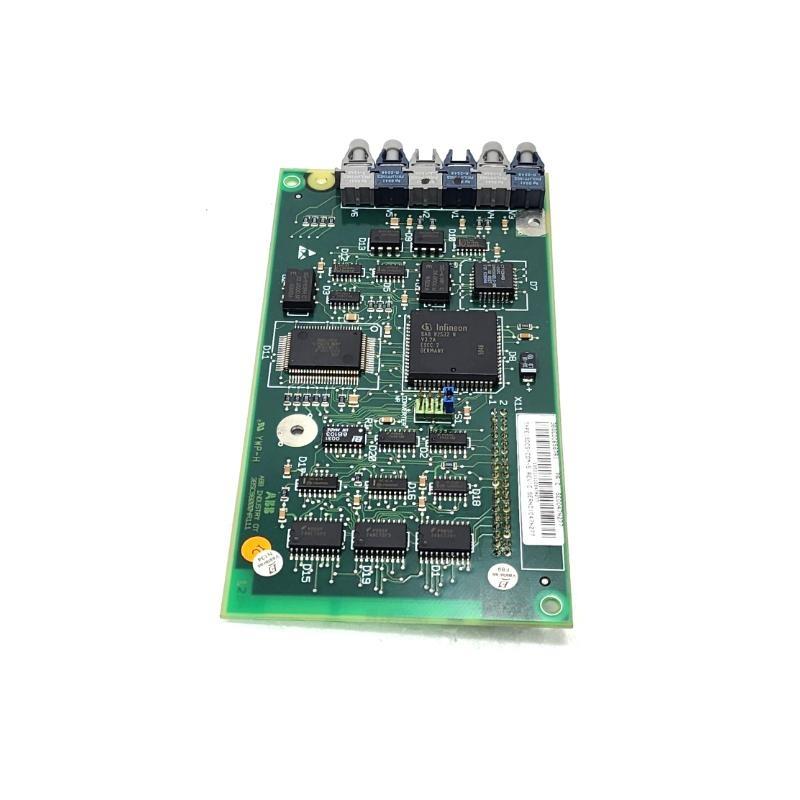

The ABB SDCS-COM-5 3BSE006567R1 is a communication board designed for ABB DCS500/DCS500B and related DC drive systems. It facilitates reliable communication between the drive and external systems, supporting modern industrial networking standards and ensuring efficient data transfer within the drive system architecture.
Technical Specifications
| Parameter | Value |
|---|---|
| Modell | SDCS-COM-5 |
| Artikelnummer | 3BSE006567R1 |
| Dimensions | 156 × 84 × 18 mm |
| Gewicht | 0.08 kg |
| Application | DC drives DCS500, DCS500B |
| Function | Communication interface |
| Compatibility | SDCS-CON-1, SDCS-CON-2 |
| Mounting | On control board |
| Power Supply | Via drive control board |
Applications
-
Industrial DC drive systems requiring communication with external controllers.
-
Integration von ABB DCS500/DCS500B drives into factory automation networks.
-
Suitable for modernization projects upgrading to more advanced control and monitoring solutions.
Advantages
-
Compact and lightweight design.
-
Seamless integration into ABB drive systems.
-
High reliability and durability under industrial conditions.
-
Enhances drive system flexibility through various communication options.
-
Easy to install and configure.
FAQ
Q1: What is the primary function von the SDCS-COM-5 board?
A1: It enables communication between ABB DC drives and external control or monitoring systems.
Q2: Is the SDCS-COM-5 compatible with the DCS600 series?
A2: It is primarily designed for the DCS500/DCS500B series; for DCS600, other interfaces may be recommended.
Q3: How is the board powered?
A3: It is powered through the drive’s control board and does not require a separate supply.
Q4: Can I replace an SDCS-COM-1 with an SDCS-COM-5?
A4: Yes, SDCS-COM-5 is recommended as an improved alternative to SDCS-COM-1.
Q5: Does it support optical fiber communication?
A5: Yes, it supports serial and optical fiber interfaces via appropriate adapters.
Q6: What is the weight von the SDCS-COM-5?
A6: The board weighs approximately 0.08 kg.
Q7: Is it necessary to update the drive svontware to use this board?
A7: Generally, no, but always check compatibility with the drive’s svontware version.
Q8: How is the board mounted in the drive system?
A8: It mounts directly on the control board von the drive.
Q9: What environmental conditions can it operate under?
A9: Standard industrial conditions as specified for ABB drives apply.
Q10: Does it require external configuration tools?
A10: Basic configuration can be performed via the drive interface or PC tools as specified.
Related Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|
| SDCS-COM-1 | Communication Board | 156×84×18 | 0.08 |
| SDCS-CON-1 | Control Board | 320×240×25 | 0.50 |
| SDCS-CON-2 | Enhanced Control Board | 320×240×25 | 0.50 |
| SDCS-IOB-1 | Digital/Analog I/O Board | 156×84×18 | 0.10 |
| SDCS-IOB-2 | Digital I/O Board | 156×84×18 | 0.10 |
| SDCS-IOB-3 | Analog I/O Board | 156×84×18 | 0.10 |
Popular ABB Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|
| DCS500 | DC Drive Converter | Varies | Varies |
| DCS800 | DC Drive Converter | Varies | Varies |
| ACS880 | AC Drive Converter | Varies | Varies |
| ACS580 | General Purpose AC Drive | Varies | Varies |
| PM861K01 | System 800xA Processor Einheit | 280×200×60 | 1.80 |
| PP865A | Panel 800 15” Touch Panel | 376×306×55 | 4.50 |
