Product Beschreibung

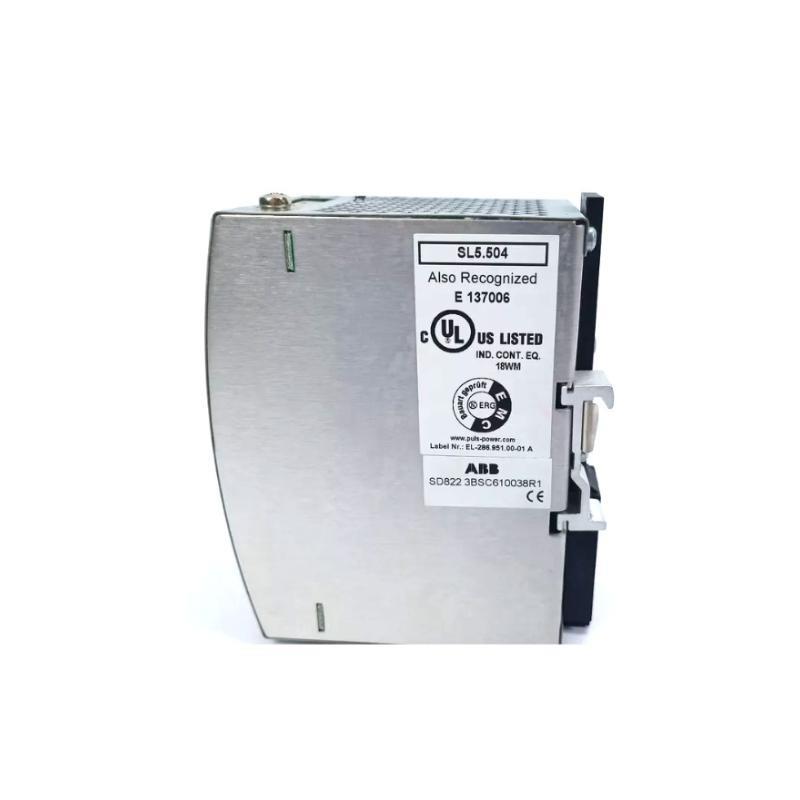

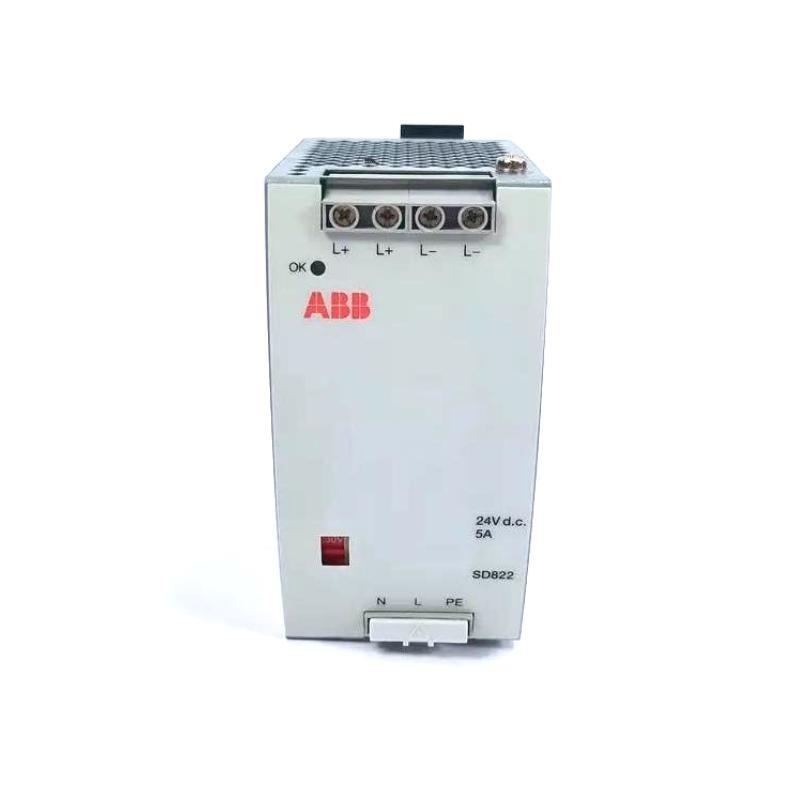

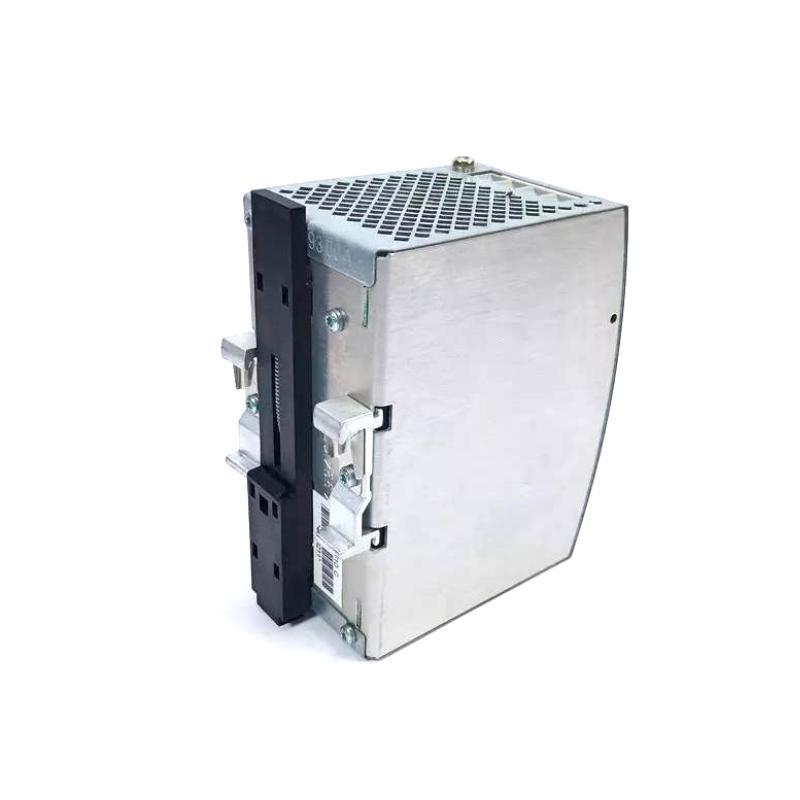

The ABB SD822 3BSC610038R1 is an industrial 24 V DC power supply module designed for the AC 800M automation system. It ensures stable power delivery for critical applications and supports redundancy when paired with compatible Stücks.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Code | 3BSC610038R1 |
| Modell | SD822 |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Output Current | Up to 10 A |
| Power Output | 240 W max |
| Mounting | DIN-rail |
| Redundancy Support | Yes (with SS823/SS832) |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -40 to +70°C |
| Protection Class | IP20 |
| Certifications | CE, UL, TÜV, EMC |
| Dimensions (W x H x D) | 65 x 125 x 110 mm |
| Gewicht | 0.7 kg |
Applications
-
AC 800M automation systems
-
Redundant power supply configurations
-
Process control in oil, gas, and chemical plants
-
Factory automation and DCS environments
Advantages
-
Designed for ABB AC 800M systems
-
Supports redundant configurations for high availability
-
Compact and reliable 24 V DC power supply
-
Easy integration and DIN-rail mounting
-
Certified for industrial safety and performance
Häufig gestellte Fragen (FAQ)
Q1: What voltage does the SD822 accept and provide?
A1: It accepts and outputs 24 V DC.
Q2: Can SD822 be used in redundant setups?
A2: Yes, with Stücks like SS823 or SS832.
Q3: What is the maximum current output?
A3: Up to 10 A.
Q4: Is it suitable for DIN-rail installation?
A4: Yes, it is designed for DIN-rail mounting.
Q5: What is the Stück’s protection rating?
A5: It is rated IP20.
Q6: What certifications does SD822 carry?
A6: CE, UL, TÜV, and EMC.
Q7: What are its dimensions and weight?
A7: 65 x 125 x 110 mm, 0.7 kg.
Q8: What environments is it suited for?
A8: Industrial environments from 0 to 55°C.
Q9: Can it be hot-swapped during operation?
A9: No, always power down before replacement.
Q10: Is it compatible with all AC 800M CPUs?
A10: Yes, it’s designed for the full AC 800M series.
Related SD Series Modells
| Modell | Output Voltage | Current | Redundant Support | Dimensions (mm) | Gewicht |
|---|---|---|---|---|---|
| SD821 | 24 V DC | 5 A | No | 65 x 125 x 110 | 0.7 kg |
| SD823 | 24 V DC | 10 A | Yes | 65 x 125 x 110 | 0.7 kg |
| SD831 | 24 V DC | 5 A | No | 65 x 125 x 110 | 0.7 kg |
| SD832 | 24 V DC | 10 A | Yes | 65 x 125 x 110 | 0.7 kg |
| SD833 | 24 V DC | 10 A | Yes | 65 x 125 x 110 | 0.7 kg |
| SD834 | 24 V DC | 10 A | Yes | 65 x 125 x 110 | 0.7 kg |
Popular ABB Modells
| Modell | Beschreibung | Voltage/Function | Dimensions (mm) | Gewicht |
|---|---|---|---|---|
| PM865 | AC 800M HI Controller CPU | N/A | 65 x 125 x 133 | 0.8 kg |
| PM891 | High-Performance Controller | N/A | 70 x 125 x 133 | 0.8 kg |
| CI854A | PROFIBUS DP Communication Interface | 24 V DC | 45 x 125 x 120 | 0.5 kg |
| CI867 | Modbus TCP Communication Module | 24 V DC | 45 x 125 x 120 | 0.5 kg |
| SM810 | Safety Module for SIL2 Applications | N/A | 65 x 125 x 110 | 0.6 kg |
| SB822 | Rechargeable External Battery | 3.3 V DC | 65 x 125 x 110 | 0.7 kg |
