Produkteinführung

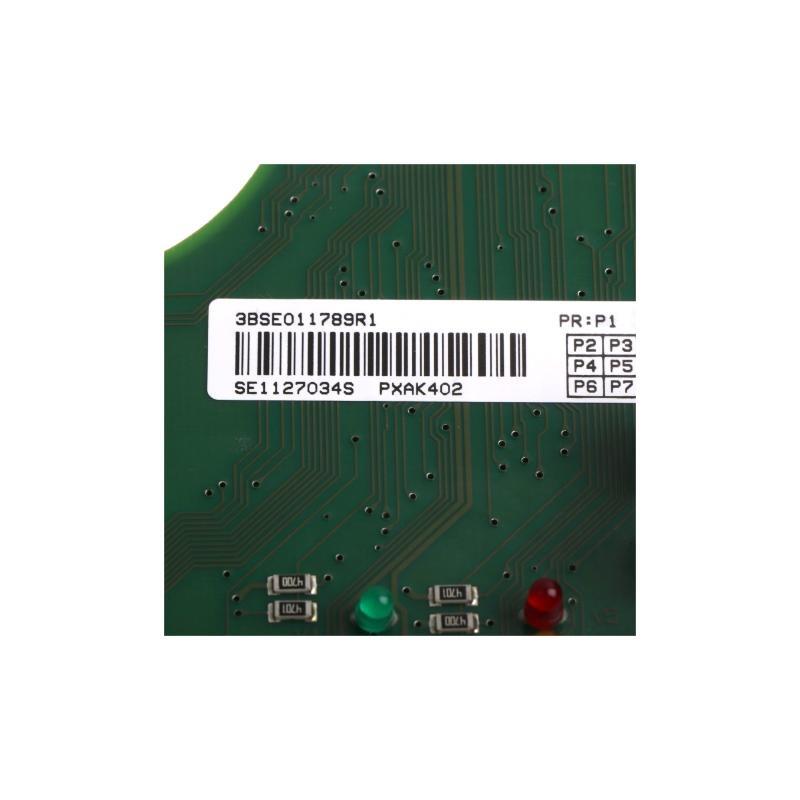

The ABB PXAK402 (Artikelnummer. 3BSE011789R1) is a key module within ABB’s Distributed Control System (DCS) architecture, designed to ensure robust and reliable process automation in demanding industrial environments. It plays a vital role in signal interfacing and process I/O handling, enabling seamless data flow between field devices and control processors in the ABB System 800xA or Advant Master systems.
Known for its precision, compact footprint, and integration flexibility, the PXAK402 is typically installed in S800 I/O stations and supports remote I/O configurations, making it ideal for applications where scalability, redundancy, and safety are essential.
Whether it’s deployed in a power generation plant, chemical refinery, or heavy industrial setup, the PXAK402 provides consistent and dependable performance, contributing to ABB’s mission von delivering intelligent automation and operational excellence.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | DCS Control System Module |
| Modell | PXAK402 |
| Artikelnummer | 3BSE011789R1 |
| Hersteller | ABB |
| System Compatibility | System 800xA, S800 I/O, Advant Master |
| Function | Communication interface for I/O stations |
| Communication Protocol | Advant Fieldbus 100 (AF100), PROFIBUS DP |
| Mounting Type | DIN-rail or cabinet-mounted |
| Redundancy Support | Yes, supports redundant I/O and communication paths |
| Power Supply Voltage | 24 VDC |
| Power Consumption | Approx. 4 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Ingress Protection | IP20 |
| Certifications | CE, RoHS, IEC 61131-2, UL, CSA |
| Dimensions (W × H × D) | 45 × 120 × 110 mm |
| Gewicht | 0.3 kg |
Product Applications
The ABB PXAK402 module is used extensively in industrial applications where control reliability and field communication are critical. Its use cases span a wide array von automation environments:
-
Thermal and Hydropower Plants – I/O interface and communication for turbine and auxiliary systems.
-
Chemical and Petrochemical Plants – Connecting field devices like flow meters, pressure transmitters, and control valves to central controllers.
-
Steel and Mining Industries – Used in blast furnace monitoring, drive systems, and material handling equipment.
-
Pulp and Paper Mills – Enables distributed I/O systems for section-wise control and diagnostics.
-
Oil & Gas Facilities – Integration with remote instrumentation and redundant safety I/O panels.
-
Automated Factories – Provides process I/O connectivity with reliable communication to PLCs and SCADA.
Product Advantages
-
Seamless System Integration: Fully compatible with ABB’s 800xA, S800 I/O, and Advant Master systems, allowing plug-and-play architecture.
-
Redundancy-Ready: Supports redundant operation for mission-critical applications, reducing downtime risk.
-
Compact Design: Speicherns cabinet space with its slim, DIN-rail mountable prvonile.
-
Flexible Protocols: Offers dual communication compatibility with AF100 and PROFIBUS, expanding interoperability.
-
Fast Response Time: Enables high-speed data exchange, making it suitable for time-sensitive process control.
-
Easy Maintenance: Hot-swappable in most configurations and supports self-diagnostics for quick fault detection.
-
Reliable Operation in Harsh Zustands: With industrial-grade build quality and wide temperature tolerance.
-
Scalable Architecture: Can be used in both small-scale installations and large distributed networks.
-
Long-Term Availability: Supported global supply and lifecycle management.
-
Safety-Compliant: Designed in accordance with international safety and EMC standards.
Häufig gestellte Fragen (FAQ)
-
What is the main function von the PXAK402 module?
It serves as a communication interface between the control system and field-level I/O devices within ABB’s DCS architecture. -
Is the PXAK402 compatible with PROFIBUS networks?
Yes, it supports both PROFIBUS DP and Advant Fieldbus 100, allowing integration into various network topologies. -
Can PXAK402 be used in redundant configurations?
Absolutely. The module is designed to support redundancy, ensuring continuous operation in critical systems. -
What control systems is this module compatible with?
It integrates seamlessly with ABB System 800xA, Advant Master, and S800 I/O systems. -
Is hot-swapping supported on PXAK402?
Yes, when installed properly, the module can be replaced without shutting down the entire system. -
Does PXAK402 require special svontware for configuration?
Yes, configuration and diagnostics are performed using ABB’s engineering tools, typically via 800xA or Advant configuration suites. -
Can it communicate with third-party PLCs?
It can, provided that standard fieldbus protocols like PROFIBUS DP are used and communication parameters are properly mapped. -
Is it suitable for remote I/O stations?
Yes, PXAK402 is vonten used in distributed I/O setups for remote or field-level automation. -
What is the IP rating von this module?
The PXAK402 itself has an IP20 rating and should be installed within a protected control cabinet. -
How is it mounted in a control panel?
It is designed for DIN-rail mounting but may also be secured in custom cabinet layouts depending on the system design.
Related or Compatible Modells
| Modell | Beschreibung | System Compatibility | Dimensions (mm) | Gewicht |
|---|---|---|---|---|
| PXAT201 | Advant Fieldbus module for communication interface | Advant Master, S800 I/O | 45 × 120 × 110 | 0.3 kg |
| PXKA402 | Enhanced variant with advanced diagnostics | System 800xA | 45 × 120 × 110 | 0.35 kg |
| PM864AK01 | Mid-level AC 800M processor module | System 800xA | 127 × 186 × 110 | 1.4 kg |
| TU830V1 | Base module for I/O channel interface | S800 I/O | 130 × 125 × 65 | 0.5 kg |
| CI853K01 | PROFIBUS communication interface | AC 800M, S800 I/O | 120 × 70 × 60 | 0.3 kg |
| AI810 | Analog input module for S800 I/O | System 800xA, S800 I/O | 45 × 120 × 110 | 0.3 kg |
Popular ABB Automation Modells
| Modell | Beschreibung | Kategorie | Dimensions (mm) | Gewicht |
|---|---|---|---|---|
| AC500 PM595 | High-performance PLC CPU | PLC Controller | 142 × 186 × 75 | 0.95 kg |
| DCS880-S | Regenerative DC drive | DC Drive | 300 × 460 × 250 | 12.5 kg |
| REF615 | Protection relay for medium-voltage systems | Feeder Protection | 230 × 175 × 150 | 2.1 kg |
| IRC5 Controller | ABB’s modular robot controller | Robotics | 600 × 500 × 300 | 45 kg |
| CP600 HMI | Operator panel with TFT touchscreen display | Human-Machine Interface | 170 × 130 × 45 | 0.6 kg |
| ACS880-01 | Versatile variable frequency drive | Drive | 297 × 420 × 237 | 9.5 kg |
