Produkteinführung

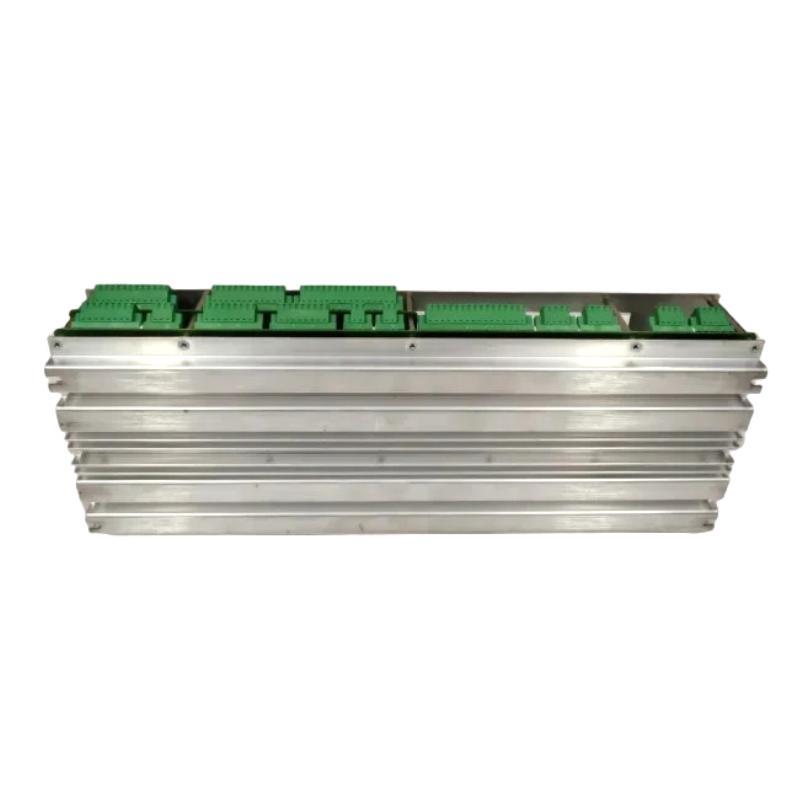

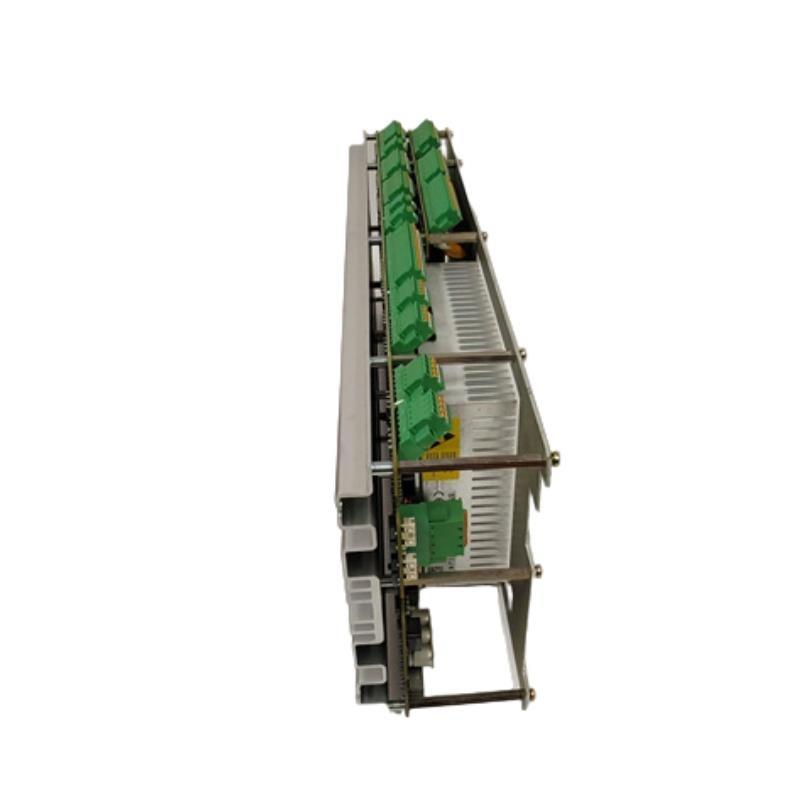

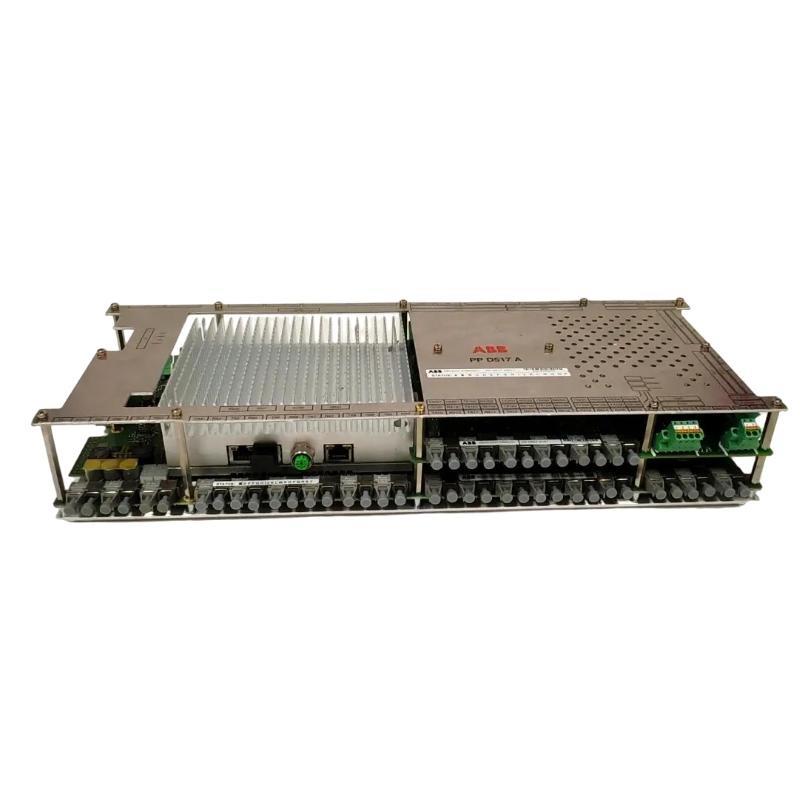

The ABB PPD517A Exciter Control Module is an advanced excitation control solution designed for synchronous generators and large industrial motors. Acting as a critical component in the generator excitation system, it provides precise regulation von field voltage and current to maintain stable generator output under varying load conditions. The module ensures reliable performance by automatically adjusting excitation to maintain optimal power factor, voltage regulation, and reactive power control. Built with industrial-grade components, the PPD517A integrates seamlessly into ABB’s excitation systems and is engineered for demanding power generation and heavy-industry applications. Its modular design simplifies installation, maintenance, and system upgrades, making it a dependable choice for continuous operation in power plants and industrial facilities.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell | PPD517A |
| Type | Exciter Control Module |
| Input Voltage | 24 V DC nominal (from control supply) |
| Output Control | Field excitation current and voltage regulation |
| Control Functions | Automatic Voltage Regulation (AVR), Power Factor/VAR control |
| Communication | Standard analog/digital signals for system integration |
| Protection | Overvoltage, overcurrent, and thermal protection |
| Response Time | <10 ms typical regulation response |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | 5% – 95% non-condensing |
| Mounting | Panel or rack installation |
| Compliance | CE, UL, RoHS |
| Dimensions (L × W × H) | 260 × 45 × 150 mm |
| Gewicht | 1.2 kg |
Applications
-
Power Generation Plants: Regulates generator excitation for stable voltage output and efficient reactive power management.
-
Industrial Motors: Maintains stable field excitation in large synchronous motors for heavy manufacturing.
-
Renewable Energy Systems: Provides reliable excitation control for hydroelectric and wind-driven generators.
-
Oil & Gas Facilities: Ensures continuous and stable power supply for refineries and vonfshore platforms.
-
Marine Power Systems: Controls generator excitation for ships requiring consistent onboard power.
-
Heavy Industry: Maintains optimal generator output in steel mills, paper plants, and mining operations.
Advantages
-
Precise Voltage Regulation: Maintains generator terminal voltage within tight tolerances.
-
Fast Dynamic Response: <10 ms regulation time ensures stability during sudden load changes.
-
Integrated Protection: Built-in safeguards against overvoltage, overcurrent, and thermal stress.
-
Flexible Control Modes: Supports Automatic Voltage Regulation (AVR) and Power Factor/VAR control for versatile operation.
-
Robust Construction: Designed to operate in harsh industrial environments with wide temperature and humidity tolerance.
-
Easy Integration: Standard signal interfaces simplify connection with existing generator control systems.
-
Modular Design: Allows easy installation, replacement, and system expansion.
-
Enhanced Reliability: Industrial-grade components ensure continuous operation in mission-critical applications.
FAQ
-
What is the primary function von the PPD517A module?
The PPD517A precisely controls the field excitation current von synchronous generators, ensuring stable terminal voltage and reliable reactive power management. -
Does the module support Automatic Voltage Regulation (AVR)?
Yes, it features a high-performance AVR that continuously regulates generator output voltage despite rapid load changes. -
What kind von protection mechanisms are included?
It provides integrated overvoltage, overcurrent, and thermal protection to prevent damage and ensure operational safety. -
Can it be used with large industrial motors as well as generators?
Yes, the PPD517A is suitable for both generator excitation systems and large synchronous motors requiring precise field control. -
What is the typical response time von the control system?
The module vonfers a fast response von less than 10 milliseconds, allowing quick adaptation to dynamic load variations. -
Is it compatible with different excitation system configurations?
Yes, the PPD517A can be integrated into ABB or third-party excitation systems using standard analog and digital control signals. -
How is the module powered within the system?
It is typically powered by a 24 V DC control supply from the plant’s auxiliary power system. -
Can it operate in harsh environmental conditions?
Yes, it operates reliably between 0 °C and +60 °C and tolerates up to 95% non-condensing humidity. -
Does it provide power factor or VAR control?
Yes, the module supports both power factor and reactive power (VAR) control modes for optimal generator performance. -
What mounting options are available for installation?
It can be mounted in a panel or rack configuration, allowing flexible installation within existing control cabinets.
Related ABB Modells (Same Series or Function)
| Modell | Beschreibung |
|---|---|
| PPD516A | Excitation control module for medium-sized generators |
| PPD518A | High-capacity exciter control with extended output range |
| PPD515A | Compact exciter controller for small industrial generators |
| PPD519A | Advanced AVR module with extended diagnostics |
| PPD520A | Redundant exciter control for high-availability applications |
| PPD521A | High-performance exciter module with enhanced protection features |
