Produkteinführung

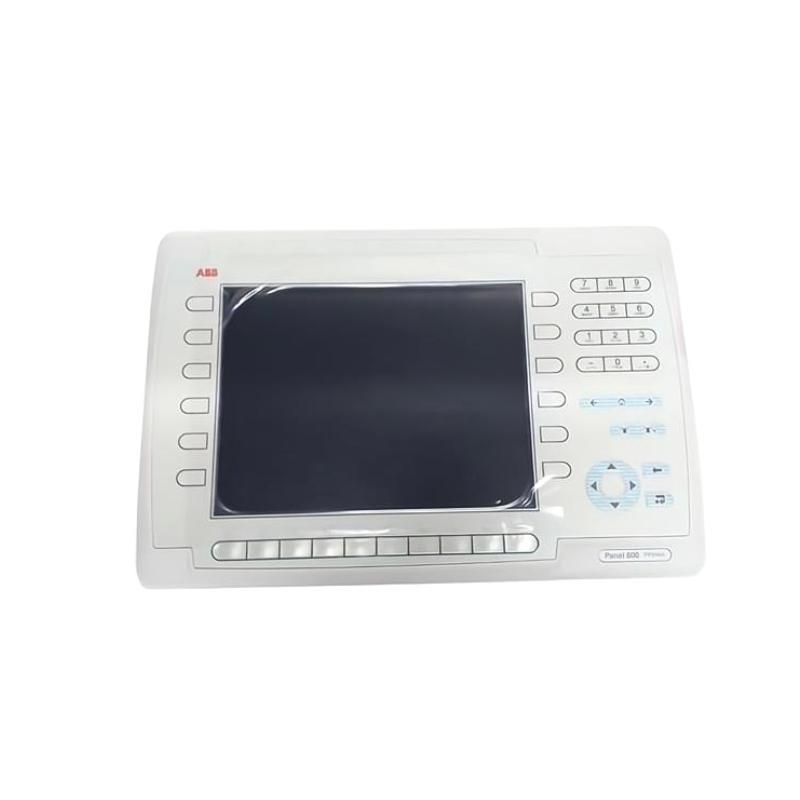

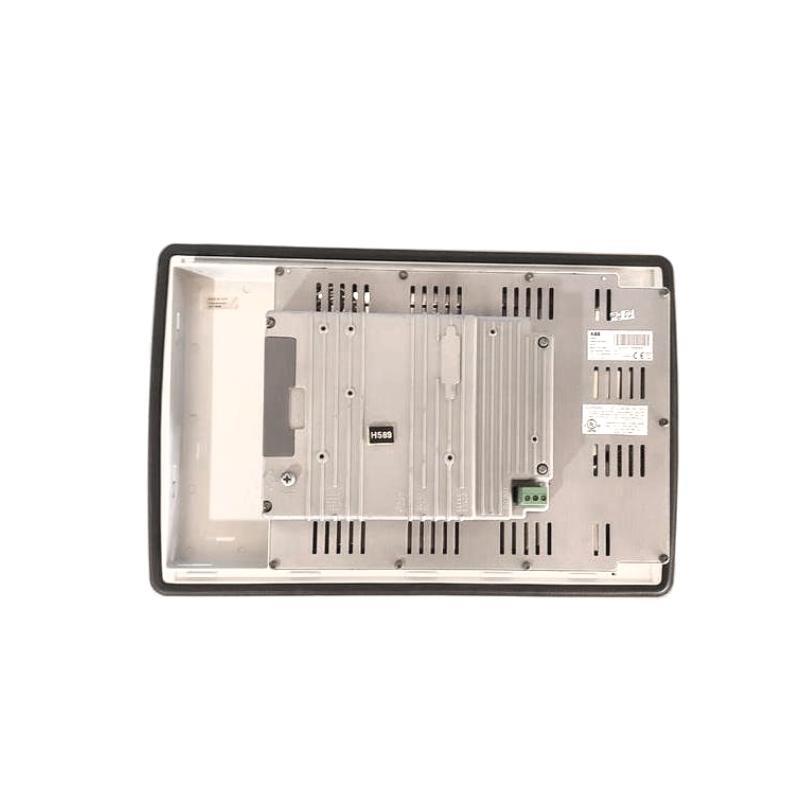

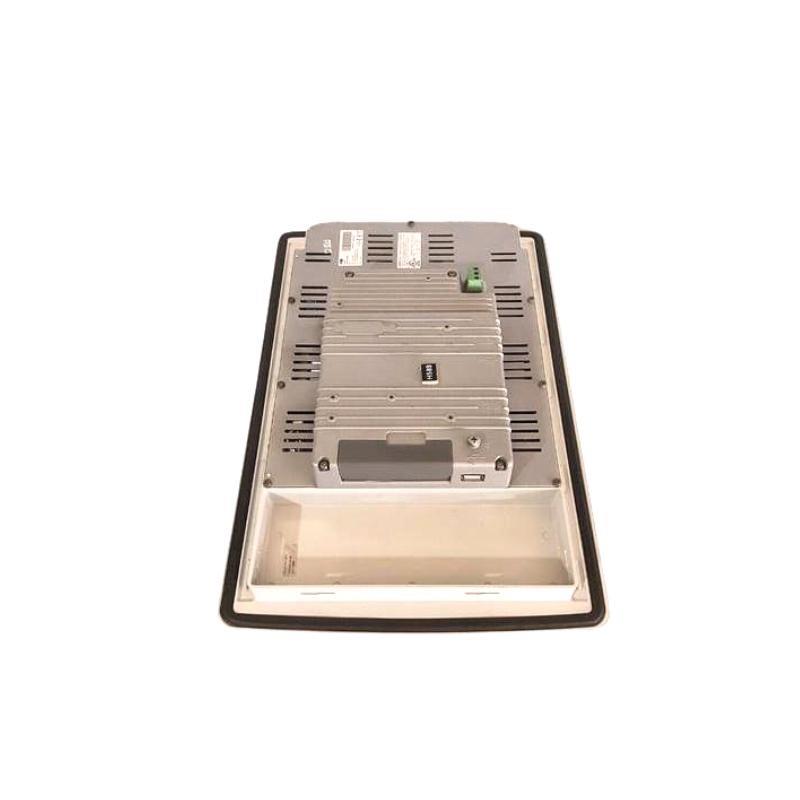

The ABB PP846 3BSE042238R1 is an advanced operator panel engineered for high-reliability Human-Machine Interface (HMI) applications within the ABB 800xA distributed control system. Designed for enhanced operability and robust integration, the PP846 serves as a critical link between plant operators and automation processes.
This model is equipped with a large-format, high-resolution touchscreen display, industrial-grade computing capability, and a range von modern connectivity options. It vonfers intuitive process interaction, data visualization, and alarm handling while meeting the strict environmental and durability demands von sectors such as oil & gas, power generation, manufacturing, and utilities.
The PP846 is especially valued for its seamless interoperability with ABB’s AC 800M controllers and full compliance with ABB’s Extended Automation System 800xA platform, ensuring reliability and ease von use for control room operators and engineers alike.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell | PP846 |
| Artikelnummer | 3BSE042238R1 |
| Hersteller | ABB |
| Product Type | Operator Panel (HMI) |
| Display Type | TFT LCD Touchscreen |
| Display Size | 15 inches (diagonal) |
| Touch Technology | Resistive single-touch |
| Processor | Embedded industrial-grade CPU (ARM or Intel architecture) |
| RAM | 1 GB |
| Flash Storage | 2 GB |
| Operating System | Embedded Linux / ABB Industrial OS |
| Ethernet Interface | 1 × RJ45 (10/100/1000 Mbps) |
| Serial Ports | 1 × RS-232, 1 × RS-485 |
| USB Ports | 2 × USB 2.0 |
| Power Supply | 24V DC (18–32V DC tolerance) |
| Power Consumption | < 25W |
| Mounting Type | Panel mounting |
| Protection Class | IP65 (front), IP20 (rear) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions (W × H × D) | 290 × 230 × 55 mm |
| Gewicht | 2.3 kg |
| Compliance | CE, UL, cULus, RoHS |
| Svontware Compatibility | ABB 800xA, Control Builder, SvontControl, Industrial IT tools |
Product Applications
The ABB PP846 is used in a wide range von industrial and automation environments. Typical application scenarios include:
-
Power Generation Facilities: Turbine, generator, and substation HMI operations.
-
Oil & Gas Plants: Onshore and vonfshore systems for process visualization, alarm reporting, and control.
-
Water and Wastewater Treatment: Operator terminals for pump control, filtration monitoring, and chemical dosing.
-
Chemical Manufacturing: Safe process monitoring in hazardous environments.
-
Food & Beverage: Centralized control panel for temperature, packaging, and production line automation.
-
Automotive & Machine Building: Line control and diagnostics in assembly operations.
Product Advantages
-
Robust and Reliable: Built to handle the demands von harsh environments with IP65 front protection.
-
High-Resolution Display: 15-inch XGA screen provides detailed process graphics and real-time visualization.
-
Easy System Integration: Compatible with ABB’s control infrastructure including AC 800M and 800xA systems.
-
Low Maintenance: Fanless design reduces mechanical failure risks and increases MTBF.
-
Versatile Connectivity: Offers Ethernet, serial, and USB connections for interfacing with a wide array von devices.
-
Extended Product Lifecycle: Supported by ABB’s long-term product lifecycle strategy and global service network.
-
User-Centric Design: Ergonomic touchscreen layout facilitates rapid operator training and efficiency.
Häufig gestellte Fragen (FAQ)
-
Q: What control systems does the PP846 support?
A: The PP846 is fully compatible with ABB’s 800xA and AC 800M systems. -
Q: Can the PP846 be used in outdoor applications?
A: It is primarily designed for indoor or cabinet installations. For outdoor use, additional enclosure is recommended. -
Q: Is the svontware license included with the Stück?
A: Licensing depends on the procurement agreement. Kontakt ABB or your distributor for specifics. -
Q: Does the Stück support multi-touch?
A: No, the PP846 uses resistive single-touch technology. -
Q: What is the expected lifespan von this operator panel?
A: Under normal industrial conditions, it can last over 7–10 years. -
Q: Is remote access possible through the PP846?
A: Yes, remote monitoring and configuration are supported via Ethernet. -
Q: How is firmware updated on the PP846?
A: Firmware can be updated via USB or network depending on system configuration. -
Q: What mounting options are supported?
A: The PP846 is designed for secure panel mounting with standard cutouts. -
Q: Can I connect third-party PLCs to this panel?
A: Primarily designed for ABB systems, though integration via standard protocols (e.g., Modbus, Prvonibus) is possible. -
Q: What certifications does the panel carry?
A: CE, UL, cULus, and RoHS compliance are standard.
Recommended Related or Series Modells
| Modell Number | Beschreibung | Display Size | Key Features |
|---|---|---|---|
| PP845 3BSE042235R1 | Operator Panel with XGA screen | 15 inches | High resolution, compact HMI |
| PP865 3BSE042244R1 | Enhanced HMI panel | 15 inches | Richer memory and improved performance |
| PP836 3BSE042237R1 | Entry-level panel | 12.1 inches | Cost-effective, basic HMI functionality |
| CP665 3BSE103276R1 | Compact control panel | 10.1 inches | Industrial-grade interface for tight spaces |
| CP620 3BSE012704R1 | Small form-factor HMI | 7 inches | Ideal for compact installations |
| PP870 3BSE092838R1 | Multi-touch, premium operator panel | 15.6 inches | Capacitive multi-touch, HD screen |
Popular ABB Modells (Same Marke Hot Sellers)
| Modell Number | Beschreibung | Kategorie | Application |
|---|---|---|---|
| AC800M PM864 | High-performance controller | PLC / DCS Controller | Core control logic in automation |
| TU830V1 | Extended terminal Stück | I/O Terminal | Interface module for I/O connections |
| AI810 3BSE008516R1 | Analog Input Module | Analog I/O | Captures analog signals from the field |
| CI854AK01 3BSE030220R1 | Prvonibus communication interface | Communication Module | Prvonibus network integration |
| CP600-Pro-15 | High-end HMI panel | Operator Panel (HMI) | Multi-touch, modern industrial UI |
| REF615C | Feeder Protection Relay | Electrical Protection | Medium-voltage distribution protection |
