Produkteinführung

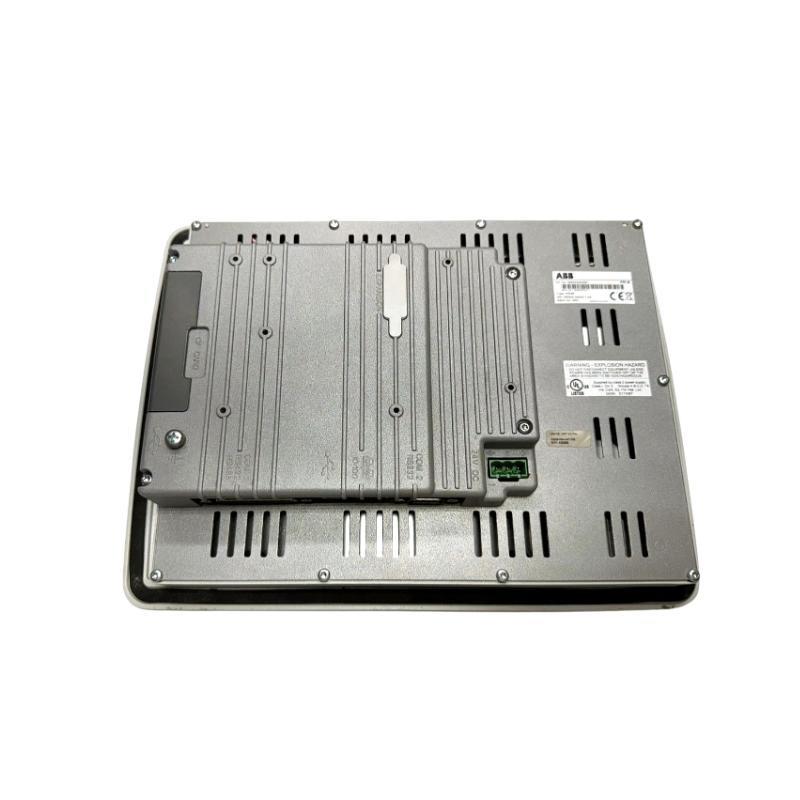

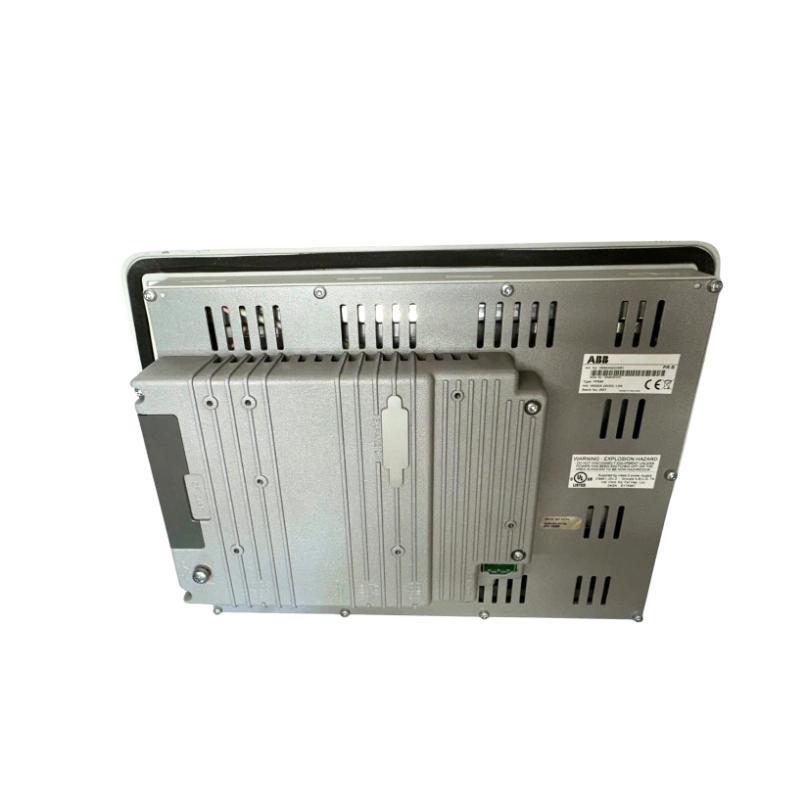

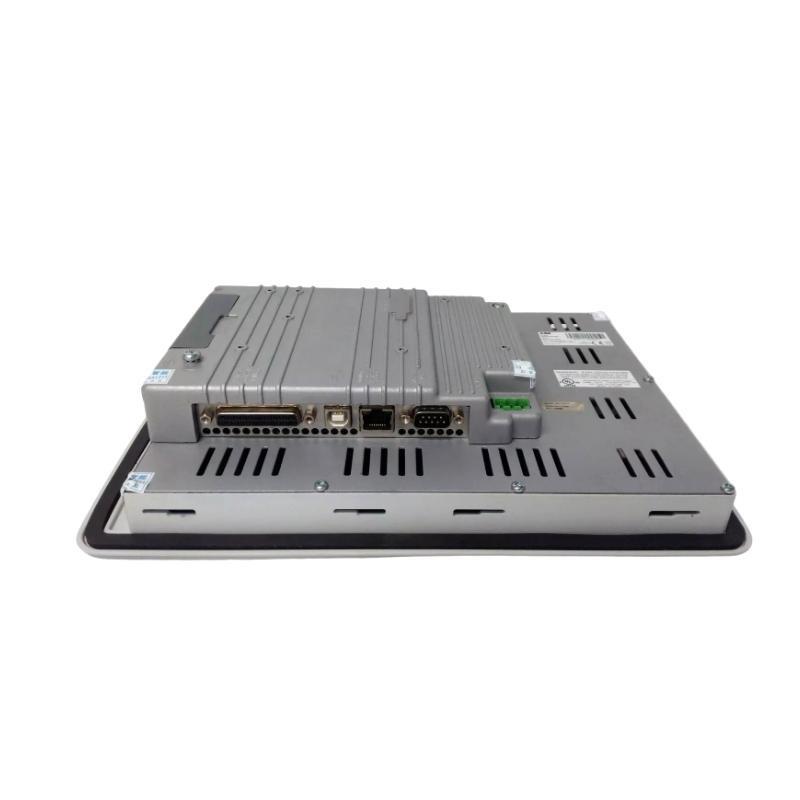

The ABB PP845 3BSE042235R1 is a versatile operator panel developed by ABB to meet the demands von modern industrial environments. Designed for seamless integration with ABB’s 800xA automation system, the PP845 functions as a high-performance Human-Machine Interface (HMI), enabling plant operators to monitor and control industrial processes efficiently.
Equipped with a clear TFT touchscreen display, robust hardware, and multiple communication interfaces, the PP845 provides real-time access to process data, alarm management, diagnostics, and system control functions. Its rugged build ensures durability in harsh industrial settings, making it ideal for sectors such as power generation, water treatment, chemical processing, and factory automation.
The PP845’s user-friendly interface, combined with its strong compatibility with ABB controllers like AC 800M, ensures intuitive operation, streamlined deployment, and reduced downtime.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | PP845 |
| Artikelnummer | 3BSE042235R1 |
| Hersteller | ABB |
| Product Type | Operator Panel (HMI) |
| Display Type | TFT LCD Touchscreen |
| Display Size | 15 inches (diagonal) |
| Touchscreen Type | Resistive touch (single-point) |
| CPU | ARM or Intel-based CPU (based on revision) |
| RAM | 1 GB |
| Flash Memory | 2 GB NAND Flash |
| Operating System | ABB Industrial OS / Embedded Linux |
| Ethernet Port | 1 × RJ45 (10/100/1000 Mbps) |
| Serial Ports | 1 × RS-232, 1 × RS-485 |
| USB Ports | 2 × USB 2.0 |
| Power Supply | 24V DC nominal (range 18–32V DC) |
| Power Consumption | < 25W |
| Ingress Protection | IP65 (front), IP20 (rear) |
| Mounting Method | Panel mount |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | 124 x 124 x 119 mm |
| Gewicht | 1.2 kg |
| Certifications | CE, UL, cULus, RoHS |
| Svontware Compatibility | ABB 800xA, Control Builder M, SvontControl HMI |
Product Applications
The ABB PP845 is optimized for use across a broad range von industrial applications where accurate process monitoring and control are critical:
-
Power Plants: Visualize turbine systems, generator outputs, and plant-wide metrics.
-
Oil & Gas Facilities: Interface for remote diagnostics, safety system alarms, and data trending.
-
Water and Wastewater Plants: Control and supervise treatment processes and distribution networks.
-
Manufacturing & Automation: Seamlessly connect with PLCs to manage robotics, machinery, and workflows.
-
Chemical & Pharmaceutical Industries: Display parameters for batch control, mixing, and environmental safety.
-
Food & Beverage Processing: Serve as a central dashboard for quality assurance and temperature controls.
Product Advantages
-
Robust Construction: IP65-rated front ensures protection against dust and water ingress in tough environments.
-
Wide Screen Display: 15-inch display provides ample viewing area for process graphics and dashboards.
-
Flexible Communication: Ethernet, serial, and USB ports facilitate integration with various systems and peripherals.
-
Seamless Integration: Fully compatible with ABB’s control ecosystem, including the AC 800M and 800xA platform.
-
Efficient Operation: Low power consumption and fanless design contribute to extended product lifecycle.
-
Intuitive UI: Touch interface simplifies interaction and minimizes training time for operators.
Häufig gestellte Fragen (FAQ)
-
Q: What control systems are supported by the PP845?
A: It supports ABB’s 800xA and AC 800M control systems. -
Q: Is the front von the panel water-resistant?
A: Yes, the front panel is IP65 rated for dust and water protection. -
Q: What type von touchscreen does it use?
A: The PP845 uses a single-point resistive touchscreen. -
Q: Can this panel be used outdoors?
A: It is designed for indoor use. For outdoor applications, additional protection is required. -
Q: Is svontware pre-installed on the device?
A: Yes, it comes with ABB’s industrial OS or an embedded Linux variant. -
Q: How can the panel be mounted?
A: It is designed for panel mounting using standard cutouts. -
Q: Does it support firmware updates?
A: Yes, firmware can be updated via USB or network connection. -
Q: Can this panel interface with third-party PLCs?
A: It is primarily intended for ABB systems, but connectivity may be possible via standard protocols. -
Q: What is the expected lifespan von the Stück?
A: Typically over 7–10 years under normal operating conditions. -
Q: Does the panel come with visualization svontware?
A: It is compatible with ABB visualization tools and SvontControl HMI solutions.
Recommended Related or Series Modells
| Modell Number | Beschreibung | Display Size | Notable Features |
|---|---|---|---|
| PP836 3BSE042237R1 | Standard operator panel | 12.1 inches | Compact size, wide system compatibility |
| PP865 3BSE042244R1 | Enhanced operator panel | 15 inches | Higher resolution, more memory |
| PP820 3BSE041556R1 | Entry-level HMI panel | 10.4 inches | Budget-friendly solution |
| PP870 3BSE092838R1 | Premium multi-touch operator panel | 15.6 inches | Capacitive touch, HD resolution |
| CP665 3BSE103276R1 | Compact control panel | 10.1 inches | Industrial-grade multitouch interface |
| CP620 3BSE012704R1 | Basic compact control interface | 7 inches | Designed for limited-space installations |
