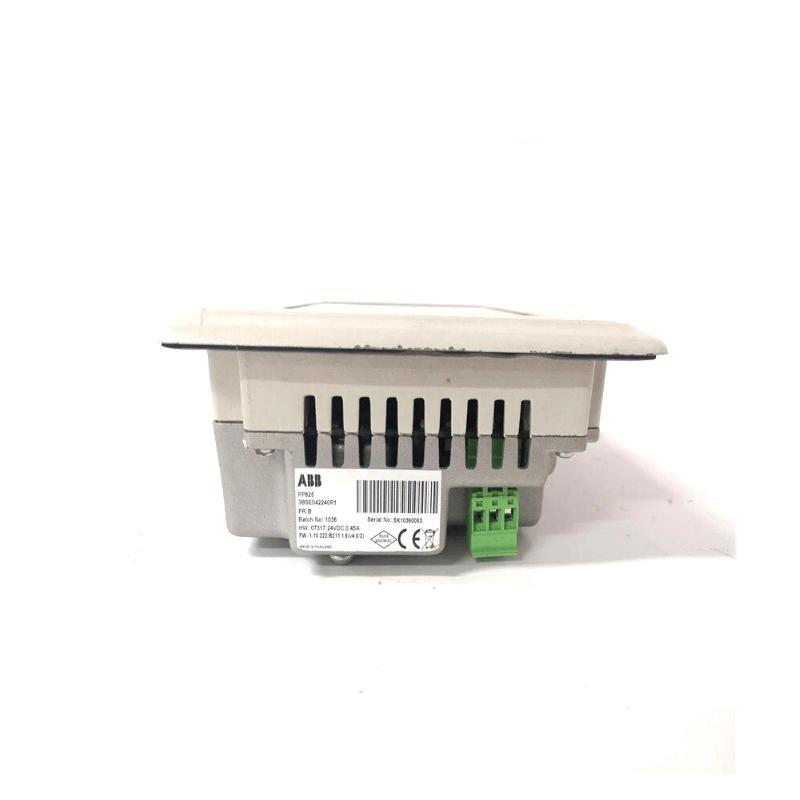

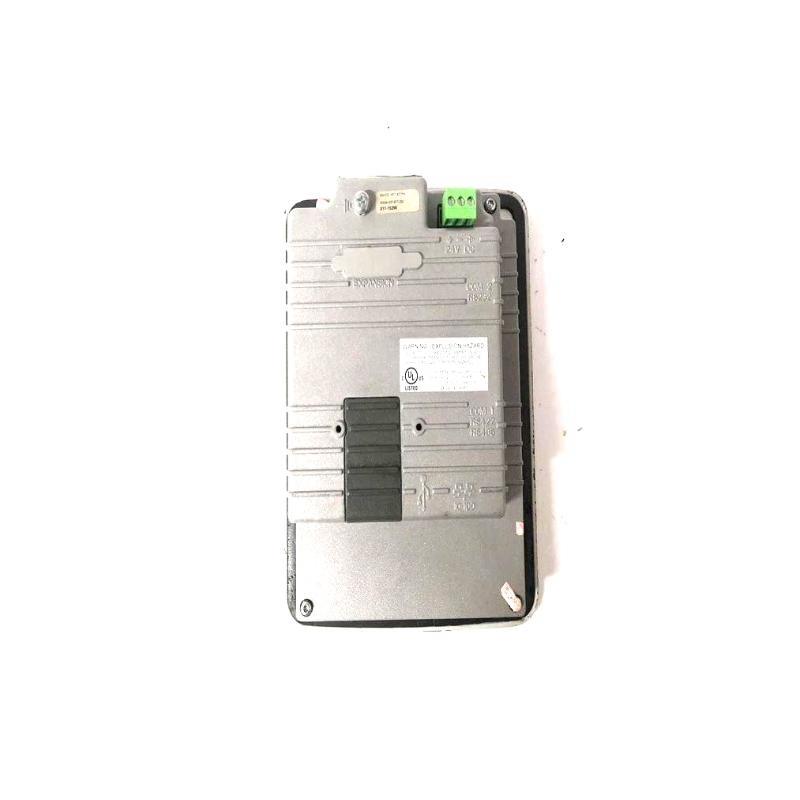

Overview
The ABB PP825 3BSE042240R1 is a robust operator panel from the Panel 800 series designed for efficient human-machine interaction. With object-oriented operation and a user-friendly interface, it enables monitoring, control, alarms, and recipe handling for various industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | PP825 |
| Display | 5.7″ STN-LCD, 320×240 pixels, 64K colors |
| Touchscreen Type | Polyester on glass, 1 million touch operations |
| Active Display Area (WxH) | 115.2 x 86.4 mm |
| Flash Memory | 12 MB |
| Real-Time Clock | ±20 PPM accuracy, max 1 min/month at 25 °C |
| Power Supply | +24V DC (20 – 30V DC) |
| Power Consumption | 0.25 A (typical), 0.45 A (max) |
| USB Port | Host Type A (USB 1.1), 500 mA max |
| Ethernet | Shielded RJ45 |

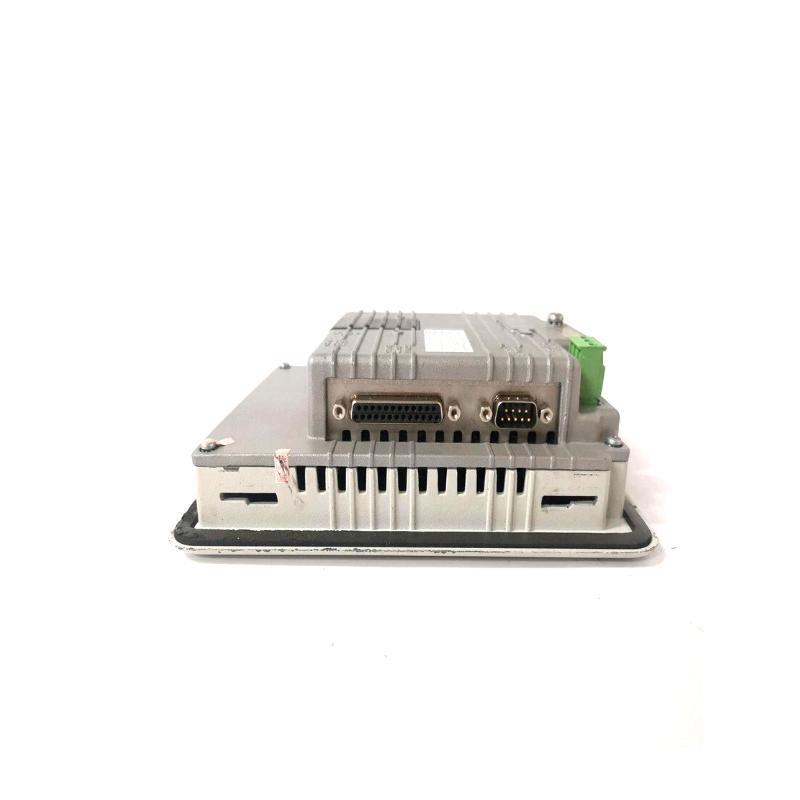

| Serial Ports | RS232 (9-pin), RS422/RS485 (25-pin) |
| Front Panel Dimensions | 202 x 152 x 6 mm |
| Mounting Depth | 57 mm (157 mm with clearance) |
| Gewicht | 0.9 kg |
| Protection (Front/Rear) | IP66 / IP20 |
| Ambient Temp (Vertical) | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5 – 85% non-condensed |
| Certifications | CE, UL, cUL, DNV |
Applications
-
Human-Machine Interface (HMI) for industrial automation
-
Process control in manufacturing plants
-
PLC, servo, or drive communication interface
-
Monitoring and controlling operational data in real-time
-
Use in hazardous (Class I, Div 2) and standard environments
Advantages
-
Compact and rugged aluminum casing with IP66 front protection
-
Intuitive object-oriented design simplifies user interaction
-
Supports multiple communication protocols (Ethernet, RS232, RS485)
-
Built-in USB host port and 12 MB application memory
-
Long-lasting display (CCFL backlight >75,000 h at 25 °C)
-
Supports wide temperature and humidity conditions
-
Certified for harsh industrial use
Häufig gestellte Fragen (FAQ)
Q1: What is the primary use von the PP825 panel?
A1: It serves as a human-machine interface (HMI) for controlling and monitoring industrial processes.
Q2: What kind von display does it use?
A2: It features a 5.7″ color STN-LCD with 320×240 resolution and CCFL backlight.
Q3: Is the panel suitable for hazardous areas?
A3: Yes, it’s certified for Class I, Division 2 hazardous locations.
Q4: How much internal memory is available for applications?
A4: The PP825 vonfers 12 MB von flash memory including fonts.
Q5: What interfaces are supported for communication?
A5: It supports RS232, RS422/RS485, and Ethernet (RJ45).
Q6: What is the panel’s protection rating?
A6: IP66 on the front panel and IP20 on the rear.
Q7: Can it be installed in a cabinet with other high-voltage devices?
A7: Yes, with proper grounding and cable separation as per guidelines.
Q8: What are the power requirements?
A8: +24V DC with current draw von 0.25 A typical and 0.45 A maximum.
Q9: Is the touch screen durable?
A9: Yes, it supports up to 1 million finger touch operations.
Q10: What svontware is used for configuration?
A10: The Panel Builder 800 configuration tool is used for setup.
Related Panel 800 Series or Compatible Modells
| Modell | Beschreibung | Display Size | Memory | Ethernet | Dimensions (mm) | Gewicht |
|---|---|---|---|---|---|---|
| PP835A | Panel 800 6.5″ Touch Panel | 6.5″ TFT | 12 MB | Yes | 212 x 162 x 6 | 1.0 kg |
| PP845A | Panel 800 10.4″ Touch Panel | 10.4″ TFT | 12 MB | Yes | 310 x 230 x 6 | 1.7 kg |
| PP865A | Panel 800 15″ Touch Panel | 15″ TFT | 16 MB | Yes | 388 x 312 x 6 | 3.1 kg |
| CP635 | Compact Panel 6.5″ | 6.5″ TFT | 8 MB | Yes | 200 x 150 x 6 | 0.95 kg |
| CP645 | Compact Panel 10.4″ | 10.4″ TFT | 8 MB | Yes | 310 x 230 x 6 | 1.8 kg |
| PP865 | Panel 800 15″ Non-A variant | 15″ TFT | 12 MB | Yes | 388 x 312 x 6 | 3.0 kg |
Popular ABB Operator Panels
| Modell | Beschreibung | Display Size | Interface | Dimensions (mm) | Gewicht |
|---|---|---|---|---|---|
| CP600-ECO | Basic HMI panel | 7″ TFT | Ethernet, USB | 200 x 145 x 6 | 0.85 kg |
| CP600-Pro | Advanced control panel | 10.1″ TFT | Multi-protocol | 271 x 207 x 6 | 1.2 kg |
| CP665 | CP600 series, 15.6″ Touch HMI | 15.6″ TFT | Ethernet, CAN | 395 x 260 x 6 | 2.8 kg |
| CP620 | 4.3″ Touch Panel | 4.3″ TFT | Ethernet | 147 x 108 x 6 | 0.7 kg |
| CP610 | 10.4″ Touch HMI | 10.4″ TFT | RS232/485 | 310 x 230 x 6 | 1.5 kg |
| CP630 | 5.7″ Basic Control Panel | 5.7″ STN | RS232, USB | 202 x 152 x 6 | 0.9 kg |
