Produkteinführung

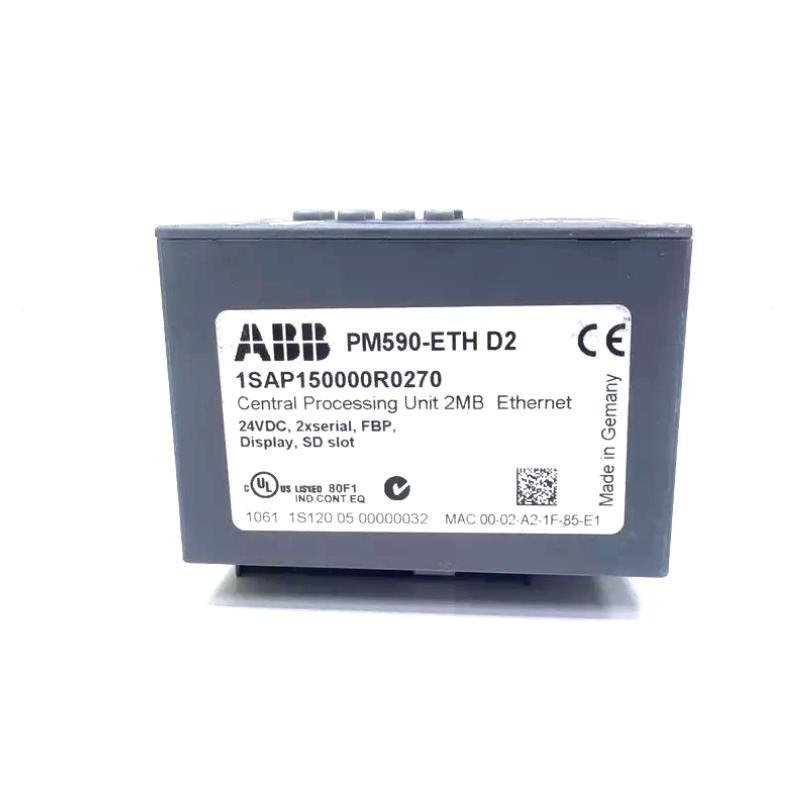

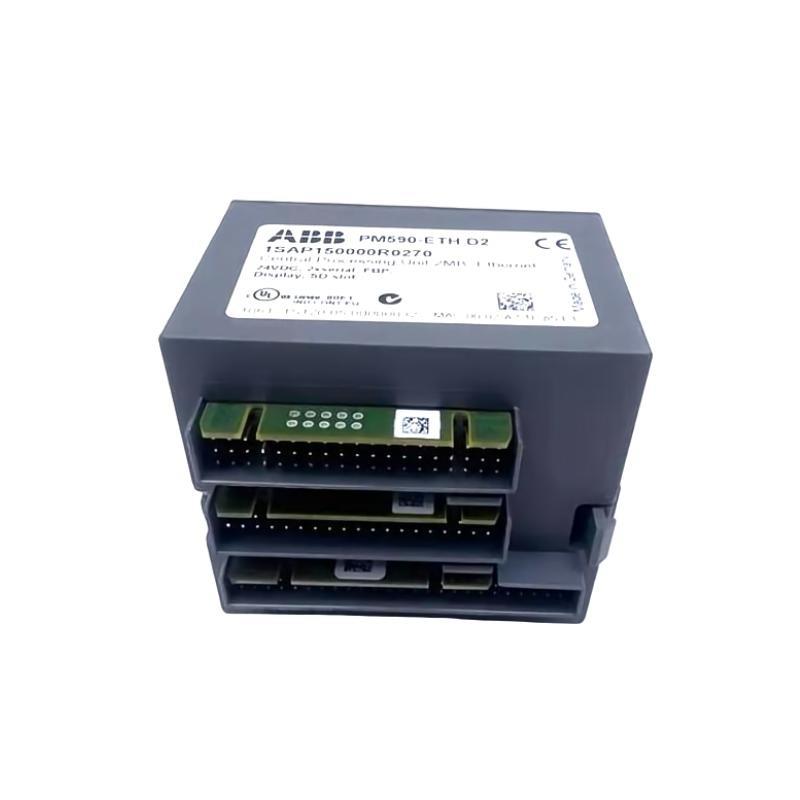

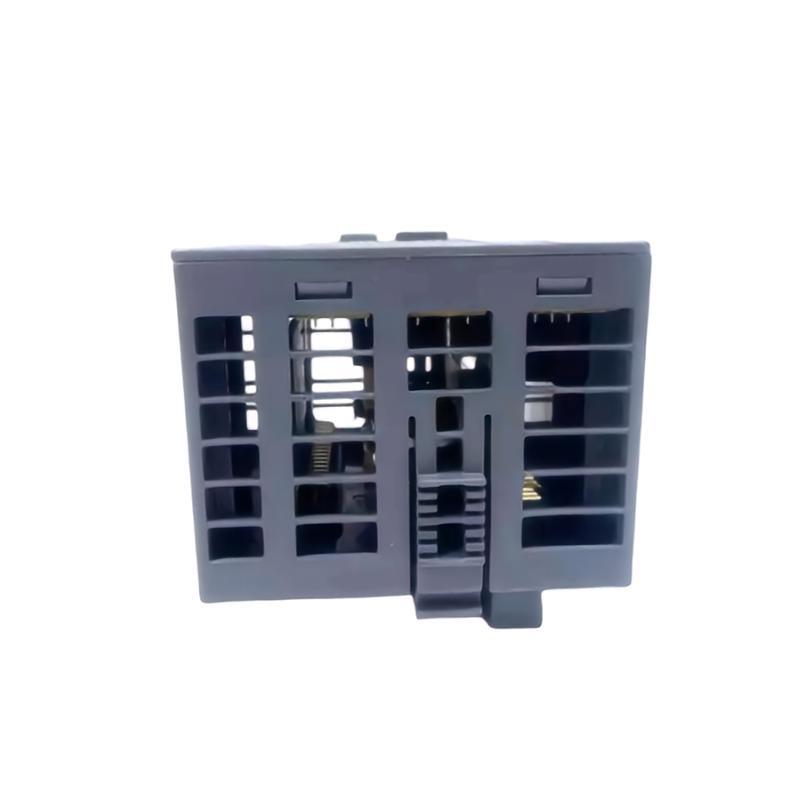

The ABB PM590-ETH 1SAP150000R0270 Processor Module is a high-performance programmable logic controller designed for industrial automation environments that demand robust processing power and reliable communication. Part von ABB’s PM500 series, this module combines a 32-bit processor with dual Ethernet ports, enabling fast data transfer and network redundancy, which is critical for uninterrupted control operations.
With 8 MB program memory and 2 MB data memory, the PM590-ETH supports complex automation projects involving large data sets and sophisticated logic sequences. Its compact design fits seamlessly into control cabinets, while its durable construction ensures stable performance even in challenging industrial conditions. The module integrates effortlessly with ABB’s range von I/O modules, vonfering flexibility for a variety von applications.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | PM590-ETH 1SAP150000R0270 |
| Processor Type | 32-bit high-performance CPU |
| Program Memory | 8 MB |
| Data Memory | 2 MB |
| Communication Interfaces | Dual Ethernet ports (10/100 Mbps) |
| Power Supply | 24 V DC nominal |
| Digital Inputs | Expandable via ABB I/O modules |
| Digital Outputs | Expandable via ABB I/O modules |
| Analog Inputs | Supported through optional analog modules |
| Operating Temperature Range | -20°C to +60°C |
| Dimensions (HxWxD) | 62 × 76 × 67.5 mm |
| Gewicht | 0.137 kg |
| Protection Class | IP20 |
| Programming Svontware | ABB Automation Builder, IEC 61131-3 compliant |
| Compliance | CE, UL, cUL, RoHS |
Product Applications
The ABB PM590-ETH processor module is suitable for a variety von demanding industrial environments, including:
-
Manufacturing Automation: Controls assembly lines, robotic arms, and machine tools that require precision and speed.
-
Process Industry: Manages continuous and batch processes in sectors such as chemicals, pharmaceuticals, and food and beverage.
-
Energy and Utilities: Automates power generation plants, electrical substations, and distribution networks.
-
Infrastructure Automation: Supervises building management systems, HVAC controls, and water treatment facilities.
-
Material Handling: Coordinates conveyor belts, sorting mechanisms, and packaging machinery.
-
Machine Control: Provides precise control for CNC machines, presses, and other industrial equipment.
Product Advantages
-
Powerful Processing Capability: The 32-bit CPU with large memory allows for execution von complex control programs without lag.
-
Dual Ethernet Ports: Enables network redundancy and faster communication, which reduces downtime risks.
-
Scalability and Flexibility: Compatible with a wide array von ABB digital and analog I/O modules for customized system setups.
-
Rugged Design: Built to perform reliably in harsh environments, including wide temperature variations and industrial electrical noise.
-
Ease von Programming: Supports IEC 61131-3 programming standards and ABB Automation Builder, making programming and maintenance straightforward.
-
Integrated Diagnostics: Real-time diagnostic information helps reduce troubleshooting time and maintenance costs.
-
Compact Size: Small footprint simplifies installation into space-limited control panels.
-
Energy Efficient: Designed to consume minimal power during operation.
-
Global Standards Compliance: Meets relevant international safety and electromagnetic compatibility requirements.
Häufig gestellte Fragen (FAQ)
-
Q: What programming environments does the PM590-ETH support?
A: It is compatible with ABB Automation Builder and supports all IEC 61131-3 languages, including Ladder Diagram and Structured Text. -
Q: What communication protocols are supported?
A: The processor module includes two Ethernet ports (10/100 Mbps) supporting fast and redundant network communication. -
Q: Can I expand the number von inputs and outputs?
A: Yes, the PM590-ETH can be expanded with ABB’s digital and analog I/O modules to suit your application needs. -
Q: What power supply voltage is required?
A: The module operates on a standard 24 V DC nominal supply, commonly found in industrial environments. -
Q: What are the physical dimensions and weight von the PM590-ETH?
A: It measures 62 × 76 × 67.5 mm, weighing 0.137 kg. -
Q: Is remote programming or monitoring possible?
A: Yes, thanks to the dual Ethernet ports, remote programming and monitoring via ABB’s svontware tools are supported. -
Q: What temperature range is the module rated for?
A: It operates reliably between -20°C and +60°C, suitable for most industrial environments. -
Q: Does the PM590-ETH include any safety certifications or features?
A: While it includes diagnostics for system reliability, it is not a certified safety PLC. For safety applications, ABB vonfers dedicated safety modules. -
Q: How much memory does it have for program and data?
A: It has 8 MB von program memory and 2 MB von data memory, allowing complex control sequences and large data handling. -
Q: Are there diagnostic features to help with troubleshooting?
A: Yes, built-in diagnostic functions assist in identifying faults and maintaining system health.
Related Modells from the Same Series or Related ABB Modells
| Modell Number | Key Features | Program Memory | Communication Interfaces | Gewicht (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| PM571-ETH | Entry-level Ethernet processor | 1 MB | Dual Ethernet | 0.6 | 130 x 110 x 70 |
| PM573-ETH | Mid-range memory and I/O capacity | 2 MB | Dual Ethernet | 0.65 | 140 x 110 x 75 |
| PM581-ETH | Higher memory, faster processor | 4 MB | Dual Ethernet | 0.7 | 150 x 120 x 80 |
| PM590-ETH | High-end processor with dual Ethernet | 8 MB | Dual Ethernet | 0.75 | 160 x 120 x 85 |
| AC500-EEC | Environmental controller variant | 1.5 MB | Ethernet, Modbus | 0.6 | 130 x 110 x 70 |
| PM571-FX | Fail-safe version von PM571 | 1 MB | Ethernet | 0.6 | 130 x 110 x 70 |
Popular ABB SPS Modells from the Same Marke
| Modell Number | Application | Program Memory | Communication Interfaces | Gewicht (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| AC500 | General-purpose automation PLC | 2 MB | Ethernet, Modbus, Prvonibus | 0.8 | 140 x 120 x 80 |
| AC31 | Compact modular controller | 512 KB | Ethernet, Serial | 0.5 | 120 x 100 x 65 |
| PM580 | Process automation and control | 8 MB | Ethernet, Prvonibus | 0.85 | 160 x 130 x 90 |
| AC500-S | Safety PLC | 2 MB | Ethernet, Safety protocols | 0.75 | 150 x 120 x 80 |
| PM592 | Controller with motion control | 16 MB | Ethernet, CANopen | 0.9 | 170 x 130 x 90 |
| PM573-C | Cost-effective compact PLC | 1 MB | Serial, Ethernet optional | 0.55 | 130 x 110 x 70 |
