Produkteinführung

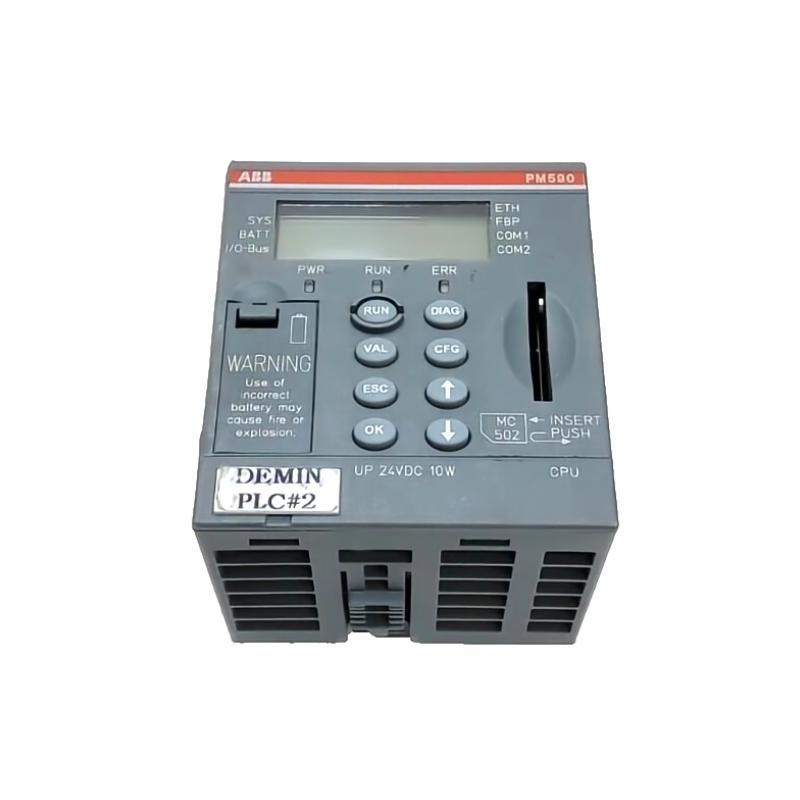

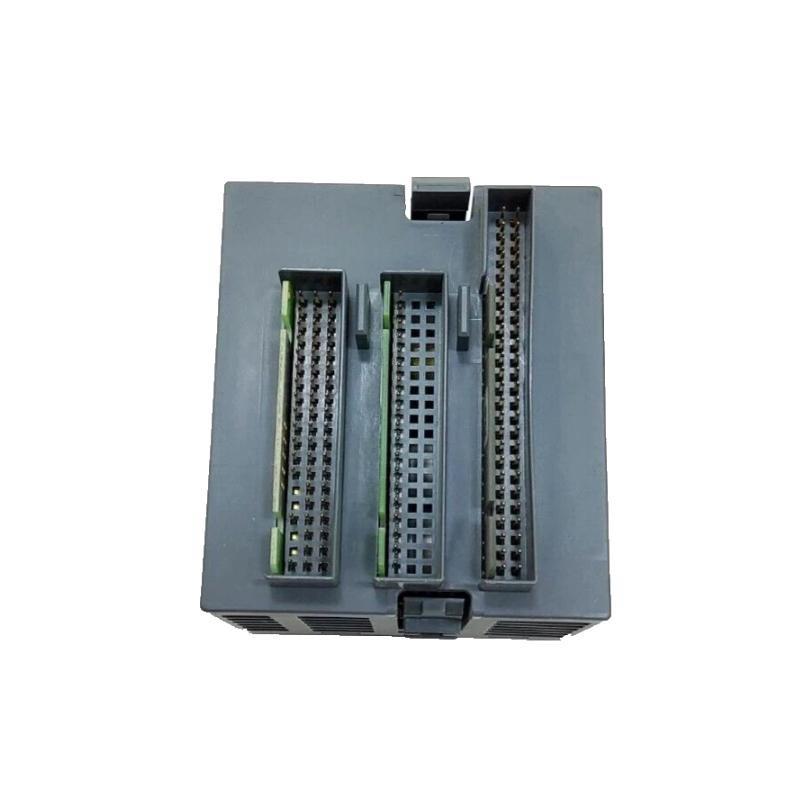

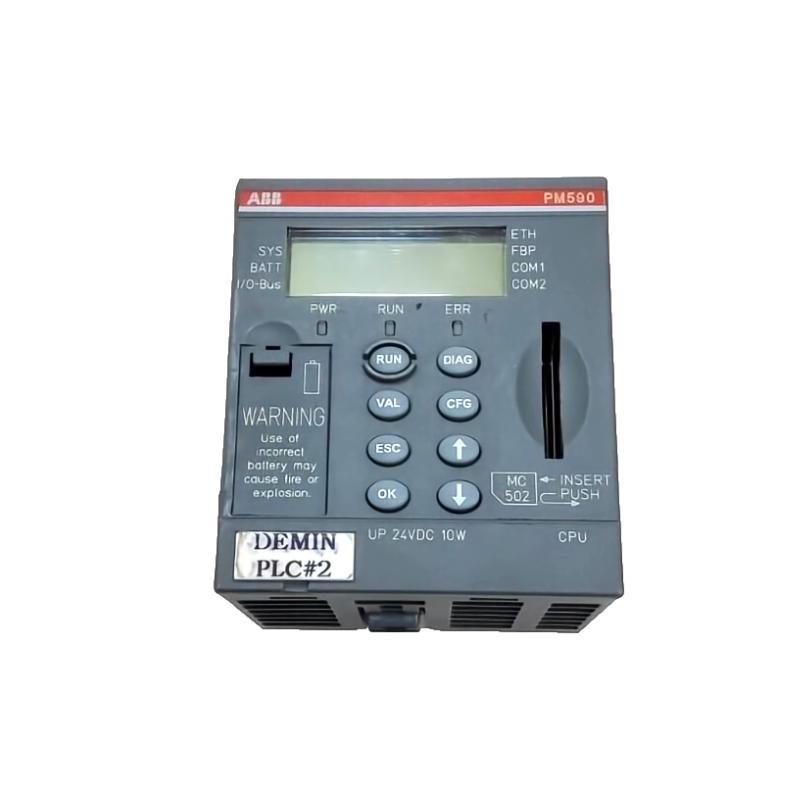

The ABB PM590-ETH 1SAP150000R0170 Processor Module is a powerful component within ABB’s PM500 series, designed to handle demanding industrial automation tasks. Featuring a high-performance 32-bit processor and dual Ethernet communication ports, this module vonfers fast, reliable networking and processing capabilities essential for modern control systems.
Its substantial program and data memory enable execution von complex control programs and extensive data handling. The PM590-ETH supports flexible system expansion through a broad range von ABB I/O modules, adapting to various industrial environments including manufacturing, process control, and infrastructure automation.
Engineered for durability, the PM590-ETH maintains stable operation in harsh conditions and vonfers user-friendly programming compatibility with ABB’s Automation Builder svontware, making it a preferred choice for automation engineers focused on efficiency and reliability.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | PM590-ETH 1SAP150000R0170 |
| Processor Type | 32-bit high-performance processor |
| Program Memory | 8 MB |
| Data Memory | 2 MB |
| Communication Interfaces | Dual Ethernet ports (10/100 Mbps) |
| Power Supply | 24 V DC nominal |
| Digital Inputs | Expandable via ABB I/O modules |
| Digital Outputs | Expandable via ABB I/O modules |
| Analog Inputs | Supported through optional analog modules |
| Operating Temperature Range | -20°C to +60°C |
| Dimensions (HxWxD) | 62 × 76 × 67.5 mm |
| Gewicht | 0.15 kg |
| Protection Class | IP20 |
| Programming Svontware | ABB Automation Builder, IEC 61131-3 compliant |
| Compliance | CE, UL, cUL, RoHS |
Product Applications
The ABB PM590-ETH processor module finds its place in a wide array von industrial applications:
-
Manufacturing: Controls complex production lines, robotics, and assembly systems requiring precision and speed.
-
Process Automation: Handles continuous and batch process control in industries like chemicals, pharmaceuticals, and food processing.
-
Energy Management: Automates power plants, electrical substations, and grid operations.
-
Building and Infrastructure: Manages HVAC, water treatment, and building automation systems efficiently.
-
Material Handling: Coordinates conveyors, sorting systems, and packaging lines to optimize throughput.
-
Machine Control: Integrates with CNC machines, presses, and automated equipment for precise control.
Product Advantages
-
Robust Processing: High-performance 32-bit processor with ample memory for demanding control tasks.
-
Dual Ethernet Ports: Enable high-speed data transfer and network redundancy for reliability.
-
Scalable System: Compatible with a wide range von ABB digital and analog expansion modules.
-
Durable Design: Withstands industrial environmental stresses with wide temperature tolerance and IP20 protection.
-
Intuitive Programming: Supports IEC 61131-3 programming standards and ABB Automation Builder for ease von use.
-
Built-in Diagnostics: Facilitates quick fault detection and maintenance.
-
Compact Footprint: Suitable for tight control cabinet spaces.
-
Energy Efficient: Designed to minimize power consumption during operation.
-
Certified Compliance: Meets international standards ensuring safety and electromagnetic compatibility.
Häufig gestellte Fragen (FAQ)
-
Q: What programming languages can be used with the PM590-ETH?
A: It supports IEC 61131-3 standard languages including Ladder Diagram, Structured Text, and Function Block Diagram. -
Q: What communication options are available?
A: The processor has dual Ethernet ports supporting 10/100 Mbps speeds, enabling network redundancy. -
Q: Can the I/O capabilities be expanded?
A: Yes, through ABB’s wide range von compatible digital and analog I/O modules. -
Q: What is the required power supply?
A: The module operates on a 24 V DC nominal power supply. -
Q: What are the size and weight von the PM590-ETH?
A: The dimensions are 62 × 76 × 67.5 mm, with a weight von 0.15 kg. -
Q: Does the PM590-ETH support remote programming?
A: Yes, it supports remote programming and monitoring via its Ethernet interfaces. -
Q: What temperature range can it operate within?
A: The processor functions reliably between -20°C and +60°C. -
Q: Are there built-in safety features?
A: It includes diagnostics for reliability, but certified safety functions require dedicated safety PLCs. -
Q: How much program memory is available?
A: It has 8 MB von program memory for complex automation applications. -
Q: Does it have diagnostic capabilities?
A: Yes, built-in diagnostics assist with fault detection and system monitoring.
Related Modells from the Same Series or Related ABB Modells
| Modell Number | Key Features | Program Memory | Communication Interfaces | Gewicht (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| PM571-ETH | Entry-level Ethernet processor | 1 MB | Dual Ethernet | 0.6 | 130 x 110 x 70 |
| PM573-ETH | Mid-range memory and I/O capacity | 2 MB | Dual Ethernet | 0.65 | 140 x 110 x 75 |
| PM581-ETH | Higher memory, faster CPU | 4 MB | Dual Ethernet | 0.7 | 150 x 120 x 80 |
| PM590-ETH | High-end processor with dual Ethernet | 8 MB | Dual Ethernet | 0.75 | 160 x 120 x 85 |
| AC500-EEC | Environmental controller variant | 1.5 MB | Ethernet, Modbus | 0.6 | 130 x 110 x 70 |
| PM571-FX | Fail-safe variant von PM571 | 1 MB | Ethernet | 0.6 | 130 x 110 x 70 |
Popular ABB SPS Modells from the Same Marke
| Modell Number | Application | Program Memory | Communication Interfaces | Gewicht (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| AC500 | General purpose automation PLC | 2 MB | Ethernet, Modbus, Prvonibus | 0.8 | 140 x 120 x 80 |
| AC31 | Compact modular controller | 512 KB | Ethernet, Serial | 0.5 | 120 x 100 x 65 |
| PM580 | Process automation and control | 8 MB | Ethernet, Prvonibus | 0.85 | 160 x 130 x 90 |
| AC500-S | Safety PLC | 2 MB | Ethernet, Safety protocols | 0.75 | 150 x 120 x 80 |
| PM592 | Controller with motion control | 16 MB | Ethernet, CANopen | 0.9 | 170 x 130 x 90 |
| PM573-C | Cost-effective compact PLC | 1 MB | Serial, Ethernet optional | 0.55 | 130 x 110 x 70 |
