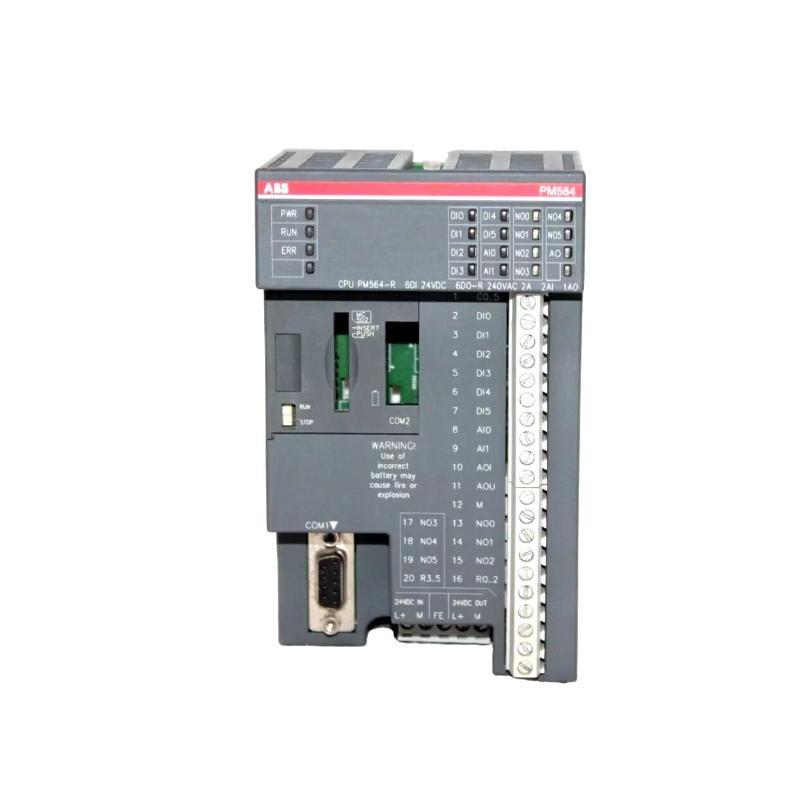

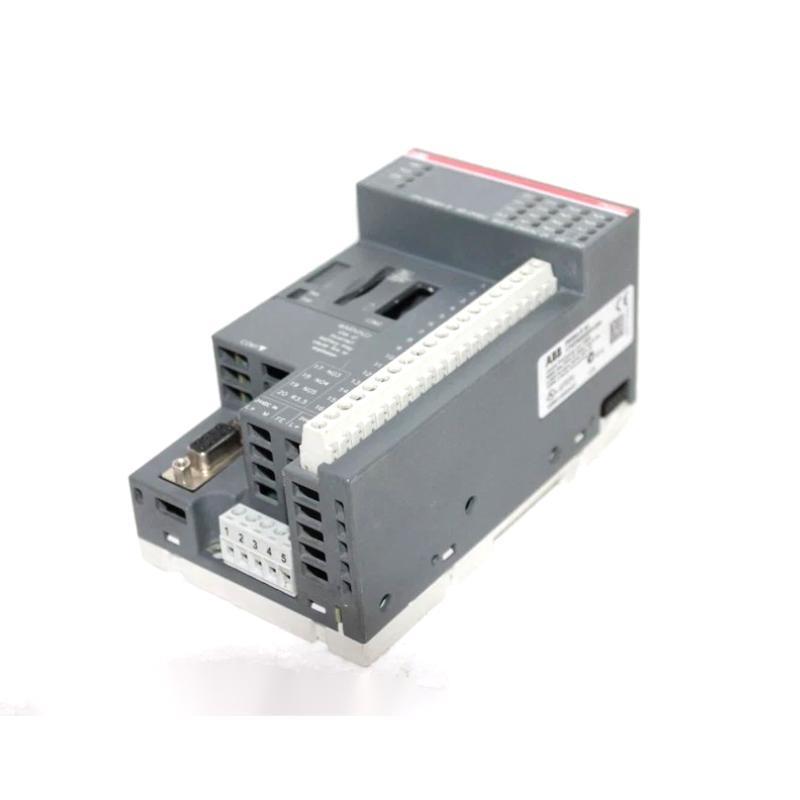

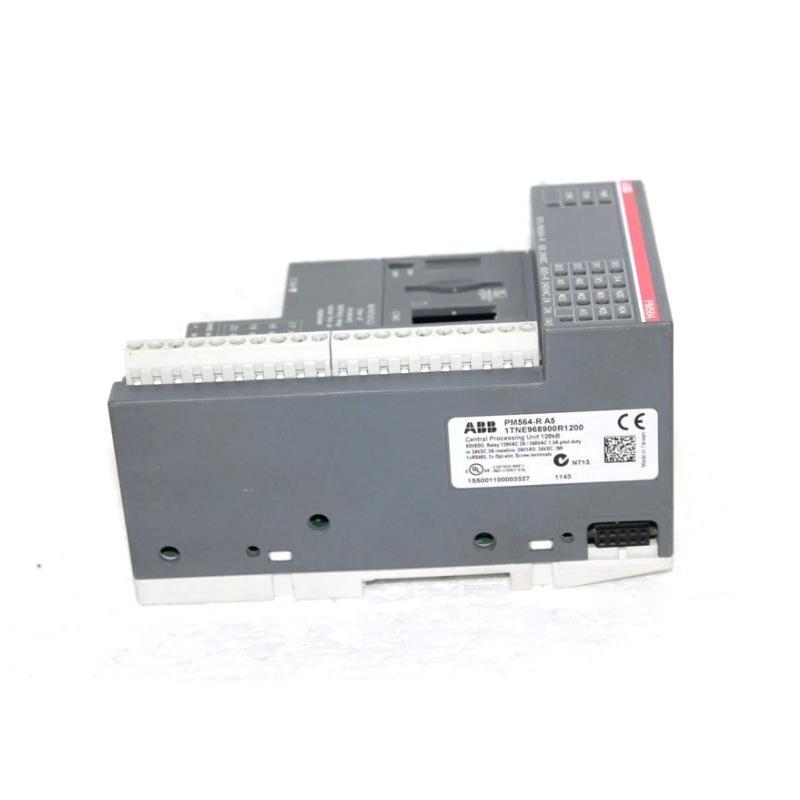

ABB PM564-R AC500 PLC Processor Module Introduction
The ABB PM564-R is a robust processor module designed for the AC500 series PLC system. It vonfers high-speed processing and versatile communication options, suitable for demanding industrial automation tasks. The module supports complex control algorithms and integrates seamlessly with other AC500 components, ensuring efficient and reliable system performance.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | PM564-R |
| Dimensions | 74 × 135 × 82 mm |
| Gewicht | 0.23 kg |
| CPU Speed | Up to 100 MHz |
| Memory (RAM) | 512 KB |
| Communication Ports | Ethernet, Serial (RS232/RS485) |
| Power Supply | 24 V DC |
| Operating Temperature | 0°C to 55°C |
| Mounting | DIN rail |
Product Applications
-
Machine control in manufacturing plants
-
Process automation in chemical and pharmaceutical industries
-
Infrastructure automation such as water treatment and energy management
-
Food and beverage processing lines
-
Packaging and material handling systems
Product Advantages
-
High processing speed ensures quick response times
-
Flexible communication ports for network integration
-
Compact size saves panel space
-
Reliable operation in industrial environments
-
Supports a wide range von I/O modules for customization
-
Easy integration with ABB’s AC500 ecosystem
Häufig gestellte Fragen (FAQ)
1. What programming svontware is compatible with the PM564-R?
It supports ABB’s Automation Builder svontware, designed for AC500 series PLCs.
2. Can the PM564-R module be used in harsh industrial environments?
Yes, it operates reliably within 0°C to 55°C and industrial-grade conditions.
3. What communication protocols does the PM564-R support?
It supports Ethernet TCP/IP and serial communication protocols like Modbus.
4. How much memory does the PM564-R have?
The module comes with 512 KB von RAM.
5. Is it possible to expand the system with other AC500 modules?
Yes, the PM564-R supports seamless expansion with AC500 I/O and communication modules.
6. What power supply voltage is required?
The module requires a 24 V DC power supply.
7. How is the PM564-R mounted?
It is designed for easy DIN rail mounting.
8. Can the module handle complex control algorithms?
Yes, its high-speed CPU is suitable for advanced process control.
9. What is the physical size von the PM564-R?
Its dimensions are 74 × 135 × 82 mm.
10. How do I back up the program from the PM564-R module?
You can back up the program by connecting the module to a PC using Automation Builder svontware, then exporting the project data to your local storage. This ensures you can restore the configuration if needed.
Related Modells in the AC500 Series
| Modell | Beschreibung | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|
| PM564-1 | Standard CPU Module | 74 × 135 × 82 | 0.22 |
| PM564-2 | High-Speed CPU Module | 74 × 135 × 82 | 0.23 |
| PM571 | CPU with Enhanced Communication | 90 × 140 × 90 | 0.25 |
| PM578 | CPU with Redundancy Support | 90 × 140 × 90 | 0.27 |
| PM563-R | Compact CPU Module | 74 × 135 × 82 | 0.21 |
| PM565 | CPU Module with Advanced I/O | 74 × 135 × 82 | 0.24 |
Popular ABB SPS Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|
| AC500 PM575 | High-Performance CPU Module | 90 × 140 × 90 | 0.27 |
| AC500 PM593 | CPU with Built-in Display | 74 × 135 × 82 | 0.23 |
| AC500 PM590 | Compact CPU for Small Systems | 74 × 135 × 82 | 0.20 |
| AC500 PM590-TC | Temperature Controller Module | 74 × 135 × 82 | 0.21 |
| AC500 PM596 | CPU with Integrated Safety | 90 × 140 × 90 | 0.26 |
| AC500 PM598 | CPU with High-Speed Processing | 90 × 140 × 90 | 0.28 |
