Product Overview

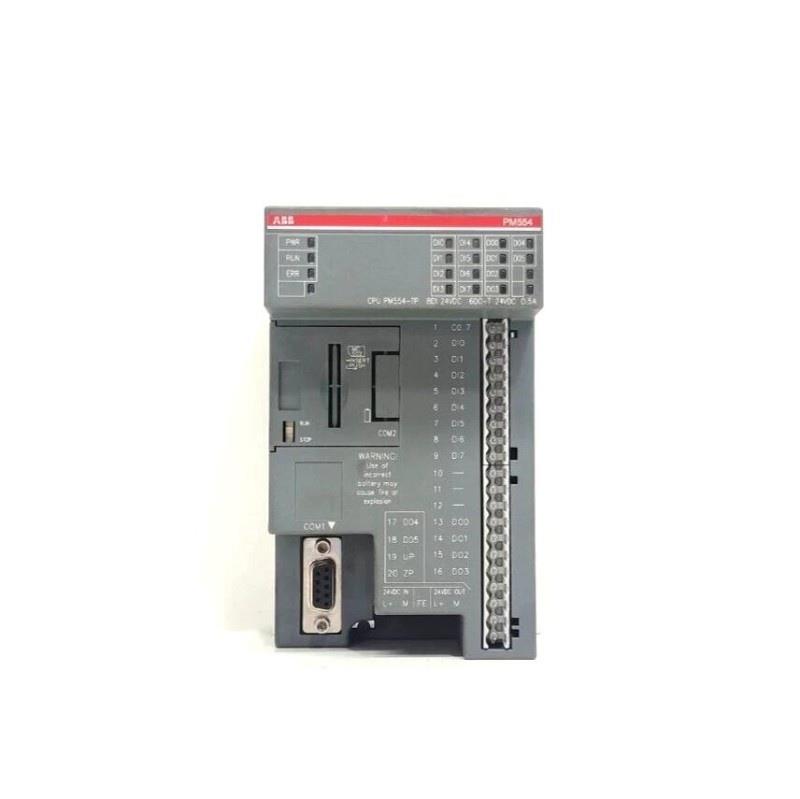

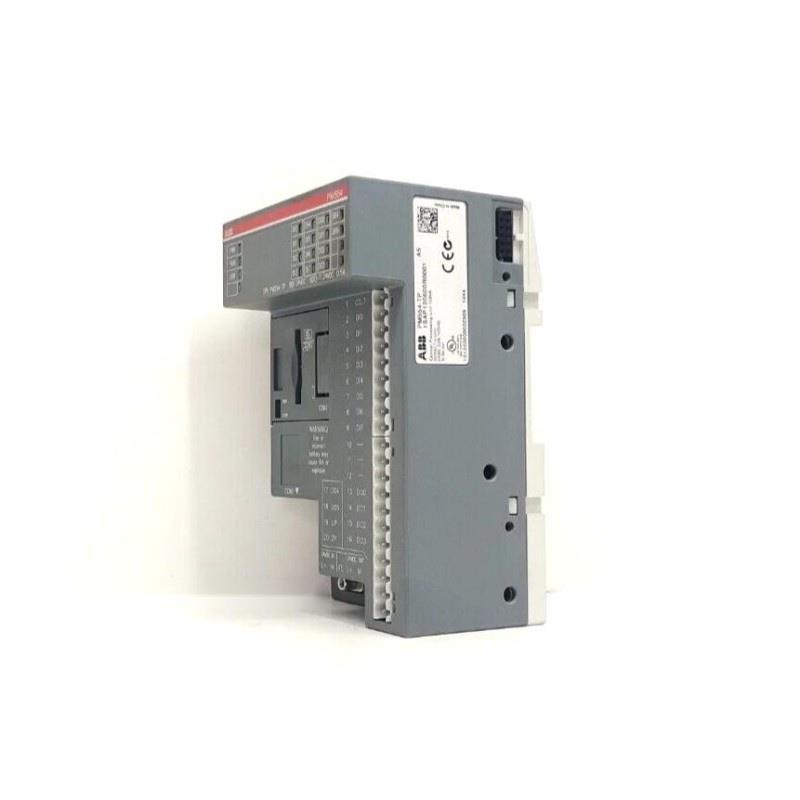

The ABB PM554-TP is a compact, modular processor module from the AC500-eCo PLC series. Designed for industrial automation applications, it features 8 digital inputs and 6 transistor digital outputs, making it ideal for small to medium-sized control systems. It operates on 24 V DC power and includes pluggable I/O terminal blocks for simplified installation.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Product Type | Processor Module |
| Artikelnummer | 1SAP120600R0001 |
| I/O Configuration | 8 Digital Inputs, 6 Digital Outputs (Transistor) |
| Program Memory | 128 kB Flash EPROM |
| Data Memory | 10 kB VAR, 2 kB %MB, 1 kB %RB |
| Clock Speed | 50 MHz (Freescale ARM 32-bit CPU) |
| Power Supply | 24 V DC |
| Current Consumption (typical) | 60 mA |
| Max Power Dissipation | 3.0 W |
| Communication Interfaces | COM1 (RS-485), I/O Bus |
| Mounting Type | DIN Rail (Horizontal or Vertical) |
| Dimensions | 74 × 135 × 82 mm |
| Gewicht | 0.3 kg |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Programming Spraches | IL, FBD, LD, SFC, ST, CFC |
Applications
-
Small-scale factory automation systems
-
OEM machine control
-
Infrastructure projects (e.g. pumping, HVAC)
-
Remote monitoring systems
-
Compact PLC-based solutions
Advantages
-
Integrated I/Os reduce the need for extra modules
-
Easy installation with pluggable terminals
-
Efficient performance with low power consumption
-
Compact design fits into space-limited cabinets
-
Programmable in multiple IEC 61131-3 languages
-
Scalable with up to 10 I/O modules and CS31 Bus expansion
Häufig gestellte Fragen (FAQ)
Q1: What power supply is required for the PM554-TP?
A1: It requires a 24 V DC power supply.
Q2: How many digital I/Os are built-in?
A2: It has 8 digital inputs and 6 transistor digital outputs.
Q3: What type von digital outputs does PM554-TP have?
A3: Transistor outputs.
Q4: Is Ethernet communication available?
A4: No, Ethernet is not available in PM554-TP. Use PM554-TP-ETH for Ethernet.
Q5: Can it be used in vertical mounting?
A5: Yes, but output load should be reduced to 50% per group.
Q6: What memory size does it vonfer?
A6: 128 kB Flash program memory and 10 kB variable data memory.
Q7: Is it suitable for harsh environments?
A7: It supports operation from 0 to +60 °C and up to 95% humidity (non-condensing).
Q8: Can it support serial communication?
A8: Yes, COM1 supports RS-485 communication.
Q9: Does it have password protection for programs?
A9: Yes, user programs can be password protected.
Q10: Is a real-time clock included?
A10: No, but a real-time clock is optionally available (e.g., TA561-RTC).
Recommended Related Modells
| Modell Number | Beschreibung | I/O Configuration | Memory | Power Supply |
|---|---|---|---|---|
| PM554-TP-ETH | PM554 with onboard Ethernet | 8 DI, 6 DO (Transistor) | 128 kB | 24 V DC |
| PM554-RP | PM554 with relay outputs | 8 DI, 6 DO (Relay) | 128 kB | 24 V DC |
| PM554-RP-AC | Relay outputs with AC power | 8 DI, 6 DO (Relay) | 128 kB | 100–240 V AC |
| PM556-TP-ETH | Upgraded memory and Ethernet | 8 DI, 6 DO (Transistor) | 512 kB | 24 V DC |
| PM564-TP | With analog I/O | 6 DI, 6 DO, 2 AI, 1 AO | 128 kB | 24 V DC |
| PM566-TP-ETH | High memory and Ethernet | 6 DI, 6 DO, 2 AI, 1 AO | 512 kB | 24 V DC |
Popular ABB Modells
| Modell Number | Beschreibung | Application Type | Power Supply | Gewicht |
|---|---|---|---|---|
| AC500 PM592-ETH | High-performance PLC CPU | Complex automation systems | 24 V DC | ~0.45 kg |
| AC500 PM573-ETH | Mid-range CPU with Ethernet | General-purpose control | 24 V DC | ~0.4 kg |
| PM582-ETH | Compact CPU with integrated Ethernet | OEM solutions | 24 V DC | ~0.38 kg |
| CP600 HMI Panel | HMI with touch screen interface | Operator interface | 24 V DC | varies |
| CI581-CN | Communication module CANopen | Fieldbus connectivity | 24 V DC | ~0.25 kg |
| TB511-ETH | Communication module for AC500 series | Ethernet extension | 24 V DC | ~0.2 kg |
