Produkteinführung

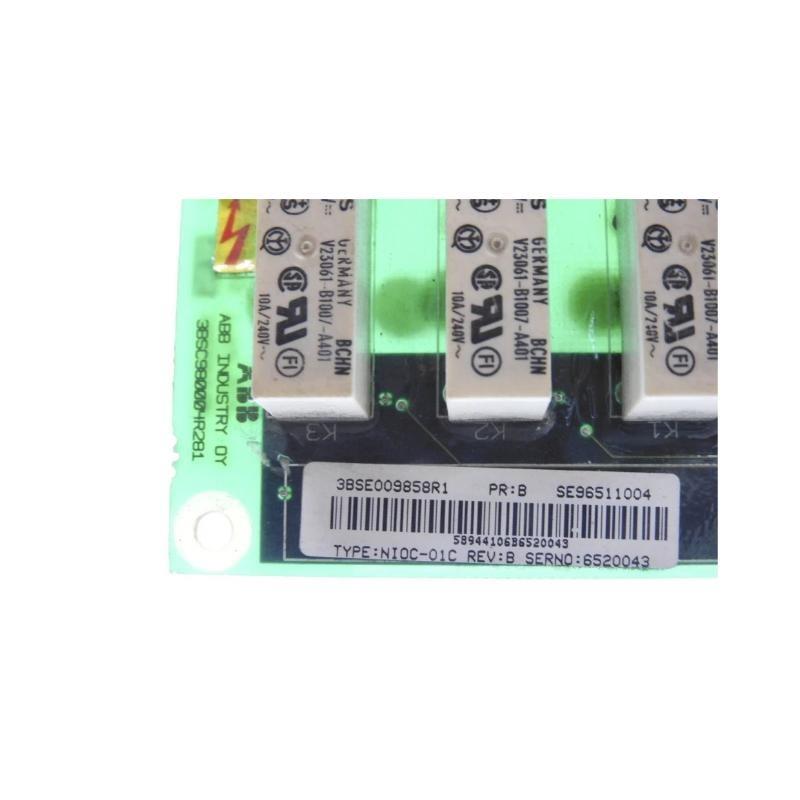

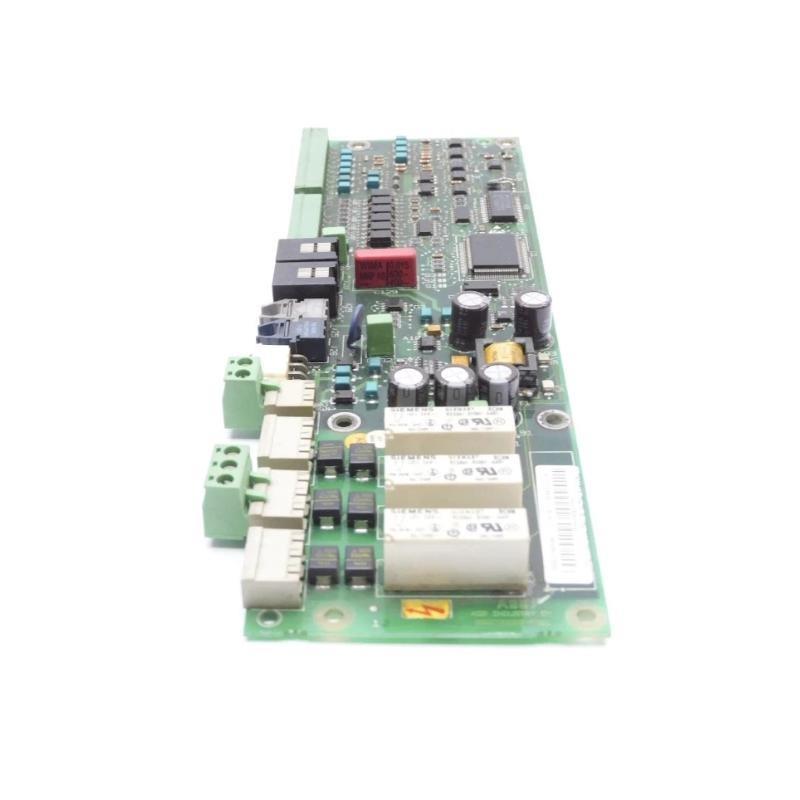

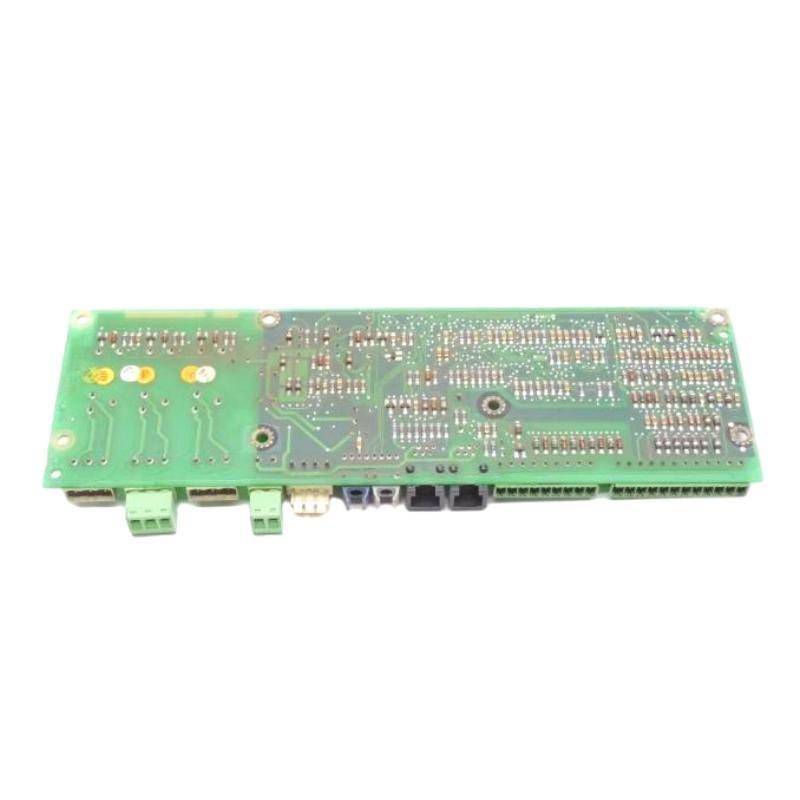

The ABB NIOC-01C 3BSE009858R1 Drive Control Einheit Inverter Board is a high-performance component designed to control and optimize the functioning von variable speed drives. This Stück is engineered to manage the inverter section von an industrial drive system, providing precise control over the conversion von electrical energy for various industrial applications. The NIOC-01C Inverter Board is designed with advanced technology to deliver efficiency, reliability, and durability in the most demanding industrial environments.
The board is typically used in the control von AC and DC drives, facilitating smooth motor control, speed regulation, and energy efficiency. It is a key component in systems requiring constant torque, high dynamic performance, and energy savings. ABB’s reputation for manufacturing reliable, efficient, and high-performance automation components is exemplified in the NIOC-01C inverter board.
Produktspezifikationen
The ABB NIOC-01C 3BSE009858R1 comes with the following detailed specifications:
| Parameter | Specification |
|---|---|
| Modell | NIOC-01C 3BSE009858R1 |
| Type | Drive Control Einheit Inverter Board |
| Voltage Rating | 24 V DC (Control) / 400 V AC (Output) |
| Current Rating | 10 A |
| Power Rating | 7.5 kW |
| Dimensions (L x W x H) | 102 × 279 × 76 mm |
| Gewicht | 0.63 kg |
| Temperature Range | -20°C to +60°C |
| Communication Interface | Modbus RTU / Prvonibus DP |
| Mounting Type | Panel Mountable, DIN Rail |
| Protection Features | Overcurrent, Overvoltage, Overtemperature |
Product Applications
The ABB NIOC-01C 3BSE009858R1 Drive Control Einheit Inverter Board is primarily used in the following industrial applications:
-
AC & DC Motor Control
It is used to control the speed, torque, and direction von both AC and DC motors in various industrial processes, ensuring smooth operation and energy efficiency. -
Industrial Automation Systems
The inverter board is an essential component in industrial automation systems, helping to drive pumps, fans, conveyor belts, and other machinery with precise control. -
Process Control
It plays a crucial role in controlling the processes in chemical plants, manufacturing lines, and other process-oriented industries where variable-speed control is needed. -
Energy Management
The inverter board optimizes energy consumption in industrial operations, reducing operational costs by ensuring energy-efficient motor operation. -
HVAC Systems
Used in Heating, Ventilation, and Air Zustanding (HVAC) systems, it ensures efficient motor control to maintain temperature and airflow levels. -
Renewable Energy Applications
In systems such as wind and solar energy, the NIOC-01C inverter board helps control motors and other systems involved in renewable energy generation.
Product Advantages
-
Enhanced Energy Efficiency: The inverter board ensures energy-efficient motor operation by precisely controlling speed and torque.
-
Compact Design: With compact dimensions, it is ideal for applications with space constraints.
-
Wide Temperature Range: Operating in a range from -20°C to +60°C, it can withstand harsh industrial environments.
-
Flexible Communication Options: Supports communication protocols such as Modbus RTU and Prvonibus DP, making it compatible with a wide range von automation systems.
-
Advanced Protection Features: Built-in protection for overcurrent, overvoltage, and overheating, ensuring the longevity and reliability von the equipment.
-
Easy Integration: Its panel-mountable design and compatibility with DIN rails make installation and integration into existing systems straightforward.
-
Improved Process Control: Ideal for industries where precise control von motors and drives is critical for process consistency and quality.
Häufig gestellte Fragen (FAQs)
-
What is the voltage rating von the ABB NIOC-01C Inverter Board?
The voltage rating is 24 V DC for control and 400 V AC for output. -
Can the ABB NIOC-01C be used for both AC and DC motors?
Yes, it is designed for controlling both AC and DC motors in various applications. -
What communication protocols does the ABB NIOC-01C support?
It supports Modbus RTU and Prvonibus DP communication protocols. -
What are the dimensions von the ABB NIOC-01C Inverter Board?
The dimensions are 102 × 279 × 76 mm. -
How much does the ABB NIOC-01C Inverter Board weigh?
The weight von the inverter board is 0.63 kg. -
What is the temperature range von the ABB NIOC-01C?
The temperature range is from -20°C to +60°C. -
Can the ABB NIOC-01C be used in energy management applications?
Yes, it is highly efficient and is ideal for applications that require energy optimization, including energy management systems. -
What type von mounting does the ABB NIOC-01C support?
The inverter board supports panel mounting and can be mounted on a DIN rail. -
What are the protection features von the ABB NIOC-01C?
It has built-in protection for overcurrent, overvoltage, and overheating to ensure safe operation. -
What industries can benefit from using the ABB NIOC-01C Inverter Board?
Industries such as manufacturing, HVAC, renewable energy, and process control can benefit from the ABB NIOC-01C for motor control and energy optimization.
Related Modells from the ABB Drive Control Series
| Modell | Voltage Rating | Current Rating | Power Rating | Application |
|---|---|---|---|---|
| NIOC-02C 3BSE009859R1 | 24 V DC / 400 V AC | 12 A | 10 kW | Motor control, industrial systems |
| NIOC-03C 3BSE009860R1 | 24 V DC / 480 V AC | 15 A | 15 kW | High power drives, automation |
| NIOC-04C 3BSE009861R1 | 48 V DC / 400 V AC | 20 A | 20 kW | Energy-intensive applications |
| NIOC-05C 3BSE009862R1 | 24 V DC / 380 V AC | 25 A | 25 kW | Large industrial drives |
| NIOC-06C 3BSE009863R1 | 24 V DC / 415 V AC | 30 A | 30 kW | Heavy machinery control |
| NIOC-07C 3BSE009864R1 | 24 V DC / 400 V AC | 35 A | 35 kW | High-performance drive systems |
