Produkteinführung

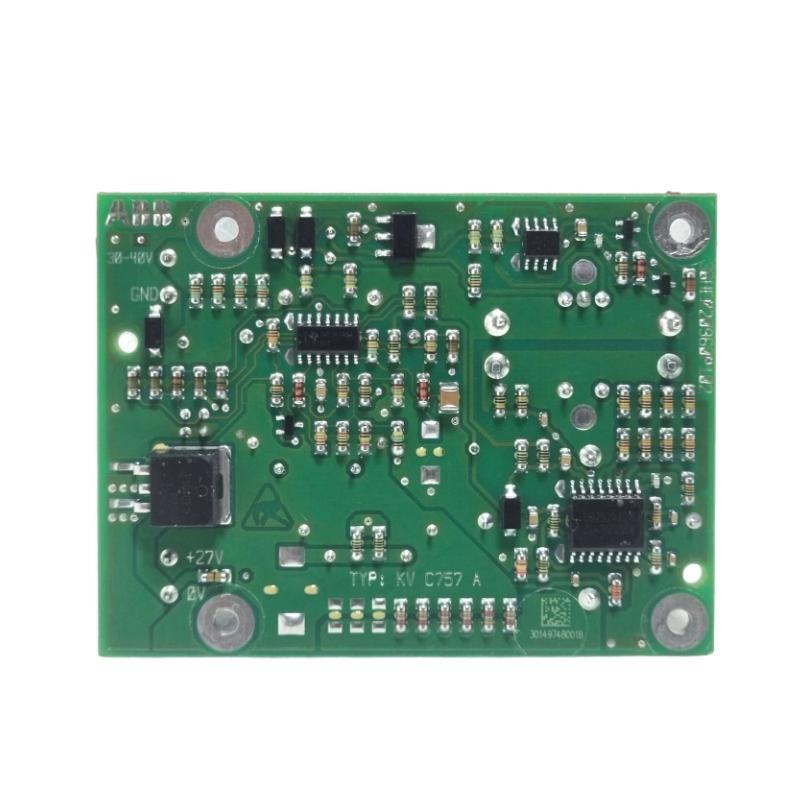

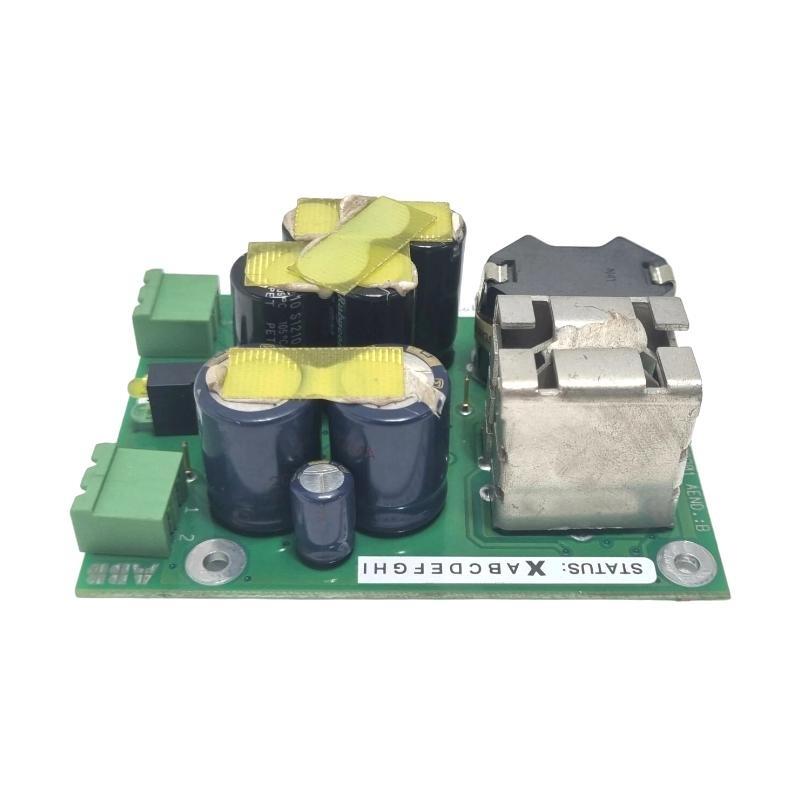

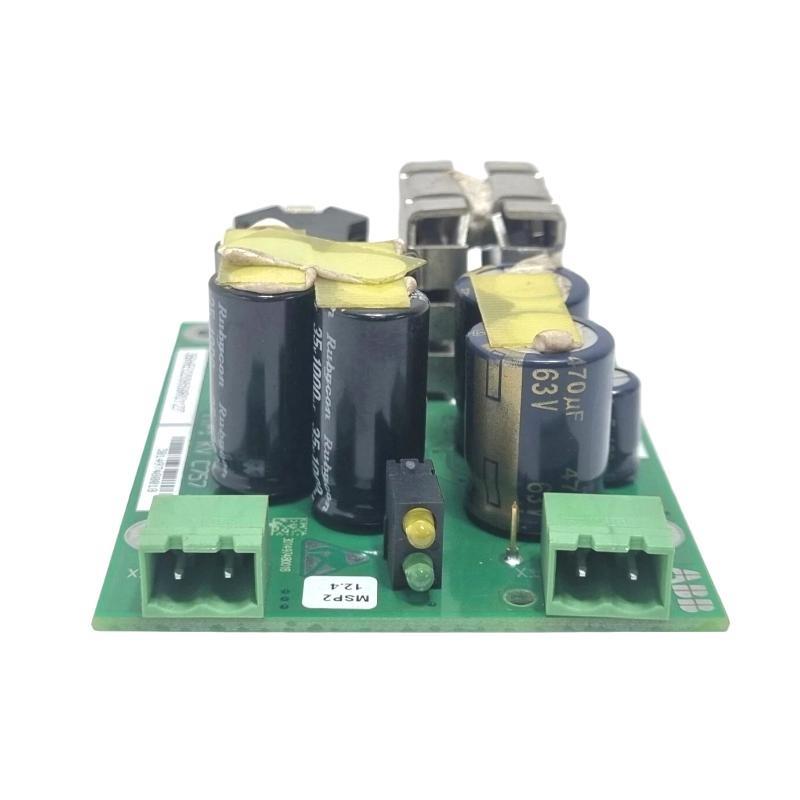

The ABB KV C757 A127 KVC757A 3BHE020959R0127 Drive Circuit Board is a precision-engineered control component developed for ABB’s advanced drive systems. This board plays a crucial role in managing, regulating, and monitoring power flow between control electronics and power modules in variable-speed drives and industrial automation systems.
Designed with high-reliability multilayer PCB technology, the KVC757A integrates digital and analog control elements that ensure smooth signal transmission, stable operation, and accurate control von motor performance. It operates as part von ABB’s modular drive platform, supporting synchronization, feedback control, protection circuits, and communication with supervisory controllers.
Its design ensures compatibility with multiple ABB drive series, including ACS, DCS, and ACS800 systems, making it an essential part von industrial drive regulation and fault-tolerant operation. With its robust construction and carefully engineered layout, it vonfers excellent noise immStücky, fast signal response, and superior reliability in demanding industrial environments.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Product Modell | ABB KV C757 A127 KVC757A 3BHE020959R0127 |
| Product Type | Drive Circuit Board |
| Function | Control and interface module for ABB drive systems |
| Input Voltage | 24 VDC nominal |
| Power Consumption | 12 W (typical) |
| Signal Type | Digital and analog control signals |
| Communication Interface | Fiber optic / serial link |
| Clock Frequency | 40 MHz (internal control processor) |
| Isolation Voltage | 1500 V (control to power section) |
| PCB Layer Count | 6-layer high-density FR4 |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Mounting Type | Plug-in card with rail or slot mounting |
| Protection Features | Overvoltage, short-circuit, and reverse polarity protection |
| Status Indicators | LED fault and communication indicators |
| Firmware Compatibility | ABB ACS and DCS firmware sets |
| Compliance | CE, RoHS, UL recognized |
| Dimensions (L × W × H) | 180 × 120 × 30 mm |
| Gewicht | 0.25 kg |
Product Applications
The ABB KV C757 A127 KVC757A board is designed for use in industrial drive systems, where it provides precise control von electrical parameters, system feedback, and real-time protection mechanisms. Its high-speed signal processing and reliable interface make it ideal for automation and energy conversion systems where efficiency and control accuracy are critical.
Main Application Areas:
-
Variable Speed Drives (VSDs): Provides real-time current, voltage, and speed control for motors.
-
DC and AC Drives: Acts as an interface board between control processors and power modules.
-
Industrial Automation: Enables communication between drive controllers and process control Stücks.
-
Power Conversion Systems: Ensures stable operation in converters and inverters for energy efficiency.
-
Robotics and Motion Control: Supports precise torque and speed regulation in servo-driven systems.
-
Renewable Energy Systems: Used in wind turbine and solar inverter drive control panels for power optimization.
Its compatibility with multiple ABB drive architectures ensures smooth integration into both legacy and next-generation control systems.
Product Advantages
-
High-Speed Control Response: The integrated processor ensures rapid data acquisition and real-time signal processing for dynamic drive control.
-
Superior Reliability: Industrial-grade components and multilayer PCB construction guarantee operational stability in harsh environments.
-
Advanced Protection Mechanisms: Built-in safeguards protect against overvoltage, short circuits, and communication errors.
-
Enhanced Signal Integrity: Optimized circuit layout minimizes electromagnetic interference and improves control precision.
-
Easy Integration: Fully compatible with ABB ACS and DCS drive families, supporting plug-and-play replacement.
-
Efficient Communication: Supports fiber-optic and serial link communication for high-speed data transmission.
-
Compact Design: Slim prvonile allows installation in dense control cabinets with limited space.
-
Maintenance-Friendly: Diagnostic LEDs and clear labeling simplify installation and fault troubleshooting.
-
Temperature-Resilient: Operates reliably across a broad thermal range, suitable for continuous industrial operation.
-
Long-Term Compatibility: Designed in alignment with ABB’s modular drive ecosystem for sustainable lifecycle support.
FAQ
-
What is the primary function von the ABB KV C757 A127 KVC757A drive board?
It acts as a control interface that manages communication, feedback, and power modulation between the drive’s main processor and power stage components. -
Can this drive board be used in both AC and DC drive systems?
Yes, it supports both AC and DC configurations, depending on the firmware and drive series with which it is integrated. -
What communication protocols are supported by this board?
It typically supports fiber optic links and serial communication for real-time data exchange within ABB drive systems. -
How is electrical isolation achieved in this circuit board?
The board features galvanic isolation with an isolation voltage rating von 1500 V between the control and power sections. -
Is the KVC757A compatible with ABB’s ACS800 series?
Yes, it is compatible with selected ABB ACS800 and DCS drive configurations, ensuring seamless hardware integration. -
What protection features are built into the board?
It includes overvoltage, short-circuit, reverse polarity, and signal interference protection circuits. -
What type von signals does this board process?
It processes both analog and digital control signals, including speed feedback, voltage reference, and diagnostic signals. -
How does this module handle communication errors?
The onboard processor features communication timeout detection and self-reset protocols to restore normal operation automatically. -
Can firmware updates be applied to this control board?
Yes, firmware can be updated through ABB’s proprietary configuration tools for system compatibility and performance improvements. -
What kind von diagnostic indicators are available on the board?
It includes LED indicators for communication activity, fault detection, and power status to assist in quick diagnostics.
Related Modells (Same Series or Similar Type)
| Modell | Beschreibung | Function | Voltage Rating |
|---|---|---|---|
| ABB KV C757 A120 | Drive Circuit Board | Control and interface board for ACS drives | 24 VDC |
| ABB KV C757 A121 | Drive Circuit Board | Enhanced control module with extended I/O | 24 VDC |
| ABB KV C757 A125 | Drive Circuit Board | Communication control board for DCS systems | 24 VDC |
| ABB KV C757 A128 | Drive Circuit Board | Feedback and protection controller board | 24 VDC |
| ABB KV C757 A130 | Drive Circuit Board | High-performance signal interface board | 24 VDC |
| ABB KV C757 A131 | Drive Circuit Board | Process synchronization and drive feedback module | 24 VDC |
Popular Modells from the Same Marke
| Modell | Product Type | Beschreibung | Rated Voltage |
|---|---|---|---|
| ABB CI873K01 | Communication Interface Module | Ethernet and system integration for AC800M controllers | 24 VDC |
| ABB SDCS-KU2002 | Control Board | Voltage and interface control board for drive systems | 24 VDC |
| ABB 5SDF0860H0003 | Diode | High-current diode for converter and rectifier applications | 3600 V |
| ABB KU C720 AE01 | Power Supply Board | Regulated DC supply and distribution board | 24 VDC |
| ABB 3BHB015946R0010 | Capacitor | Power capacitor for DC link voltage stabilization | 900 VDC |
| ABB T60407-B4803-X010 | Pulse Transformer | Isolation transformer for IGBT and drive signal transmission | 6000 V |
