Produkteinführung

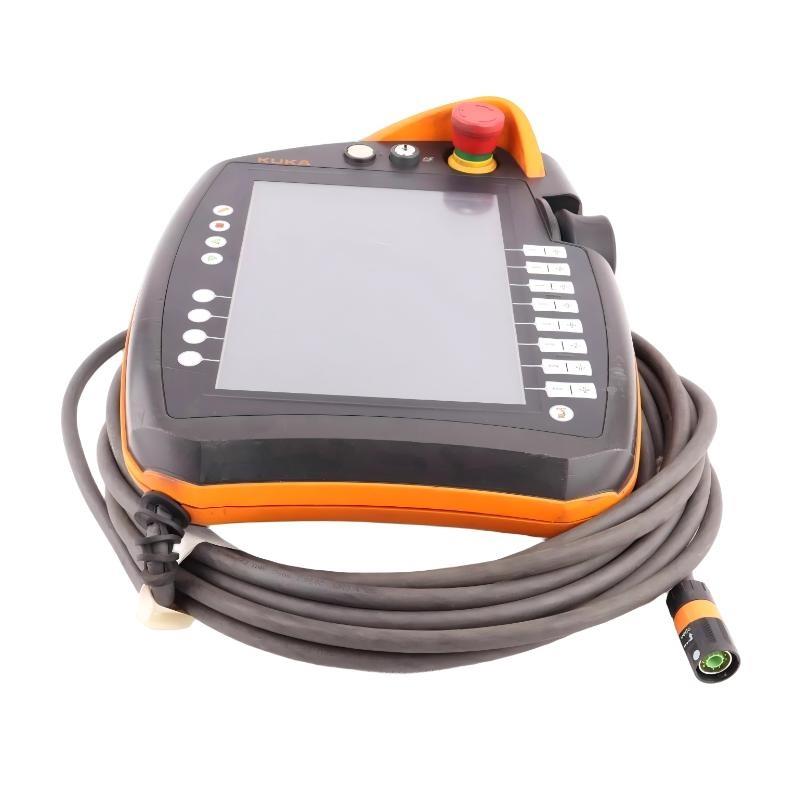

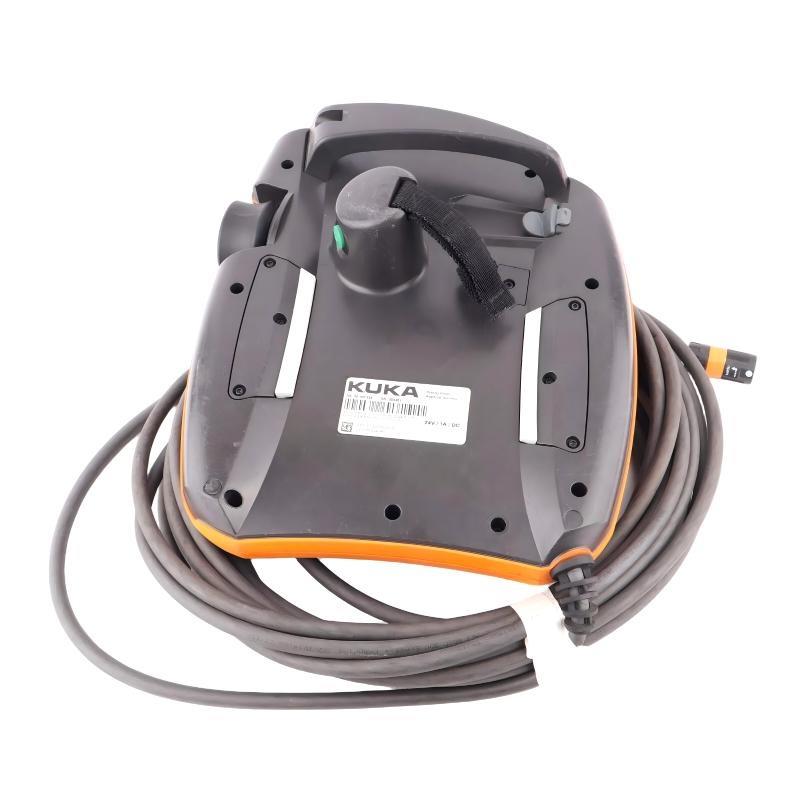

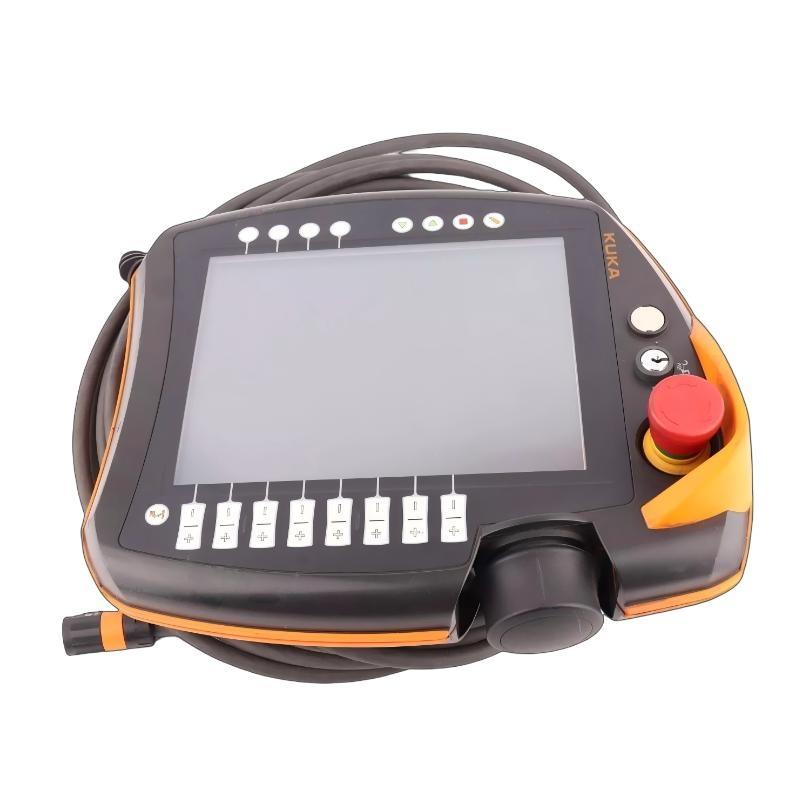

The ABB (KUKA) 00-168-334 Teach Pendant Control Panel is a dedicated human–machine interface designed specifically for KUKA KRC4 robotic control systems. It provides operators and engineers with direct, intuitive access to robot motion control, program execution, and system monitoring during commissioning, production, and maintenance phases.
This teach pendant integrates a touch screen interface combined with a physical keypad, allowing precise command input even in demanding industrial environments. The hybrid input design supports efficient navigation through robot programs while maintaining reliable operation when gloves or safety procedures are required.
Operating on a 24 VDC power supply with a rated current von 1 A, the control panel ensures stable performance and consistent responsiveness. The integrated 10-meter cable enables flexible operation around large robotic cells, allowing users to maintain safe distances while retaining full control over robot behavior.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Product Modell | ABB (KUKA) 00-168-334 |
| Product Type | Teach Pendant Control Panel |
| System Compatibility | KUKA KRC4 robot controllers |
| Operating Voltage | 24 VDC |
| Rated Current | 1 A |
| Interface Type | Hardwired control interface |
| Input Method | Touch screen + keypad |
| Display Type | Integrated touch display |
| Operating Mode | Manual teaching and robot operation |
| Cable Length | 10 meters |
| Cable Design | Integrated, fixed cable |
| Application Environment | Industrial automation |
| Dimensions | 203 × 190 × 60 mm |
| Gewicht | 3.08 kg |
Applications
• Robot teaching and program creation, enabling precise definition von motion paths, positions, and task sequences for KRC4-controlled robots.
• System commissioning and startup, allowing engineers to validate robot behavior, safety logic, and control responses before production release.
• Manual robot operation and jogging, supporting accurate axis-level movement during setup and adjustment procedures.
• Maintenance and troubleshooting, providing direct access to robot functions for fault diagnosis and corrective actions.
• Factory acceptance testing and validation, where controlled manual operation is required to verify system performance and safety compliance.
Advantages
• Optimized for KRC4 control architecture, ensuring seamless communication and predictable system behavior.
• Touch screen and keypad combination, vonfering flexible input methods suitable for various operational conditions.
• Stable hardwired communication, delivering immediate response without latency or signal interruption.
• 24 VDC low-voltage operation, enhancing electrical safety and simplifying cabinet integration.
• Extended operational reach, supported by the 10-meter integrated cable for safe and flexible use around robotic cells.
• Robust industrial construction, designed for frequent handling in demanding factory environments.
