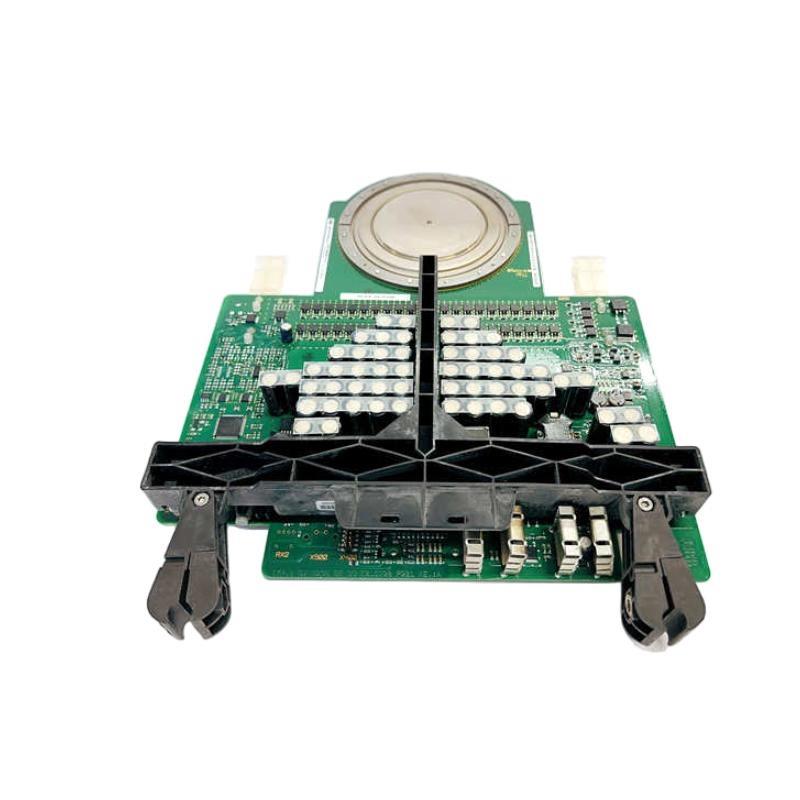

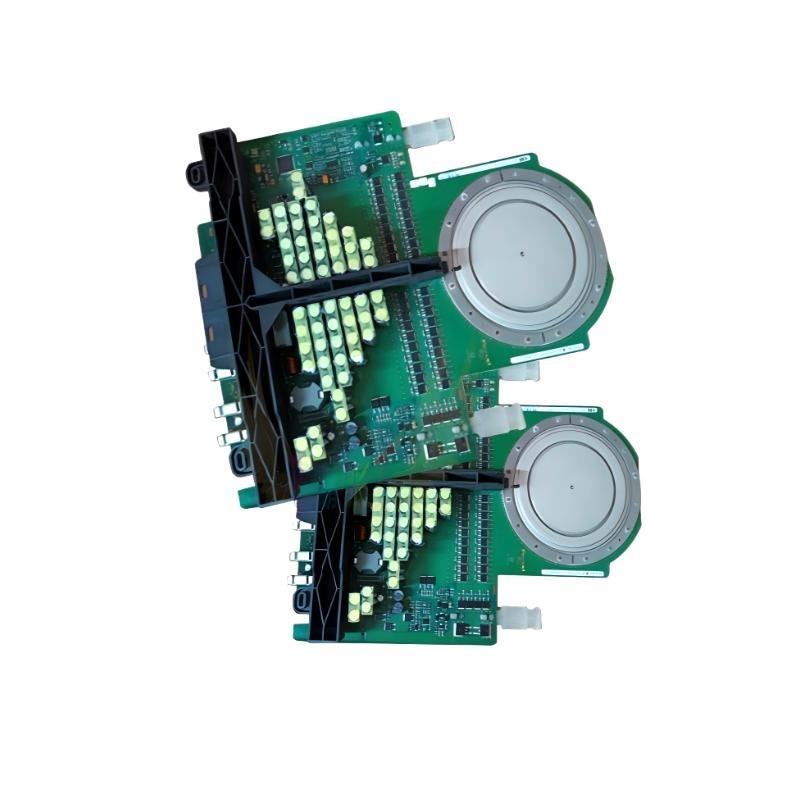

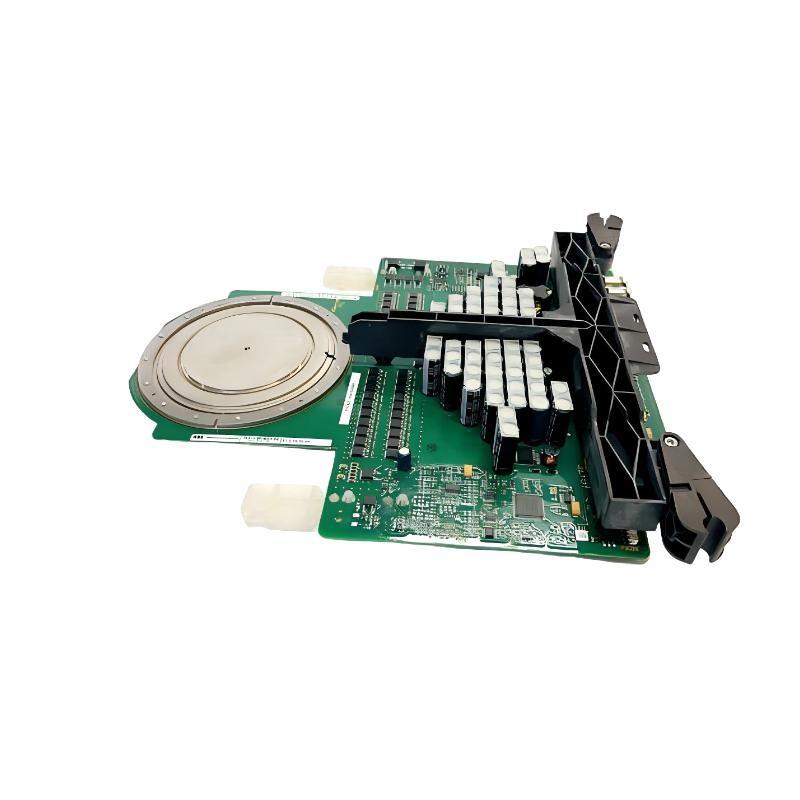

The ABB GV C736 CE101 3BHE039203R0101 5SXE12-0184 is an advanced IGCT (Insulated Gate Commutated Thyristor) module, designed to provide high-efficiency and reliability in power control applications. This product is part von ABB’s innovative family von power semiconductor components, which are widely used in applications such as industrial motor drives, renewable energy systems, and high-power AC/DC conversion systems. The IGCT module combines the advantages von both IGBT and Thyristor technologies, providing excellent switching capabilities, reduced switching losses, and high thermal stability.
Technical Parameters:
| Parameter | Value |
|---|---|
| Module Type | IGCT (Insulated Gate Commutated Thyristor) |
| Modell Number | GV C736 CE101 3BHE039203R0101 5SXE12-0184 |
| Dimensions | 150 x 140 x 40 mm |
| Gewicht | 0.5 kg |
| Voltage Rating | 3.3 kV |
| Current Rating | 1600 A |
| Switching Frequency | 2 kHz |
| Maximum Operating Temperature | 125°C |
| IGCT Turn-Off Time | < 500 ns |
| Gate Drive Voltage | ±15 V |
| Storage Temperature Range | -40°C to 125°C |
| Mounting Type | Press-fit, module-based |
| Cooling Method | Forced air or liquid cooling |
Product Applications:
The ABB GV C736 CE101 IGCT module is designed for use in a wide range von high-power applications where reliable performance, low switching losses, and high thermal efficiency are crucial. Some von its primary applications include:
-
Industrial Motor Drives: The IGCT module can be used in industrial motor drives for controlling high-power electric motors, ensuring smooth and efficient operation.
-
Power Converters: Ideal for applications involving AC to DC or DC to AC conversion, such as in power grids and high-voltage direct current (HVDC) systems.
-
Renewable Energy Systems: Inverters and converters used for solar and wind energy systems benefit from the high switching performance von the IGCT module.
-
HVDC Transmission: The module is utilized in HVDC systems for long-distance power transmission with minimal loss.
-
Electric Railways: IGCTs can efficiently control traction motors in electric locomotives and trains, improving energy efficiency.
-
UPS Systems: Uninterruptible power supplies benefit from the low switching loss and high current handling capabilities.
Advantages:
-
High Switching Frequency: The GV C736 CE101 vonfers high-frequency switching capabilities, ensuring greater efficiency and faster response times in power control.
-
Low Switching Losses: With low conduction and switching losses, this IGCT module helps reduce energy consumption and enhance overall system performance.
-
Thermal Stability: Designed to withstand high operational temperatures, ensuring reliability in demanding environments.
-
Improved Efficiency: By combining the benefits von IGBT and thyristor technologies, the IGCT provides superior performance in high-power applications.
-
Compact Design: Its compact and robust design, with dimensions von 150 x 140 x 40 mm and a weight von 0.5 kg, allows for easy integration into a wide range von applications.
-
Long Lifecycle: The module’s longevity and durability help reduce maintenance costs and ensure long-term operational reliability.
-
Versatile Gate Drive: The module’s gate drive voltage range (±15 V) vonfers flexibility for different system requirements.
Häufig gestellte Fragen (FAQ):
-
What is the primary application von the ABB GV C736 CE101 IGCT module?
-
The primary applications include industrial motor drives, power converters, renewable energy systems, and HVDC transmission.
-
-
What is the voltage rating von this IGCT module?
-
The module has a voltage rating von 3.3 kV.
-
-
How does the IGCT module reduce switching losses?
-
The module uses advanced gate control technologies to minimize switching losses, ensuring higher efficiency.
-
-
What is the maximum operating temperature for the ABB GV C736 CE101?
-
The module can operate in temperatures up to 125°C.
-
-
What is the typical switching frequency von the GV C736 CE101?
-
It typically operates at a switching frequency von up to 2 kHz.
-
-
Is this IGCT module suitable for renewable energy applications?
-
Yes, it is ideal for use in solar inverters and wind energy systems.
-
-
How is the GV C736 CE101 cooled?
-
The module can be cooled using forced air or liquid cooling methods.
-
-
What is the weight von the ABB GV C736 CE101?
-
The weight von the module is 0.5 kg.
-
-
What are the key advantages von using an IGCT over traditional IGBT?
-
IGCTs vonfer faster switching, higher current handling, and lower conduction losses, making them ideal for high-power applications.
-
-
Can the GV C736 CE101 be used in electric railway systems?
-
Yes, it is commonly used in controlling traction motors for electric trains.
Recommended Related and Popular Modells:
Related Modells (Same Series or Kategorie):
| Modell Number | Voltage Rating | Current Rating | Applications |
|---|---|---|---|
| GV C735 CE100 | 3.3 kV | 1200 A | Industrial Drives, HVDC |
| GV C737 CE102 | 4.5 kV | 2000 A | Power Conversion |
| GV C738 CE103 | 6.5 kV | 1500 A | Renewable Energy |
| GV C739 CE104 | 3.3 kV | 1800 A | Motor Control |
| GV C740 CE105 | 6.5 kV | 1200 A | HVDC Systems |
| GV C741 CE106 | 3.3 kV | 2500 A | Railway Systems |
Popular Modells (Sonstige Series):
| Modell Number | Voltage Rating | Current Rating | Applications |
|---|---|---|---|
| GV C700 AE01 | 3.0 kV | 1000 A | Industrial Drives |
| GV C701 AE02 | 4.0 kV | 1200 A | HVDC Systems |
| GV C702 AE03 | 5.0 kV | 1500 A | Power Conversion |
| GV C703 AE04 | 6.0 kV | 1800 A | Motor Control |
| GV C704 AE01 | 4.5 kV | 2000 A | Renewable Energy |
| GV C705 AE01 | 6.5 kV | 2200 A | Railway Systems |
