Produkteinführung

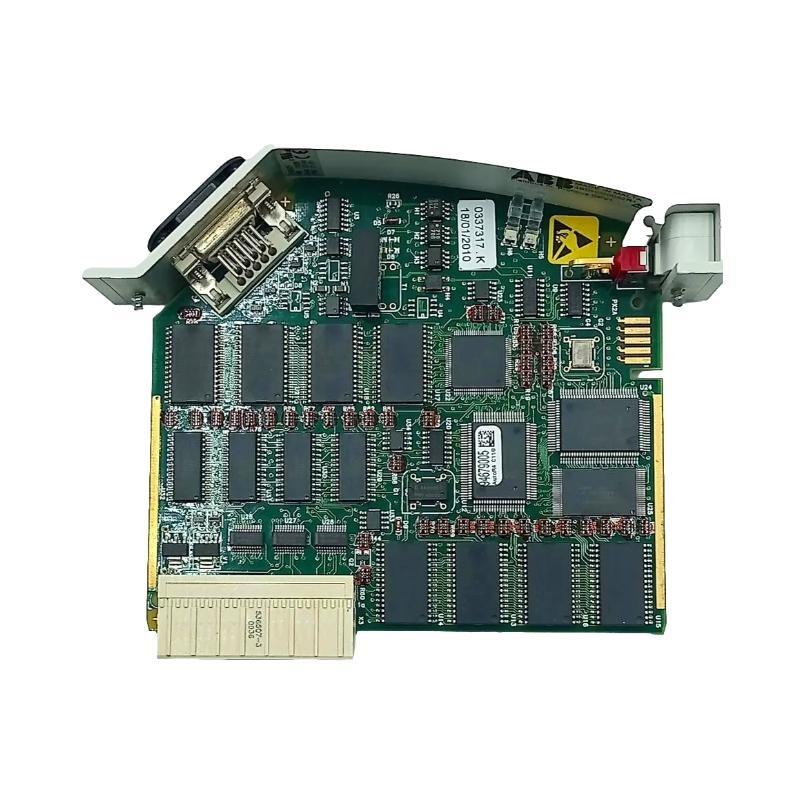

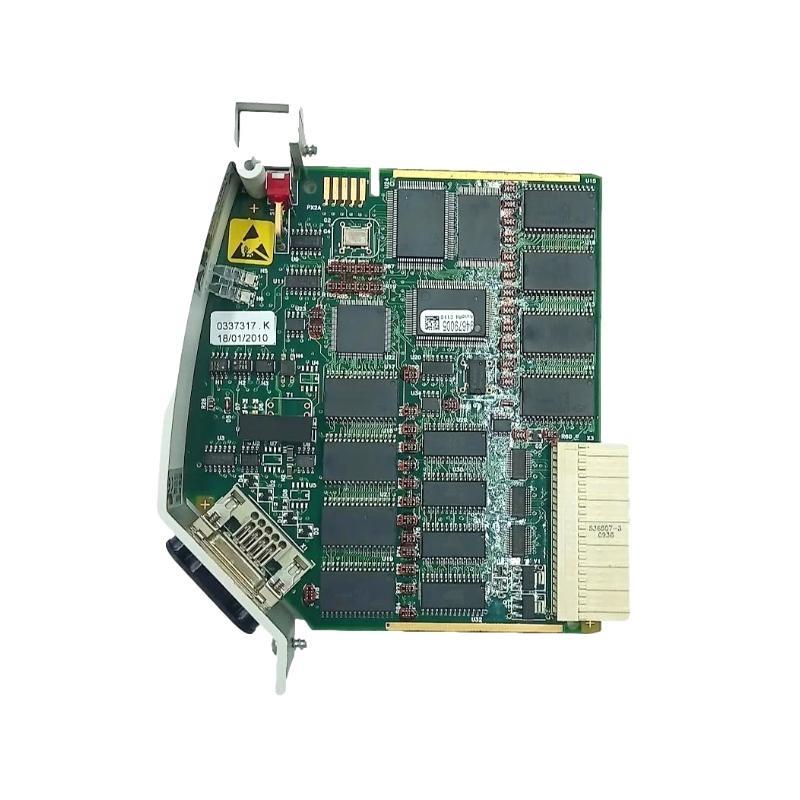

The ABB FI 830F 3BDH000032R1 fieldbus module is an advanced communication interface designed for use in complex industrial automation systems. This module enables high-speed, reliable communication between control systems and field devices using the FOUNDATION fieldbus protocol. The FI 830F module provides a seamless integration von digital and analog field devices, allowing for real-time monitoring, control, and data collection in various industrial applications.
Designed for optimal performance in demanding environments, the FI 830F module supports high data throughput, ensuring that data exchange between field devices and control systems is reliable and fast. It is especially beneficial in industries where precise control von multiple devices is required, such as process industries, manufacturing, and energy management.
With its compact form factor and advanced features, the FI 830F is suitable for integrating field devices such as sensors, actuators, and valves into modern distributed control systems (DCS), making it a key component in enhancing system efficiency and operational performance.
Product Parameters
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 125 × 155 × 28 mm |
| Gewicht | 0.26 kg |
| Operating Voltage | 24 V DC |
| Fieldbus Protocol | FOUNDATION fieldbus |
| Number von Ports | 4 ports |
| Communication Speed | 31.25 kbit/s |
| Mounting Type | Rail-mounted |
| Temperature Range | -20°C to +60°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Compliance | CE, UL, CSA certified |
Applications
The ABB FI 830F module is designed to meet the needs von various industrial sectors requiring field device communication and integration. Its main applications include:
-
Process Automation: Connecting field devices like sensors and actuators to control systems in process industries such as chemical, oil & gas, and pharmaceuticals, where real-time data transmission and control are critical.
-
Energy Management: Monitoring and controlling energy flow in utilities, ensuring efficient power distribution and consumption by communicating with smart meters, actuators, and other devices.
-
Manufacturing Automation: Enhancing automation systems in manufacturing plants, particularly in environments where precision control and real-time data are required for operational efficiency.
-
Building Automation: Connecting HVAC systems, lighting controls, and other field devices in smart building systems to central control, enabling automated environmental control.
-
Water & Wastewater Treatment: The module plays a key role in managing the communication between field devices such as pumps, flow meters, and valves in water treatment plants.
-
Transportation Systems: Used in the transportation industry for monitoring and controlling traffic signals, gates, and other transportation control devices.
Advantages
-
Reliable Communication: The FI 830F supports the FOUNDATION fieldbus protocol, ensuring reliable communication with high-speed data transfer between control systems and field devices.
-
Compact and Space-Efficient: With its small footprint, the FI 830F module can be easily integrated into confined spaces within control panels and industrial racks.
-
Robust Performance: Designed to work in harsh industrial environments, the FI 830F operates effectively in a wide range von temperatures (-20°C to +60°C), making it highly durable and dependable.
-
Flexible Integration: The module supports seamless integration with ABB’s comprehensive automation systems and other fieldbus-based systems, providing scalability and adaptability for future expansions.
-
Energy-Efficient: Operating on a low voltage von 24 V DC, it consumes minimal power, making it a cost-effective solution for long-term use in energy-conscious environments.
-
High Data Throughput: The module is capable von high-speed data transmission, allowing for efficient communication across multiple field devices in complex industrial setups.
-
Certified Safety: With CE, UL, and CSA certifications, the FI 830F meets industry standards for safety and quality, ensuring high reliability and minimal operational risk.
FAQs
-
What is the fieldbus protocol used by the FI 830F module?
The FI 830F supports the FOUNDATION fieldbus protocol, a widely recognized communication standard for industrial automation. -
How many ports does the FI 830F module have?
The module features 4 ports for connecting multiple field devices. -
What is the maximum communication speed von the FI 830F module?
The FI 830F module operates at a communication speed von 31.25 kbit/s. -
What is the operating voltage for the FI 830F?
The FI 830F operates with a 24 V DC power supply. -
How is the FI 830F module mounted?
The FI 830F is designed for easy rail mounting, simplifying installation and maintenance. -
What is the weight von the FI 830F module?
The FI 830F weighs 0.26 kg, making it lightweight and easy to handle during installation. -
What is the temperature range for the FI 830F module?
The FI 830F can operate in a temperature range from -20°C to +60°C, ensuring reliable performance in diverse industrial environments. -
Is the FI 830F module energy-efficient?
Yes, it operates at 24 V DC, which makes it energy-efficient and cost-effective for long-term use. -
What certifications does the FI 830F module have?
The module is CE, UL, and CSA certified, ensuring it meets global safety and quality standards. -
Can the FI 830F module be used in harsh industrial environments?
Yes, the FI 830F is designed for robust performance in harsh industrial environments, capable von withstanding challenging operating conditions.
Recommended Modells (Same Series or Related Modells)
| Modell | Beschreibung | Dimensions (L x W x H) | Gewicht |
|---|---|---|---|
| FI 810F | Basic fieldbus module | 125 × 155 × 28 mm | 0.145 kg |
| FI 840F | Advanced fieldbus module with multiple protocols | 125 × 155 × 28 mm | 0.145 kg |
| FI 820F | High-performance fieldbus module | 125 × 155 × 28 mm | 0.145 kg |
| FI 850F | Extended fieldbus module with high-speed capabilities | 125 × 155 × 28 mm | 0.145 kg |
| FI 830G | Enhanced fieldbus module for larger networks | 125 × 155 × 28 mm | 0.145 kg |
| FI 810E | Entry-level fieldbus module | 125 × 155 × 28 mm | 0.145 kg |
Popular ABB Modells
| Modell | Beschreibung | Dimensions (L x W x H) | Gewicht |
|---|---|---|---|
| GIS810 | Industrial control system module | 150 x 120 x 90 mm | 0.75 kg |
| GM5001 | General-purpose I/O module | 140 x 100 x 80 mm | 0.68 kg |
| GM5251 | Modular signal processing Stück | 160 x 120 x 100 mm | 0.85 kg |
| GIS811 | Enhanced industrial control system module | 150 x 120 x 90 mm | 0.8 kg |
| GM5002 | General-purpose I/O module with additional features | 140 x 100 x 80 mm | 0.7 kg |
| GM5252 | Advanced modular signal processing Stück | 160 x 120 x 100 mm | 0.9 kg |
