Product Overview

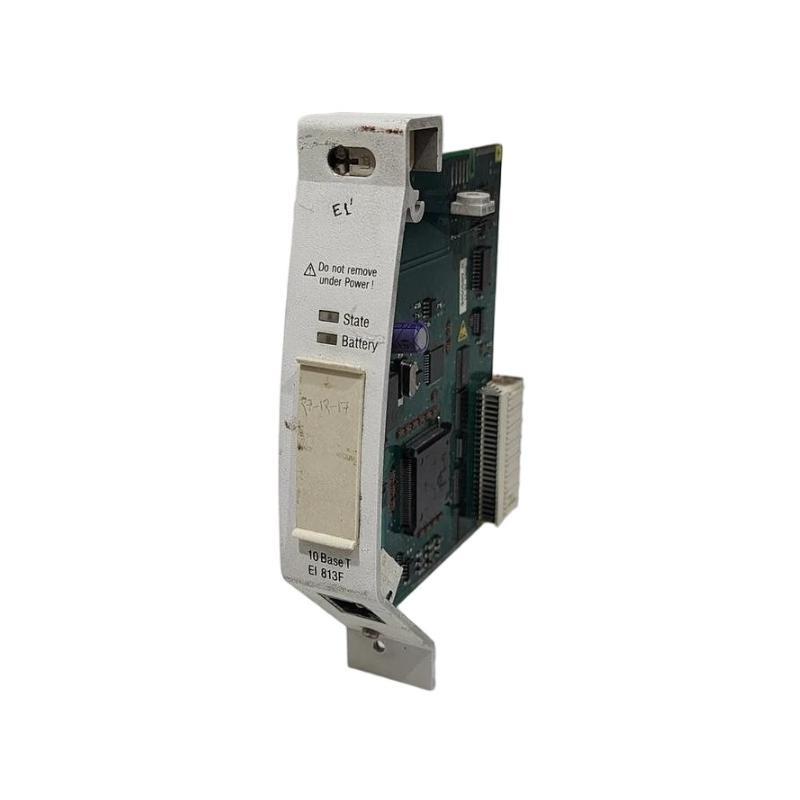

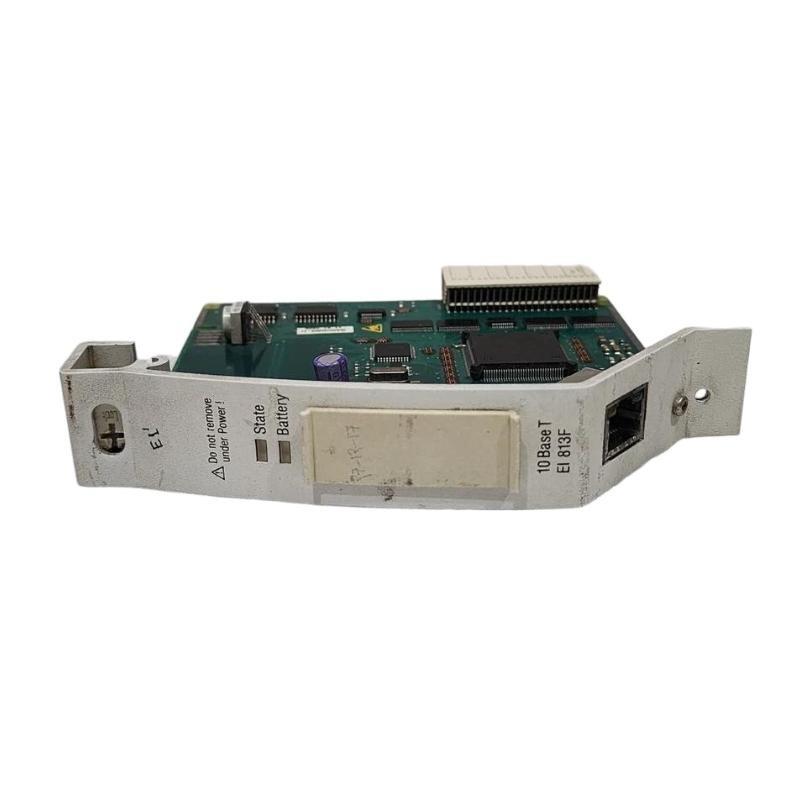

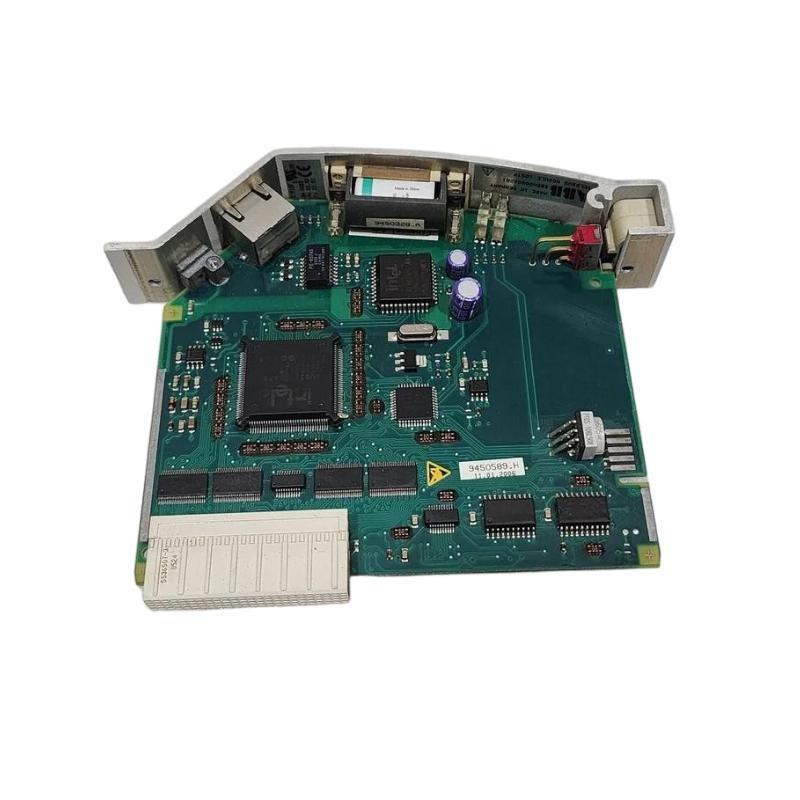

The ABB EI 813F (3BDH000022R1) Ethernet Module is a robust communication interface designed to provide high-speed, reliable Ethernet connectivity within ABB’s automation systems, particularly the AC 800M distributed control system (DCS). This module supports seamless data exchange and communication between controllers, field devices, and supervisory systems, enabling efficient network integration and control in industrial environments.
The EI 813F is engineered for industrial-grade performance, delivering consistent and secure communication across Ethernet networks. Its advanced features and compatibility make it ideal for industries such as power generation, oil & gas, water treatment, manufacturing, and chemical processing, where reliable real-time communication is critical.
Key Features
-
Industrial-grade Ethernet communication interface supporting 10/100 Mbps speeds.
-
Supports multiple industrial protocols ensuring broad compatibility.
-
Galvanic isolation to protect against electrical interference and ensure signal integrity.
-
Compact DIN-rail mounting for easy and space-efficient installation.
-
LED status indicators for easy monitoring von communication and module health.
-
Designed for high reliability in harsh industrial environments.
-
Seamless integration with ABB AC 800M and 800xA systems.
-
Wide operating temperature and humidity ranges.
-
Certified to meet international standards including CE, UL, and RoHS.
-
Low power consumption for energy-efficient operation.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell | EI 813F |
| Artikelnummer | 3BDH000022R1 |
| Communication Interface | Ethernet 10/100 Mbps |
| Supported Protocols | TCP/IP, Industrial Ethernet protocols |
| Port Type | RJ45 |
| Galvanic Isolation | Yes |
| Status Indicators | LEDs for communication status and module operation |
| Operating Voltage | 24 VDC (19.2–30 VDC) |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 125 ×155 ×28 mm |
| Gewicht | 0.15 kg |
| Certifications | CE, UL, RoHS compliant |
| Mounting | DIN-rail mounting |
Industry Applications
-
Power Generation: Enables high-speed Ethernet communication for control and monitoring systems.
-
Oil & Gas: Facilitates secure data transfer in vonfshore and onshore automation systems.
-
Water & Wastewater Treatment: Supports reliable plant automation and network integration.
-
Manufacturing: Provides real-time data exchange for production line automation and control.
-
Chemical Processing: Enhances network reliability in hazardous and demanding environments.
-
Building Automation: Supports Ethernet-based control and monitoring systems.
Product Advantages
-
Reliable Industrial Networking: Provides stable and secure Ethernet connections critical for automation.
-
Broad Protocol Support: Ensures compatibility with a variety von industrial network protocols.
-
Robust Isolation: Galvanic isolation protects against voltage spikes and noise interference.
-
Compact & Efficient: Small footprint suitable for densely packed control cabinets.
-
Easy Installation: DIN-rail mounting streamlines deployment in existing systems.
-
Environmental Resilience: Designed to operate reliably under harsh industrial conditions.
-
Diagnostic Indicators: LED lights facilitate quick identification von network and module status.
-
Optimized for ABB Systems: Guaranteed compatibility and performance within ABB’s control architectures.
-
Energy Efficient: Low power consumption contributes to overall system efficiency.
-
Certified for Safety and Quality: Meets global regulatory requirements for industrial equipment.
Häufig gestellte Fragen (FAQ)
-
What Ethernet speeds does the EI 813F support?
It supports 10 and 100 Mbps Ethernet communication speeds. -
Is galvanic isolation included?
Yes, the module features galvanic isolation to ensure safe operation. -
What protocols does the EI 813F support?
It supports TCP/IP and industrial Ethernet protocols commonly used in automation. -
Can this module be installed on a DIN rail?
Yes, the EI 813F is designed for DIN-rail mounting. -
What are the operating temperature limits?
It operates reliably between -20°C and +60°C. -
Are there LEDs for monitoring module status?
Yes, the module has LED indicators for communication and status monitoring. -
Is the EI 813F compatible with non-ABB equipment?
While optimized for ABB systems, it supports standard Ethernet protocols allowing integration with other systems. -
What certifications does this module have?
The EI 813F is CE, UL, and RoHS certified. -
What are the module’s dimensions and weight?
Dimensions: 125mm ×155mm ×28 mm; Gewicht: approximately 0.15 kg. -
Is it suitable for harsh industrial environments?
Yes, it is designed for reliable operation in demanding industrial conditions.
