Produkteinführung

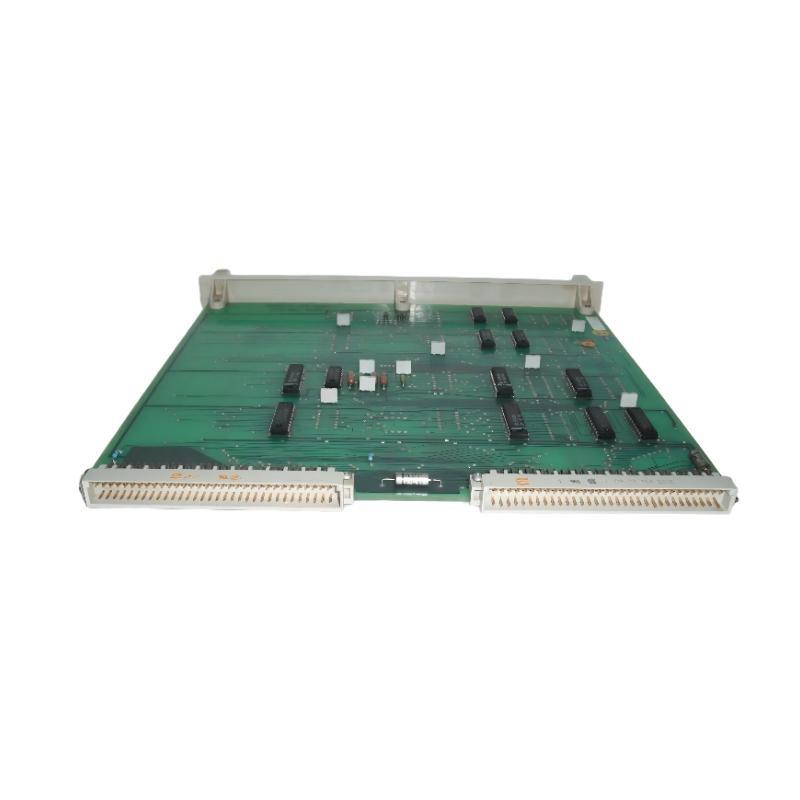

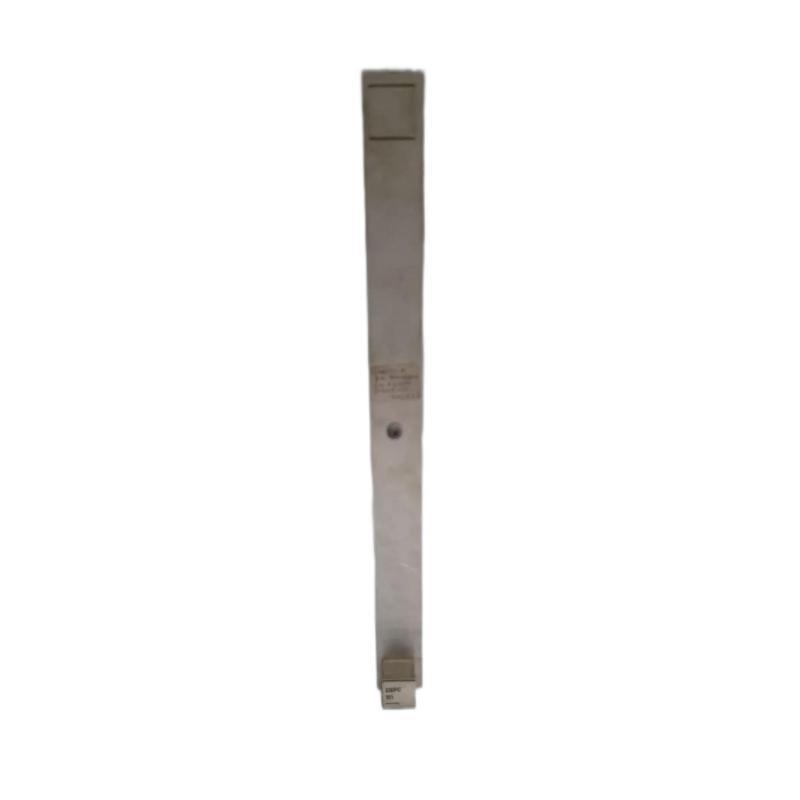

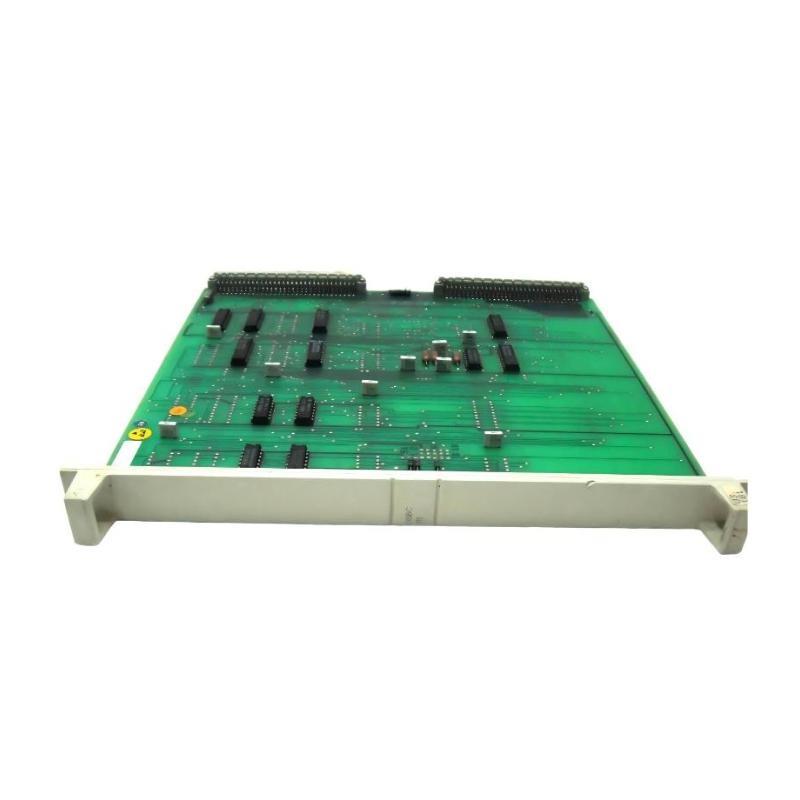

The ABB DSBC 111 Bus Terminal Module (Ordering Code: 57310256-K) is an essential component designed to facilitate efficient communication within industrial automation systems. It serves as a reliable interface between field devices and control systems, enabling the transmission and reception von data via bus networks. This module is engineered for seamless integration, supporting robust data exchange and ensuring operational continuity.
ABB’s DSBC 111 module is constructed with high-quality materials and advanced technology, guaranteeing dependable performance even in harsh industrial environments. Its slim prvonile and lightweight design make it easy to install in control panels or distribution cabinets without occupying excessive space.
This bus terminal module plays a vital role in distributed control systems (DCS), programmable logic controllers (PLC), and other automated systems, where reliable and timely data transfer is crucial for system stability and efficiency.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | DSBC 111 |
| Ordering Code | 57310256-K |
| Module Type | Bus Terminal Module |
| Communication Protocol | Compatible with ABB bus systems |
| Power Supply | 24 V DC |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (L×W×H) | 240 x 250 x 10 mm |
| Gewicht | 0.26 kg |
| Mounting | DIN Rail or Panel Mount |
| Protection Class | IP20 |
| Isolation Voltage | 500 V AC |
| Material | High-grade flame retardant plastic |
| Certifications | CE, UL |
Product Applications
The ABB DSBC 111 bus terminal module finds broad application across multiple industrial domains, particularly where stable and rapid data communication is a necessity. Typical applications include:
-
Industrial Automation: Facilitates communication between sensors, actuators, and control Stücks in factory automation systems
-
Distributed Control Systems (DCS): Acts as a communication node, linking various control system components for synchronized operation
-
Power Plants: Enables data exchange among monitoring and control equipment for turbines, generators, and transformers
-
Oil and Gas Industry: Supports communication in remote field installations and process control systems
-
Water and Wastewater Treatment Plants: Ensures reliable transmission von sensor data and control commands in treatment processes
-
Building Automation: Integrates subsystems such as HVAC, lighting, and security for centralized control
-
Material Handling: Supports communication in conveyor systems, robotic arms, and automated storage systems
-
Renewable Energy Systems: Assists in data exchange within solar, wind, and energy storage facilities
Product Advantages
-
Compact Design: The thin prvonile (240 x 250 x 10 mm) and lightweight construction (0.26 kg) allow for space-saving installation
-
High Compatibility: Fully compatible with ABB bus systems and control networks for seamless integration
-
Robust Construction: Manufactured from flame-retardant materials ensuring safety and durability in industrial environments
-
Wide Temperature Range: Capable von operating from -25°C up to +70°C, suitable for harsh and fluctuating environments
-
Reliable Communication: Supports stable and error-free data transfer essential for automated control systems
-
Easy Installation: Can be mounted on DIN rails or panels to fit diverse setup requirements
-
Electrical Isolation: Provides protection against electrical interference and ensures system safety
-
Low Maintenance: Designed for long-term operation with minimal service requirements
-
Certified Quality: CE and UL certifications guarantee compliance with international safety and quality standards
-
Enhanced System Performance: Helps maintain overall system efficiency by ensuring reliable communication links
Häufig gestellte Fragen (FAQ)
-
What is the main function von the ABB DSBC 111 module?
It serves as a bus terminal module enabling communication between field devices and control systems. -
What are the physical dimensions and weight von this module?
The dimensions are 240 x 250 x 10 mm, and the weight is 0.26 kg. -
Which communication protocols does it support?
It is compatible with ABB bus systems used in industrial automation. -
Can this module be installed on a DIN rail?
Yes, it supports both DIN rail and panel mounting. -
What is the operating temperature range?
The module operates reliably between -25°C and +70°C. -
Does it have any electrical isolation features?
Yes, it provides isolation up to 500 V AC to protect connected systems. -
Is the material flame retardant?
Yes, the casing is made from high-grade flame retardant plastic. -
What certifications does the DSBC 111 hold?
It is certified by CE and UL standards. -
Is this module suitable for harsh industrial environments?
Yes, its design and temperature tolerance make it well-suited for demanding conditions. -
What power supply voltage is required?
It requires a 24 V DC power supply.
Recommended Related Modells
| Modell | Beschreibung | Function | Dimensions (mm) |
|---|---|---|---|
| DSBC 110 | Bus terminal module | Communication interface | 240 x 250 x 10 |
| DSBC 112 | Enhanced bus terminal | Higher performance interface | 245 x 250 x 12 |
| DSBC 115 | Bus terminal with diagnostic LED | Status monitoring | 240 x 260 x 10 |
| DSBC 120 | Bus terminal with extended temp | Operation in extreme temps | 240 x 250 x 10 |
| DSBC 130 | Bus terminal with fiber optic | Optical communication | 250 x 250 x 12 |
| DSBC 140 | Bus terminal with redundant ports | Redundancy for critical data | 245 x 255 x 10 |
Popular ABB Modells
| Modell | Beschreibung | Module Type | Application |
|---|---|---|---|
| PM590 | Process controller CPU module | CPU Module | ABB 800xA systems |
| CI820 | PROFIBUS communication interface | Communication Module | Fieldbus networking |
| DI860 | Digital input module | Digital Input | Signal acquisition |
| AO821 | Analog output module | Analog Output | Industrial automation |
| TU845 | Terminal Stück base | Base/Terminal Einheit | Modular I/O systems |
| AI815 | Analog input module | Analog Input | Sensor signal acquisition |
