Produkteinführung

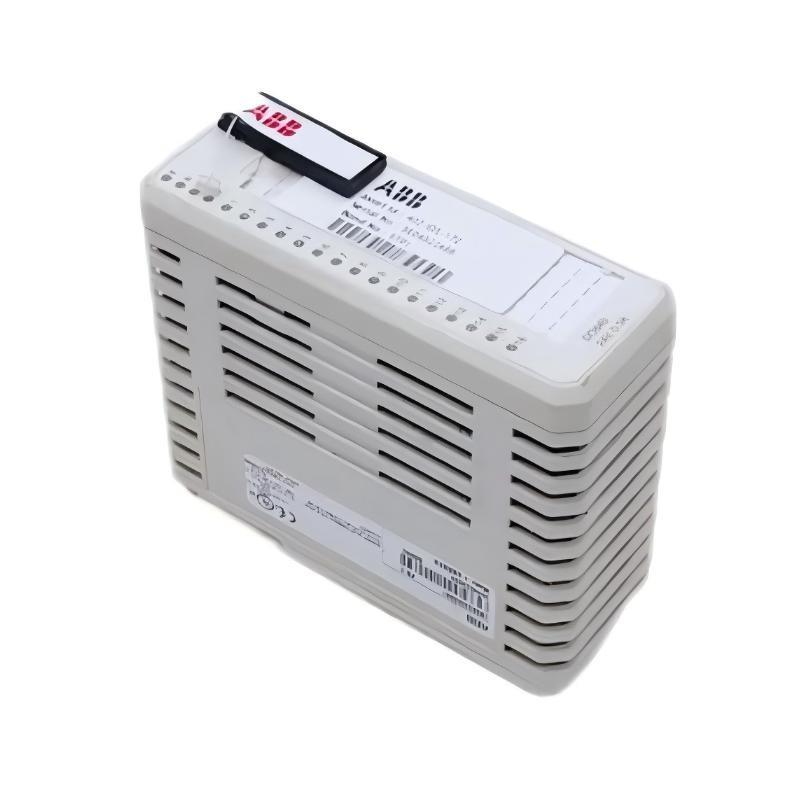

The ABB DO840 3BSE020838R1 is a high-performance 16-channel digital output module designed for use in the ABB S800 I/O system. Engineered for demanding industrial environments, the DO840 provides reliable signal transmission from the control system to field devices such as relays, contactors, solenoids, and indicator lamps.
This module delivers 24 V DC output signals and ensures electrical isolation for each output channel. With built-in protection features including short-circuit protection and thermal shutdown, the DO840 is ideal for critical applications where safety and stability are paramount. Each channel is individually monitored and equipped with an LED indicator for real-time diagnostics, simplifying troubleshooting and maintenance.
The compact design (45 x 102 x 119 mm) allows efficient panel space usage, and the lightweight build (0.15 kg) facilitates easy installation. The DO840 is compatible with AC 800M controllers and fully integrates into ABB’s 800xA control systems, enabling seamless automation architecture deployment.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell | DO840 |
| Product Code | 3BSE020838R1 |
| Function | 16-channel digital output module |
| Output Type | Sourcing (24 V DC) |
| Output Voltage Range | 10 to 30 V DC |
| Nominal Output Voltage | 24 V DC |
| Max Output Current/Channel | 0.5 A |
| Output Channels | 16 |
| Output Protection | Short-circuit and thermal shutdown protection |
| Output Monitoring | Yes |
| Output Status Indicators | LED per channel |
| Channel Isolation | Channel-to-ground and channel-to-bus |
| Hot Swappable | Yes |
| Redundant System Support | Yes |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5%–95%, non-condensing |
| Protection Class | IP20 |
| Mounting | DIN rail |
| Certifications | CE, RoHS, cULus |
| Dimensions (W x H x D) | 45 x 102 x 119 mm |
| Gewicht | 0.15 kg |
Product Applications
-
Factory Automation: Drives output signals for actuators, signal lamps, and alarm systems.
-
Energy & Power Plants: Controls valves, relays, and other switching devices in substations and turbines.
-
Oil & Gas Industry: Interfaces with explosion-provon solenoids, control panels, and ESD systems.
-
Metals and Mining: Operates electromechanical devices for ventilation, lighting, and material handling.
-
Water and Wastewater Management: Automates pumping systems, motor starters, and gate actuators.
-
Building Automation: Activates security devices, access control systems, and emergency lighting.
Product Advantages
-
High Channel Density: 16 individually protected digital outputs in one compact Stück.
-
Robust Output Protection: Integrated short-circuit and thermal protection prevents equipment damage.
-
Status Monitoring: Each output channel has a dedicated LED indicator, enhancing diagnostics.
-
Hot Swap Capability: Allows live module replacement without system shutdown.
-
Compact and Lightweight: Fits easily into control cabinets and distributed I/O stations.
-
Redundancy Support: Enables deployment in fault-tolerant and mission-critical environments.
-
Industrial-Grade Build: Designed for reliable operation in harsh environmental conditions.
-
Easy Integration: Seamlessly compatible with ABB AC 800M and 800xA systems.
Häufig gestellte Fragen (FAQ)
-
What is the output voltage von the DO840 module?
The DO840 operates with a nominal output von 24 V DC and supports a range from 10 to 30 V DC. -
How many digital output channels are available?
The module has 16 digital output channels. -
What is the maximum current per channel?
Each channel can handle up to 0.5 A. -
Does the module include short-circuit protection?
Yes, each output is individually protected against short circuits. -
Can the DO840 module be replaced during system operation?
Yes, it is hot-swappable for minimal downtime. -
What is the physical size von the module?
The module measures 45 x 102 x 119 mm. -
How much does the DO840 weigh?
The module weighs approximately 0.15 kg. -
Does it support redundant systems?
Yes, it supports use in redundant configurations. -
Which controller is the DO840 compatible with?
It is compatible with ABB AC 800M controllers and the 800xA platform. -
What type von mounting does it require?
The module is designed for DIN rail mounting.
Recommended Related or Similar Modells
| Modell | Beschreibung |
|---|---|
| DO810 | 16-channel digital output module (24 V DC, sourcing) |
| DO815 | 8-channel relay output module |
| DO814 | 16-channel module with output supervision |
| DO850 | High-power output module |
| DO880 | Digital output module for SIL-rated applications |
| DO820 | 8-channel digital output with advanced protection |
Popular ABB Modules (Same Marke)
| Modell | Beschreibung |
|---|---|
| DI825 | 16-channel digital input module |
| AI810 | 8-channel analog input module |
| AO810 | 8-channel analog output module |
| PM865 | High-performance CPU module for AC 800M |
| TU830V1 | Terminal Stück for S800 I/O |
| CI854A | Communication interface module for PROFIBUS |
