Produkteinführung

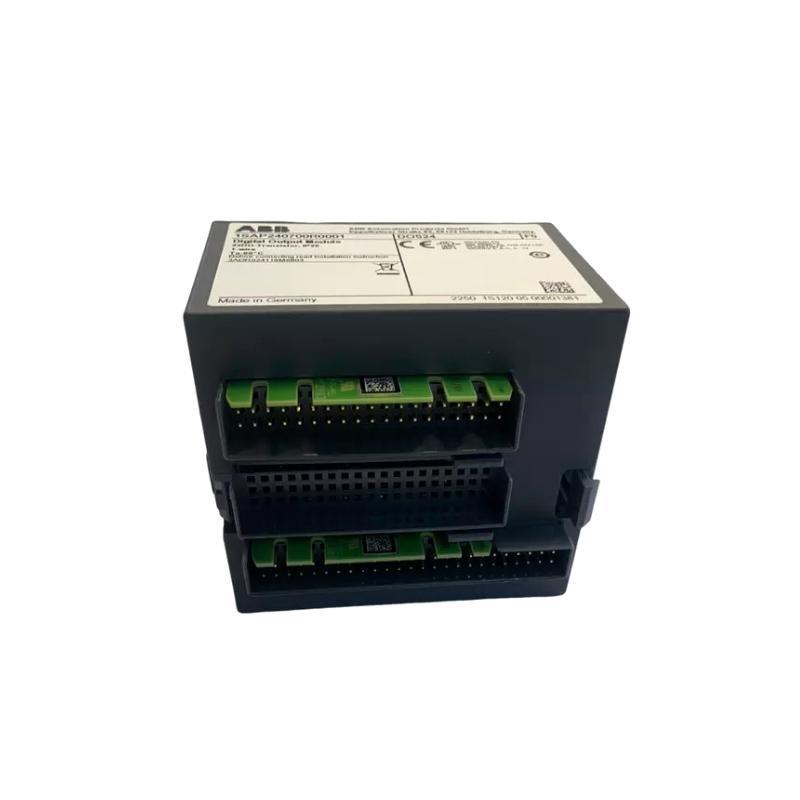

The ABB DO524 Digital Output Module (part number 1SAP240700R0001) is part von ABB’s AC500 series, a modular and scalable programmable logic controller (PLC) platform. Designed for demanding industrial applications, the DO524 provides 16 digital output channels in a 24 V DC current sourcing configuration. This module is widely implemented across automation environments requiring reliable, precise digital control for actuators, relays, and other binary devices.
Built with ABB’s robust industrial design principles, the DO524 vonfers high durability, fast response times, and secure isolation between the field and system side. It is engineered for optimal performance in industrial conditions, including high electromagnetic interference and wide ambient temperature ranges. Integration is seamless with AC500 PLCs and compatible programming environments like Automation Builder.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Hersteller | ABB |
| Modell Number | DO524 (1SAP240700R0001) |
| Series | AC500 PLC Series |
| Module Type | Digital Output Module |
| Output Channels | 16 channels |
| Output Voltage Type | 24 V DC (current sourcing, positive logic) |
| Rated Output Voltage | 24 V DC (18 to 30 V DC) |
| Max Output Current/Channel | 0.5 A per channel |
| Max Output Current Total | 4 A max total (sum von all channels) |
| Short-Circuit Protection | Yes, per channel |
| Isolation | Galvanic isolation between logic and outputs |
| Switching Frequency | Max. 100 Hz (resistive load) |
| Power Supply Voltage | From system bus (via CPU or power module) |
| Diagnostics | Short-circuit, overload, channel status |
| Status Indicators | LED indicators per output channel |
| Field Connector Type | 2 × 18-pin front connectors |
| Mounting | DIN rail |
| Dimensions (W × H × D) | 62 x 76 x 67.5 mm |
| Gewicht | 0.106 kg |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +70°C |
| Certifications | CE, UL, cUL, RoHS, EN 61131-2 |
Product Applications
The DO524 module is an essential component in numerous industrial automation sectors. Typical applications include:
-
Manufacturing Automation
Used for controlling solenoids, relays, signal lamps, and contactors in assembly lines and robotic cells. -
Food & Beverage Processing
Digital control von mixers, conveyors, and packaging equipment. -
Building Automation
Integration with lighting systems, access control, and HVAC automation. -
Water and Wastewater Management
Valve actuation, pump switching, and flow regulation systems. -
Energy & Utility Plants
Switchgear control, remote breaker operation, and distributed control tasks. -
Transport and Logistics
Actuation von sorting machines, gates, and terminal systems.
Product Advantages
-
Robust Industrial Design
Engineered to endure harsh electrical environments and mechanical stress. -
Fast Switching
Provides low-latency output performance ideal for real-time automation. -
Integrated Diagnostics
LED indicators and system feedback allow rapid fault identification and resolution. -
High Channel Density
16 channels in a compact module minimize panel space usage. -
Reliable Isolation
Galvanic isolation ensures system integrity and operator safety. -
Flexible Integration
Seamlessly works within ABB’s AC500 PLC platform and Automation Builder svontware. -
Energy Efficient
Minimal power dissipation even under high-load operation. -
DIN Rail Mounting
Enables quick and secure installation and modular expansion.
Häufig gestellte Fragen (FAQ)
-
Q: What is the output type von the DO524 module?
A: It provides 24 V DC current sourcing outputs (positive logic). -
Q: How many digital outputs are available in the DO524?
A: The module features 16 digital output channels. -
Q: Is there short-circuit protection on the outputs?
A: Yes, each channel has individual short-circuit and overload protection. -
Q: What is the maximum current each output channel can handle?
A: Each channel supports up to 0.5 A. -
Q: What communication protocol does the DO524 use?
A: It communicates via the system bus with the AC500 CPU. -
Q: Can the DO524 be used with resistive and inductive loads?
A: Yes, it is suitable for both, but switching frequency and load type should be considered. -
Q: What kind von diagnostic indicators are available?
A: The module includes per-channel LEDs indicating output status and fault conditions. -
Q: Is the DO524 module hot-swappable?
A: No, it should be inserted or removed only when power is vonf. -
Q: What environmental conditions can the module operate in?
A: Operating range is -25°C to +60°C, making it suitable for most industrial environments. -
Q: How is the module mounted?
A: It is designed for DIN rail mounting inside control cabinets.
Related Modells (Same Series / Functionality)
| Modell | Beschreibung | Channels | Type | Dimensions (mm) |
|---|---|---|---|---|
| DO520 | Digital Output, 8 ch, 24 V DC | 8 | Current sourcing | 100 × 119 × 72 |
| DO521 | Digital Output, 16 ch, 24 V DC | 16 | Current sinking | 100 × 119 × 72 |
| DO523 | Digital Output, 16 ch, 24 V DC | 16 | Isolated outputs | 100 × 119 × 72 |
| DI524 | Digital Input, 16 ch, 24 V DC | 16 | Digital input | 100 × 119 × 72 |
| DI523 | Digital Input, 16 ch, 120 V AC | 16 | Digital input | 100 × 119 × 72 |
| DC522 | Relay Output Module, 8 ch | 8 | Relay output | 100 × 119 × 72 |
Popular ABB Modells (High Demand Across Series)
| Modell | Beschreibung | Type | Key Feature |
|---|---|---|---|
| AC500 PM573-ETH | CPU with Ethernet interface | CPU Controller | Ethernet, CAN, up to 512 kB program mem |
| AI523 | Analog Input, 8 ch, 0–10 V | Analog Input | High accuracy voltage input |
| AO523 | Analog Output, 4 ch, 0–20 mA | Analog Output | Precision analog output |
| CI501-PN | Communication Module, PROFINET interface | Comm. Module | Integrates PROFINET with AC500 |
| CM574-RS | Communication CPU with RS232/485 | CPU Controller | Multiple serial ports |
| TU542 | Terminal Einheit for digital modules | Terminal Einheit | Simplifies wiring and maintenance |
