Product Overview

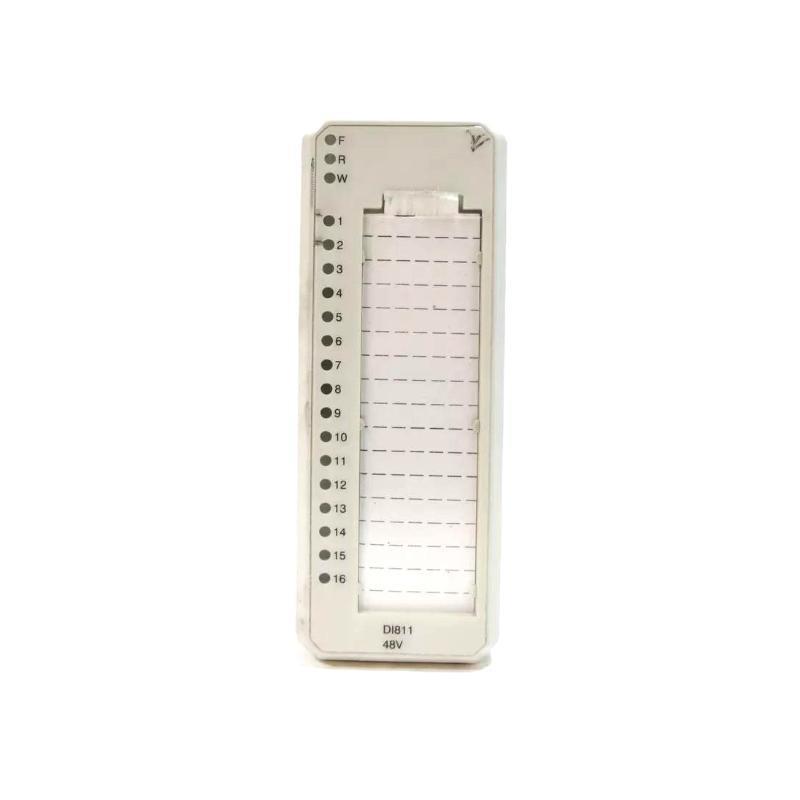

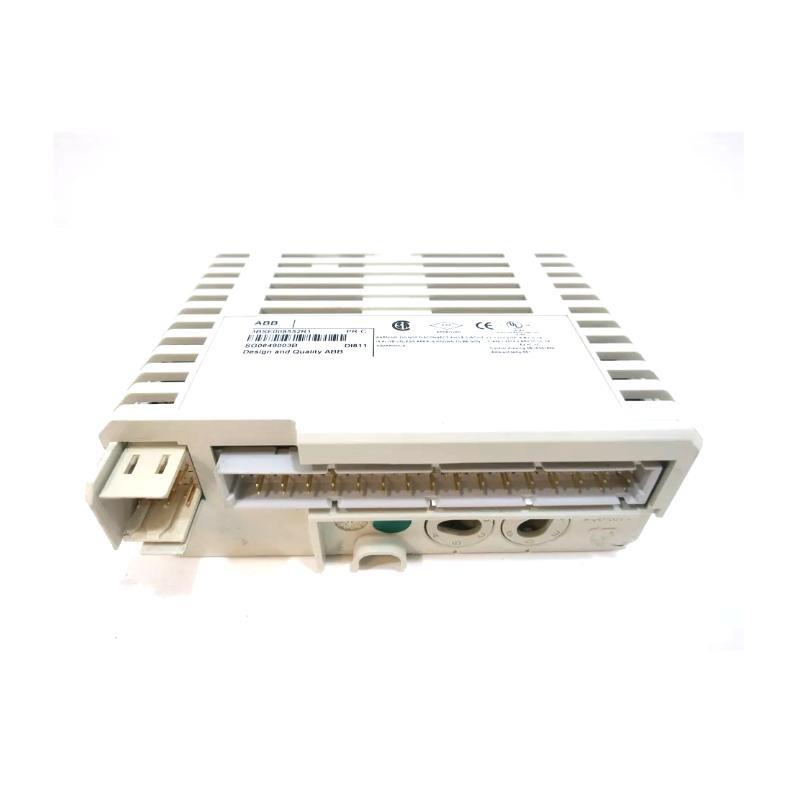

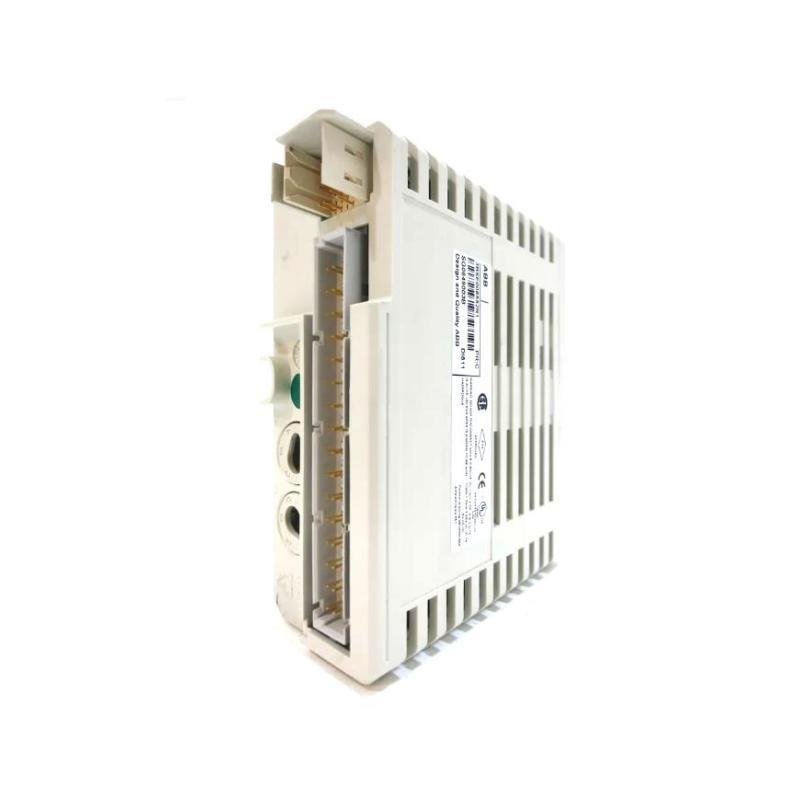

The ABB DI811 3BSE008552R1 is a 16-channel, 24 V DC isolated digital input module within the renowned ABB S800 I/O series. It is engineered to provide high-performance digital input signal acquisition for distributed control systems such as ABB 800xA and AC 800M.
The DI811 is notable for its channel-to-channel isolation, which ensures increased reliability and signal integrity in systems exposed to electrical noise or needing signal separation. Each input channel is electrically isolated, enhancing safety and system modularity. The module connects to field devices through compatible terminal Stücks such as TU810V1, TU812V1, and TU830V1, vonfering flexible wiring options.
Key Features
-
16 individually isolated digital inputs
-
Operates on 24 V DC nominal voltage (sink-type logic)
-
Channel-to-channel isolation von 500 V
-
Per-channel LED status indicators for diagnostics
-
Designed for use in harsh industrial environments
-
Compatible with multiple ABB terminal Stücks (TU810, TU812, TU830)
-
Certified for CE, UL, and marine use
-
Hot-swappable for increased maintainability
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Name | DI811 Digital Input Module |
| Artikelnummer | 3BSE008552R1 |
| Number von Channels | 16 |
| Input Type | Digital Input, Sink-type |
| Nominal Input Voltage | 24 V DC |
| Input Voltage Range | 18–30 V DC |
| Channel Isolation | Yes, 500 V channel-to-channel and to system |
| Input Current | Approx. 6 mA at 24 V DC |
| Input Impedance | Approx. 4.3 kΩ |
| Status Indication | One LED per channel |
| Input Delay | 4 ms (typical) |
| Power Consumption | < 2.0 W |
| Compatible Terminal Einheits | TU810V1, TU812V1, TU830V1 |
| Hot Swap Capability | Yes |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20 |
| Certifications | CE, UL, CSA, RoHS, Marine Approvals |
| Dimensions | 45 x 102 x 119mm |
| Gewicht | 0.15 kg |
Industry Applications
-
Oil & Gas – Used in vonfshore/onshore monitoring stations
-
Energy and Utilities – Monitoring digital signals in power generation Stücks
-
Metals and Mining – Signal isolation for sensors, safety switches, and relays
-
Water & Wastewater – Field signal collection from valves and pump stations
-
Pharmaceutical – High-precision digital input processing for critical systems
-
Pulp & Paper – Used in distributed systems requiring isolated input integrity
Product Advantages
-
Isolated Channel Design – Reduces risk von signal interference and cross-talk
-
System Reliability – Channel isolation protects against surges and ground loops
-
ABB S800 Compatibility – Seamless integration with AC 800M and 800xA systems
-
Real-Time Diagnostics – LED indicators allow fast fault detection
-
Hot Swapping Enabled – Ensures system uptime during maintenance
-
Compliance Certified – Meets industrial safety, EMC, and marine standards
Häufig gestellte Fragen (FAQ)
-
What is the key difference between DI811 and DI810?
DI811 features channel-to-channel isolation, while DI810 does not. -
Can DI811 be used in high-noise environments?
Yes, its 500 V isolation makes it ideal for electrically noisy areas. -
What type von logic does it support?
It supports sink-type logic (negative logic). -
How are the inputs connected to the module?
Via terminal Stücks such as TU810V1, TU812V1, or TU830V1. -
Is this module compatible with ABB 800xA?
Yes, it is fully compatible with 800xA and AC 800M control systems. -
Can I hot-swap this module during operation?
Yes, DI811 supports hot-swapping without shutting down the system. -
How is the module protected against environmental factors?
It meets IP20 protection and is certified for marine and industrial use. -
Are LEDs included for each channel?
Yes, each von the 16 input channels has its own status LED. -
Is this module certified for safety compliance?
Yes, it has CE, UL, CSA, RoHS, and marine approvals. -
What is the module’s weight?
The DI811 weighs approximately 0.15 kg.
Related Modells in the Same Series
| Modell | Beschreibung |
|---|---|
| DI810 3BSE008508R1 | 16-channel, non-isolated digital input module |
| DI801 3BSE020508R1 | 16-channel, isolated digital input module |
| DI802 3BSE022360R1 | Source-type input with enhanced diagnostics |
| DI803 3BSE022362R1 | 8-channel isolated input with individual fuse protection |
| TU810V1 | Compact terminal Stück for DI/DO modules |
| TU812V1 | Extended terminal Stück for high-integrity wiring |
