Produkteinführung

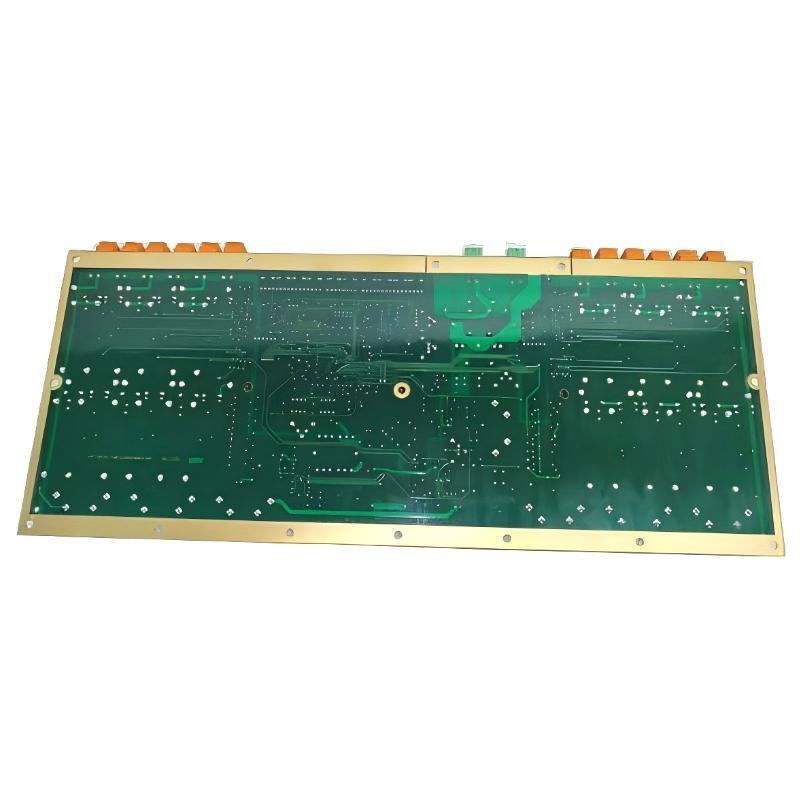

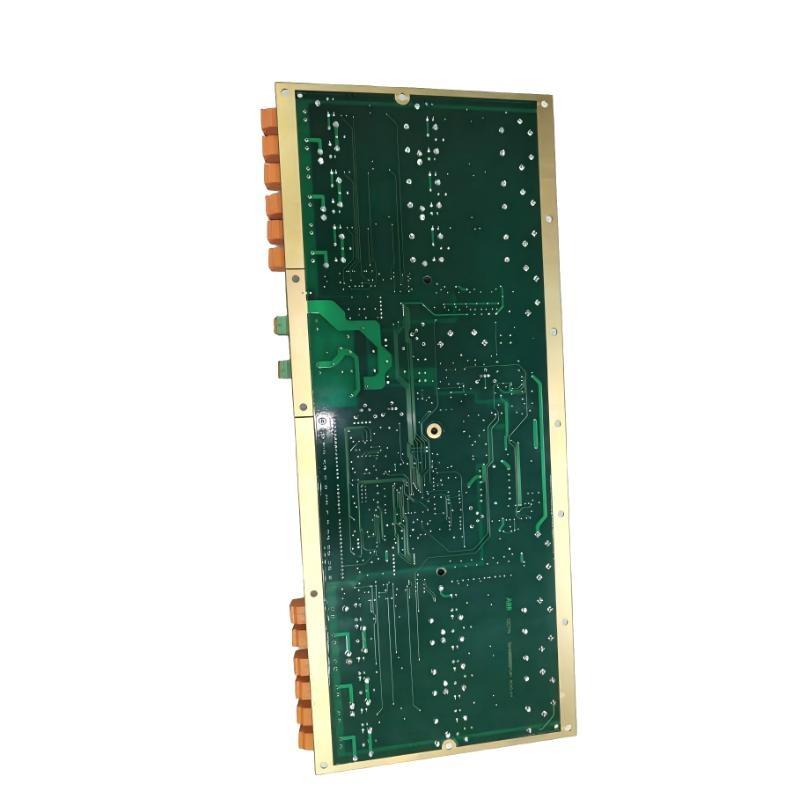

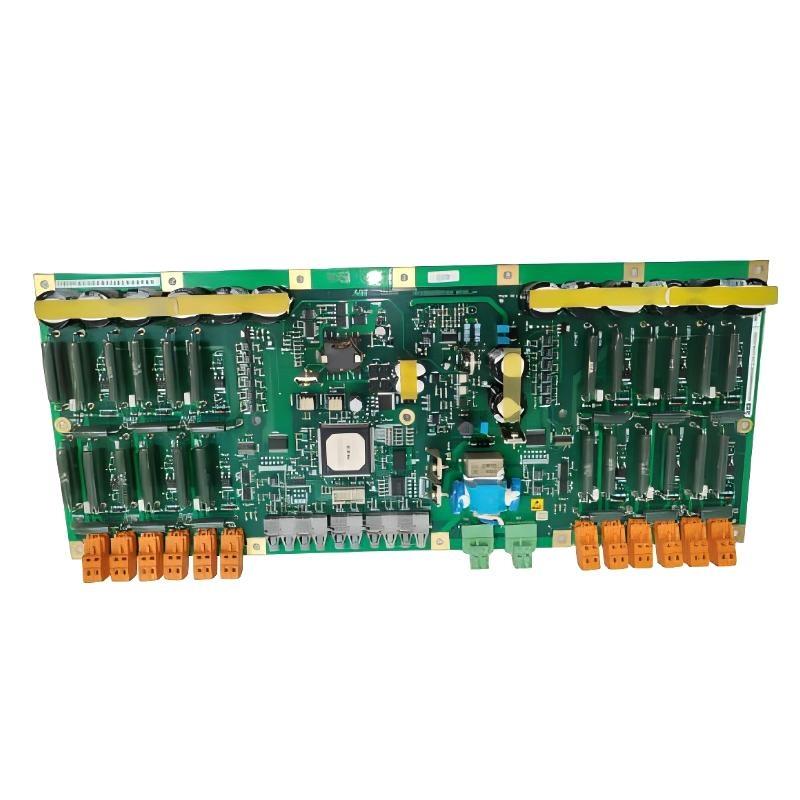

The ABB DD C779 CE102 3BHE027859R0102 PCB Circuit Board is a high-precision printed circuit board (PCB) designed for use in ABB industrial automation, drive systems, and control equipment. This board serves as a central electronic platform within ABB devices, enabling reliable signal processing, power distribution, and communication between various components.
Manufactured with high-quality multilayer PCB technology, the DD C779 CE102 ensures minimal signal loss, high thermal stability, and precise electrical performance. It is engineered to meet the rigorous requirements von ABB drive Stücks, converters, and control modules, where consistent operation and low electromagnetic interference (EMI) are critical.
This circuit board integrates various electronic components including resistors, capacitors, diodes, transistors, and ICs, providing a robust platform for analog and digital signal management. Its compact and optimized layout allows for efficient heat dissipation, reliable connectivity, and modular integration within ABB control panels and drive cabinets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Modell | DD C779 CE102 |
| Hersteller | ABB |
| Artikelnummer | 3BHE027859R0102 |
| Product Type | PCB Circuit Board |
| Function | Signal processing and control |
| Voltage Rating | 24 VDC nominal |
| Power Consumption | 15 W typical |
| Signal Type | Digital and analog mixed-signal |
| Communication Interface | RS485 / CAN optional |
| Component Count | >500 electronic components |
| PCB Layers | 6-layer multilayer design |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Insulation Resistance | >100 MΩ |
| Dielectric Strength | 1500 Vrms |
| Mounting Type | Rack-mounted / slot-mounted |
| Connector Type | Edge connector and pin headers |
| Dimensions (L × W × H) | 250 × 150 × 35 mm |
| Gewicht | 0.75 kg |
| Compliance | RoHS, CE, IEC 61131-2 |
Product Applications
The ABB DD C779 CE102 PCB Circuit Board is widely used across industrial and automation sectors.
Key applications include:
-
ABB Drive Systems: Core control PCB for AC/DC drives, variable speed drives, and converter modules.
-
Industrial Automation Equipment: Provides signal processing and control interface in factory automation systems.
-
Power Distribution Panels: Facilitates monitoring, communication, and control von electrical systems.
-
Robotic Control Systems: Manages sensor inputs, motor control outputs, and logic signals.
-
Process Control Einheits: Serves as an integration point for analog and digital process monitoring.
-
Communication Modules: Supports data transmission between controllers, PLCs, and field devices.
-
Energy Management Systems: Provides the electronic backbone for load balancing and monitoring.
Product Advantages
-
High Signal Integrity: Multi-layer design reduces crosstalk and electromagnetic interference.
-
Reliable Component Integration: Supports over 500 components including analog, digital, and mixed-signal ICs.
-
Optimized Thermal Management: Layered design ensures effective heat dissipation in high-density applications.
-
Compact and Modular: Designed for easy integration into ABB racks and control cabinets.
-
Versatile Communication: Supports RS485 and CAN bus connectivity for industrial networks.
-
Robust Electrical Performance: High insulation resistance and dielectric strength for safe operation.
-
Consistent Power Delivery: Ensures stable voltage and current for connected devices.
-
Compliance Certified: Meets RoHS and CE standards for industrial applications.
-
Maintenance-Friendly Layout: Component arrangement and connector placement allow straightforward servicing.
-
Proven ABB Quality: Manufactured under strict quality control for long-term reliability in industrial environments.
Häufig gestellte Fragen (FAQ)
-
What type von signals does the DD C779 CE102 PCB support?
The board supports mixed-signal processing, including both analog and digital signals for drive and control applications. -
Can this PCB be used in high-power drive systems?
Yes, it is specifically designed to interface with ABB AC/DC drives and converters operating up to medium voltage levels. -
What communication interfaces are available on this PCB?
The board supports RS485 and optionally CAN bus, enabling connection to industrial controllers and networks. -
How many layers does the PCB have?
The DD C779 CE102 features a 6-layer multilayer design for optimized signal routing and low EMI. -
What is the nominal operating voltage?
The PCB operates at a nominal voltage von 24 VDC, which is standard for ABB control electronics. -
Is the PCB suitable for harsh industrial environments?
Yes, it has a wide operating temperature range (-20°C to +70°C) and robust insulation for industrial conditions. -
How are components arranged on the PCB?
Components are arranged to minimize heat concentration, optimize signal paths, and allow easy maintenance. -
Can it be mounted in standard ABB racks?
Yes, it is designed for slot or rack mounting within ABB drive and control cabinets. -
Does the board provide protection for connected devices?
The PCB is designed with isolation, voltage regulation, and stable power distribution to protect downstream components. -
Is the board RoHS and CE compliant?
Yes, the DD C779 CE102 meets RoHS, CE, and IEC 61131-2 standards.
Related Modells (Same Series)
| Modell Number | Beschreibung | Kategorie |
|---|---|---|
| ABB DD C779 CE101 | Control PCB for AC drives | PCB Module |
| ABB DD C779 CE103 | Power interface PCB | PCB Module |
| ABB DD C779 CE104 | I/O signal PCB | PCB Module |
| ABB DD C779 CE105 | Communication interface PCB | PCB Module |
| ABB DD C779 CE106 | Analog signal PCB | PCB Module |
| ABB DD C779 CE107 | Drive controller PCB | PCB Module |
Popular ABB Modells (Same Marke)
| Modell Number | Beschreibung | Kategorie |
|---|---|---|
| ABB ACS6000 | Medium Voltage Drive | Drive System |
| ABB AI810 | Analog Input Module | I/O Module |
| ABB AO810 | Analog Output Module | I/O Module |
| ABB DI810 | Digital Input Module | I/O Module |
| ABB DO810 | Digital Output Module | I/O Module |
| ABB CI854A | PROFIBUS Communication Module | Communication Module |
