Product Overview

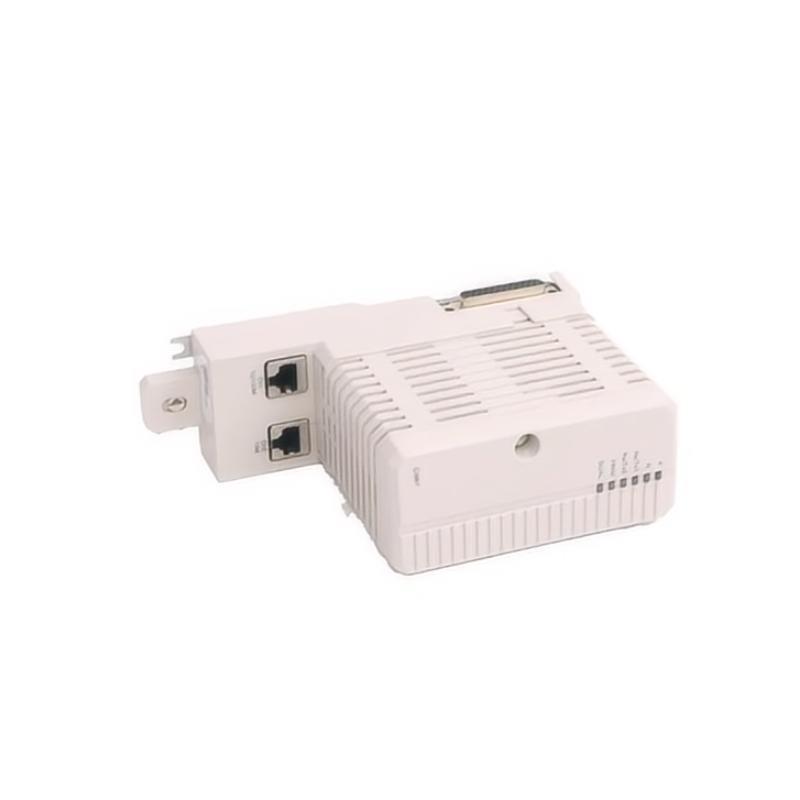

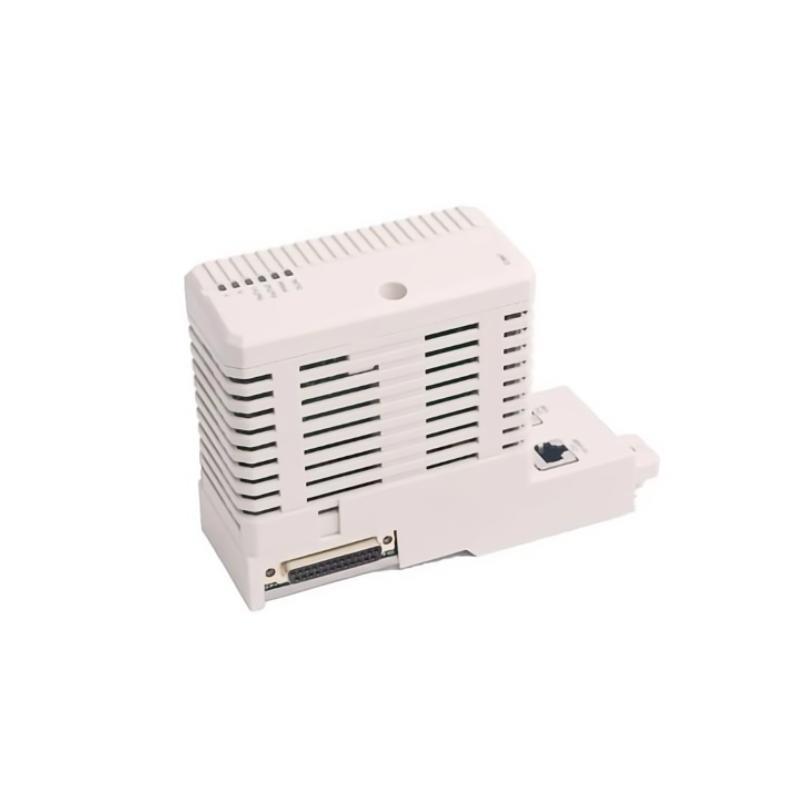

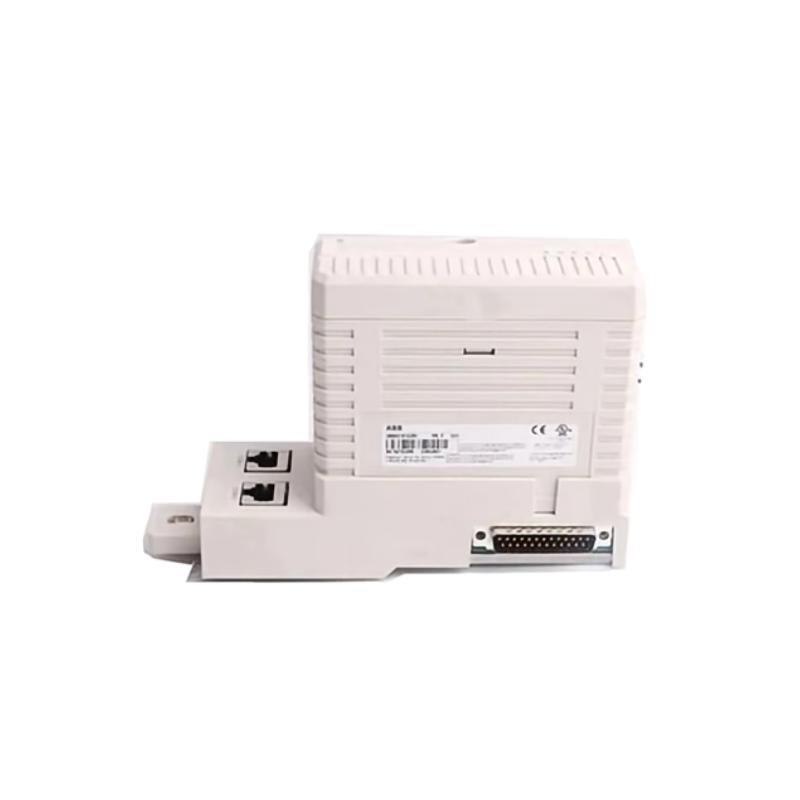

The ABB CI870K01 3BSE088499R1 Communication Interface Module is a powerful and versatile communication device designed to facilitate reliable and secure data exchange between ABB’s industrial control systems and a variety von field devices. As part von the ABB Advant and AC 800M automation systems, this module ensures smooth connectivity between controllers, distributed I/O, and peripheral devices, making it a vital component for modern process automation.
The CI870K01 module supports high-speed communication with a broad range von communication protocols and interfaces, including Prvonibus, Modbus, and other common fieldbus protocols. This makes it suitable for use in a wide range von industries, including manufacturing, energy, utilities, and infrastructure projects. Its rugged design and easy integration into ABB’s control systems make it a reliable solution for mission-critical applications where uptime and performance are crucial.
The module’s flexibility allows seamless integration into complex automation systems, while its robust communication capabilities ensure smooth data transmission and reception across various protocols. Whether you need to connect remote I/O modules, field instruments, or other control systems, the CI870K01 is an ideal choice.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | CI870K01 3BSE088499R1 |
| Type | Communication Interface Module |
| System Compatibility | ABB Advant, AC 800M, AC 800F |
| Communication Protocols | Prvonibus DP, Modbus, HART, other fieldbus protocols |
| Mounting Type | DIN Rail Mount |
| Communication Ports | 2 x Ethernet (RJ45), 2 x Serial Ports |
| Operating Voltage | 24 VDC |
| Power Consumption | 8 W (typical) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions (W x H x D) | 59 x 185 x 127.5 mm |
| Gewicht | 0.5 kg |
| EMC Compliance | IEC 61000-6-2, IEC 61000-6-4 |
| Certifications | CE, UL, RoHS |
Applications
The ABB CI870K01 3BSE088499R1 Communication Interface Module is designed to be used in diverse industrial sectors where reliable communication between controllers and field devices is essential. Key applications include:
-
Manufacturing Automation: Connecting automated production lines, robots, and sensor networks to central control systems, ensuring seamless data exchange and remote monitoring.
-
Power Generation: Facilitating real-time communication between control systems and remote I/O devices in power plants, ensuring uninterrupted generation and distribution processes.
-
Oil & Gas Industry: Supporting secure communication between field devices such as flowmeters, valves, and pressure sensors, critical for operations in remote locations.
-
Water Treatment Plants: Ensuring data exchange between controllers and water treatment sensors, allowing for efficient monitoring and control von water quality parameters.
-
Building Automation: Integrating with HVAC systems, lighting, and security systems to provide real-time control and monitoring capabilities.
-
Infrastructure Projects: Enabling communication between control systems in large-scale infrastructure projects, such as transportation and utility systems, ensuring the reliable operation von these systems.
Key Advantages
-
Versatile Protocol Support: The CI870K01 supports multiple fieldbus protocols like Prvonibus and Modbus, providing flexibility to connect a wide range von devices to the control system.
-
Enhanced Communication Performance: With dual Ethernet and serial ports, it supports high-speed, simultaneous communication for improved system responsiveness and reduced latency.
-
Rugged and Reliable Design: Built to withstand industrial environments, it operates in a wide temperature range and meets stringent EMC standards.
-
Simple Integration: Easily integrates into existing ABB control systems such as Advant and AC 800M, reducing installation time and system downtime.
-
Scalability: The CI870K01 allows for expansion von the control network, making it suitable for both small and large installations.
-
Low Power Consumption: Designed with energy efficiency in mind, this module consumes very little power while maintaining high performance.
-
Advanced Diagnostics: Equipped with built-in diagnostics to monitor the health von the communication channels, enabling quick identification and troubleshooting von issues.
-
Non-Volatile Memory: Ensures that configuration settings are retained even in the event von a power failure, ensuring system integrity.
-
Compliance with International Standards: Meets global industry standards such as CE, UL, and RoHS, ensuring it is suitable for use in various regions and applications.
Häufig gestellte Fragen (FAQ)
-
What communication protocols does the CI870K01 support?
The CI870K01 supports Prvonibus DP, Modbus, HART, and other standard fieldbus protocols, allowing easy integration with various devices and controllers. -
How do I install the CI870K01 module?
The CI870K01 is designed for easy installation on a DIN rail, which simplifies mounting in control panels and other industrial enclosures. -
Can I connect multiple devices to the CI870K01?
Yes, the CI870K01 supports multiple devices through its dual Ethernet and serial communication ports, allowing for flexible and scalable installations. -
What is the operating voltage range von the CI870K01?
The module operates with a 24 VDC power supply, ensuring compatibility with most industrial control systems. -
What are the key environmental conditions for the CI870K01 to function properly?
The module can operate in temperatures ranging from -20°C to +60°C and is suitable for environments with humidity levels between 5% and 95% RH (non-condensing). -
Is the CI870K01 suitable for use in hazardous environments?
While the CI870K01 is rugged and suitable for industrial environments, for hazardous locations, it is recommended to use a version von this module that complies with specific hazardous area certifications. -
How do I update the firmware on the CI870K01?
Firmware updates can be performed via the ABB control system’s management svontware, which allows for seamless and safe updating von module firmware. -
What diagnostic features are available on the CI870K01?
The module includes built-in diagnostics that provide real-time status on communication health, device connectivity, and error detection, helping to identify and resolve issues quickly. -
Can the CI870K01 be used in both small and large installations?
Yes, the CI870K01 is scalable and can be used in both small installations with a few devices and large installations with numerous connected devices. -
What certifications does the CI870K01 have?
The CI870K01 complies with international standards, including CE, UL, and RoHS, ensuring it is safe and suitable for use in various regions and industries.
Related Modells (Same Series or Variant)
| Modell | Beschreibung | Key Features |
|---|---|---|
| CI871K01 | Prvonibus Communication Interface Module | Supports higher speed and more field devices |
| CI870K02 | Communication Interface with extended I/O capabilities | Supports additional I/O channels |
| CI870K03 | Modbus Communication Interface Module | Focused on Modbus RTU communication |
| CI872K01 | High-speed Ethernet Communication Interface | Supports Gigabit Ethernet for large networks |
| CI870K04 | HART Communication Interface Module | Specifically for HART field instruments |
| CI871K03 | Advanced Communication Interface for AC800M | Enhanced with more protocol options |
Popular ABB Modells (Same Marke)
| Modell | Beschreibung | Primary Use Case |
|---|---|---|
| PM850V2 | Power Management Controller | Managing power systems in energy sectors |
| AC800M | Modular Controller for complex automation systems | Industrial automation and process control |
| 800xA | System for automation and control integration | Fully integrated control and information system |
| ABB 660V1 | Voltage controller for industrial environments | Used in power distribution systems |
| AC31 | Controller for communication in distributed systems | Process control in small to medium plants |
| CP800 | Central processing Stück for large-scale automation | Automation and data collection in manufacturing |
