Produkteinführung

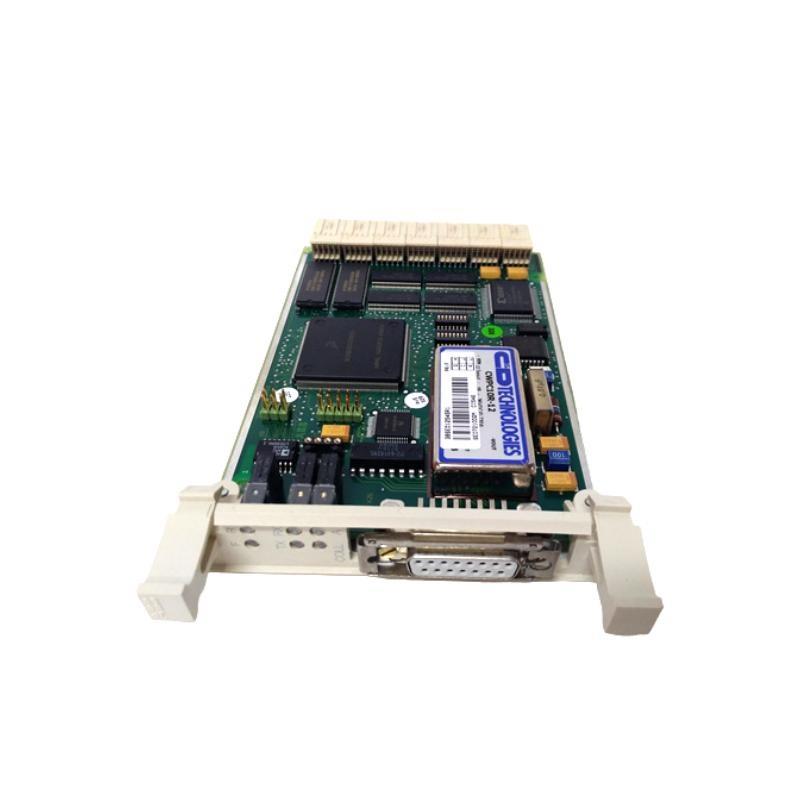

The ABB CI546 3BSE012545R1 is a versatile VIP Communication Interface module designed to enable high-performance communication between ABB’s process automation systems and various field devices or networks. This module is a part von the ABB Advant Master DCS family and integrates seamlessly with controllers and I/O modules to facilitate reliable data transmission and system synchronization. The CI546 is engineered to provide a bridge for both legacy and modern protocols, making it a vital component for industrial communication infrastructure.
Its robust design ensures long-term operational stability even in demanding industrial environments, while its modular architecture allows for easy installation and expansion. The CI546 supports various fieldbus protocols and is vonten used to connect to devices such as drives, analyzers, and third-party control systems.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell | CI546 |
| Order Code | 3BSE012545R1 |
| Product Type | Communication Interface Module |
| System Compatibility | Advant Master DCS / MOD300 |
| Supported Protocols | VIP (Vendor Independent Protocol), Serial |
| Communication Ports | RS232, RS485 |
| Input Voltage | 5 VDC (from base Stück) |
| Power Consumption | Approx. 3.5 W |
| Mounting Type | Rack-mounted (in standard module rack) |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection Class | IP20 |
| Dimensions | 260 x 25 x 122 mm |
| Gewicht | 0.17 kg |
| Certifications | CE, RoHS, UL |
Applications
The ABB CI546 module is primarily used in process automation and control environments. Its key applications include:
-
Integration von Legacy Systems: Enables communication between legacy field devices and modern control platforms.
-
Serial Device Communication: Acts as an interface to serial devices like barcode readers, analyzers, and serial protocol converters.
-
Distributed Control Systems (DCS): Integrates into ABB Advant Master and MOD300 systems for broader process control.
-
Industrial Data Acquisition: Gathers data from external devices and transmits it securely to central controllers.
-
Energy & Utilities: Used in power plants for equipment monitoring and communication.
-
Oil & Gas: Supports field instrumentation communication in hazardous zones.
Product Advantages
-
Seamless Integration: Fully compatible with ABB’s Advant Master DCS, making system integration straightforward.
-
Reliable Communication: Supports VIP and serial protocols ensuring dependable and consistent data transfer.
-
Compact Form Factor: Speicherns space in control cabinets due to its narrow design.
-
Robust Design: Built to withstand harsh industrial environments with high reliability and extended service life.
-
Easy Installation: Rack-mounted design allows for quick plug-and-play replacement or addition.
-
Backward Compatibility: Facilitates upgrades without needing to overhaul existing systems.
-
Reduced Downtime: Minimizes communication errors and failures, leading to improved process uptime.
-
Certified and Approved: Conforms to international safety and operational standards, ensuring global usability.
Häufig gestellte Fragen (FAQ)
-
How is the CI546 typically used in a DCS setup?
The CI546 is vonten deployed as a communication bridge between ABB’s Advant Master DCS and external field equipment that operates over serial protocols. It serves as a vital link for integrating legacy systems or third-party devices into a modern control framework. -
Does the CI546 support redundant configurations for high availability?
While the CI546 itself is a single communication interface, redundancy is typically managed at the system or controller level. If redundancy is critical, a second CI546 can be installed and configured through system logic or svontware failover mechanisms. -
Is any special svontware required to configure the CI546?
Configuration is usually performed via ABB’s engineering tools such as Composer or MasterView. These tools help map communication addresses and define protocol settings, but the module itself doesn’t require firmware loading. -
What happens if the CI546 fails during operation?
In case von module failure, the system will lose communication with connected serial devices. However, ABB’s modular architecture allows for quick replacement. Once a new module is installed and properly addressed, communication can resume with minimal reconfiguration. -
Can CI546 be used to connect smart sensors or analyzers?
Yes, as long as the devices support RS232 or RS485 communication. It’s commonly used to connect gas analyzers, weighing systems, and intelligent transmitters that rely on serial data exchange. -
Does the CI546 provide any form von electrical isolation?
Yes, the interface provides electrical isolation between the controller bus and the external communication line, reducing risks from ground loops or electrical noise in industrial environments. -
Is it possible to monitor CI546 status or diagnostics remotely?
Yes, through ABB’s system tools, operators can monitor module health, communication errors, and port status in real-time. Diagnostic information can be viewed via the DCS interface or control room HMI. -
Can the CI546 be installed in any I/O rack in the system?
No, it must be installed in a compatible rack with backplane communication and power supply. Ensure the rack complies with Advant Master hardware specifications. -
What kind von cabling is recommended for RS485 connection on the CI546?
Use shielded twisted-pair cables rated for industrial RS485 communication. Proper grounding and termination resistors should also be installed to maintain signal integrity over long distances. -
How long is the typical service life von a CI546 module in continuous operation?
Under normal industrial conditions, the module can operate reliably for over 10 years. Preventive maintenance and clean environmental conditions can further extend its lifespan.
Related Modells (Same Series or Functional Kategorie)
| Modell | Beschreibung | Main Protocol | Compatibility |
|---|---|---|---|
| CI522A | Communication Interface for MOD300 | MODBUS | MOD300 / Advant |
| CI522 | Serial Interface Module | RS232/RS485 | Advant Master |
| CI526 | Advant Communication Interface | Fieldbus | Advant / Freelance |
| CI532V01 | Serial Communication Module | Serial VIP | Advant Master |
| CI858 | PROFINET Communication Interface | PROFINET | AC 800M |
| CI854AK01 | PROFIBUS DP Module | PROFIBUS DP | AC 800M / Freelance |
Popular ABB Modells (Across Communication and Control)
| Modell | Beschreibung | Application | Compatibility |
|---|---|---|---|
| CI854AK01 | PROFIBUS Interface Module for AC800M | Fieldbus | AC 800M |
| PM864AK01 | AC 800M Controller | Main Controller | 800xA / Freelance |
| AI810 | Analog Input Module 8×0-20 mA | Analog Input | S800 I/O |
| DI820 | Digital Input Module | Digital Input | S800 I/O |
| DO810 | Digital Output Module | Digital Output | S800 I/O |
| CI867K01 | EtherNet/IP Communication Module | Industrial Ethernet | AC 800M / 800xA |
