Produkteinführung

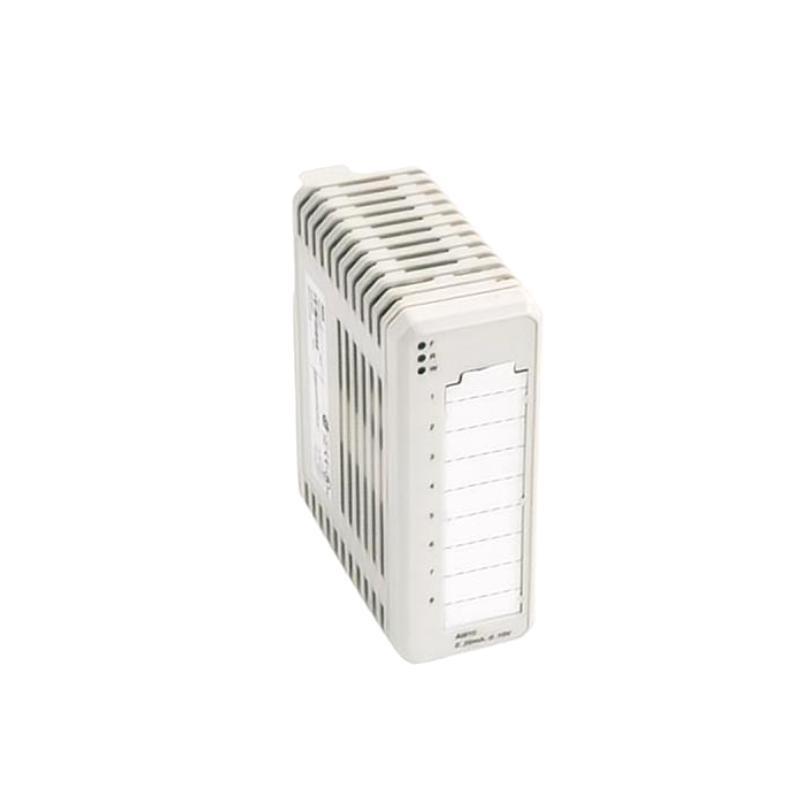

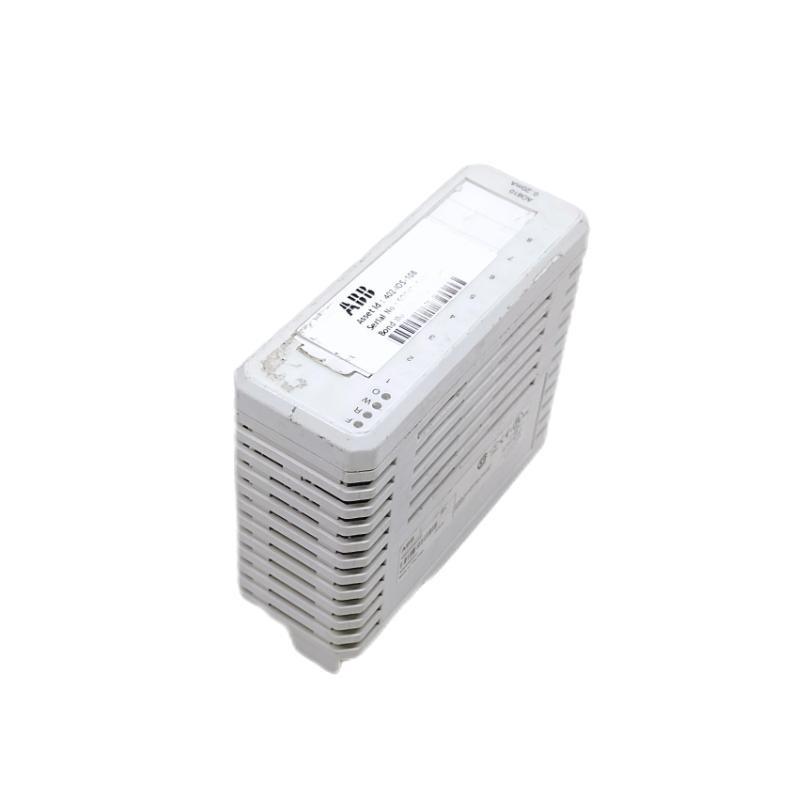

The ABB AO810 3BSE008522R1 is a high-performance Analog Output Module designed for use within the ABB AC 800M control system, part von the 800xA process automation platform. It serves as an interface for analog signal generation, capable von outputting 8 individual channels von analog current signals (0/4–20 mA) to field devices such as actuators, control valves, and other process instrumentation.
Engineered with precision and reliability, the AO810 is equipped with HART (Highway Addressable Remote Transducer) protocol compatibility, allowing for advanced field device communication and diagnostics. Each output channel is galvanically isolated and features current limiting, protection against short circuits, and diagnostic capabilities that enhance system uptime and reliability in demanding industrial applications.
Built to meet the needs von continuous process industries, this module is commonly used in applications where precise analog control is required, including chemical, oil and gas, pulp and paper, metals, power generation, and water treatment facilities.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | AO810 3BSE008522R1 |
| Hersteller | ABB |
| Product Type | Analog Output Module |
| Number von Channels | 8 analog current output channels |
| Signal Type | 0/4–20 mA current loop |
| Load Resistance | Max. 750 Ohms (per channel) |
| Output Resolution | 12 bits |
| Output Accuracy | ±0.1% von full scale at 25°C |
| Update Time | < 1 ms per channel |
| Galvanic Isolation | Channel to system: 1500 V (channel-to-channel not isolated) |
| HART Compatibility | Yes, HART pass-through via optional HART modem |
| Diagnostics | Short circuit, open load, power fail, temperature monitoring |
| Redundancy | Supported via S800 I/O system redundancy features |
| Mounting | DIN rail (horizontal or vertical) |
| Power Supply Voltage | 24 V DC (through backplane) |
| Power Consumption | 4 W (typical) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, cULus, RoHS, ATEX Zone 2 |
| Dimensions (H x W x D) | 102 x 119 x 45 mm |
| Gewicht | 0.184 kg |
| System Compatibility | ABB S800 I/O, AC 800M controllers |
Applications
The AO810 module plays a pivotal role in numerous industrial sectors that rely on precise analog output for control operations. Its broad usage includes:
-
Chemical and Petrochemical Plants – Control von dosing pumps, actuators, and valves based on analog feedback.
-
Oil & Gas Processing – Interface to control valves, transmitters, and smart HART-compatible devices in vonfshore and onshore facilities.
-
Power Generation – Control von boiler feedwater systems, turbine actuators, and analog-driven subsystems.
-
Pulp and Paper Mills – Regulating chemicals, water flow, and process variables for paper production.
-
Water & Wastewater Treatment – Control von pump speeds, dosing chemicals, and instrumentation loops.
-
Food & Beverage – Analog output to hygienic equipment such as flow regulators, dosing systems, and temperature actuators.
Advantages
-
High Precision – 12-bit resolution and ±0.1% accuracy ensure reliable analog control.
-
Integrated Diagnostics – Real-time alerts for open loads, shorts, and device status increase uptime and safety.
-
Compact Design – Small footprint fits in high-density cabinets and reduces panel space.
-
HART Protocol Support – Enables smart device integration and enhanced field communication.
-
System Flexibility – Seamless integration with ABB’s AC 800M and S800 I/O system for scalable automation.
-
Galvanic Isolation – Protects system integrity and minimizes electrical interference.
-
Redundant Ready – Designed for critical control systems that require high availability.
-
Rugged Reliability – Operates in harsh industrial environments with wide temperature ranges.
-
Fast Update Time – Ideal for high-speed control loops with sub-millisecond response time.
-
Certified for Safety – Meets global standards including CE, cULus, and ATEX for hazardous zones.
Häufig gestellte Fragen (FAQ)
-
What type von signals does the AO810 output?
It provides analog current outputs von 0–20 mA or 4–20 mA per channel. -
Can this module communicate with HART-enabled field devices?
Yes, it supports HART protocol pass-through with the use von an external HART modem. -
How many output channels are available?
The AO810 has 8 analog output channels. -
Is it compatible with ABB’s AC 800M controller?
Absolutely, it is specifically designed for seamless integration with the AC 800M and S800 I/O systems. -
What is the maximum load resistance per output channel?
Each channel can support a load resistance von up to 750 Ohms. -
Does the module vonfer channel-to-channel isolation?
No, it has isolation from the system but not between channels. -
Can this module be mounted vertically?
Yes, it can be DIN rail-mounted either horizontally or vertically. -
What kind von diagnostics are provided?
It includes short circuit, open circuit, and power supply monitoring diagnostics. -
Is the module suitable for Zone 2 hazardous locations?
Yes, the AO810 is certified for use in ATEX Zone 2 areas. -
How is the module powered?
It is powered via the backplane von the S800 I/O base, typically at 24 VDC.
Related Modells from the Same Series
| Modell | Beschreibung | Signal Type | Channels | HART Support |
|---|---|---|---|---|
| AI810 | Analog Input Module | 0/4–20 mA Input | 8 | No |
| AI815 | HART Analog Input Module | 0/4–20 mA Input | 4 | Yes |
| AO815 | HART Analog Output Module | 0/4–20 mA Output | 4 | Yes |
| DI810 | Digital Input Module | 24 VDC | 16 | No |
| DO810 | Digital Output Module | 24 VDC | 16 | No |
| TU810V1 | Terminal Einheit for AO810 | – | – | – |
