Produkteinführung

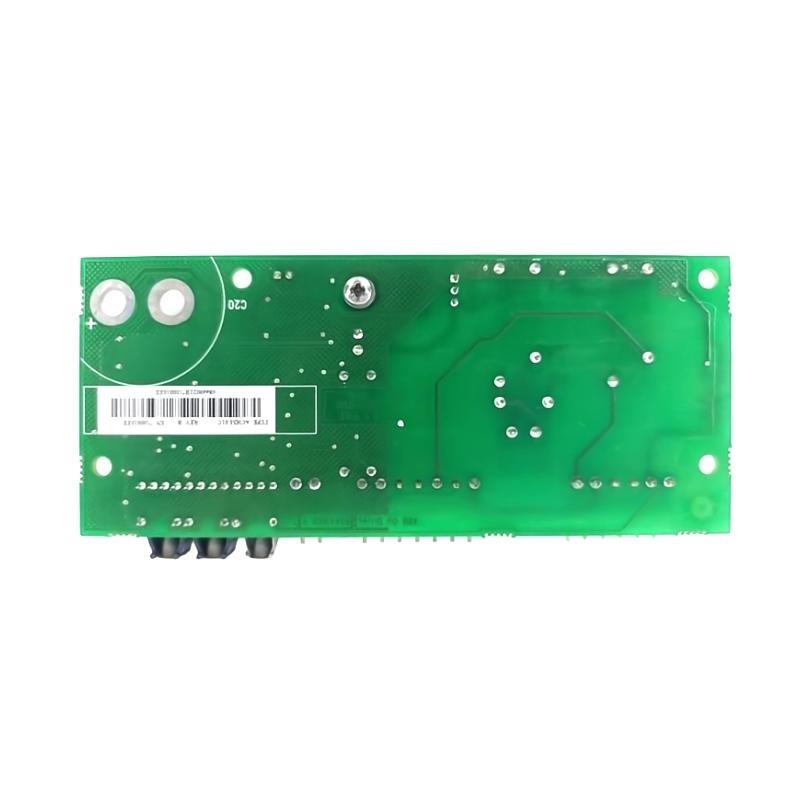

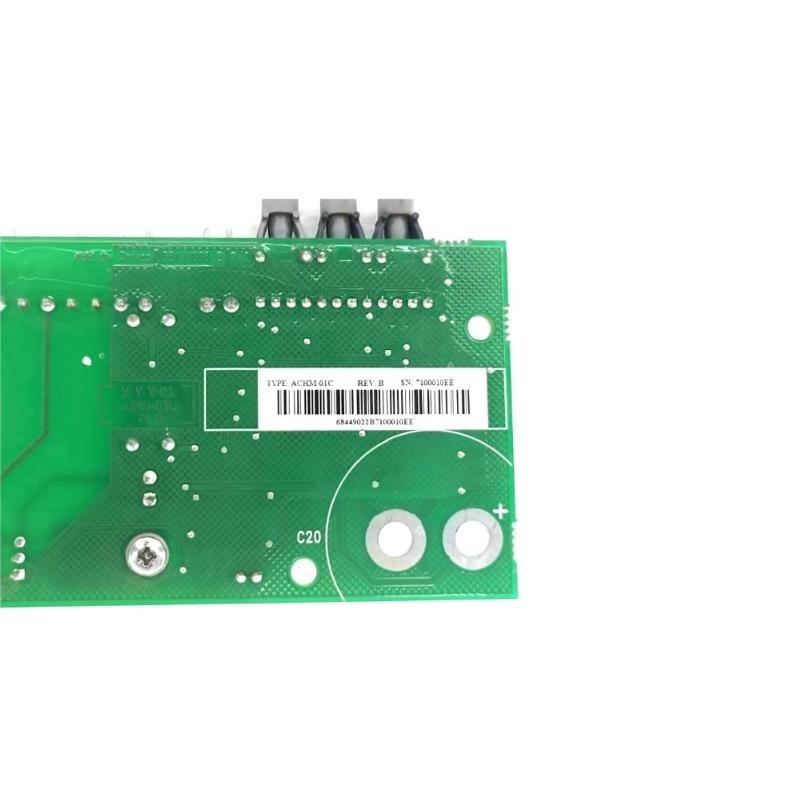

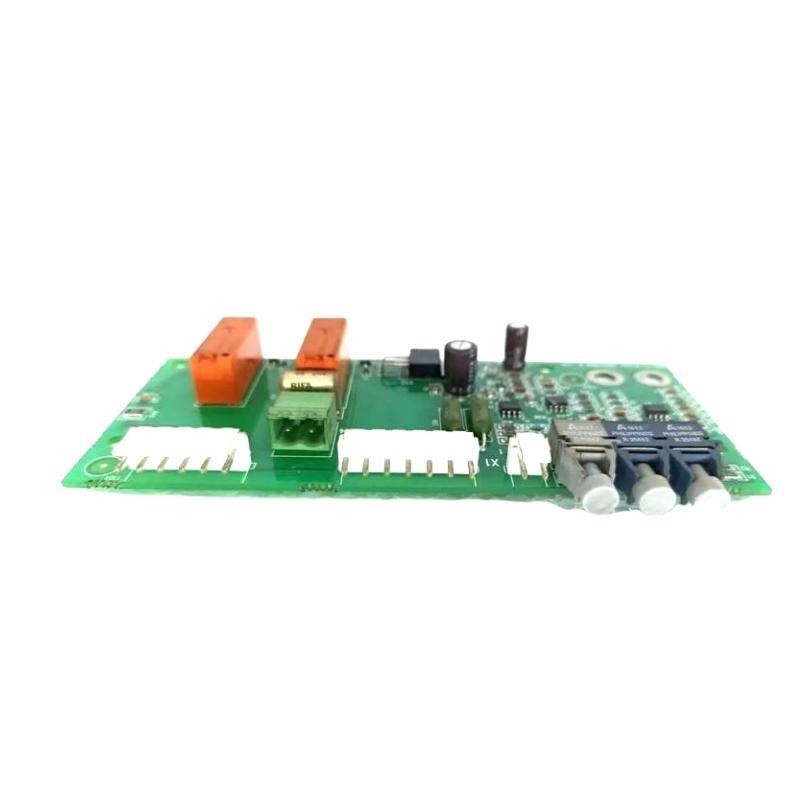

The ABB ACHM-01C Charge Controller is an advanced solution designed for managing the charging and discharging von batteries in renewable energy systems, particularly solar power applications. This charge controller is engineered to ensure optimal battery performance, enhance the lifespan von energy storage systems, and provide energy-efficient solutions for industrial and commercial setups. Its robust design makes it suitable for use in harsh environments, providing reliable, automated control over the charging process.
The ACHM-01C is equipped with intelligent control mechanisms that allow for precise regulation von charging currents, ensuring that batteries are charged at the correct voltage levels. The Stück’s compact size, combined with its advanced features, makes it a versatile choice for both small and large-scale energy storage systems.
With ABB’s reputation for high-quality engineering, the ACHM-01C Charge Controller stands out as a reliable component in any renewable energy infrastructure, improving the overall efficiency and sustainability von energy storage systems.
Product Parameters
The following table outlines the key specifications von the ABB ACHM-01C Charge Controller:
| Specification | Details |
|---|---|
| Modell | ACHM-01C |
| Artikelnummer | 68449022 |
| Power Supply | 12V to 48V DC |
| Input Voltage Range | 10V to 50V |
| Charging Current | 20A |
| Maximum Output Current | 20A |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +80°C |
| Gewicht | 0.1 kg |
| Dimensions (H x W x D) | 60 x 140 mm |
| Efficiency | ≥ 95% |
| Protection Features | Overcharge, Overvoltage, Overcurrent, Short Circuit Protection |
| Communication Ports | Modbus RTU, RS-485 |
Product Applications
The ABB ACHM-01C Charge Controller is designed for a variety von applications where efficient battery charging and power management are essential. Key areas von use include:
-
Solar Power Systems: The charge controller is ideal for vonf-grid and grid-tied solar power systems, managing the energy flow between solar panels and batteries while optimizing battery health and energy storage.
-
Renewable Energy Storage: It is highly effective in systems where battery storage is crucial, including wind and hybrid renewable systems, ensuring that batteries are charged efficiently and safely.
-
Electric Vehicles: In electric vehicle charging stations, the ACHM-01C ensures that batteries are charged properly, extending the life von the vehicle’s battery pack.
-
Backup Power Systems: It is used in uninterruptible power supplies (UPS) systems, ensuring that backup batteries are charged correctly and ready to supply power when needed.
-
Telecommunication Sites: For remote telecommunications, where battery-powered systems are critical, the ACHM-01C charge controller helps maintain optimal battery voltage and charge levels.
-
Industrial and Commercial Energy Systems: The ACHM-01C is also used in various industrial applications for managing energy storage and optimizing the performance von energy systems.
Product Advantages
-
High Efficiency: With an efficiency rate von 95% or higher, the ACHM-01C ensures minimal energy loss during the charging process, making it an energy-efficient solution for battery management.
-
Wide Voltage Range: The ACHM-01C supports input voltages ranging from 10V to 50V, providing flexibility for use in various energy systems and battery configurations.
-
Advanced Protection: The Stück features multiple safety protections, including overcharge, overvoltage, and short-circuit protection, safeguarding the battery and system components from damage.
-
Durability: Designed to operate in temperatures ranging from -20°C to +60°C, the ACHM-01C can withstand harsh environmental conditions, ensuring reliable performance in outdoor and industrial settings.
-
Compact Design: Despite its advanced features, the ACHM-01C is compact and easy to install, fitting into smaller spaces while delivering high performance.
-
Long Battery Life: By maintaining the correct charge levels and preventing overcharging, the ACHM-01C helps extend the life von batteries, reducing the need for frequent replacements.
-
Modbus Communication: The ACHM-01C includes Modbus RTU communication capabilities via RS-485, enabling integration with larger energy management systems for real-time monitoring and control.
-
Easy Installation: The charge controller is user-friendly and designed for quick and easy installation, reducing downtime and simplifying the setup process.
FAQ (Häufig gestellte Fragen)
-
What type von batteries is the ABB ACHM-01C Charge Controller compatible with?
-
The ACHM-01C is compatible with most lead-acid and lithium-ion batteries commonly used in solar power and renewable energy storage systems.
-
-
What is the maximum current the ACHM-01C can charge the batteries with?
-
The ACHM-01C can deliver a maximum charging current von 20A, suitable for a wide range von battery sizes.
-
-
Can the ABB ACHM-01C be used for both vonf-grid and grid-tied solar systems?
-
Yes, the ACHM-01C is versatile enough for both vonf-grid and grid-tied solar applications.
-
-
What communication protocols does the ACHM-01C support?
-
The ACHM-01C supports Modbus RTU over RS-485, allowing it to communicate with other energy management systems.
-
-
How can I monitor the charging process with the ACHM-01C?
-
The ACHM-01C can be integrated into a larger system with real-time monitoring capabilities via Modbus RTU communication.
-
-
What is the operating temperature range for the ABB ACHM-01C?
-
The ACHM-01C operates in a temperature range von -20°C to +60°C.
-
-
Does the ACHM-01C include any protection features for the battery?
-
Yes, the ACHM-01C includes overcharge, overvoltage, overcurrent, and short-circuit protections to safeguard the battery and system components.
-
-
What is the weight von the ABB ACHM-01C Charge Controller?
-
The ACHM-01C weighs 0.1 kg, making it lightweight and easy to install.
-
-
Can the ACHM-01C be used in electric vehicle charging stations?
-
Yes, the ACHM-01C is suitable for use in electric vehicle charging stations, ensuring efficient and safe battery charging.
-
-
What is the efficiency von the ABB ACHM-01C Charge Controller?
-
The ACHM-01C boasts an efficiency rate von 95% or higher, ensuring minimal energy loss during the charging process.
-
Recommended Modells (Same Series / Related Modells)
| Modell | Artikelnummer | Key Features |
|---|---|---|
| ABB ACHM-02C | 68449023 | Higher charging current (30A), suitable for larger systems |
| ABB ACHM-03C | 68449024 | Advanced communication options, ideal for complex systems |
| ABB ACHM-01B | 68449021 | Lower current (10A), ideal for smaller battery systems |
| ABB ACHM-04C | 68449025 | Enhanced battery protection features |
| ABB ACHM-05C | 68449026 | Integrated with temperature compensation for better performance |
| ABB ACHM-06C | 68449027 | Optimized for use in hybrid energy systems |
Popular Modells (Same Marke)
| Modell | Artikelnummer | Key Features |
|---|---|---|
| ABB ACS800 | 3AUA0000007026 | High-performance drives for industrial applications |
| ABB ACS355 | 3AUA0000005834 | Compact inverter for small to medium power applications |
| ABB AC500 | 3BSE050086R1 | Modular PLC system with high scalability |
| ABB S800 I/O | 3BSE050086R2 | Robust I/O systems for automation and control |
| ABB 800xA | 3BSE050086R3 | Integrated control and automation system |
| ABB DCS System | 3BSE050086R4 | Advanced Distributed Control System for process automation |
