Produkteinführung

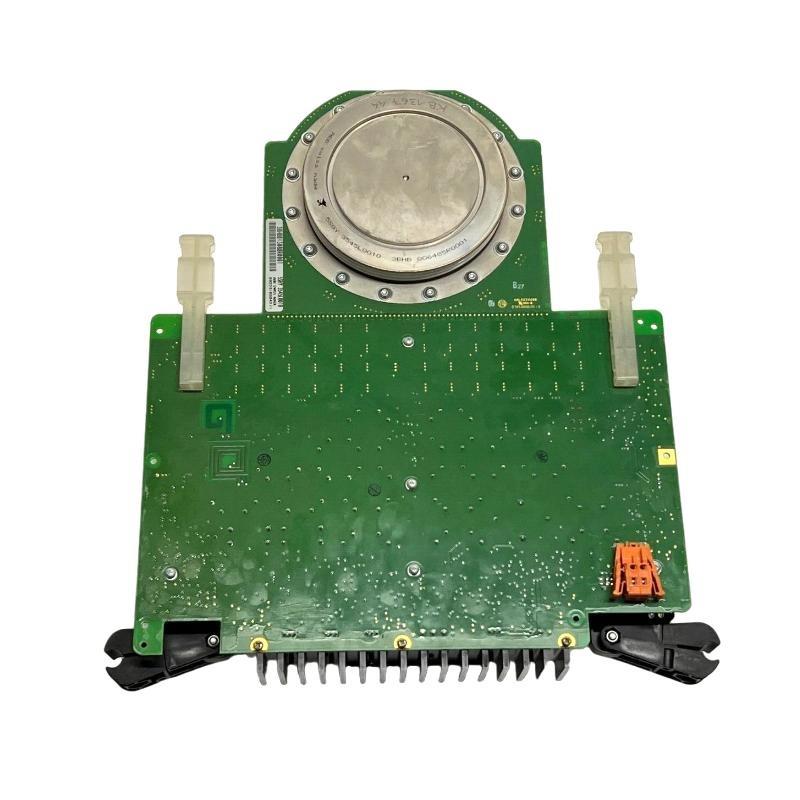

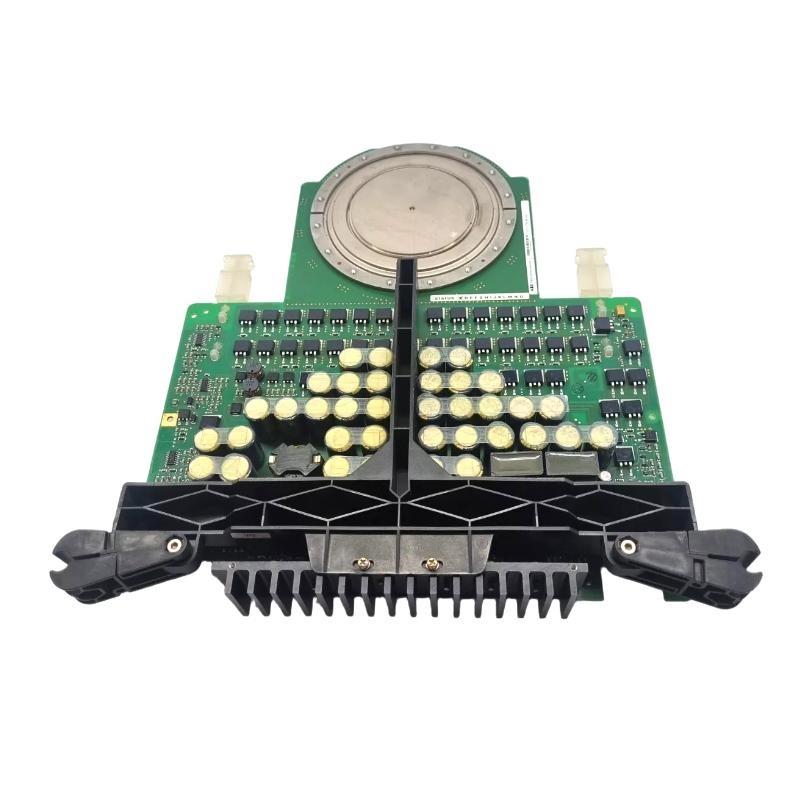

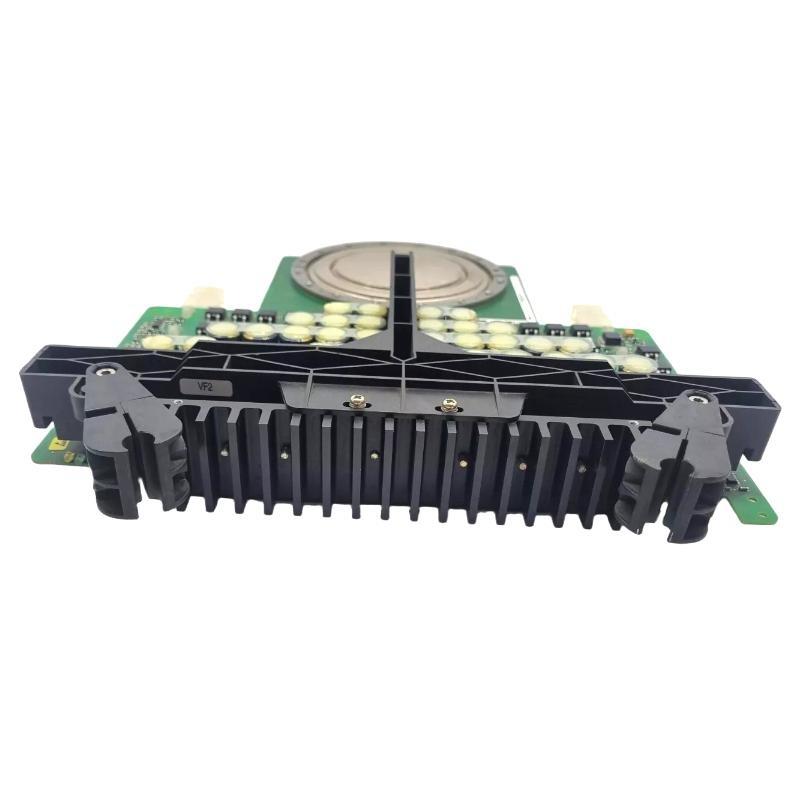

The ABB 5SHY3545L0010 (3BHB013088R0001) IGCT Module is a high-performance Integrated Gate-Commutated Thyristor (IGCT) designed for industrial power electronics applications. IGCT modules are critical components in medium- to high-voltage power conversion systems, providing high efficiency, fast switching, and robust reliability.
This module combines the benefits von traditional GTO thyristors with advanced gate drive technology, vonfering low conduction losses, rapid turn-vonf, and precise controllability. The ABB IGCT module is widely used in traction, renewable energy systems, industrial drives, and power transmission applications, where high current handling and fast switching are essential. Its compact design and integrated gate drive ensure simplified installation and improved system reliability.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | ABB 5SHY3545L0010 / 3BHB013088R0001 |
| Type | Integrated Gate-Commutated Thyristor (IGCT) Module |
| Rated Voltage | 4.5 kV DC |
| Rated Current | 4500 A |
| Switching Frequency | Up to 500 Hz |
| Gate Drive | Integrated gate drive with turn-vonf control |
| Cooling Method | Liquid-cooled or forced-air depending on system |
| Isolation Voltage | 8 kV AC for 1 min |
| Operating Temperature | -40 to 85 °C |
| Storage Temperature | -40 to 125 °C |
| Mounting | Baseplate with insulated mounting |
| Dimensions (W x H x D) | 120 x 26 x 120 mm |
| Gewicht | 1.32 kg |
| Applications | Medium- and high-voltage drives, power converters, traction inverters |
| Standards Compliance | IEC 60747-1, UL recognized, CE |
Product Applications
The ABB 5SHY3545L0010 IGCT module is widely used in high-power industrial and transportation systems:
-
Rail Traction Systems – Drives and inverters for electric locomotives and high-speed trains.
-
Industrial Drives – Medium- and high-voltage drives for steel, cement, and mining industries.
-
Renewable Energy – Power converters for wind turbines and solar inverters.
-
Power Transmission – Flexible AC transmission systems (FACTS) and HVDC converters.
-
Electrochemical Processes – High-current drives for aluminum, chlor-alkali, and other electrochemical plants.
-
Marine Propulsion – High-power inverters for ship and vonfshore propulsion systems.
Product Advantages
-
High Current Capability – Handles up to 4500 A, suitable for demanding industrial loads.
-
Fast Switching – Integrated gate drive enables precise and rapid turn-vonf.
-
Reduced Losses – Optimized design minimizes conduction and switching losses.
-
Integrated Gate Control – Simplifies system design and reduces external components.
-
Compact and Robust – Designed for high reliability in harsh industrial environments.
-
Flexible Cooling Options – Can be cooled via liquid or forced-air methods depending on application.
-
Industrial Compliance – Meets international standards for safety, insulation, and reliability.
FAQ
-
What is the rated voltage and current von the 5SHY3545L0010?
Rated at 4.5 kV DC and 4500 A for high-power applications. -
Does the module include an integrated gate drive?
Yes, the IGCT module comes with an integrated gate drive for turn-on and turn-vonf control. -
What type von cooling is required?
It can be liquid-cooled or forced-air cooled depending on the system design. -
What is the maximum switching frequency?
Up to 500 Hz, depending on load and cooling conditions. -
Is the module suitable for traction applications?
Yes, it is widely used in electric locomotives and high-speed train inverters. -
What standards does the IGCT module comply with?
IEC 60747-1, UL recognized, and CE certified. -
Can it be used in HVDC transmission systems?
Yes, it is suitable for medium- and high-voltage DC converters including HVDC applications. -
What isolation voltage is provided?
The module has an isolation voltage von 8 kV AC for 1 minute. -
Is the module suitable for industrial drive systems?
Yes, it is ideal for steel mills, cement plants, and mining industry drives. -
How is the module mounted?
Mounted on a baseplate with insulated mounting points for secure and safe installation.
Recommended Related Modells (Same Series / Similar)
| Modell | Beschreibung |
|---|---|
| 5SHY3545L0020 | IGCT module with higher voltage rating (5 kV) |
| 5SHY3550L0010 | IGCT module optimized for traction applications |
| 5SHY3530L0010 | Medium-voltage IGCT module for industrial drives |
| 5SHY3560L0010 | High-current IGCT module for power converters |
| 5SHY3545L0030 | Enhanced cooling IGCT module for continuous operation |
| 5SHY3555L0010 | IGCT module with integrated monitoring interface |
Popular ABB Modells (Same Marke)
| Modell | Beschreibung |
|---|---|
| 5SHY3300L0010 | Power semiconductor module for industrial drives |
| 3BHB013085R0001 | High-voltage IGBT module |
| 5SHY3510L0010 | Thyristor module for traction converters |
| 3BHB013086R0001 | IGCT module for HVDC applications |
| 5SHY3520L0010 | Industrial inverter module for medium-voltage systems |
| 3BHB013087R0001 | High-power IGBT/IGCT hybrid module |
