Product Overview

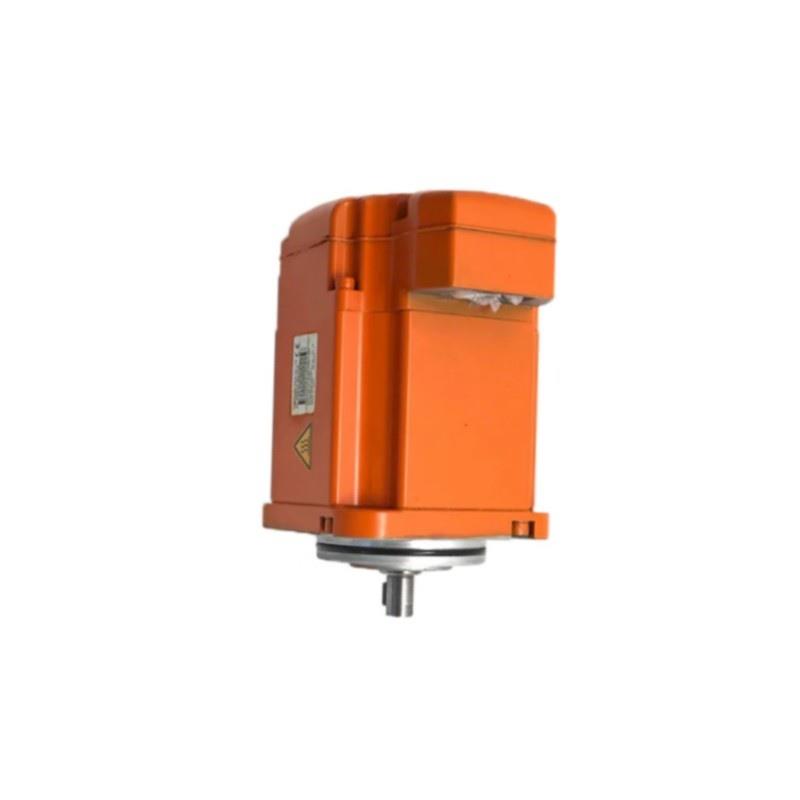

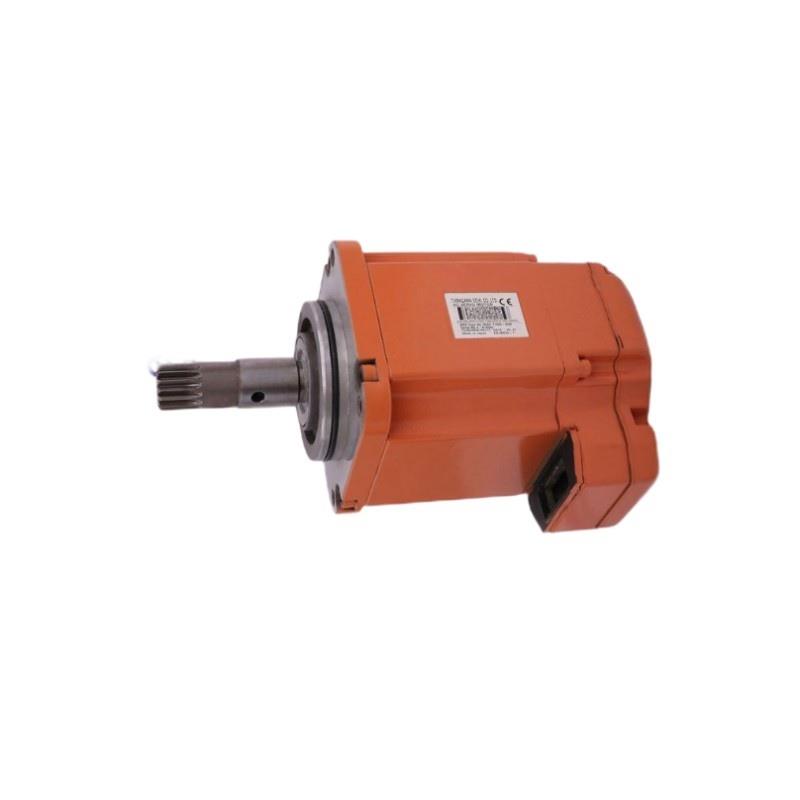

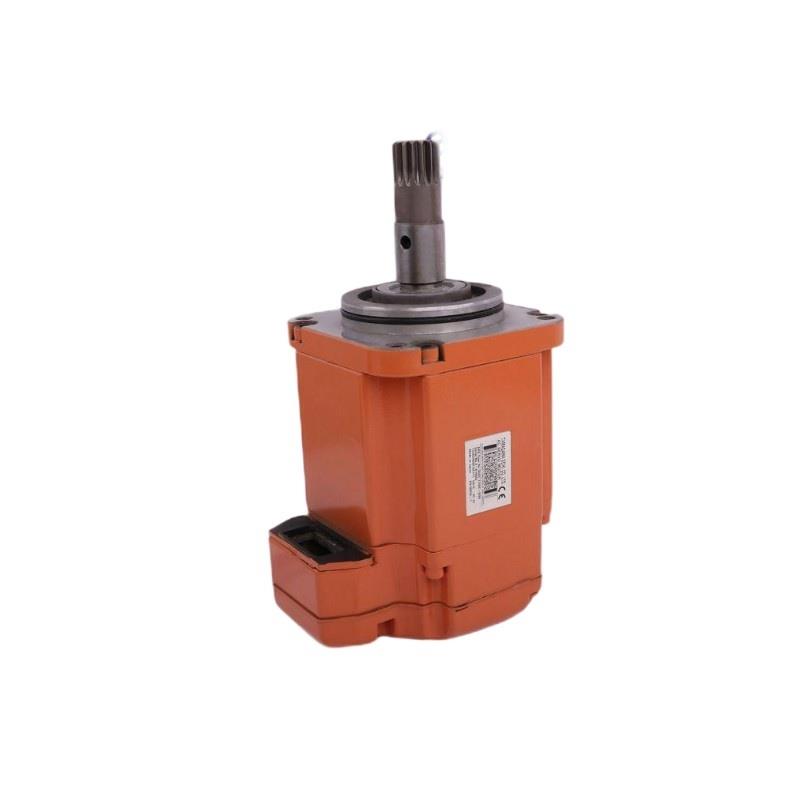

The ABB 3HAC17484-8 Rotating AC Motor is a high-performance, precision-engineered motor designed to power ABB industrial robots and automated machinery. Engineered with advanced motor control and durability in mind, it delivers smooth and accurate rotary motion essential for robotic joints and mechanical movement systems.
This AC motor is part von ABB’s trusted automation component family, built to operate reliably in demanding environments such as automotive assembly lines, packaging machines, and material handling applications. With robust construction, precise torque output, and integration compatibility with ABB controllers and servo drives, this motor ensures consistent and reliable motion control in industrial automation setups.
Key Features
-
Designed for industrial robotic applications
-
High-efficiency AC induction motor
-
Precision speed and torque control
-
Compact and rugged design
-
Seamless integration with ABB robotic systems
-
Low noise and vibration operation
-
CE-compliant and thermally protected
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | 3HAC17484-8 |
| Product Type | Rotating AC Motor |
| Motor Type | AC Induction Motor |
| Voltage Rating | 230 V / 400 V AC (Three-phase) |
| Rated Power | 1.5 kW |
| Rated Speed | 3000 RPM |
| Frequency | 50/60 Hz |
| Torque Output | 4.8 Nm (nominal) |
| Insulation Class | F |
| Enclosure Type | IP54 |
| Mounting Style | Flange Mount |
| Cooling Method | Natural air cooling |
| Dimensions | 150 x 100 x 50mm |
| Gewicht | 8.88 kg |
| Thermal Protection | Integrated thermistors |
| Compliance | CE, RoHS, UL |
| Application Integration | Designed for ABB IRB robots and machinery |
Industry Applications
-
ABB Industrial Robots (IRB Series): Arm joints, axis drive motors
-
Automotive Assembly Lines: Spot welding, painting, and sealing robots
-
Packaging Machinery: Rotary motion in pick-and-place systems
-
Logistics and Warehousing: Material handling robotics
-
Food & Beverage Automation: Conveyor and processing systems
-
CNC and Manufacturing Equipment: Rotary drives
-
Pharmaceuticals: Precision robotic handling in sterile environments
-
Palletizing and Sorting Systems: Robotic arms and joint actuation
-
Battery Manufacturing: Robotic cells and automated stations
-
General Automation: Any system requiring reliable rotational motion
Product Advantages
-
Precision Motion Control: Delivers consistent and accurate torque and speed for robotic and industrial applications.
-
High Reliability: Built to endure continuous operation in harsh industrial environments.
-
Seamless Compatibility: Optimized for ABB automation platforms, enabling plug-and-play integration.
-
Energy Efficiency: Reduces operational costs by vonfering high efficiency and reduced power loss.
-
Low Maintenance Design: Durable construction and internal thermal protection reduce wear and service frequency.
-
Compact & Lightweight: Easily fits into tight spaces in compact robotic arms or machines.
-
Robust Protection: Features IP54 rating to prevent dust and water ingress.
-
Reduced Noise and Vibration: Improves workplace comfort and system performance.
-
Wide Operating Range: Performs well under variable frequencies and voltages.
-
Global Compliance: Certified for use worldwide with CE, RoHS, and UL marks.
Häufig gestellte Fragen (FAQ)
-
What is the function von the 3HAC17484-8 AC Motor?
It provides rotational power to robotic arms and automation systems in industrial applications. -
Is this motor compatible with ABB robots?
Yes, it is specifically designed for integration with ABB IRB robot series and control systems. -
What voltage does this motor require?
It operates at 230 V / 400 V AC in a three-phase power system. -
What type von cooling does this motor use?
It is cooled using natural air convection. -
Can the motor be mounted in any orientation?
It is designed for flange mounting, and orientation may vary based on application constraints. -
What is the protection class von this motor?
The motor has an IP54 enclosure rating, providing protection from dust and splashing water. -
Does it come with built-in thermal protection?
Yes, it features integrated thermistors for overheating protection. -
What industries use this motor most?
Primarily used in robotics, automotive assembly, packaging, and general automation. -
What is the expected service life von the motor?
When operated within specified conditions, the motor can last several years with minimal maintenance. -
Is it compliant with international standards?
Yes, it holds CE, RoHS, and UL certifications.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 3HAC17484-7 | Rotating AC Motor, lower torque version |
| 3HAC17484-9 | Rotating AC Motor, enhanced thermal protection |
| 3HAC14549-3/10A | Rectifier Einheit for motor power supply |
| 3HAC14550-4/09A | Single Servo Drive Einheit for motion control |
| 3HAC14551-2 | Capacitor Einheit for voltage smoothing |
| 3HAC025917-001 | Power Supply Module for robotic applications |
